For the A1 mini, printer logs are stored in the 'logger,' 'recorder,' and 'corelogger' folders located at the root of the micro SD card. There's no concern about logs filling up the card, as the total file size is capped between 600-700 MB for efficient space management.
The essential log contains information about temperature, motion system, wifi/camera/communication with cloud/printer status, etc.
Logs identify issues like print quality and abnormal stops in printing.
Logs for AP board recovery(may not exist).
Be aware that the A1 series Micro SD card is not hot swappable. Removing the card without selecting the 'Eject' option could lead to corruption or damage.
The printer allows for ejecting the micro SD card via the 'Setting' tab, similar to how it's done on a computer
Go to Settings → SD Card and select 'Eject' to safely remove the card.
You can also remove the SD card without ejecting it from the screen, as long as the printer is turned off.
Log files from the A1 mini can be uploaded via Bambu Handy over the network, similar to the X1 series, with an upload speed of around 150 kbps under optimal network conditions.
When uploading logs, you have the option to select a specific time frame, allowing you to reduce the volume of logs transmitted and shorten the upload duration.

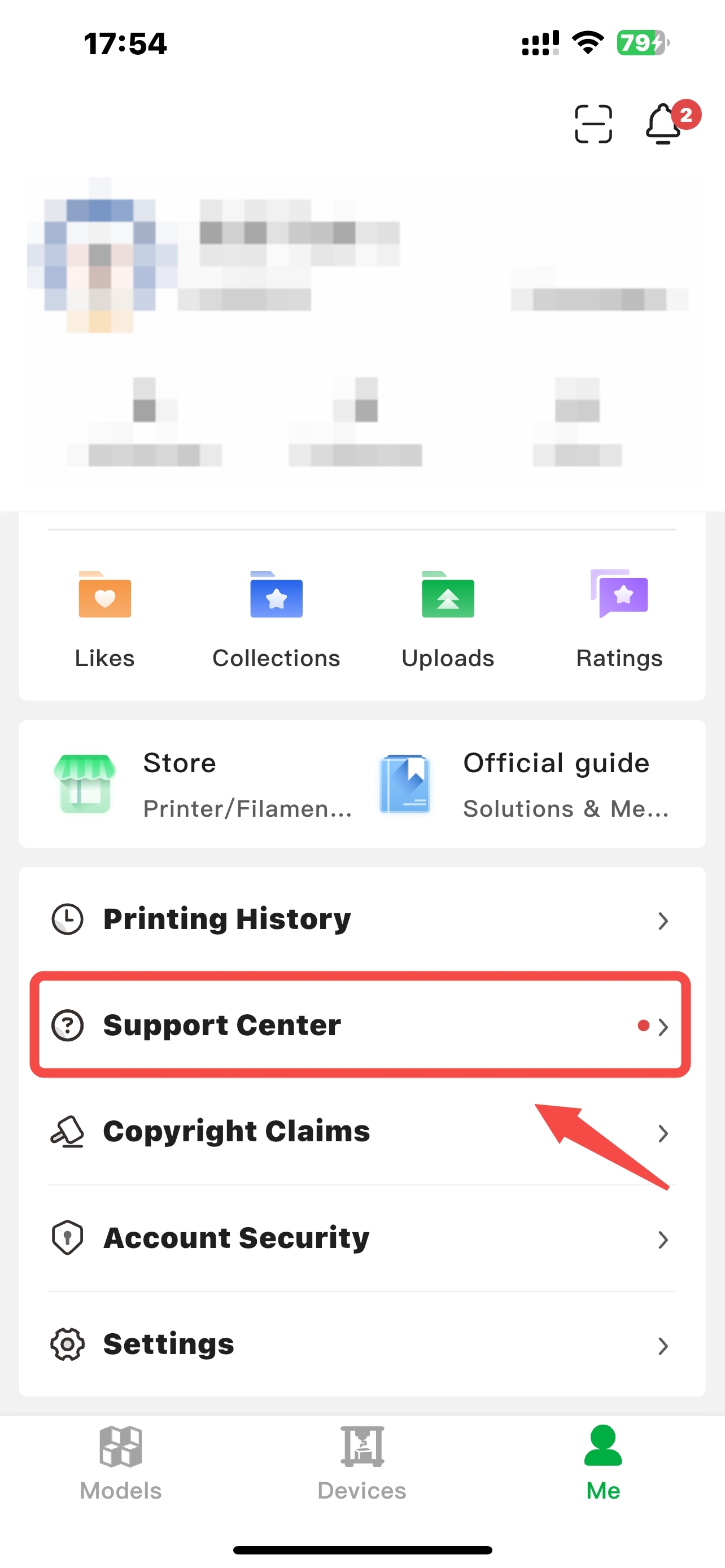

To upload files, go to Me → Support Tickets → Choose the ticket for log upload and proceed with the operation.
If for any reason you are unable to upload the logs using Bambu Handy, you can also manually upload the logs on our Web Support Page
1. After ejecting the micro SD card from the printer, connect it to your computer using a micro SD card reader. Create a new folder on your PC in a different location and copy the 'logger', 'recorder', and 'corelogger' folders from the micro SD card to this new folder."
2. Create a support ticket, describe the issue, and upload the printer's log files.
This page primarily details the retrieval of A1 mini log files. For more information on creating a ticket and uploading log files, please refer to the following two articles.
Create a ticket and upload log files
How to update log files to an existing ticket
Printer logs record abnormal information during the printer operation process. Analyzing these logs helps the support team quickly identify problems and provide solutions. Including log files when submitting a technical ticket improves problem-solving efficiency, saves time, and reduces the need for repeated communication.
If you encounter a printer issue, you can use your phone to record a video describing the problem. Depending on the type of issue, we offer the following suggestions:
If you encounter a printer issue, please use your phone to record a video based on the following suggestions:
If you encounter an intermittent issue, we recommend checking if there is any time-lapse recording on the microSD card. This can assist in diagnosing the problem.
In addition to uploading logs via the cloud when your printer is connected online, you can also upload the log files directly from the microSD card through the website.
Since logs are automatically saved on the microSD card, there's no need to export them. Simply upload the log files from the microSD card directly through the website.
If the printer does not have a microSD card or if the microSD card function is malfunctioning. In such cases, the log files are not considered a mandatory requirement.
If you encounter a situation where you cannot export the logs, but the ticketing system requests log uploads, please report this issue through a general ticket or refer to the next question. We will assess the situation and determine the necessity of uploading logs based on the actual circumstances.
If your issue is not listed in the options above, you can select the "Other" option to submit your problem. In this case, we will not require you to upload images, videos, or printer logs.
When contacting our technical support team, if they determine that recording a video or uploading log files is necessary, they will provide further guidance. This information is important for us to diagnose and resolve your issue effectively.
We understand that providing this information may sometimes be inconvenient, but we believe that with your cooperation, we can resolve your issue more efficiently. If you encounter any difficulties while providing the requested information, please let us know, and we will do our best to assist you.
We hope the detailed guide provided has been helpful and informative.
To ensure a safe and effective execution, if you have any concerns or questions about the process described in this article, we recommend submitting a Technical ticket regarding your issue. Please include a picture or video illustrating the problem, as well as any additional information related to your inquiry.
