¶ Packing list
The type and quantity of accessories may change from time to time. Please refer to the actual items you receive.
Combo version: A1 mini printer, AMS lite body, AMS lite stand and installation screws, AMS lite rotary spool holder, purge wiper, and its screws, spool holder with the bracket and its screws, PTFE tubes (580 mm *2, 700 mm *2), Textured PEI plate, Sample filament, Unclogging Pin Tool, Allen keys (H2 and H1.5), Cable Organizer, Bambu Scraper Blade and it screws, lubricant grease, lubricant oil, and Bambu filament swatches.
Non-combo version: A1 mini printer, purge wiper, and its screws, spool holder with the bracket and its screws, PTFE tube, Textured PEI plate, Sample filament, Unclogging Pin Tool, Allen keys (H2 and H1.5), Cable Organizer, Bambu Scraper Blade and it screws, lubricant grease, and lubricant oil.
| No. | Physical photos | Descriptions | Applications |
| 1 |
 |
A1 mini printer | |
| 2 |
 |
AMS lite body | For AMS Lite assembly |
| 2 |
 |
AMS lite stand and installation screws | For AMS Lite assembly |
| 4 |
 |
AMS lite Rotary spool holder | For AMS Lite assembly |
| 5 |
 |
Purge wiper and its screws | For efficiently handle the waste filament discharged from the nozzle. |
| 6 |
 |
Spool holder with the bracket and its screws | For hold the external spool |
| 7 |
 |
PTFE tubes (580 mm *2, 700 mm *2) | For transportation of the filament. Only applicable to the combo version. |
| 8 |
 |
Textured PEI plate | Placed on the heatbed to hold the model; Both sides can be used. |
| 9 |
 |
Sample filament 20g | |
| 10 |
 |
Unclogging Pin Tool | Special unclogged tool for the 0.4 mm hotend |
| 11 |
 |
Allen keys (H2 and H1.5) |
Disassembly and assembly tools Two versions (with or without handles) are randomly shipped. |
| 12 |
 |
Cable Organizer | For organize the toolhead cable and PTFE tubes |
| 13 |
 |

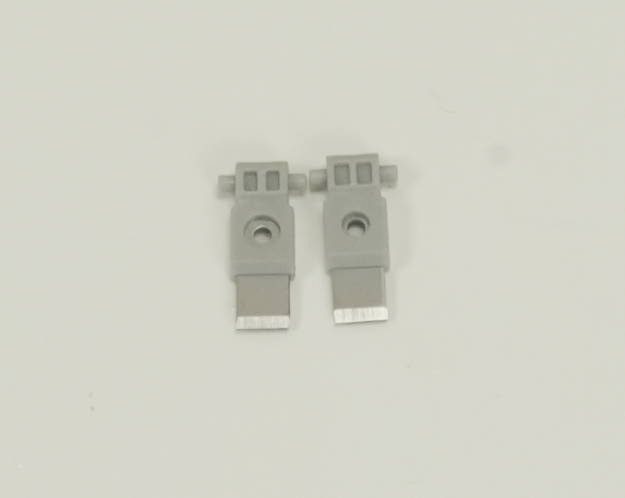

Bambu Scraper Blade and it screws | Print 'Scraper grip' from the built-in files，and then install the scraper to it. |
| 14 |
 |

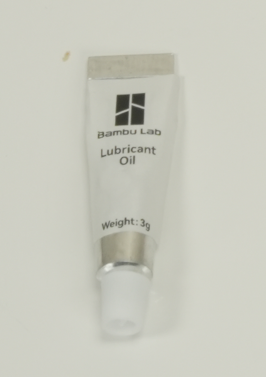

Lubricant oil | Used to lubricate the X, Y and Z rail to reduce wear and noise, ensure the accuracy and lifespan of the printer, and effectively prevent the guide rails from rusting. |
| 15 |
 |
Lubricant grease | Used to lubricate the lead screw to ensure the its smooth operation, and effectively reduce the noise caused by the movement of the screw. |
| 16 |
 |

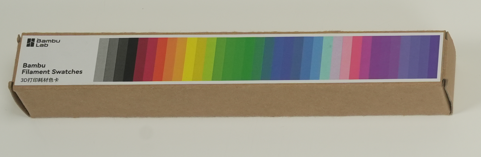

Bambu filament swatches | Only applicable to the combo version. |
| 16 |
 |
Quick start guide | |
| 17 |
 |
Disclaimer and Safety Guidelines |
