We offer presets for 17 different filaments, and you can download the corresponding parameters from the product page and import them into Bambu Studio.

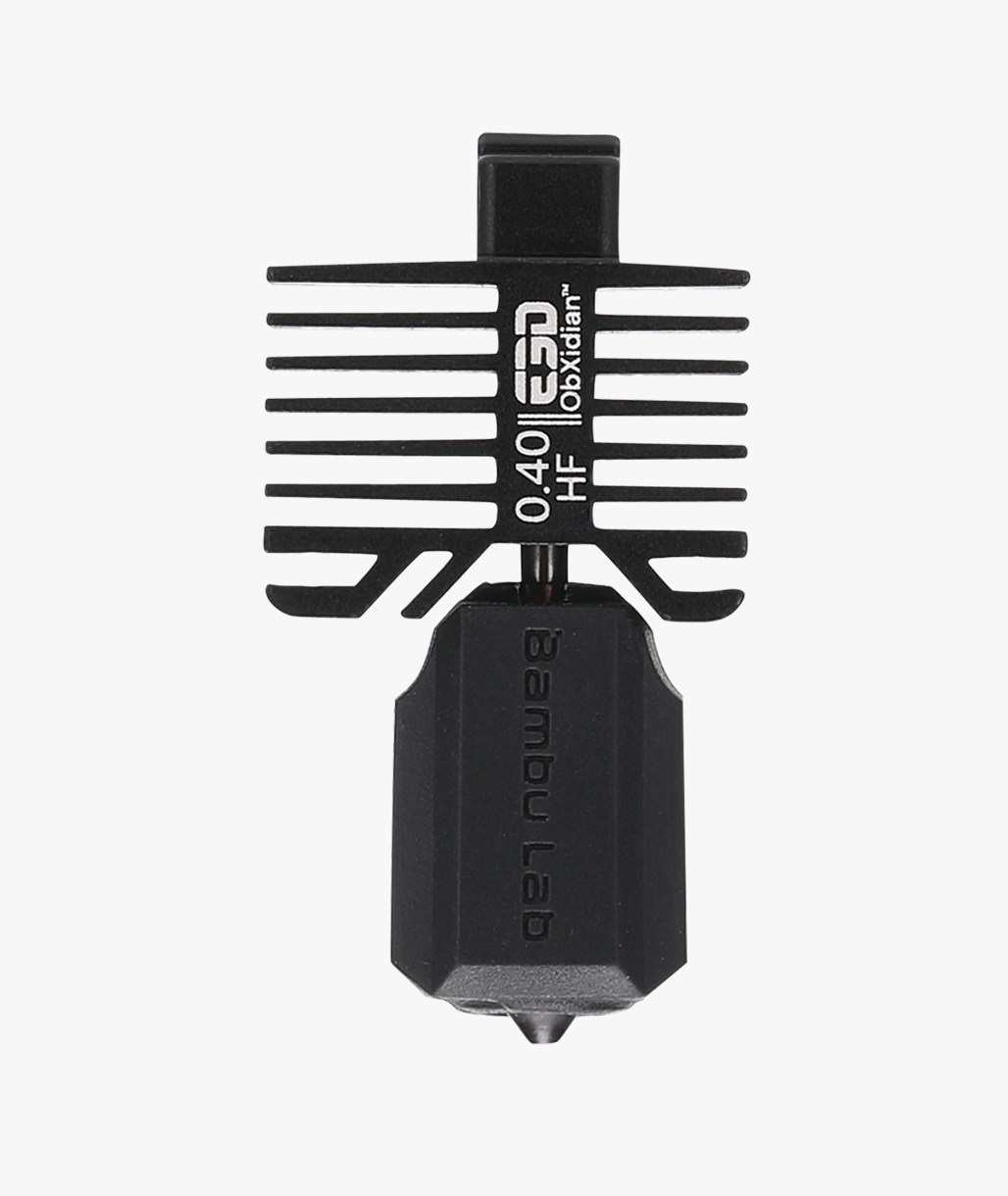

If the filament you need to print is not among these 17 filaments, you can use the E3D HF ObXidian™ 0.4mm Hotend with custom settings to print your desired filament.
You may refer to the following guidelines for parameter settings:

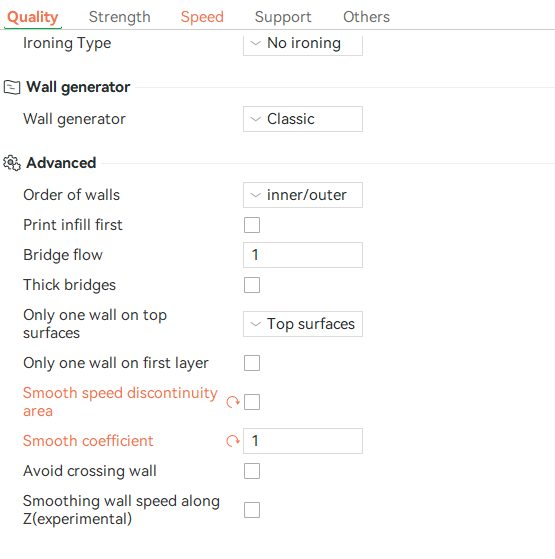

¶ 1. Process Settings

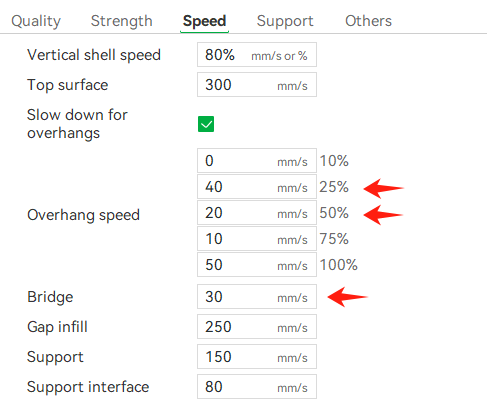

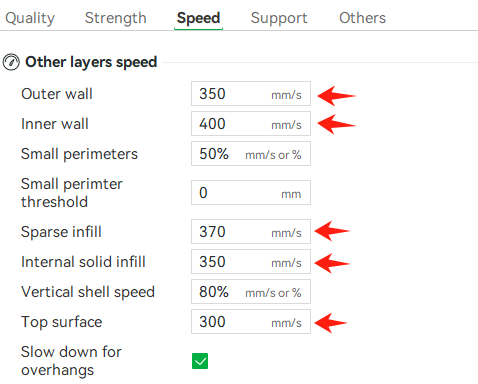

The speed has been adjusted for better detail and print quality. The process settings can be applied to X1C/P1S/P1P models.
.png)
.png)

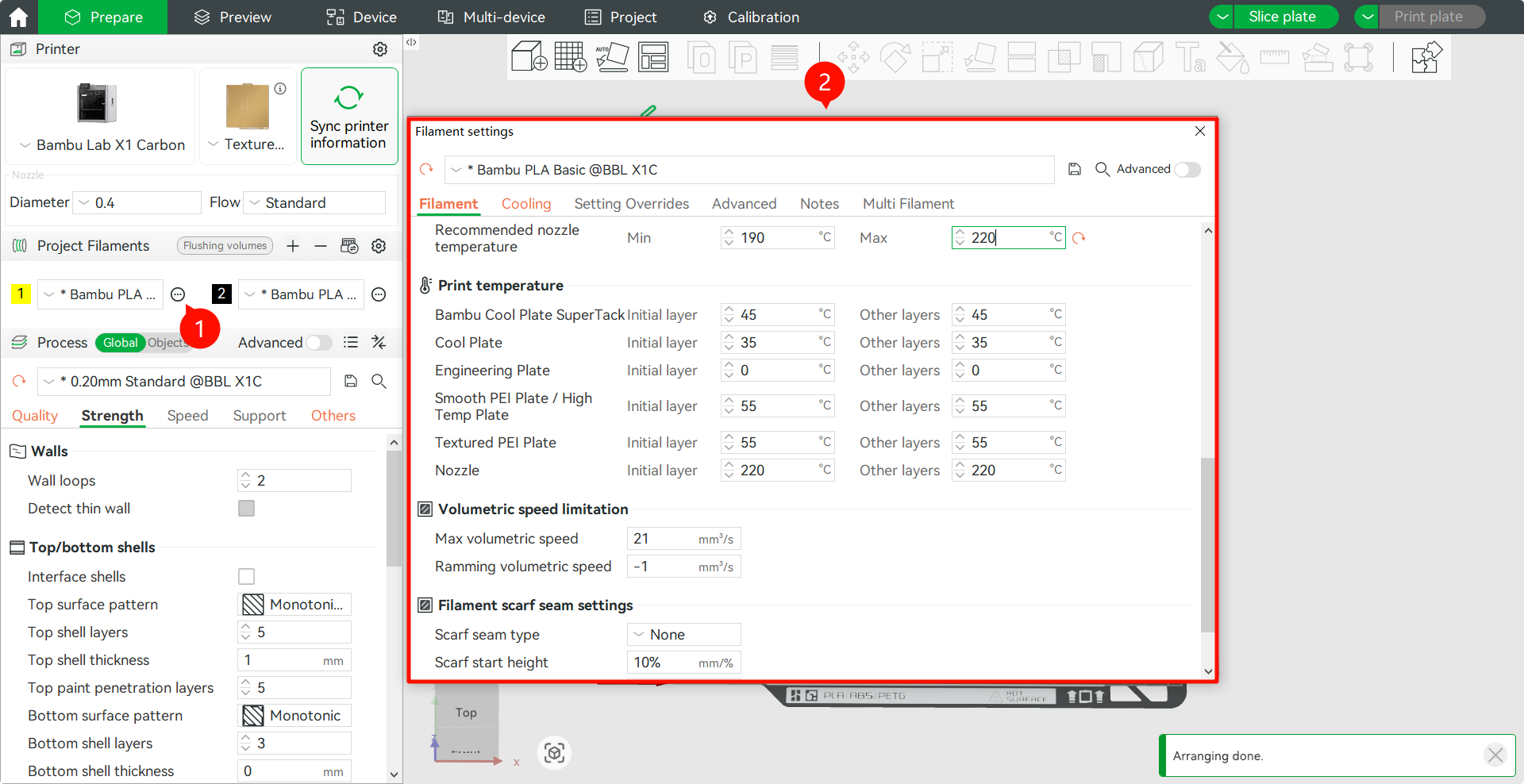

¶ 2. Filament Settings
¶ For X1C/P1S
| Type | Filament | Print Temperature(Nozzle-Other layers)/℃ | Max volumetric speed/(mm³/s) | Cooling |
|---|---|---|---|---|
| PLA | PLA Basic | 220 | 29 | - |
| PLA Matte | 220 | 29 | - | |
| PLA Metal | 220 | 29 | Max fan speed threshold - Layer time:6s | |
| PLA Marble | 220 | 25 | - | |
| PLA Silk | 230 | 12 | Max fan speed threshold - Layer time:8s | |
| PLA Silk+ | 230 | 12 | Max fan speed threshold - Layer time:8s | |
| PLA Sparkle | 220 | 25 | - | |
| PLA Glow | 220 | 25 | - | |
| PLA Dynamic | 220 | 25 | Max fan speed threshold - Layer time:6s | |
| PLA Galaxy | 220 | 25 | - | |
| PLA Wood | 220 | 25 | - | |
| PLA Lite | 210 | 21 | Max fan speed threshold - Layer time:6s | |
| PETG | PETG HF | 230 | 29 | Max fan speed threshold - Fan speed:80 |
| PETG Translucent | 245 | 6 | Max fan speed threshold - Fan speed:80 | |
| TPU | TPU for AMS | 230 | 18 | - |
| PC | PC | 280 | 29 | Max fan speed threshold - Fan speed:80; Min fan speed threshold - Fan speed:30 |
| ABS | ABS | 270 | 16 | - |
¶ For P1P
| P1P | ||||
|---|---|---|---|---|
| Type | Filament | Print Temperature(Nozzle-Other layers)/℃ | Max volumetric speed/(mm³/s) | Cooling |
| PLA | PLA Basic | 220 | 29 | - |
| PLA Matte | 220 | 29 | - | |
| PLA Metal | 220 | 29 | - | |
| PLA Marble | 220 | 25 | - | |
| PLA Silk | 230 | 12 | Max fan speed threshold - Layer time:12s | |
| PLA Silk+ | 230 | 12 | Max fan speed threshold - Layer time:12s | |
| PLA Sparkle | 220 | 25 | - | |
| PLA Glow | 220 | 25 | - | |
| PLA Dynamic | 220 | 25 | - | |
| PLA Galaxy | 220 | 25 | - | |
| PLA Wood | 220 | 25 | - | |
| PLA Lite | 210 | 21 | - | |
| PETG | PETG HF | 230 | 29 | Max fan speed threshold - Fan speed:80 |
| PETG Translucent | 245 | 6 | Max fan speed threshold - Fan speed:80 | |
| TPU | TPU 95A HF | 230 | 12 | - |
| TPU for AMS | 230 | 18 | - | |
| PC | PC | 280 | 29 | Max fan speed threshold - Fan speed:80Min fan speed threshold - Fan speed:30 |
| ABS | ABS | 270 | 16 | - |
¶ 0.6mm
We have calibrated the flow rate and suggest you modify the corresponding Factor k before starting printing with the 0.6mm hotend.

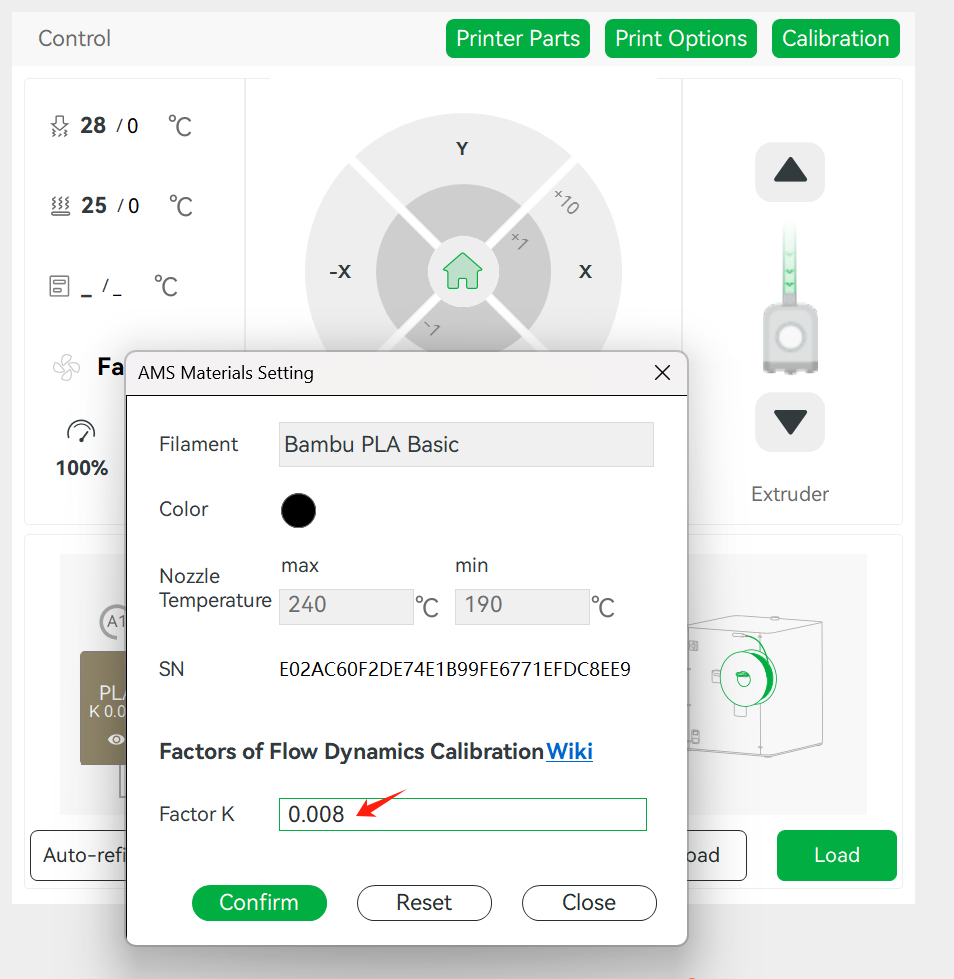

Factors of Flow Dynamics Calibration
PATH：Studio - AMS Materials Setting - Change Factor K - Confirm
¶ 1. For X1C
¶ Process

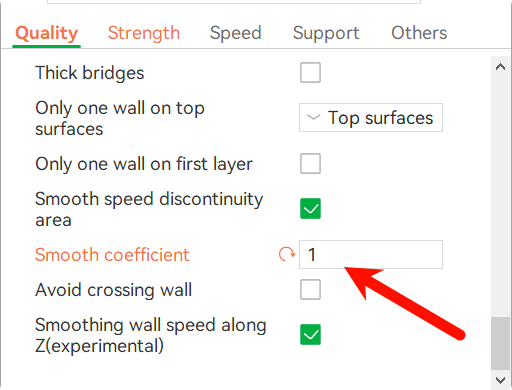

Quality: Smooth coefficient:1

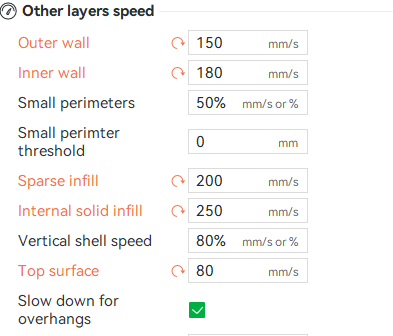

Speed:
¶ Filament parameters
| X1C | |||||||
|---|---|---|---|---|---|---|---|
| Type | Filament | Print Temperature(Nozzle-Other layers)/℃ | Max volumetric speed/(mm³/s) | Cooling | Flow ratio | Retraction | Factor K |
| PLA | PLA Basic | 220 | 29 | - Max fan speed threshold: Layer time: 12s - Cooling overhang threshold: 25% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 50mm/s - Deretraction Speed: 50mm/s - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.008 |
| PLA Matte | 220 | 29 | - Max fan speed threshold: Layer time: 8s | 0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.005 | |
| PLA Metal | 220 | 29 | - Max fan speed threshold: Layer time: 12s - Cooling overhang threshold: 25% |
default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.003 | |
| PLA Marble | 220 | 25 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 25% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.005 | |
| PLA Silk+ | 230 | 12 | - Max fan speed threshold: Layer time: 12s - Cooling overhang threshold: 10% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 30mm/s - Deretraction Speed: 30mm/s |
0.001 | |
| PLA Sparkle | 220 | 25 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 10% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 50mm/s - Deretraction Speed: 50mm/s |
0.008 | |
| PLA Glow | 220 | 25 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 25% |
default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 50mm/s - Deretraction Speed: 50mm/s |
0.001 | |
| PLA Galaxy | 220 | 25 | - Cooling overhang threshold: 25% | default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.001 | |
| PLA Wood | 220 | 25 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 25% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.015 | |
| PETG | PETG HF | 245 | 29 | - Min fan speed threshold: Fan speed: 60% - Max fan speed threshold: Fan speed: 80% Layer time:12s |
0.952 | - Length: 0.4mm - Z hop when retract: 0.6mm - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.01 |
| PETG Translucent | 245 | 12 | - Min fan speed threshold: Fan speed: 40% - Max fan speed threshold: Fan speed: 80% |
default | - Length: 0.4mmZ hop when retract: 0.5mm - Z Hop Type: Spiral - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.008 | |
| TPU | TPU for AMS | 230 | 6 | - Min fan speed threshold: Fan speed: 80% - Max fan speed threshold: Fan speed: 100% - Cooling overhang threshold: 10% - Fan speed: 80% |
0.975 | - Length: 0.2mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.001 |
| PC | PC | 260 | 18 | - Min fan speed threshold: Fan speed: 30% - Max fan speed threshold: Fan speed: 60% |
0.945 | - Length: 0.45mm - Z hop when retract: 0.6mm - Z Hop Type: Spiral |
0.01 |
| ABS | ABS | 270 | 25 | - Min fan speed threshold: Fan speed: 50% - Max fan speed threshold: Fan speed: 50% |
default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s - Long retraction when cut(experimental): NO |
0.005 |
¶ 2.2 For P1P/P1S
¶ Process
Quality

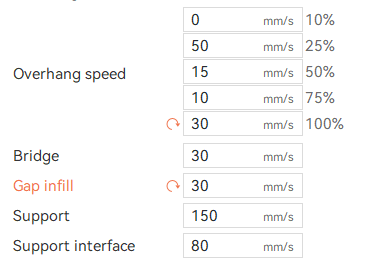

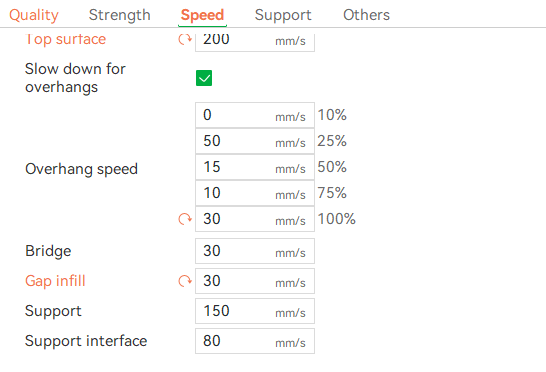

Speed
¶ Filament Setting
| P1S/P1P | |||||||
|---|---|---|---|---|---|---|---|
| Type | Filament | Print Temperature(Nozzle-Other layers)/℃ | Max volumetric speed/(mm³/s) | Cooling | Flow ratio | Retraction | Factor K |
| PLA | PLA Basic | 220 | 29 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 25% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 50mm/s - Deretraction Speed: 50mm/s - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.008 |
| PLA Matte | 220 | 29 | - Max fan speed threshold: Layer time: 8s | 0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.005 | |
| PLA Metal | 220 | 29 | - Max fan speed threshold: Layer time: 12s - Cooling overhang threshold: 25% |
default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.003 | |
| PLA Marble | 220 | 25 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 25% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.005 | |
| PLA Silk+ | 230 | 12 | - Max fan speed threshold: Layer time: 12s - Cooling overhang threshold: 10% |
0.985 | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 30mm/s - Deretraction Speed: 30mm/s |
0.001 | |
| PLA Sparkle | 220 | 25 | - Max fan speed threshold: Layer time: 8s | 0.985 | - Length: 0.4mm - Z hop when retract: 0.4mm - Z Hop Type: SpiralRetraction Speed: 50mm/s - Deretraction Speed: 50mm/s - Retract when change layer:YES -Wipe while retracting:YES - Wipe Distance:1mm |
0.008 | |
| PLA Glow | 220 | 25 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 25% |
default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 50mm/s - Deretraction Speed: 50mm/s |
0.001 | |
| PLA Galaxy | 220 | 25 | - Max fan speed threshold: Layer time: 8s - Cooling overhang threshold: 25% |
default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.001 | |
| PLA Wood | 220 | 25 | - Max fan speed threshold: Layer time: 8s | 0.985 | - Length: 0.4mm - Z hop when retract: 0.4mm - Z Hop Type: Spiral - Retraction Speed: 40mm/s - Retract when change layer:YES - Wipe while retracting:YES - Wipe Distance:1mm |
0.015 | |
| PETG | PETG HF | 245 | 29 | - Min fan speed threshold: Fan speed: 60% - Max fan speed threshold: Fan speed: 80% |
0.952 | - Length: 0.4mm - Z hop when retract: 0.6mm - Long retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.01 |
| PETG Translucent | 245 | 12 | - Min fan speed threshold: Fan speed: 40% - Max fan speed threshold: Fan speed: 80% |
default | - Length: 0.4mm - Z hop when retract: 0.5mm - Z Hop Type: SpiralLong retraction when cut(experimental): YES - Retraction distance when cut: 18 |
0.008 | |
| TPU | TPU for AMS | 230 | 6 | - Min fan speed threshold: Fan speed: 80% - Max fan speed threshold: Fan speed: 100% - Layer time:12s Cooling overhang threshold: 10% - Fan speed: 80% |
0.975 | - Length: 0.2mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s |
0.001 |
| PC | PC | 260 | 18 | - Min fan speed threshold: Fan speed: 30% - Max fan speed threshold: Fan speed: 60% |
0.945 | - Length: 0.5mm - Z hop when retract: 0.4mm - Z Hop Type: Spiral - Retract when change layer:YES - Wipe while retracting:YES - Wipe Distance:1mm |
0.01 |
| ABS | ABS | 270 | 25 | - Min fan speed threshold: Fan speed: 50% - Max fan speed threshold: Fan speed: 70% |
default | - Length: 0.4mm - Z hop when retract: 0.6mm - Retraction Speed: 40mm/s - Deretraction Speed: 40mm/s - Long retraction when cut(experimental): NO |
0.005 |
¶ End Notes
We hope the detailed guide provided has been helpful and informative.
If this guide does not solve your problem, please submit a technical ticket, we will answer your questions and provide assistance.
If you have any suggestions or feedback on this Wiki, please leave a message in the comment area. Thank you for your support and attention!
