¶ Operation Steps
¶ Take out the AMS HT

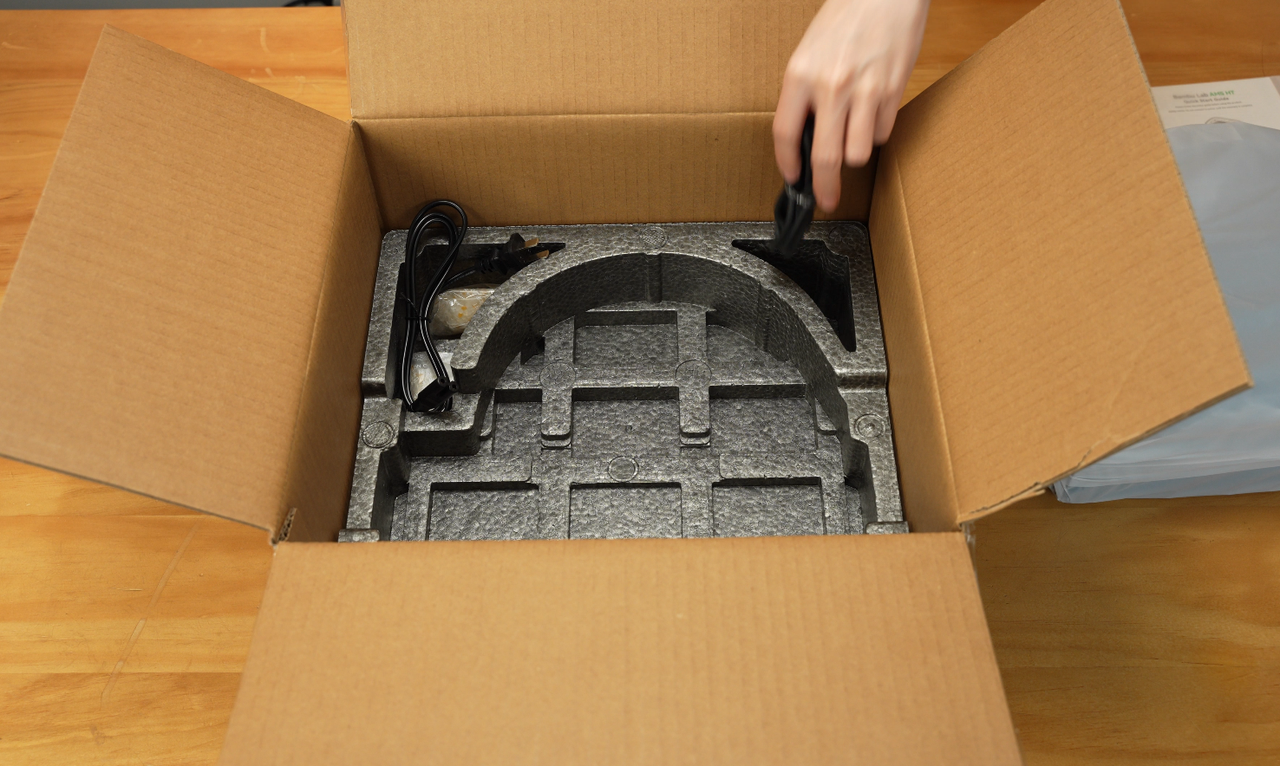

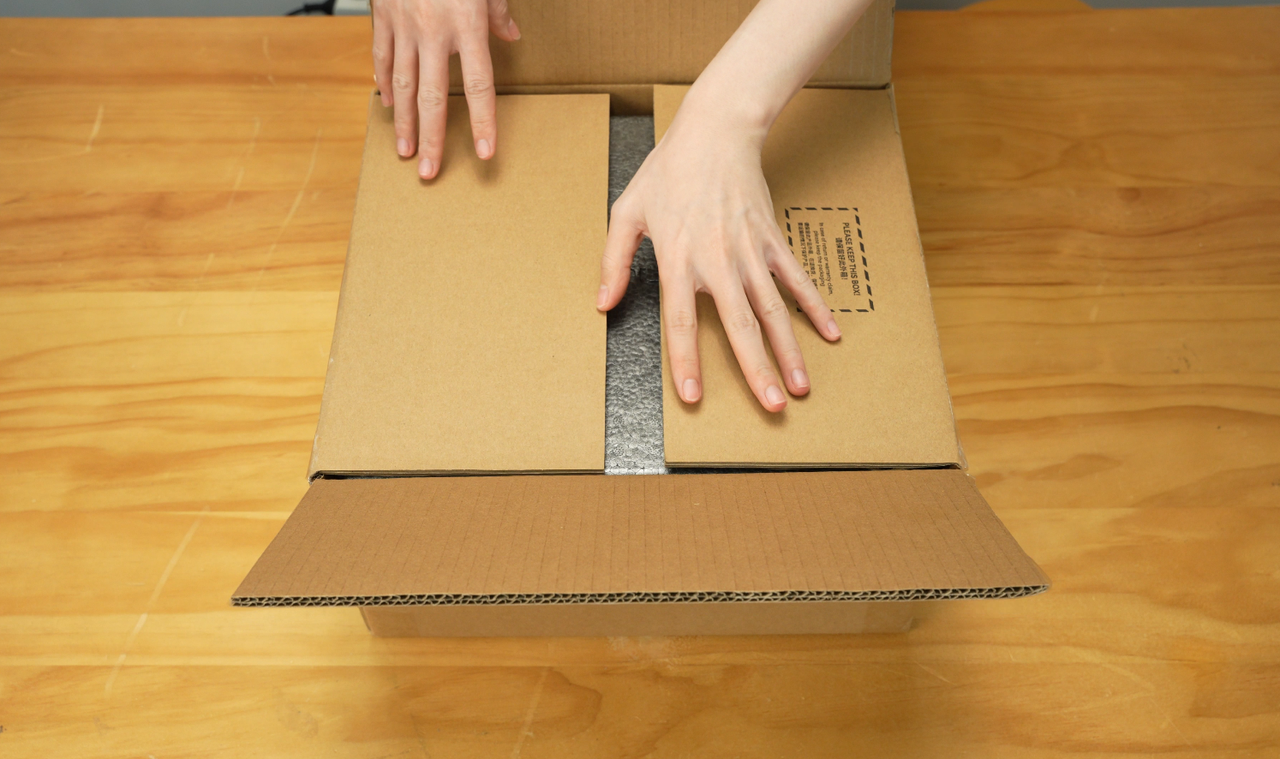

- Open the carton and take out the black foam.
 |
 |
 |

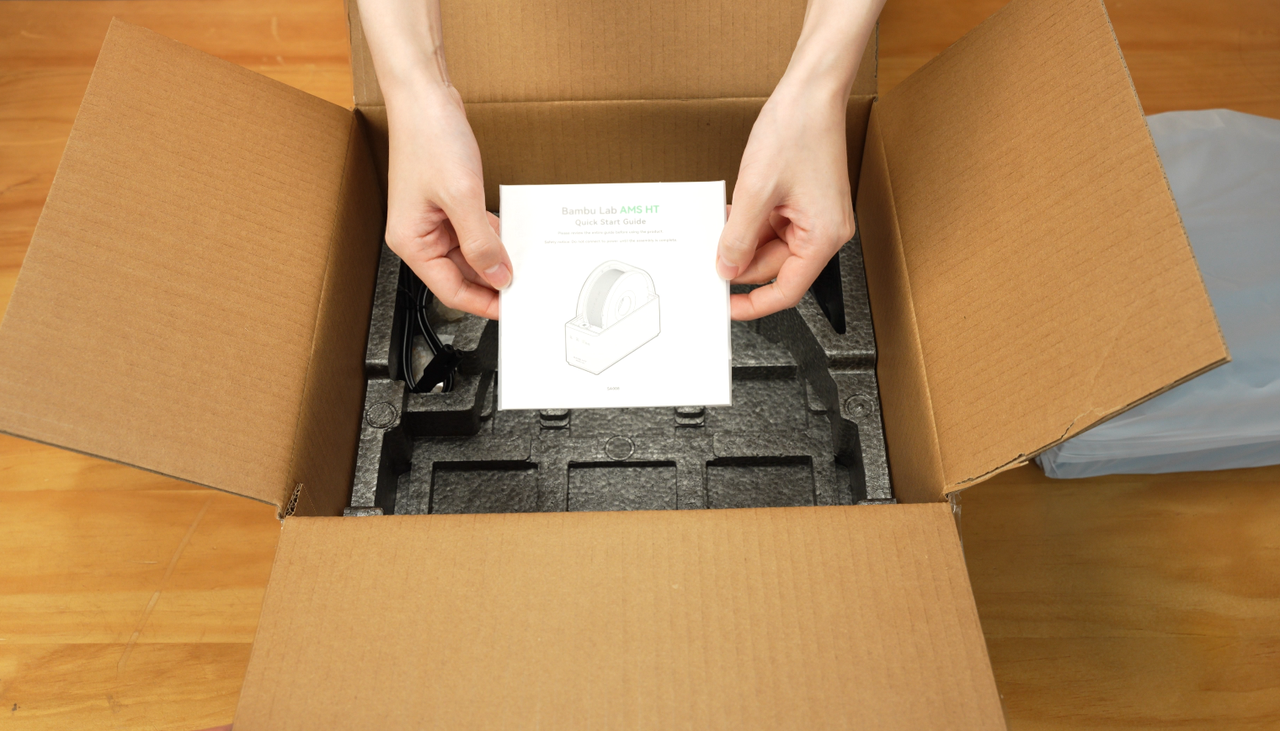

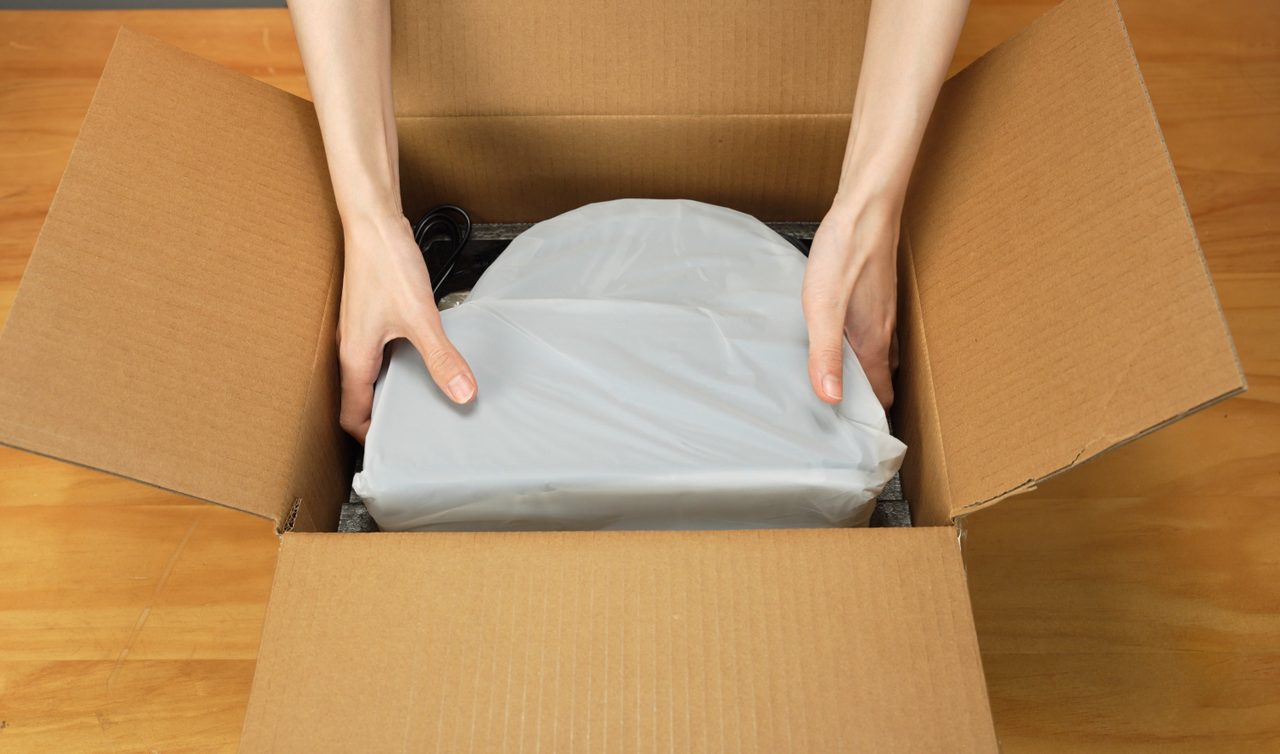

- Take out the AMS HT, instruction manual and cables.
 |
 |
 |

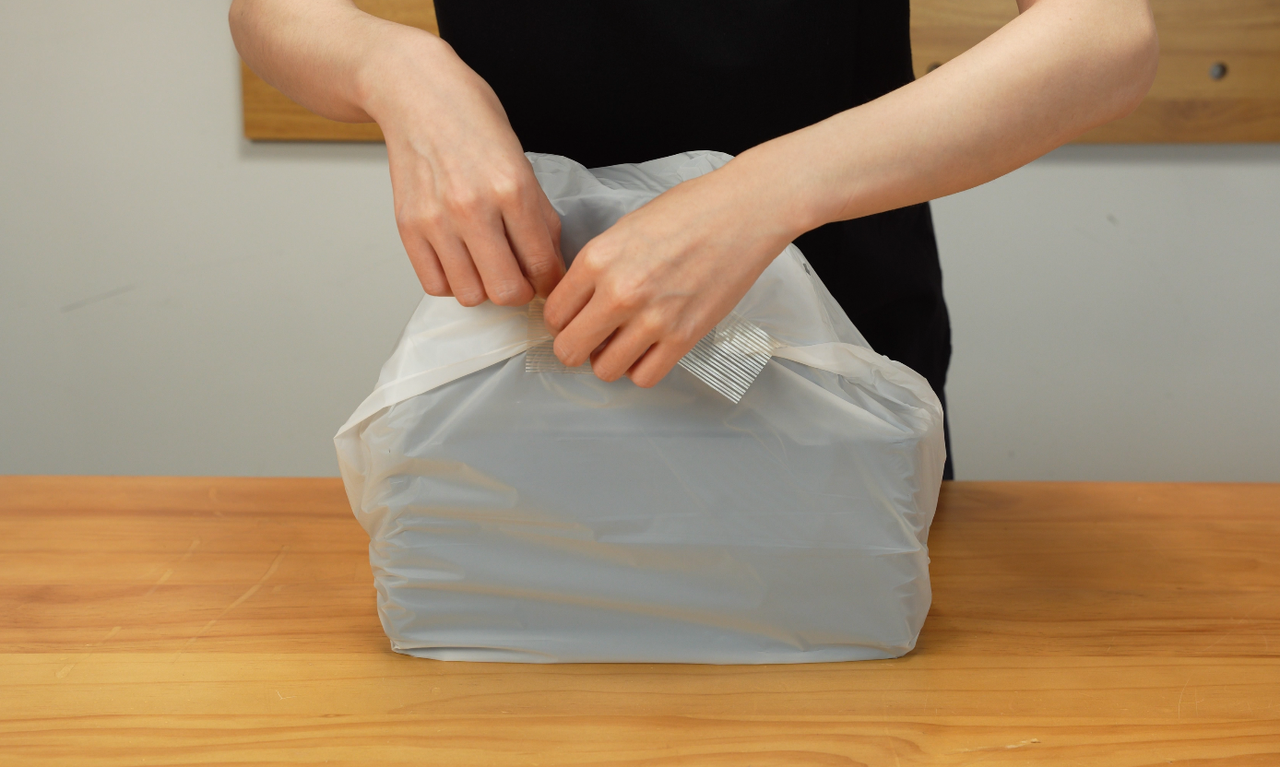

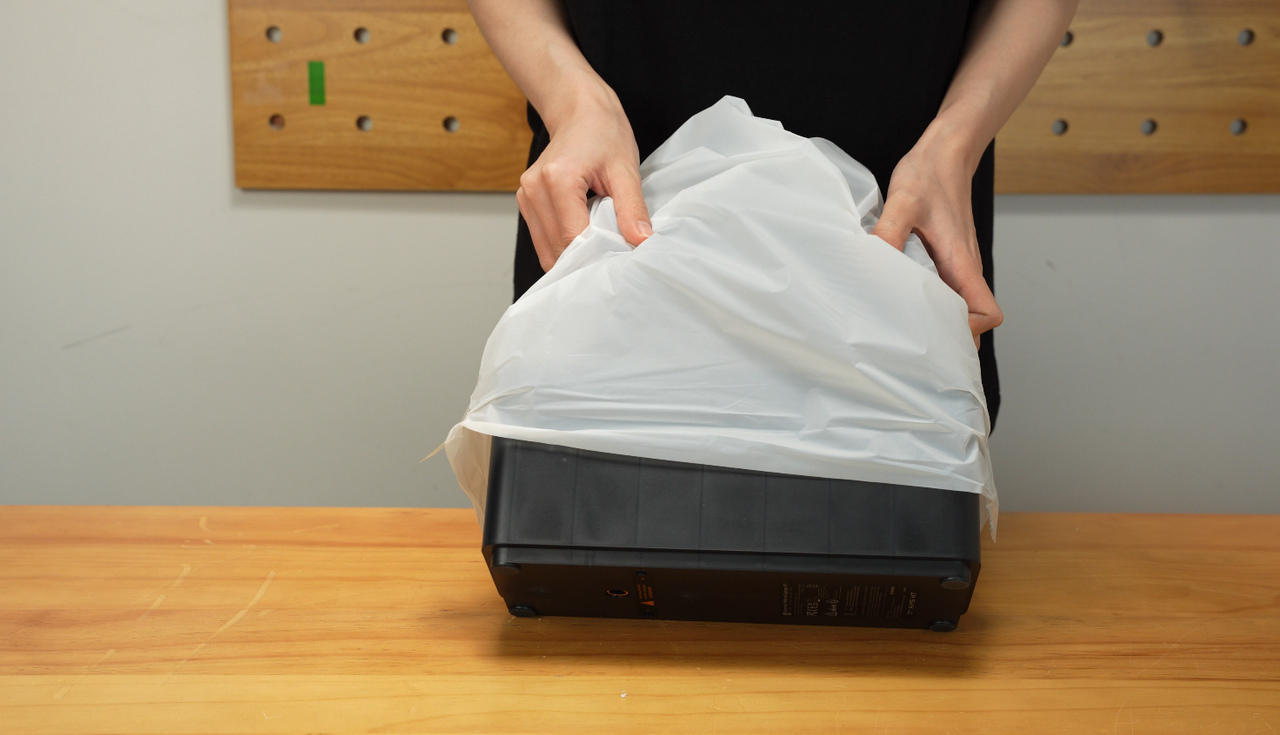

- Remove the tape and take ou the AMS TH.
 |
 |
-

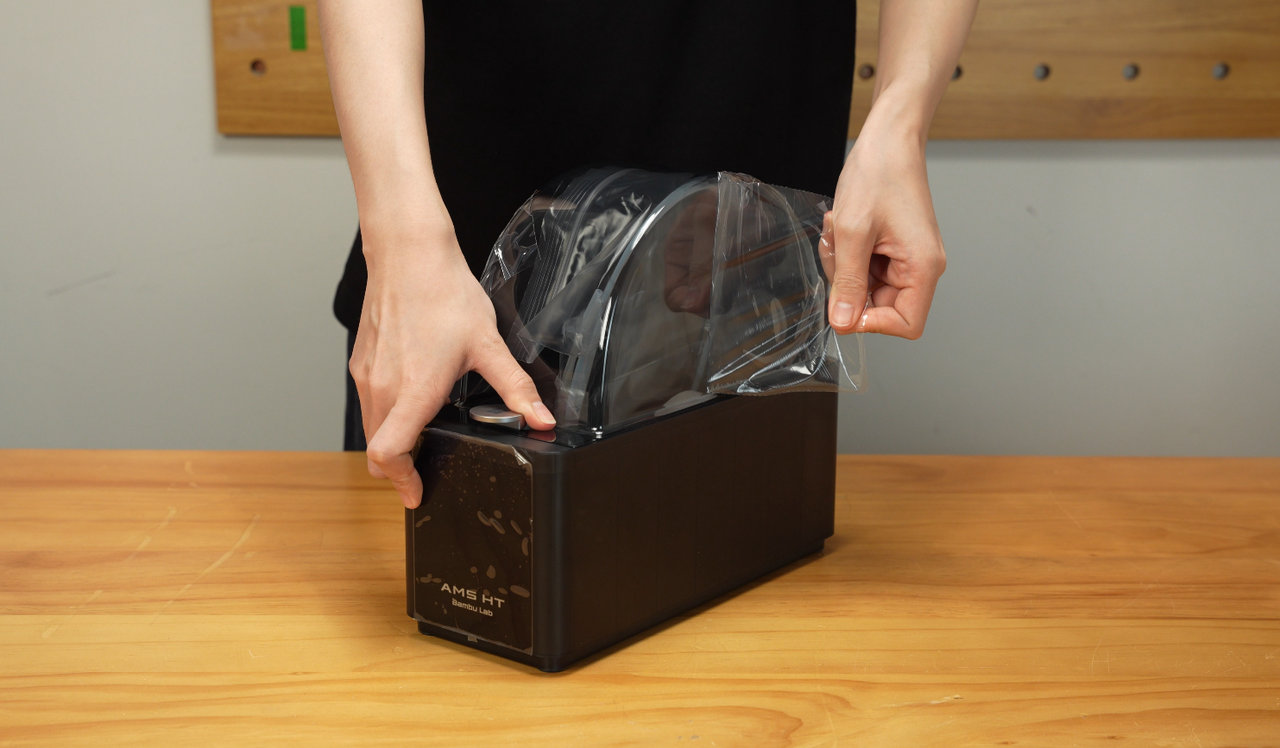

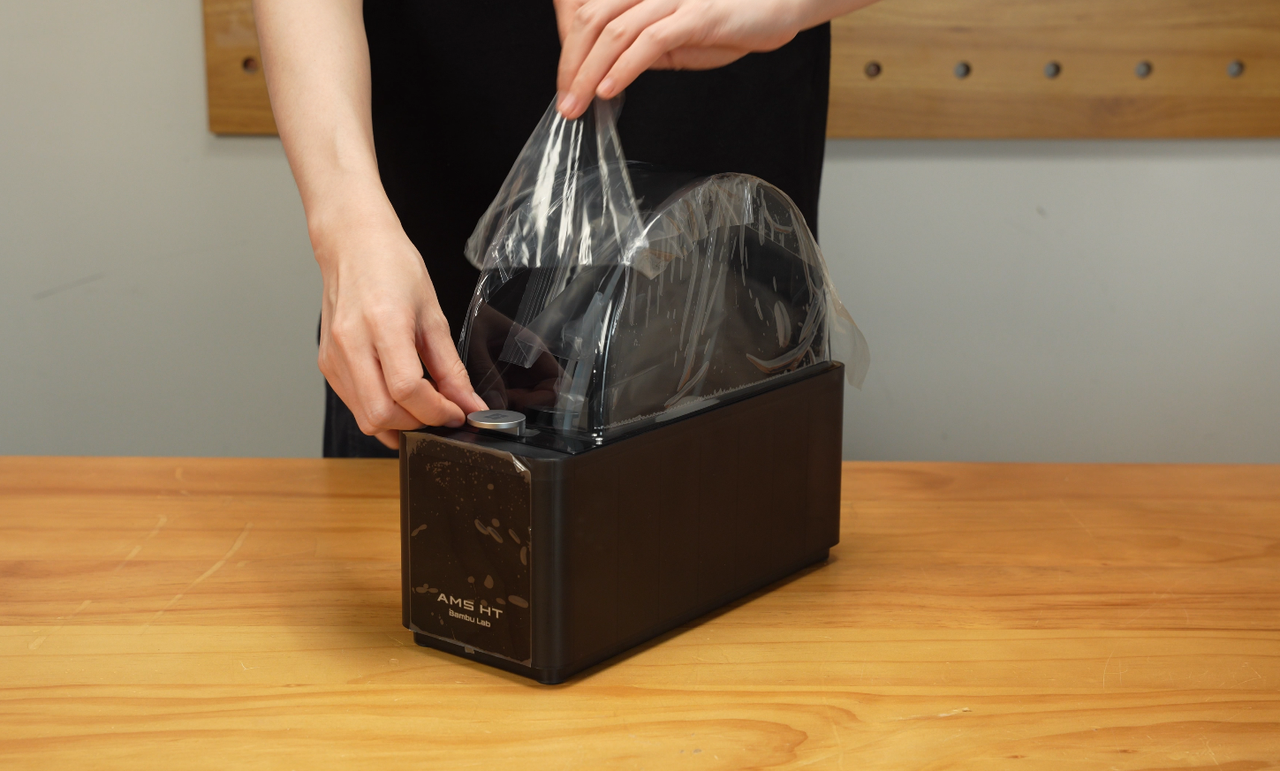

Remove the protective film.
 |
 |
¶ Take out the tube

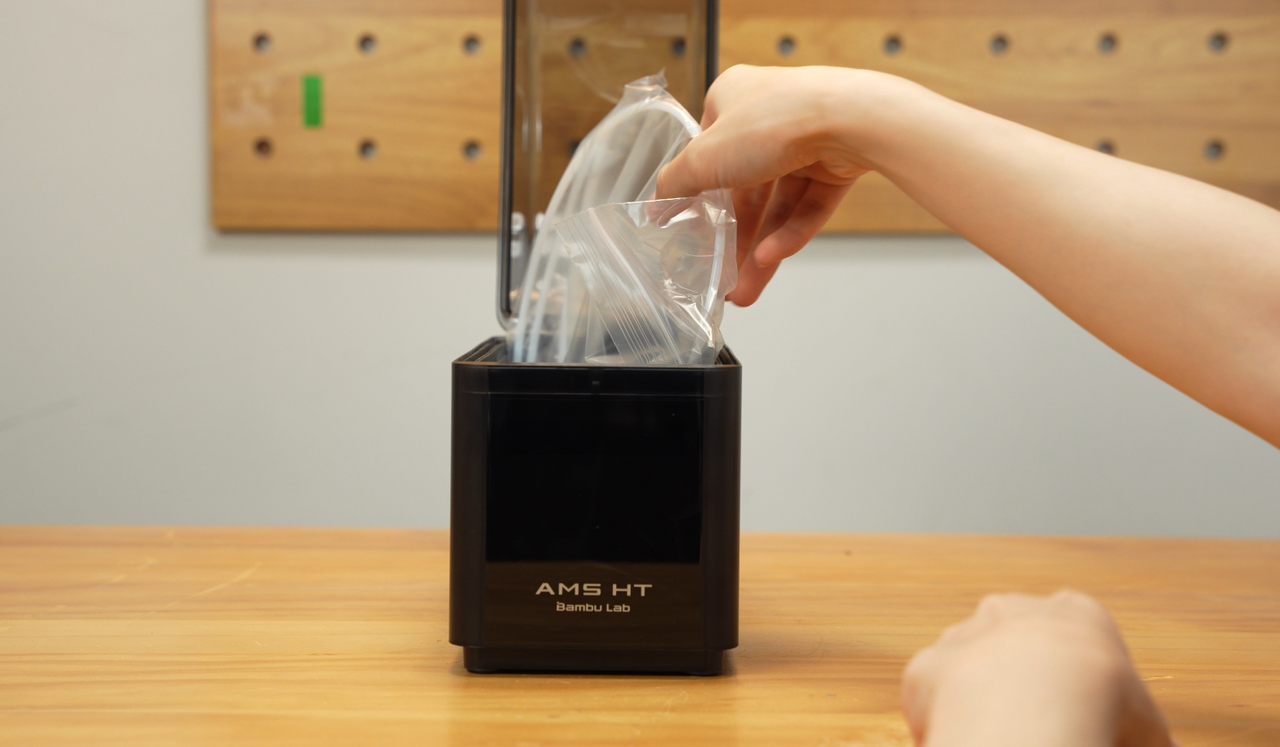

Open the top cover and remove the tube.
¶ Place the desiccant

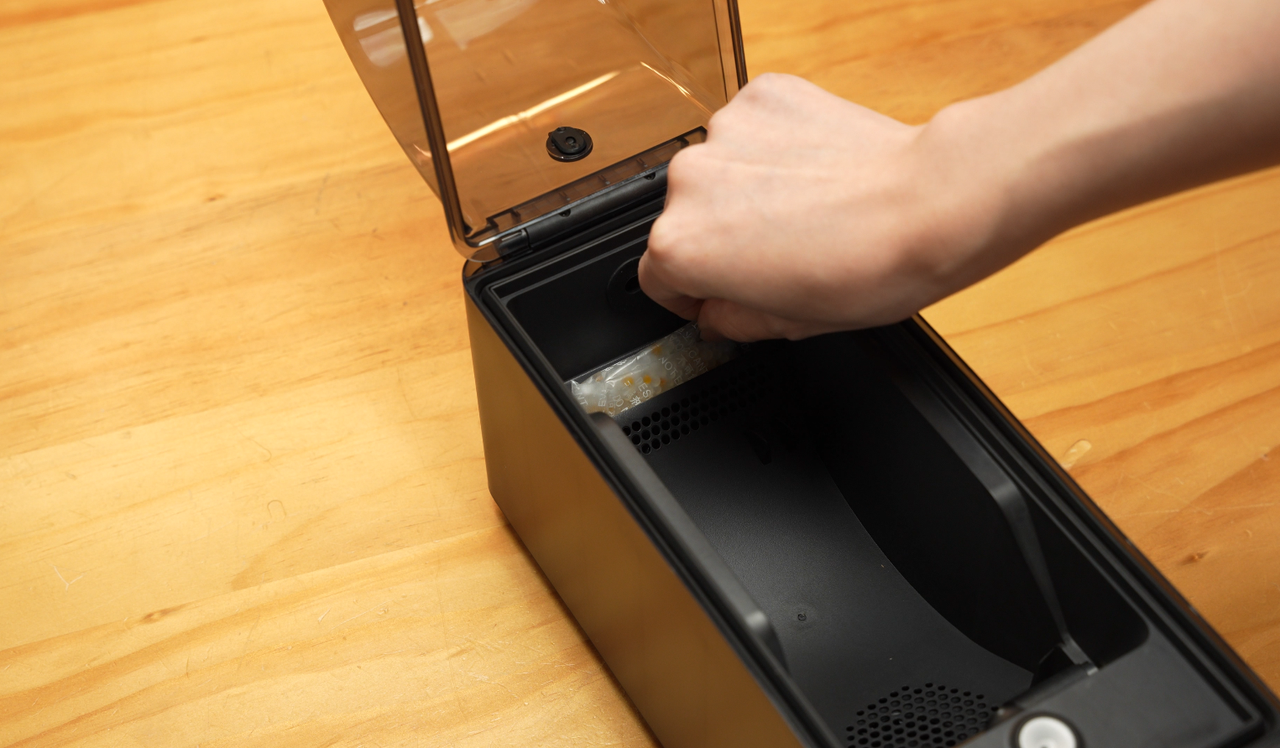

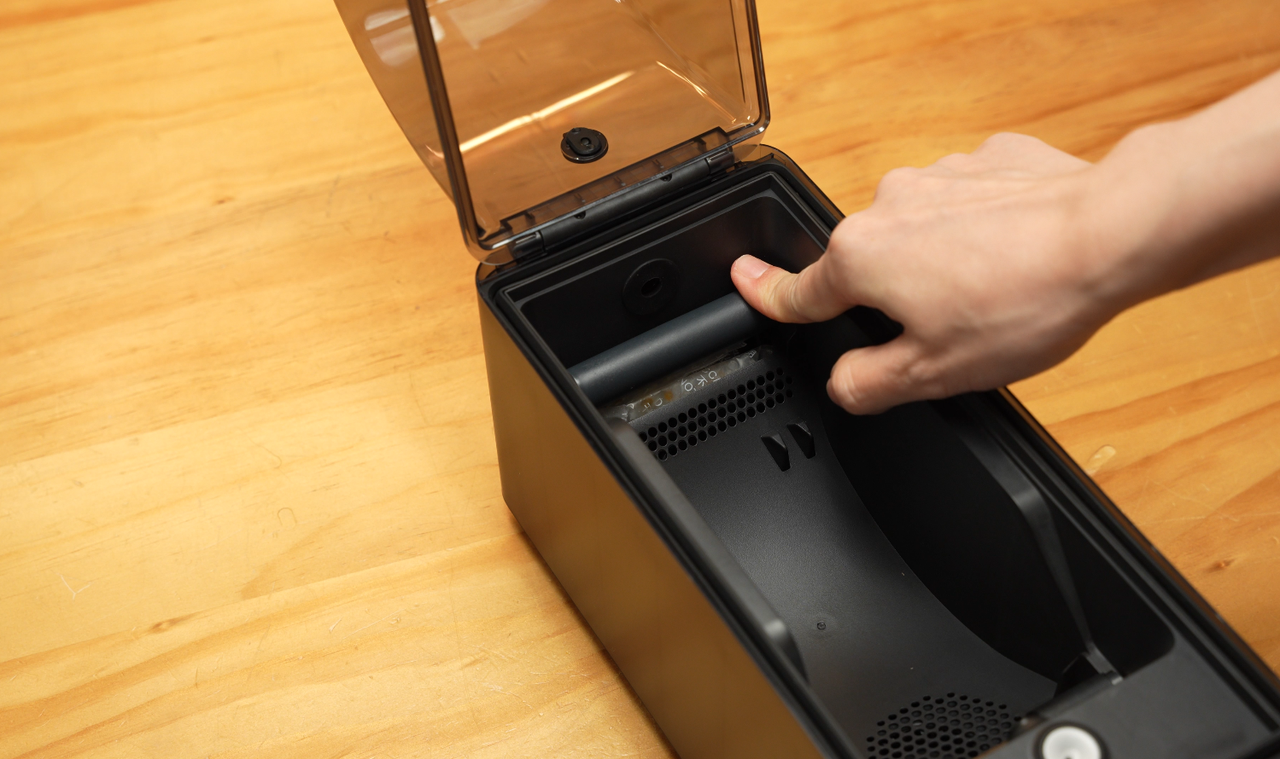

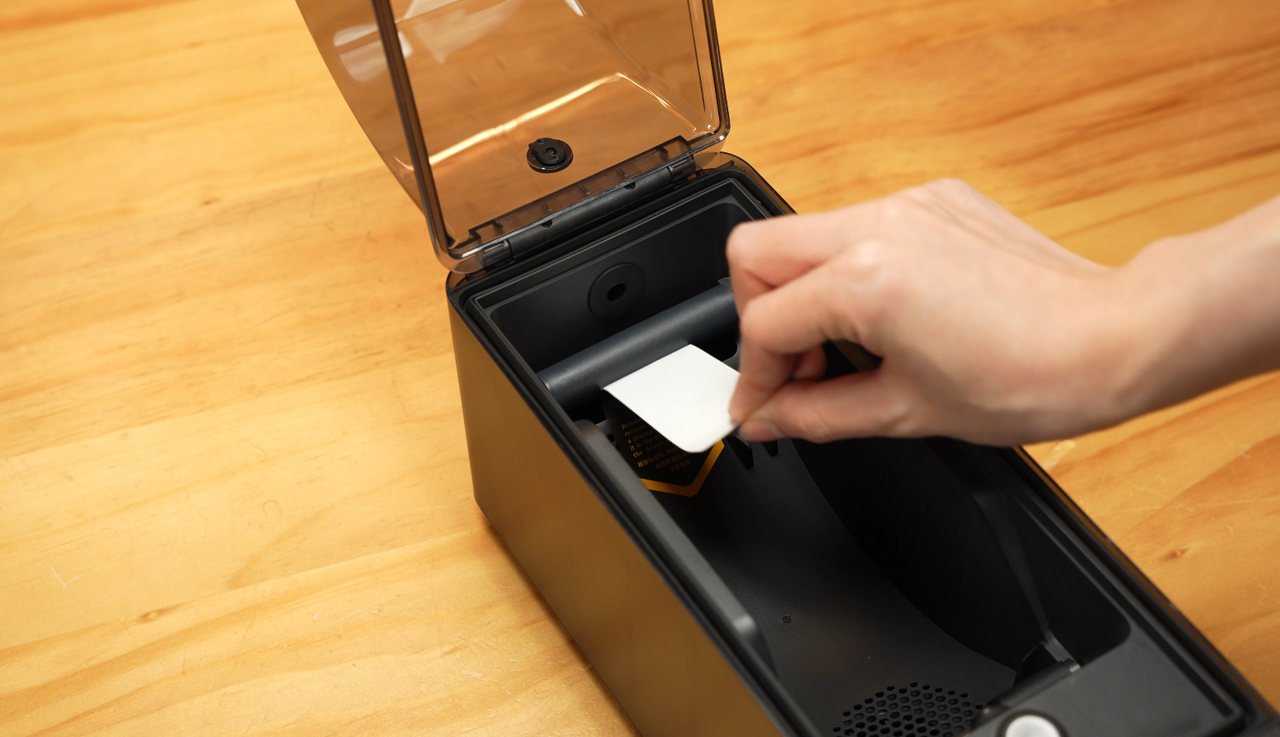

- Remove the sticker on the driven support shaft; carefully remove the driven support shaft to prevent the bearings on both sides from falling off.
 |
 |

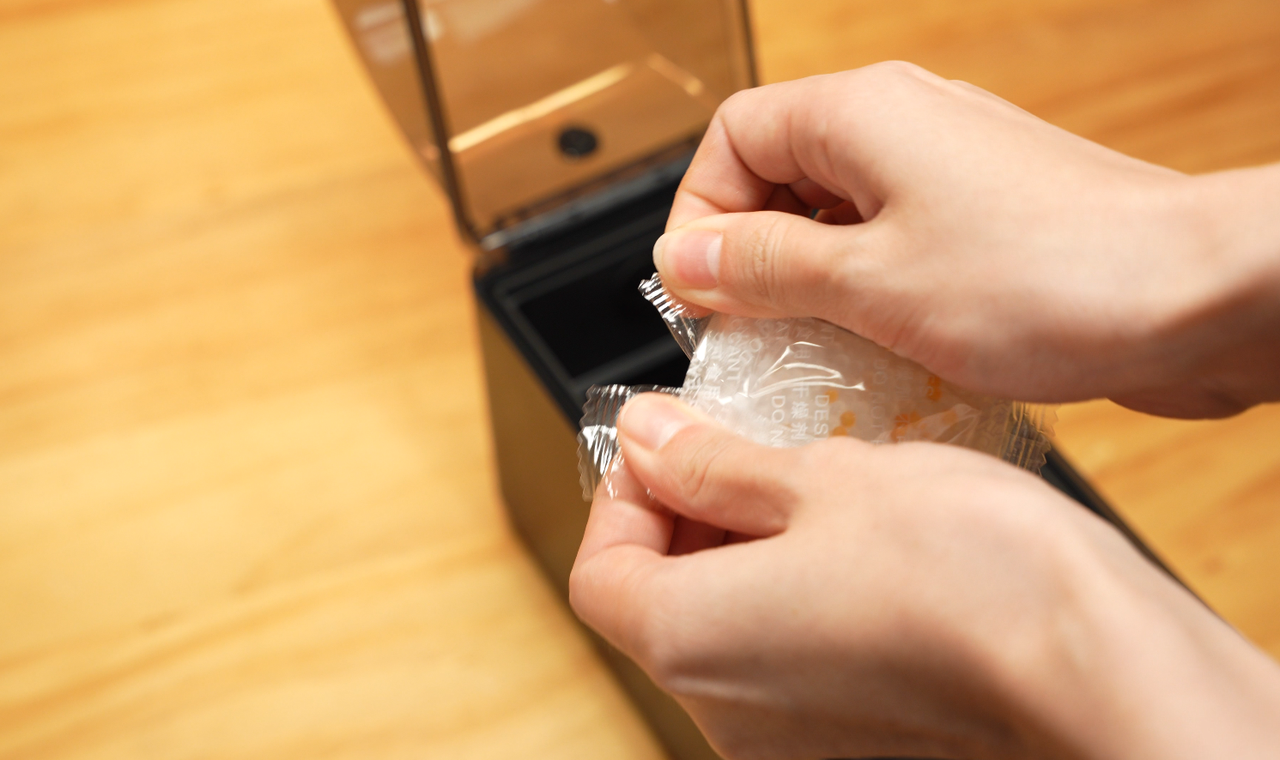

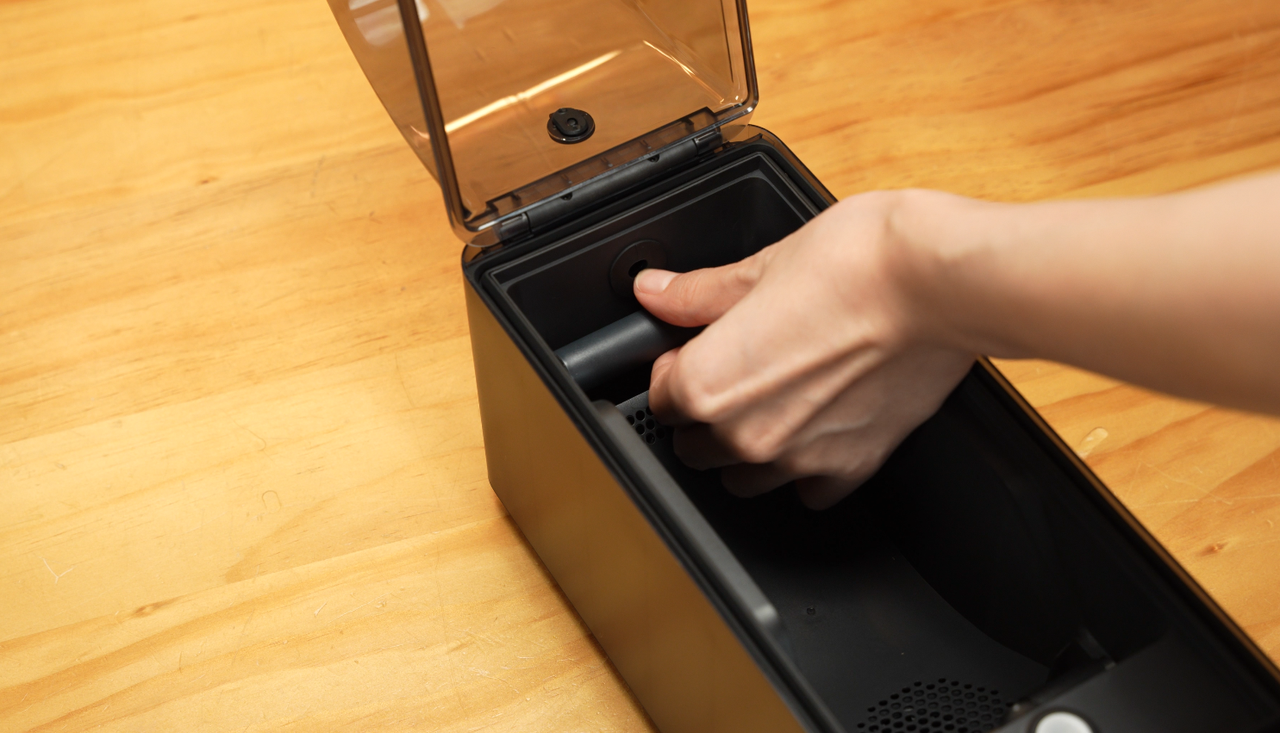

- Remove the outer packaging of the desiccant, put the desiccant under the driven support shaft, and install the driven support shaft.
 |
 |
 |
¶ Connect the tube

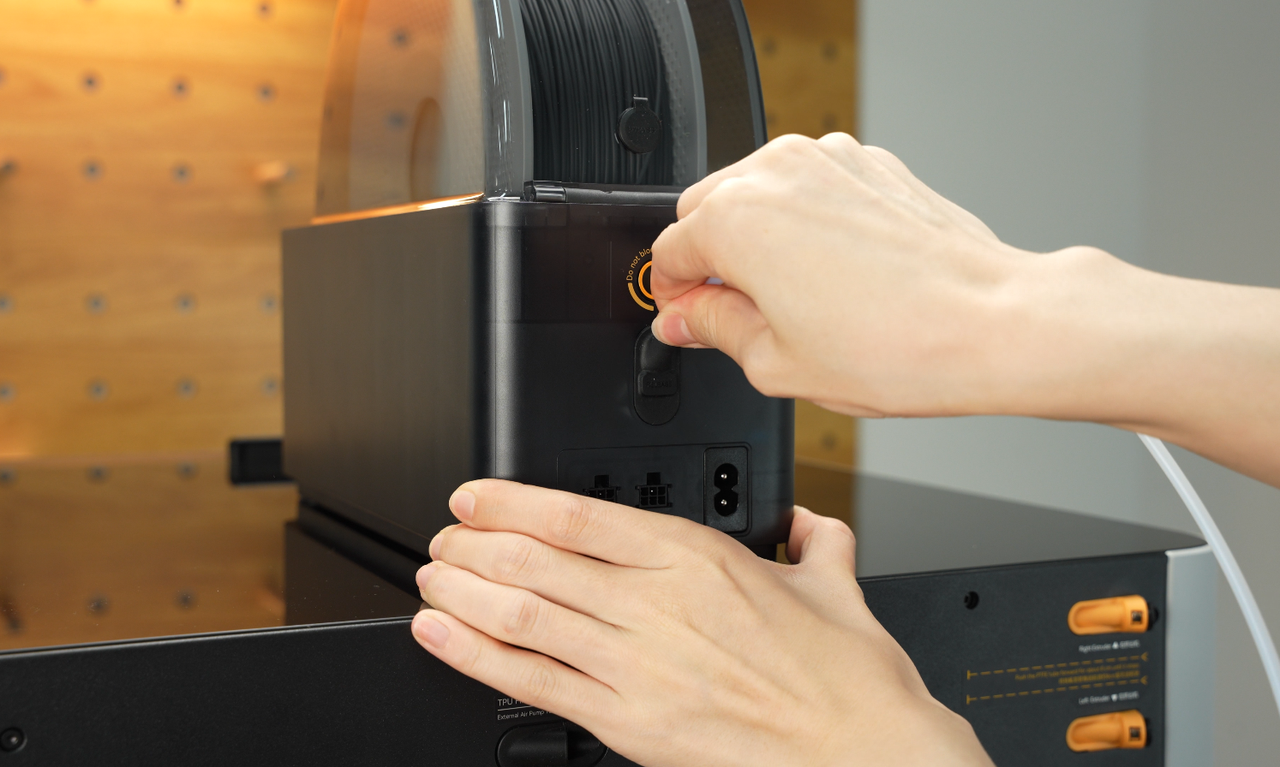

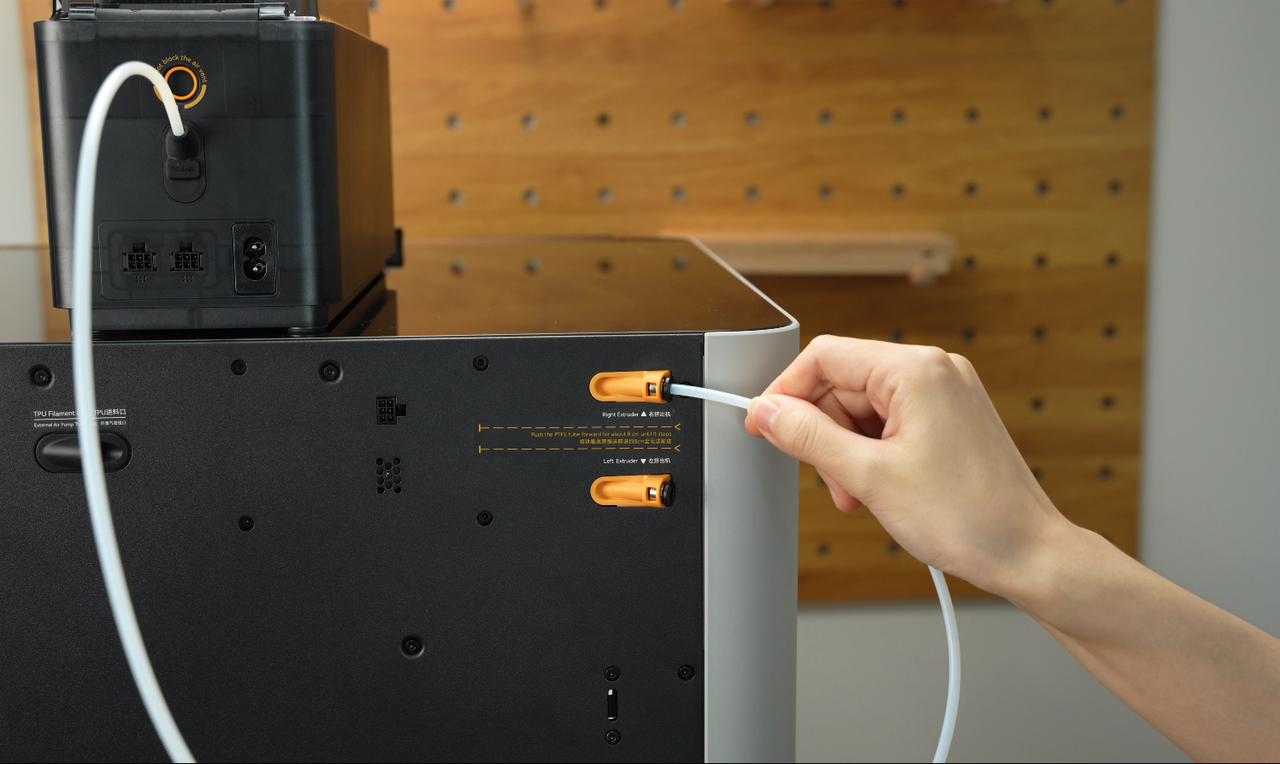

Place the AMS HT on top of the printer and insert one end of the tube into the coupler of the AMS HT. Insert the other end into any coupler of the printer and push the material tube forward until it can no longer move forward.
 |
 |
¶ Connect the 6-pin cable and power cable

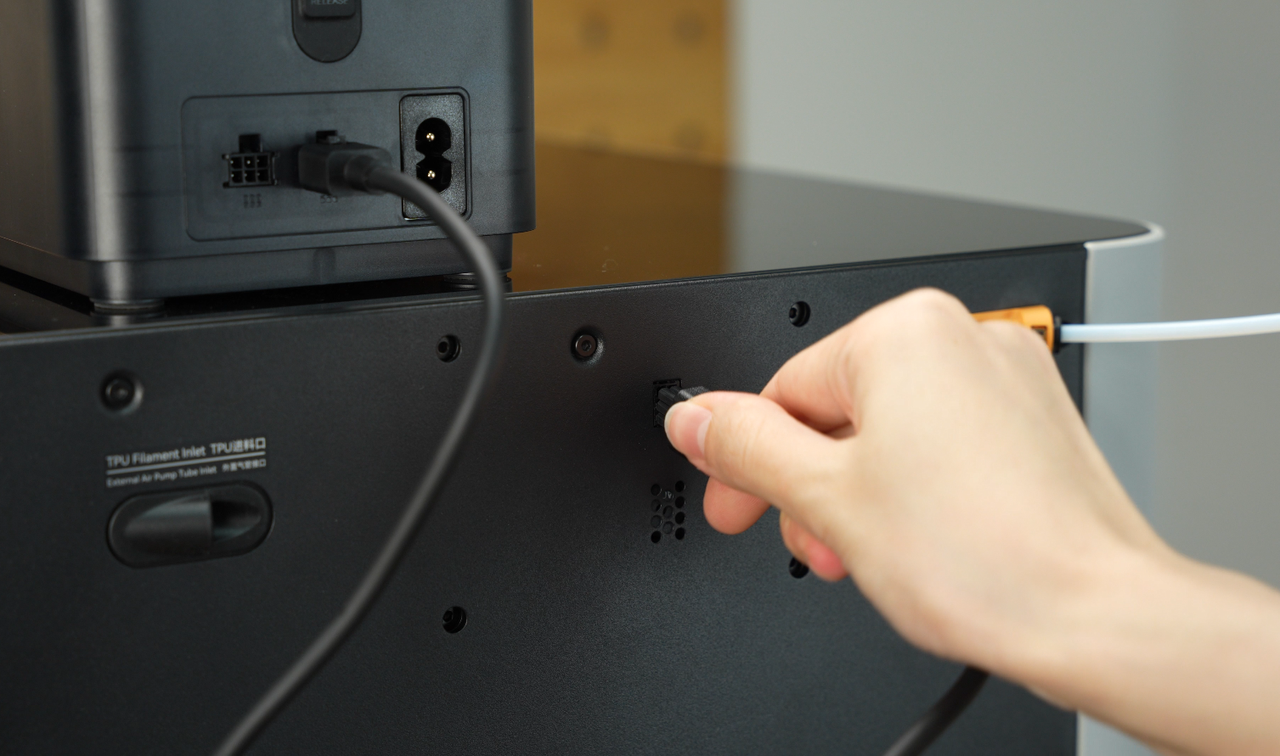

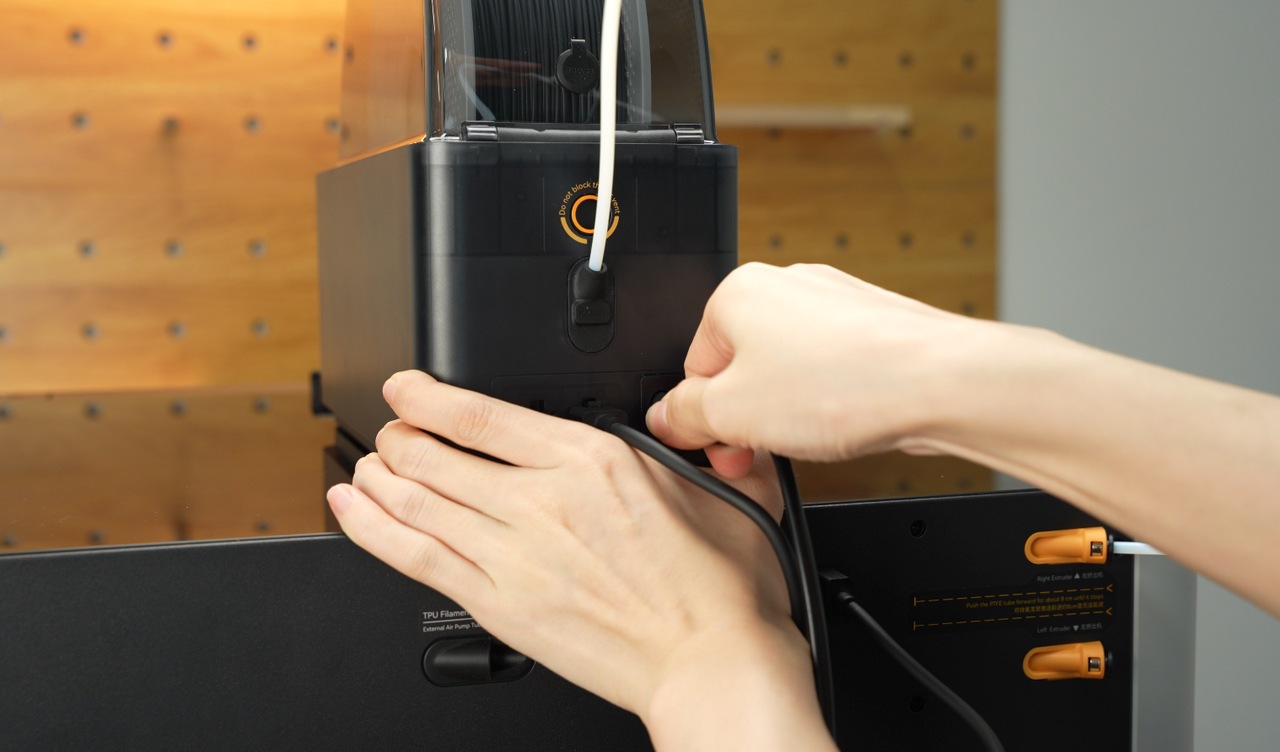

- Plug one end of the 6-pin cable into any interface of the AMS HT and the other end into the printer.
 |
 |
- Plug the power cable into the AMS HT.
¶ Turn on the printer

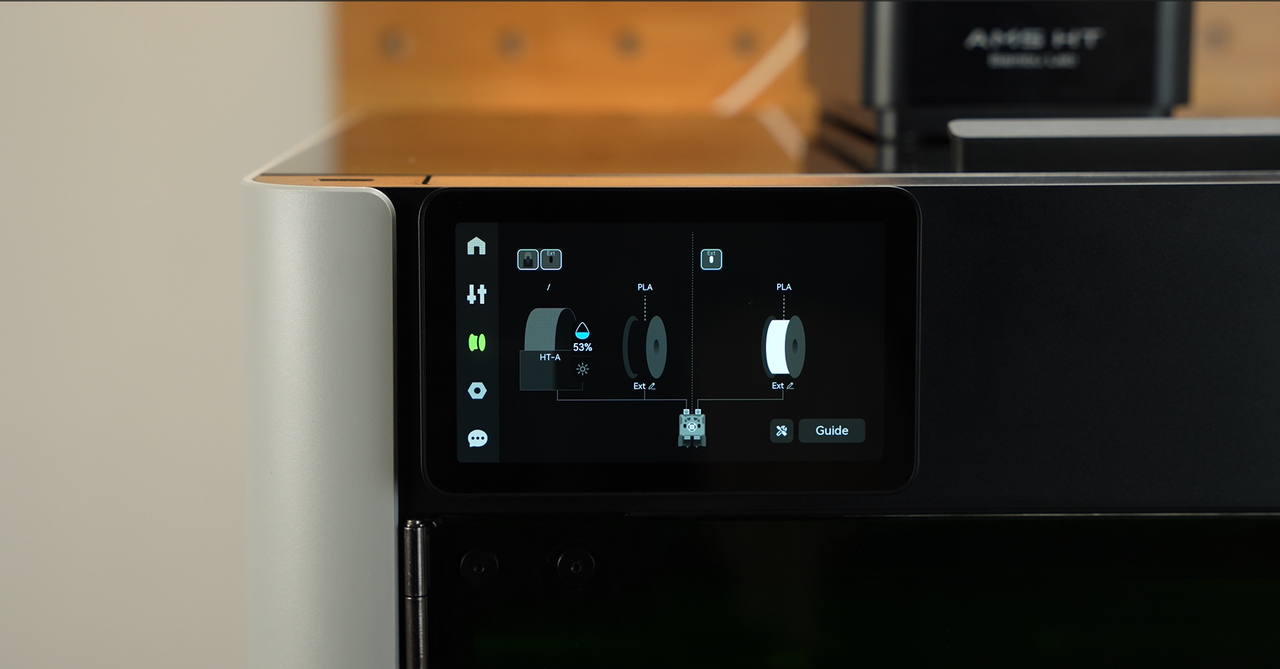

Turn on the printer and you can view the connection between the printer and AMS HT on the "Filament" page.
