¶ Nozzle Wiping Pad
The nozzle wiping pad is installed on the nozzle wiper part of the purge wiper and is used to remove residual waste on the nozzle. It is made of soft silicone material to ensure good contact with the hotend during wiping.
¶ When to Use
The nozzle wiping pad is damaged or has fallen off.
The wiping pad will not fall off under normal printing conditions. However, in rare cases such as abnormal motion paths (e.g., G-code errors or firmware bugs), it may get scraped off. You can reinstall it by following this guide. It will not affect the printer's future use.
¶ Tools and materials needed

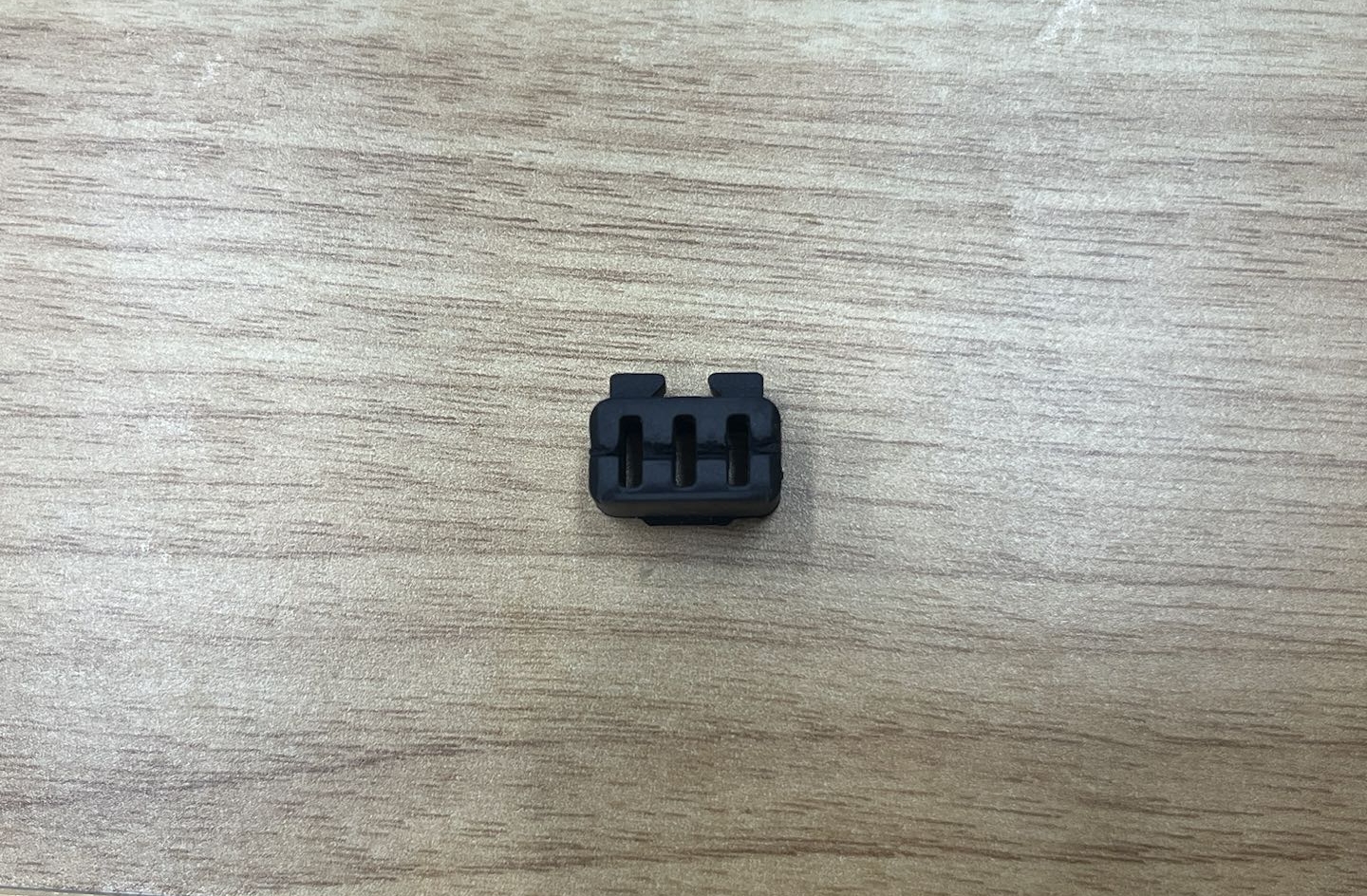

- New nozzle wiping pad
¶ Operation Guide
¶ Safety Warning
IMPORTANT!
It's crucial to power off the printer before conducting any maintenance work, including work on the printer's electronics and tool head wires. Performing tasks with the printer on can result in a short circuit, leading to electronic damage and safety hazards.
During maintenance or troubleshooting, you may need to disassemble parts, including the hotend. This exposes wires and electrical components that could short circuit if they contact each other, other metal, or electronic components while the printer is still on. This can result in damage to the printer's electronics and additional issues.
Therefore, it's crucial to turn off the printer and disconnect it from the power source before conducting any maintenance. This prevents short circuits or damage to the printer's electronics, ensuring safe and effective maintenance. For any concerns or questions about following this guide, we recommend submitting a technical ticket regarding your issue and we will do our best to respond promptly and provide the assistance you need.
¶ Remove the Nozzle Wiping Pad

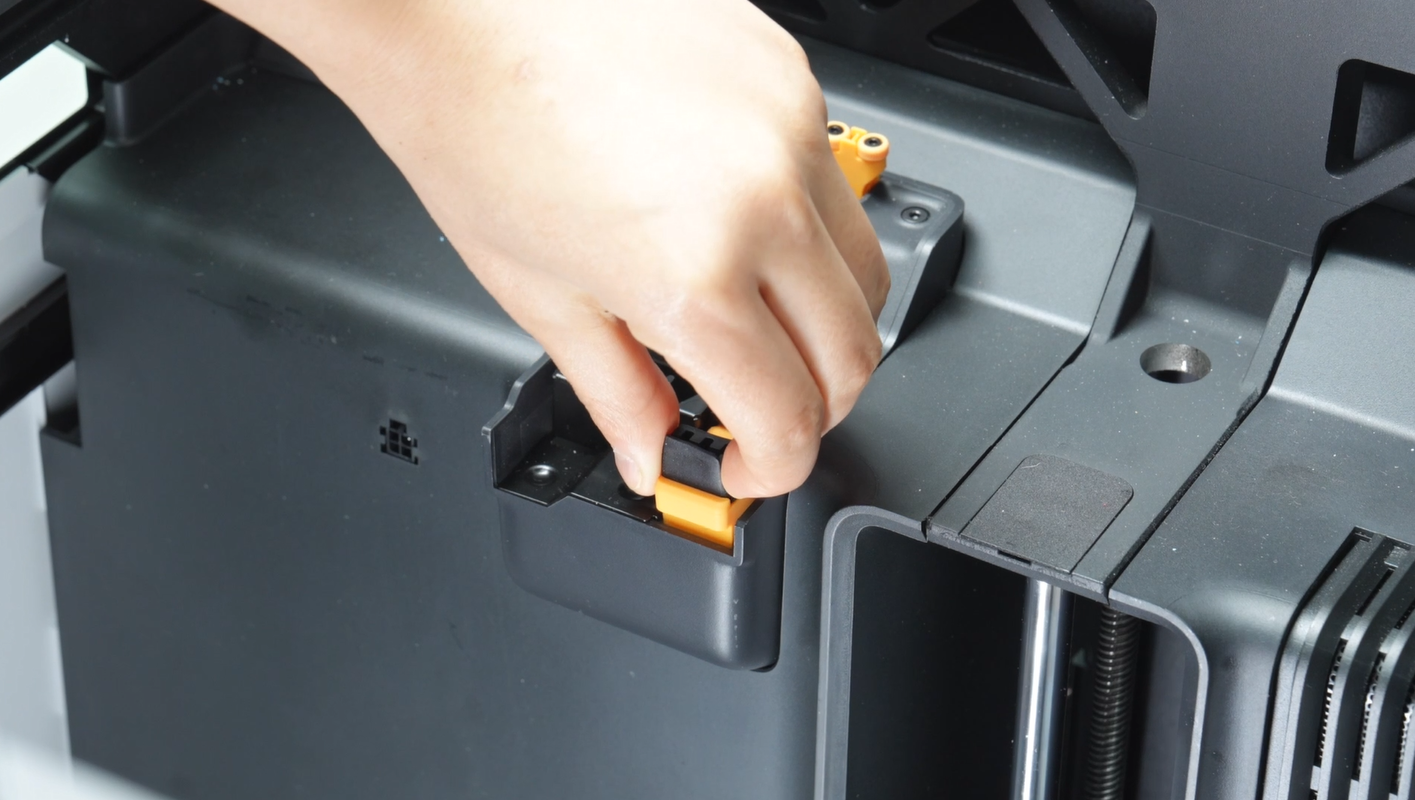

To remove the nozzle wiping pad, grab it from the sides and simply pull it upwards from the purge wiper.
¶ Install the Nozzle Wiping Pad

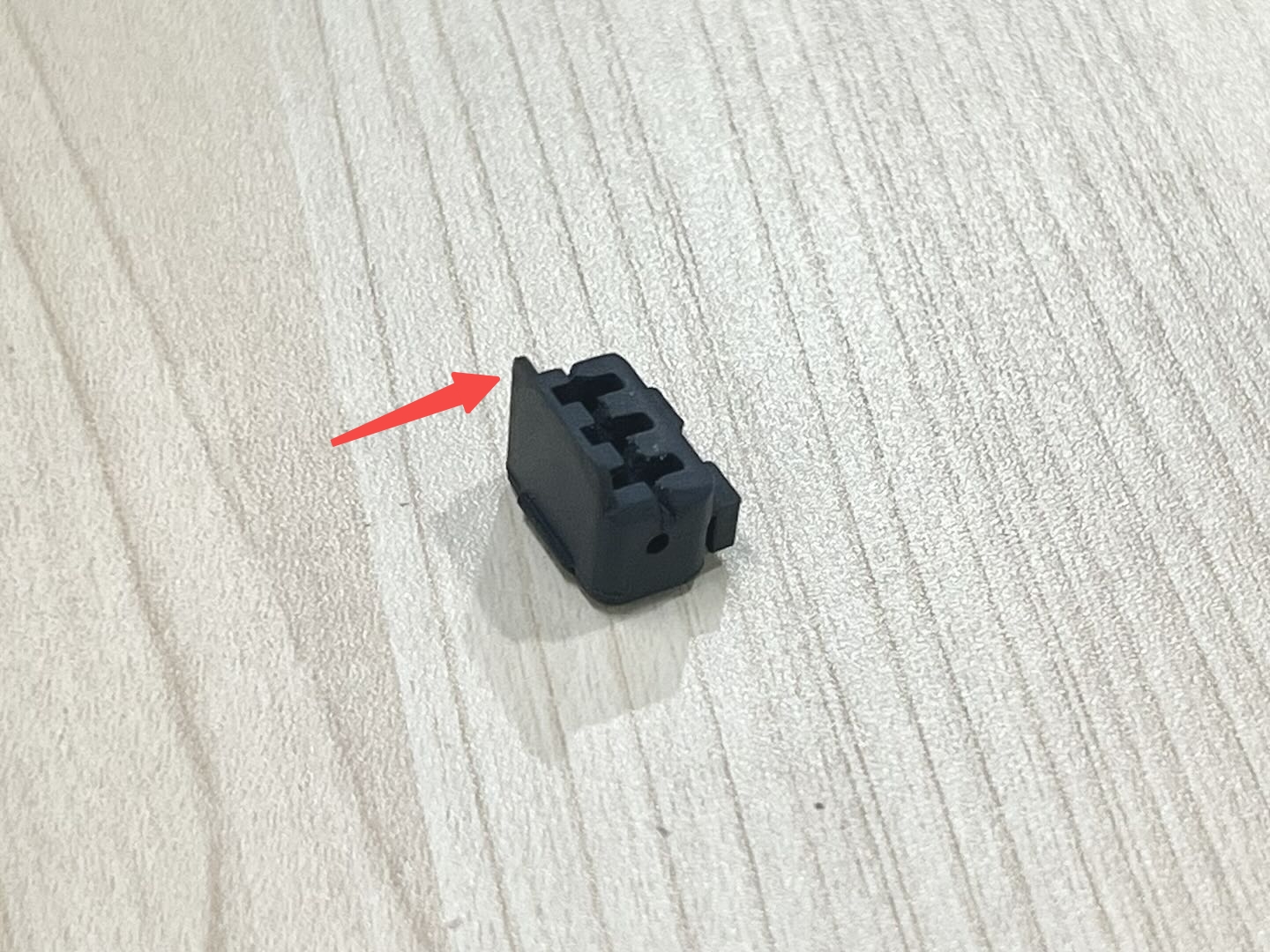

Ensure the nozzle wiping pad is installed correctly, with the two clips facing inward and the flat surface facing outward.

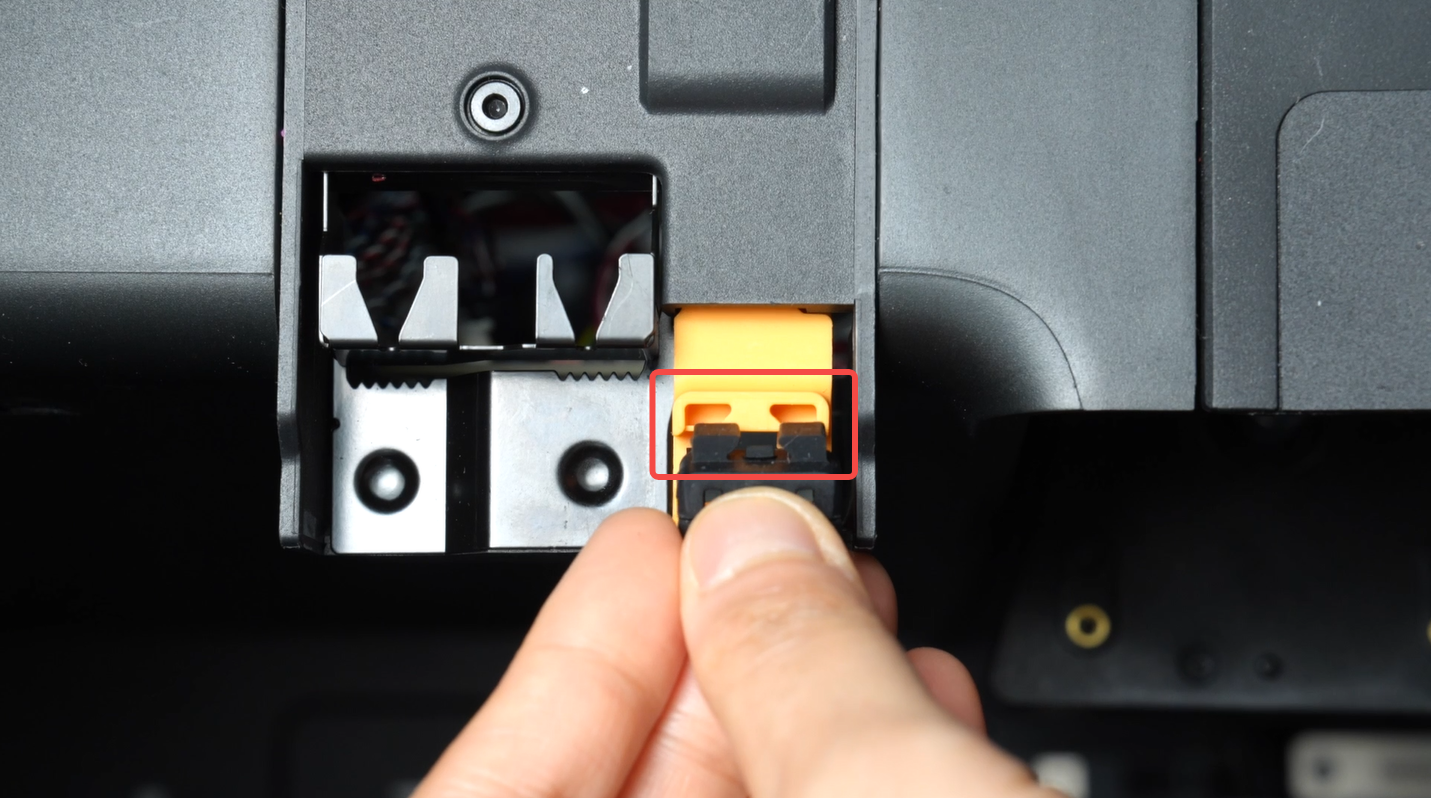

- Align the two rubber sections of the wipper with the grooves on the purge wiper;

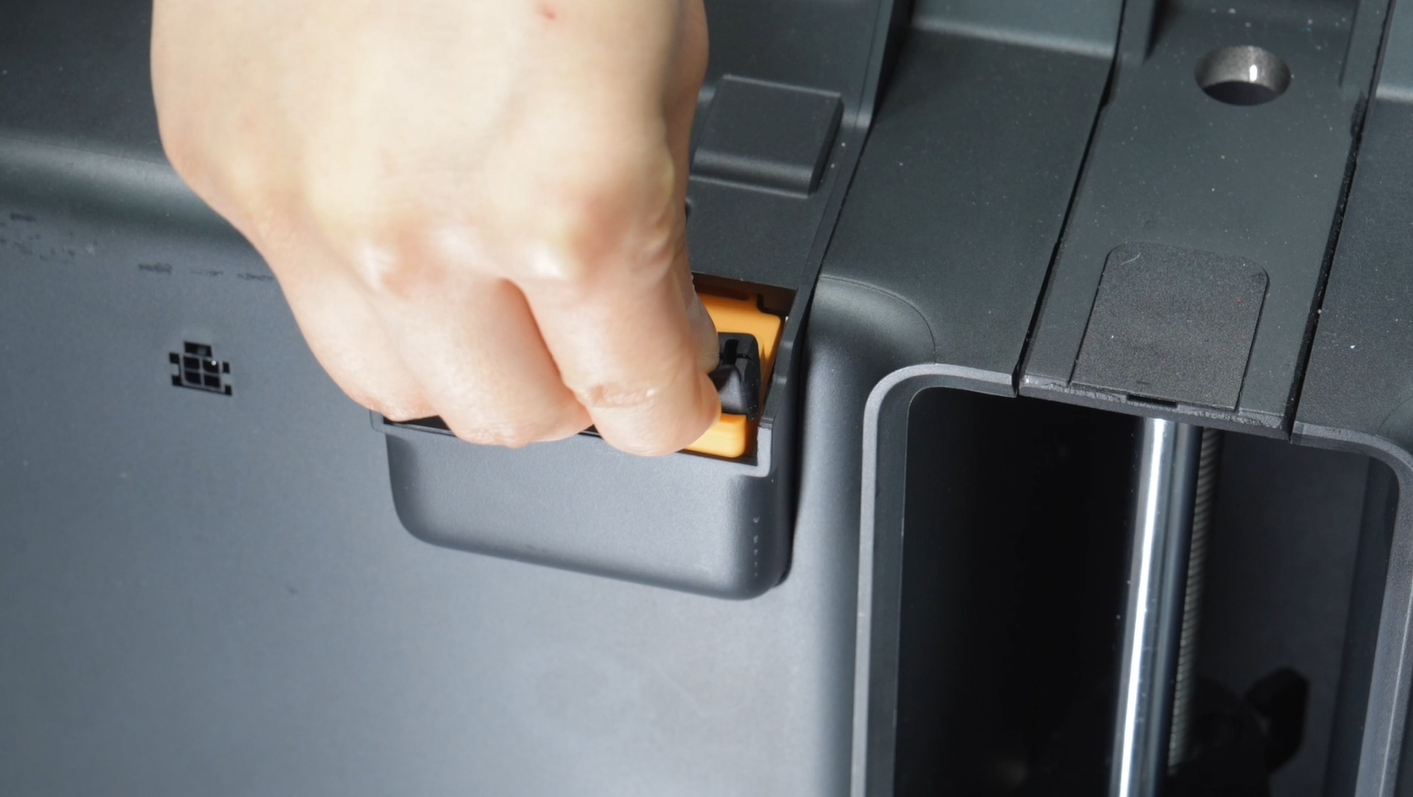

- Press the nozzle wiping pad down to snap it into place.
The installation is completed.
¶ Verify the Functionality

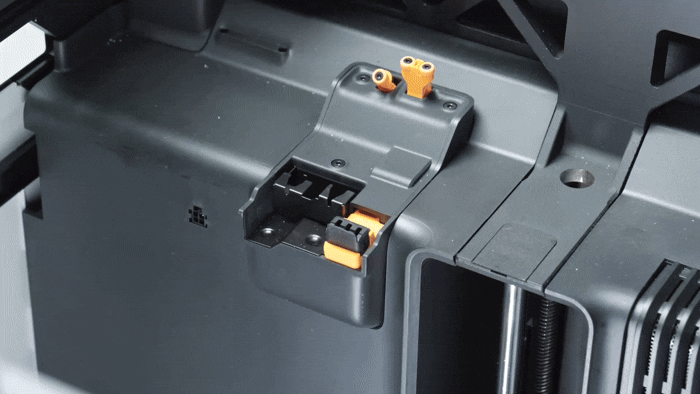

To verify the functionality, start a print and carefully monitor the wiping after starting a print.
If the wiper has been correctly installed, the nozzle tip will be cleaned as expected.
