¶ Operation Steps
¶ Step 1: Lower the heatbed, unload filament, and power off

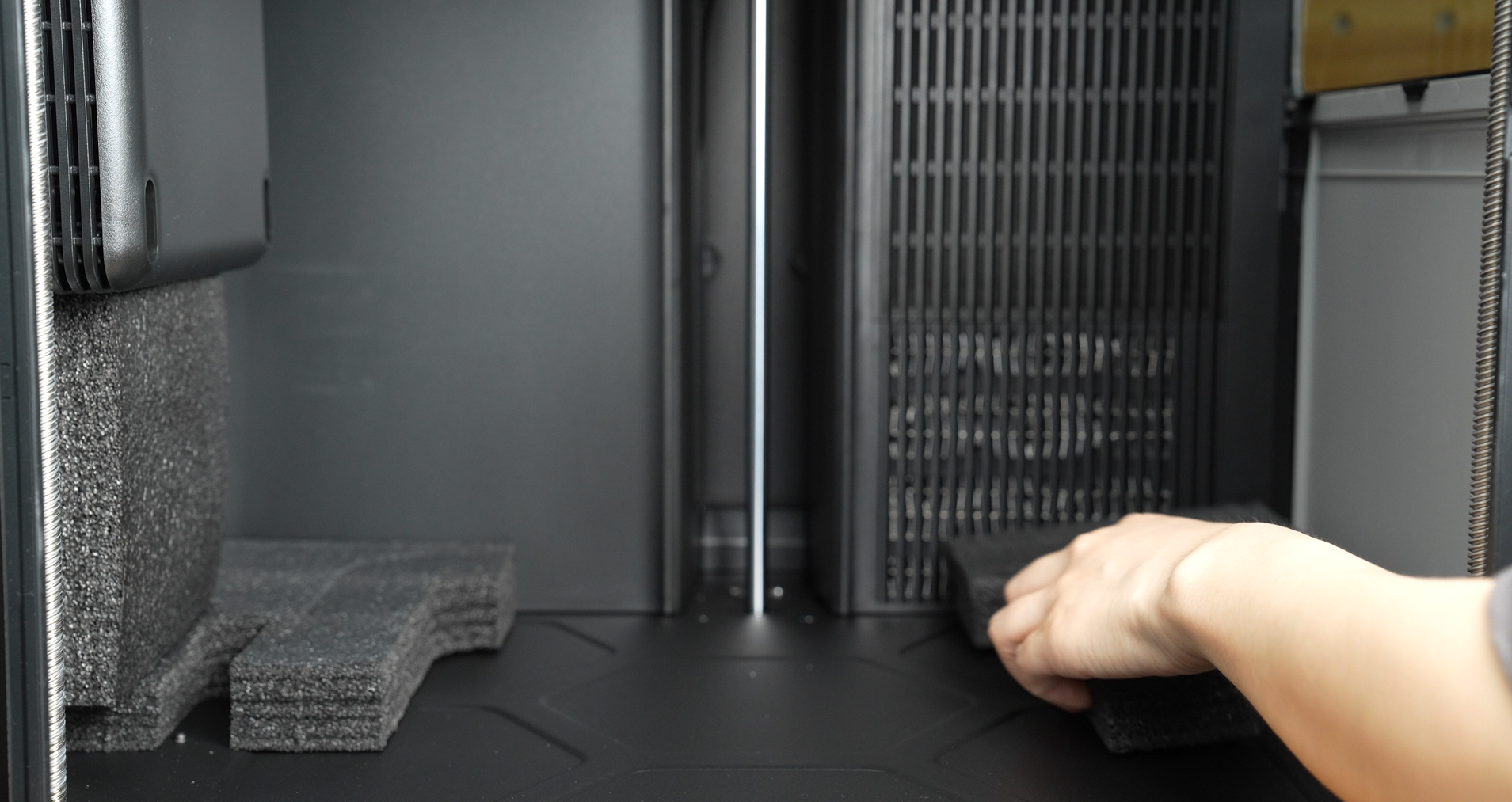

- Place back the three foam pads under the heatbed.

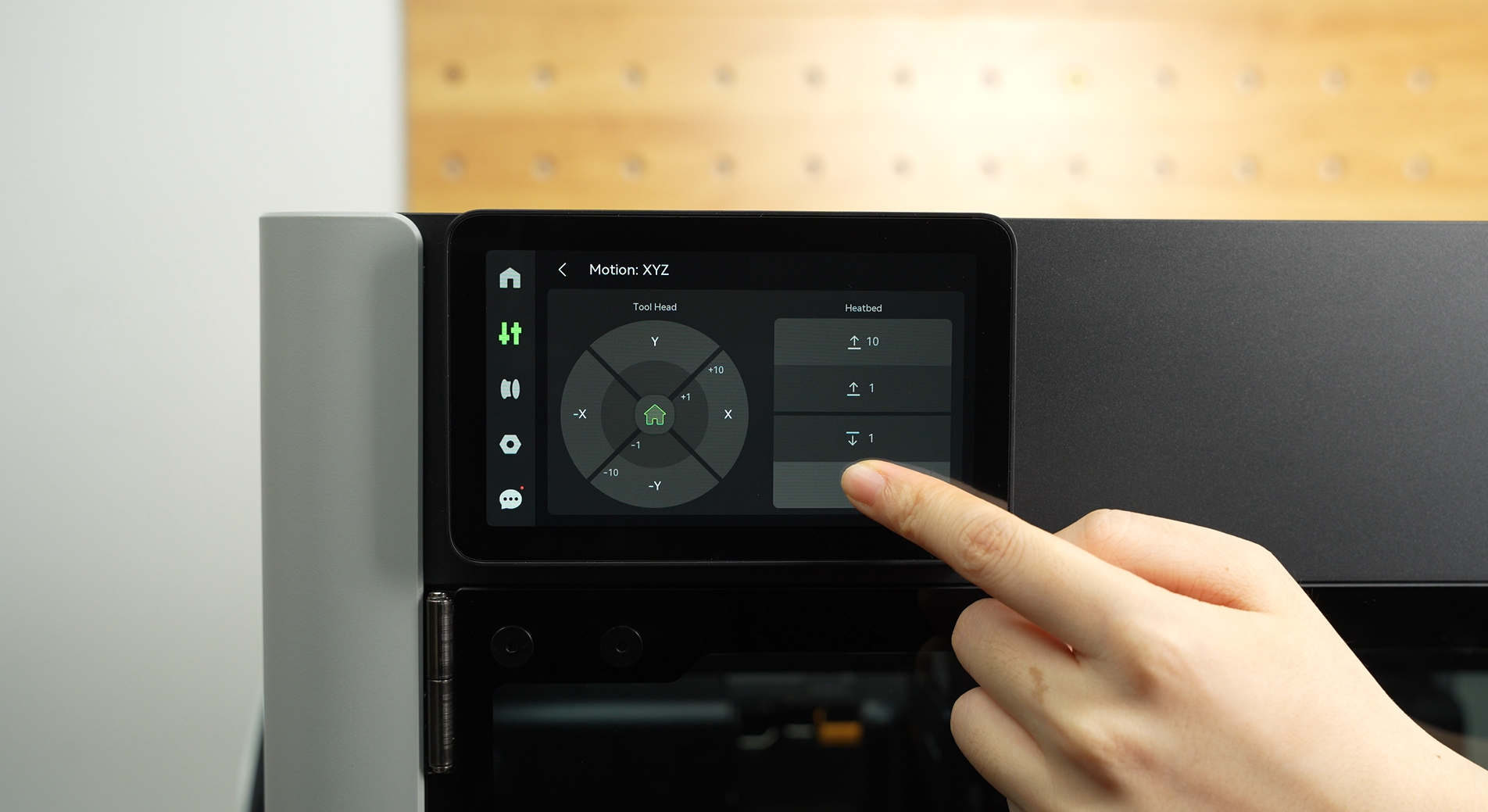

- On the screen, lower the heatbed until it presses firmly against the foam pads.

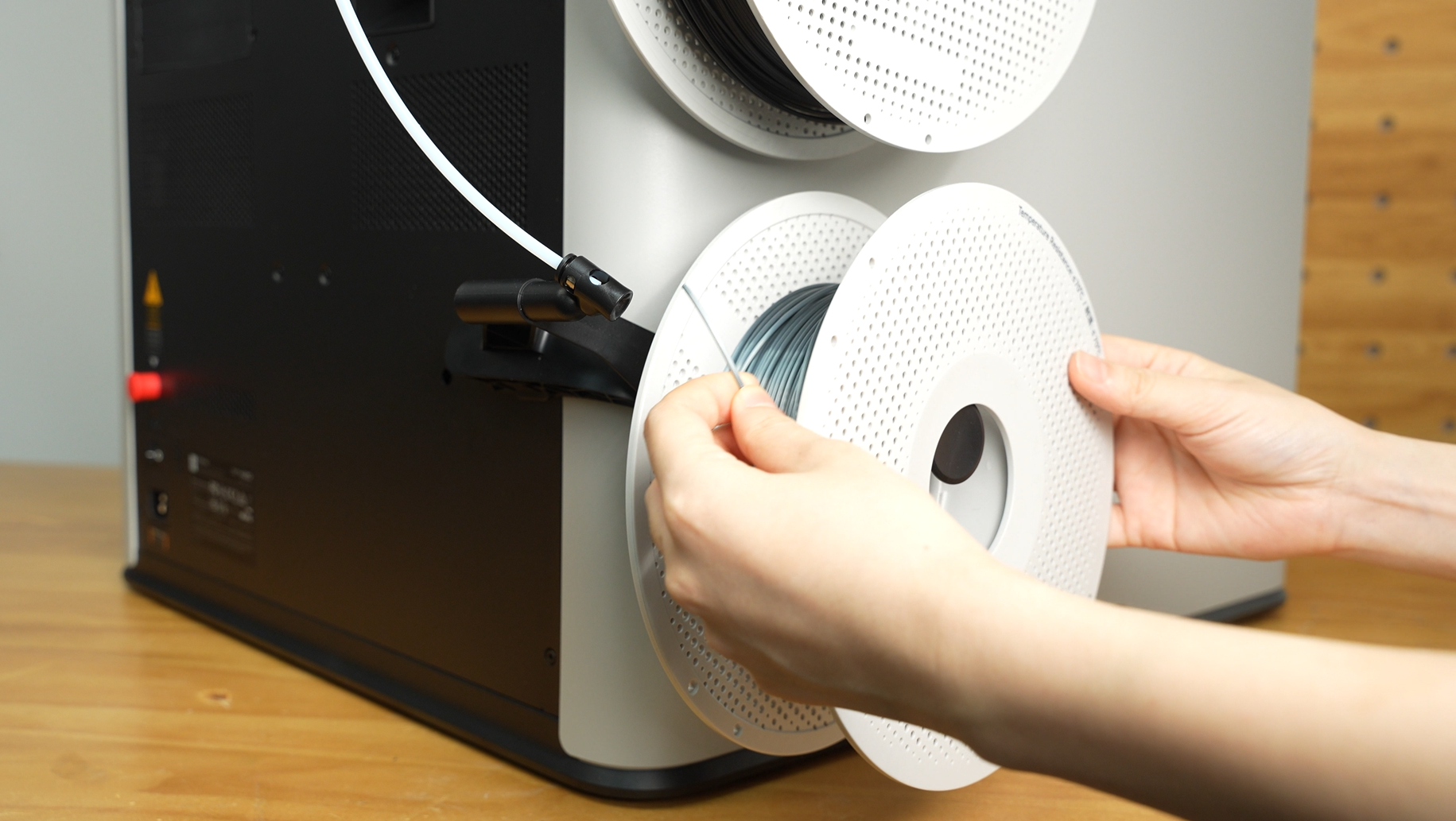

- On the screen, tap Unload Filament, roll the filament back to the spool, and remove the spool.

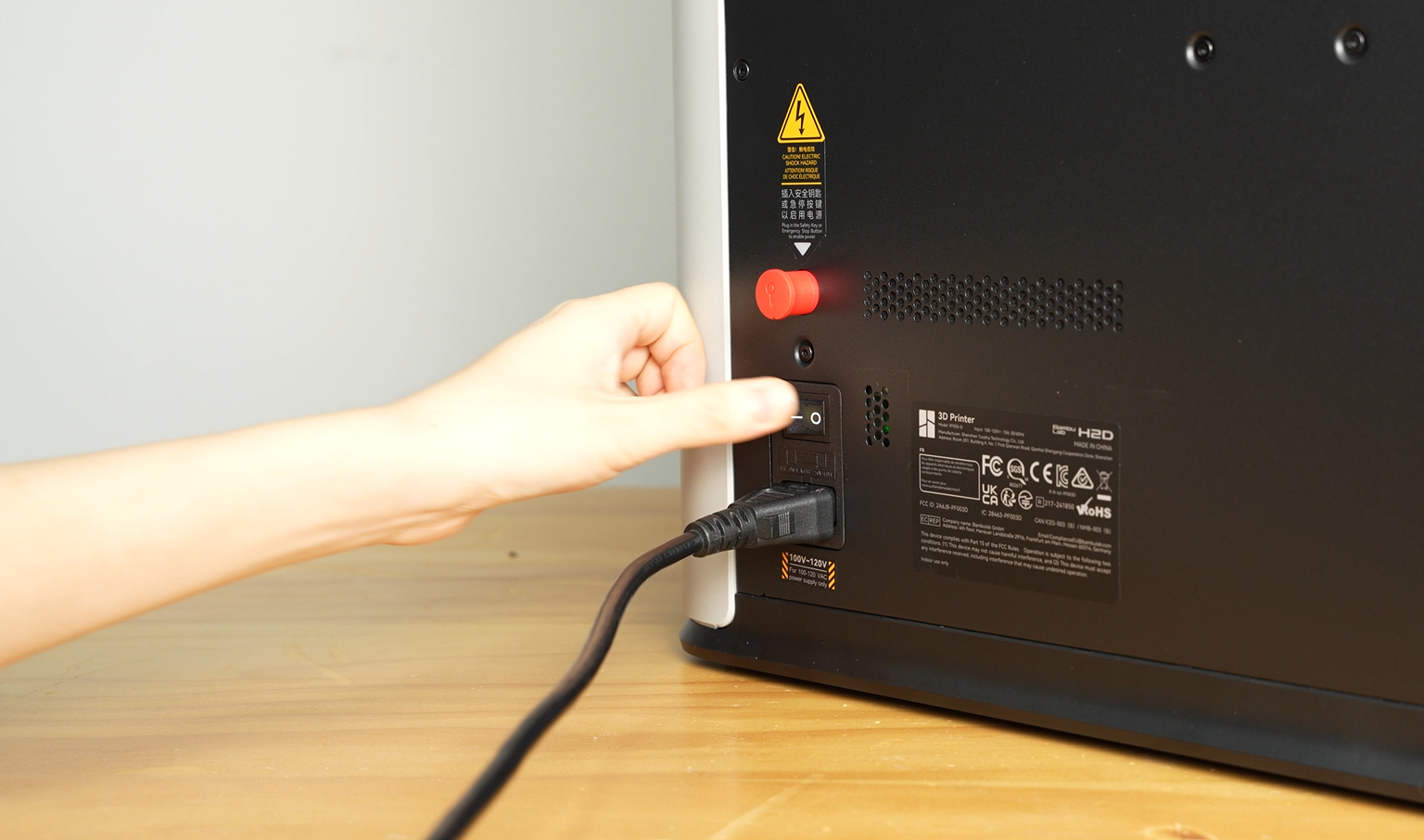

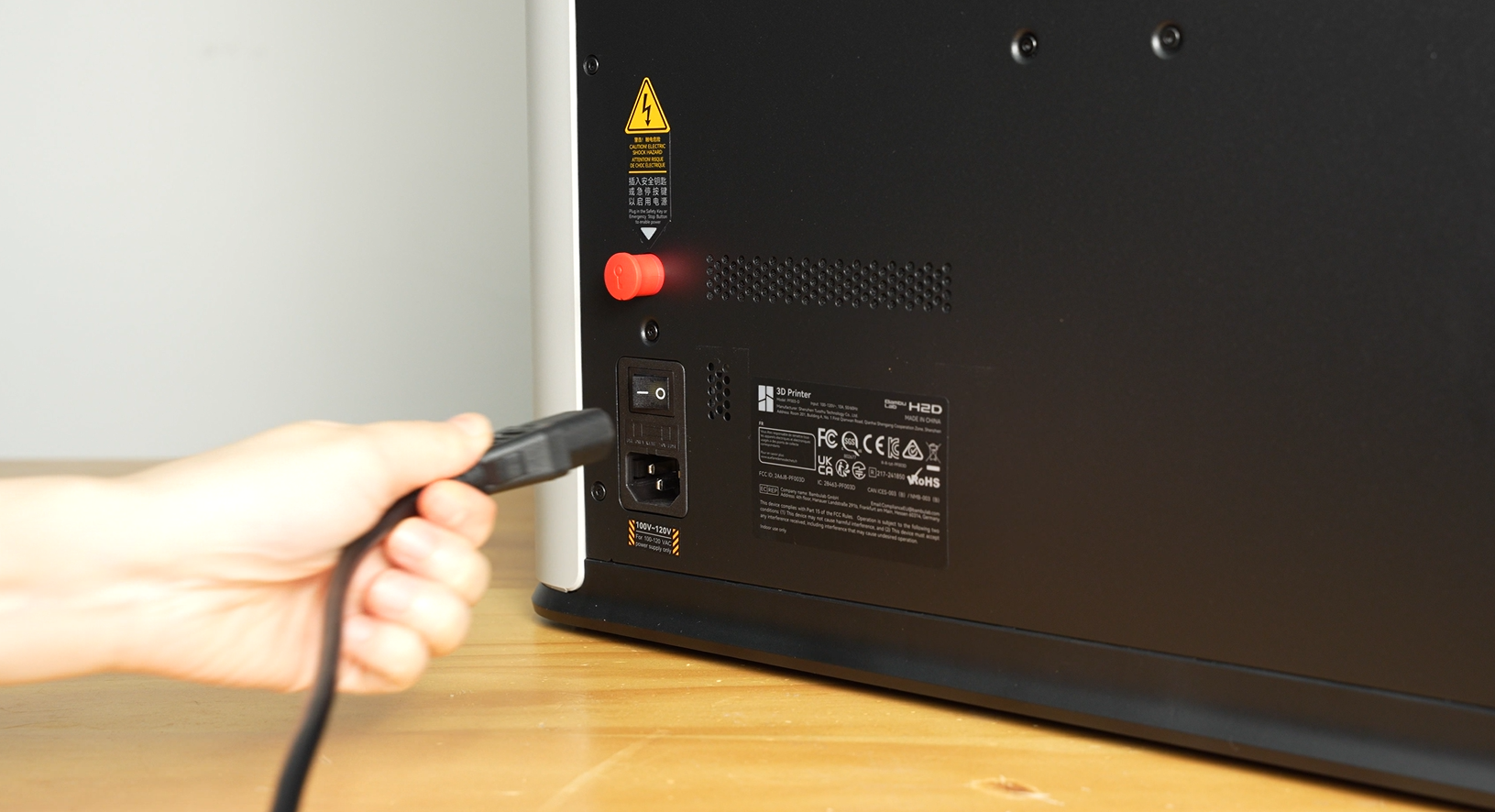

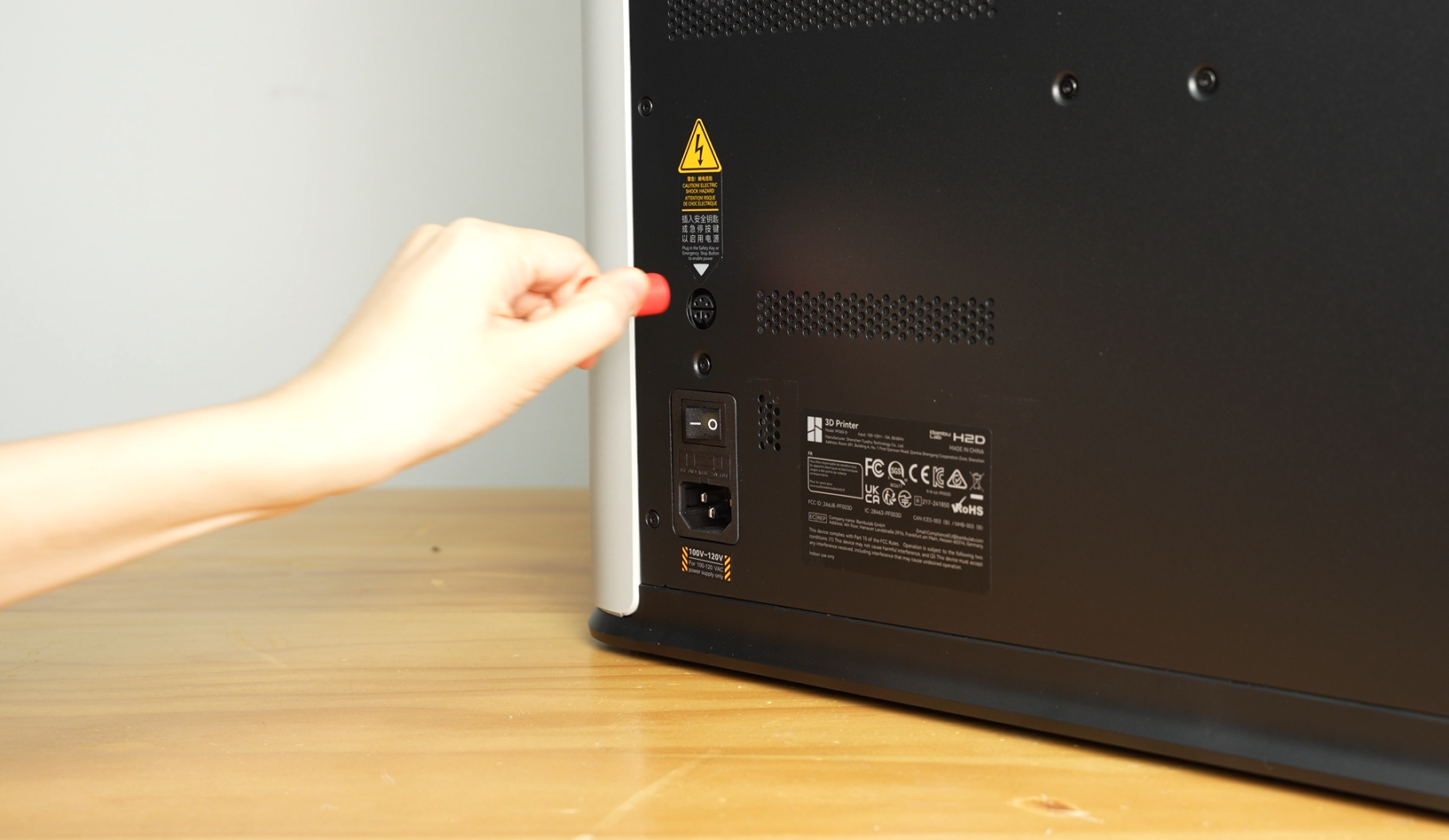

- Power off the printer, then unplug the power cable and remove the safety key.
 |
 |
 |
¶ Step 2: Remove PTFE Tubes and External Spool Holders

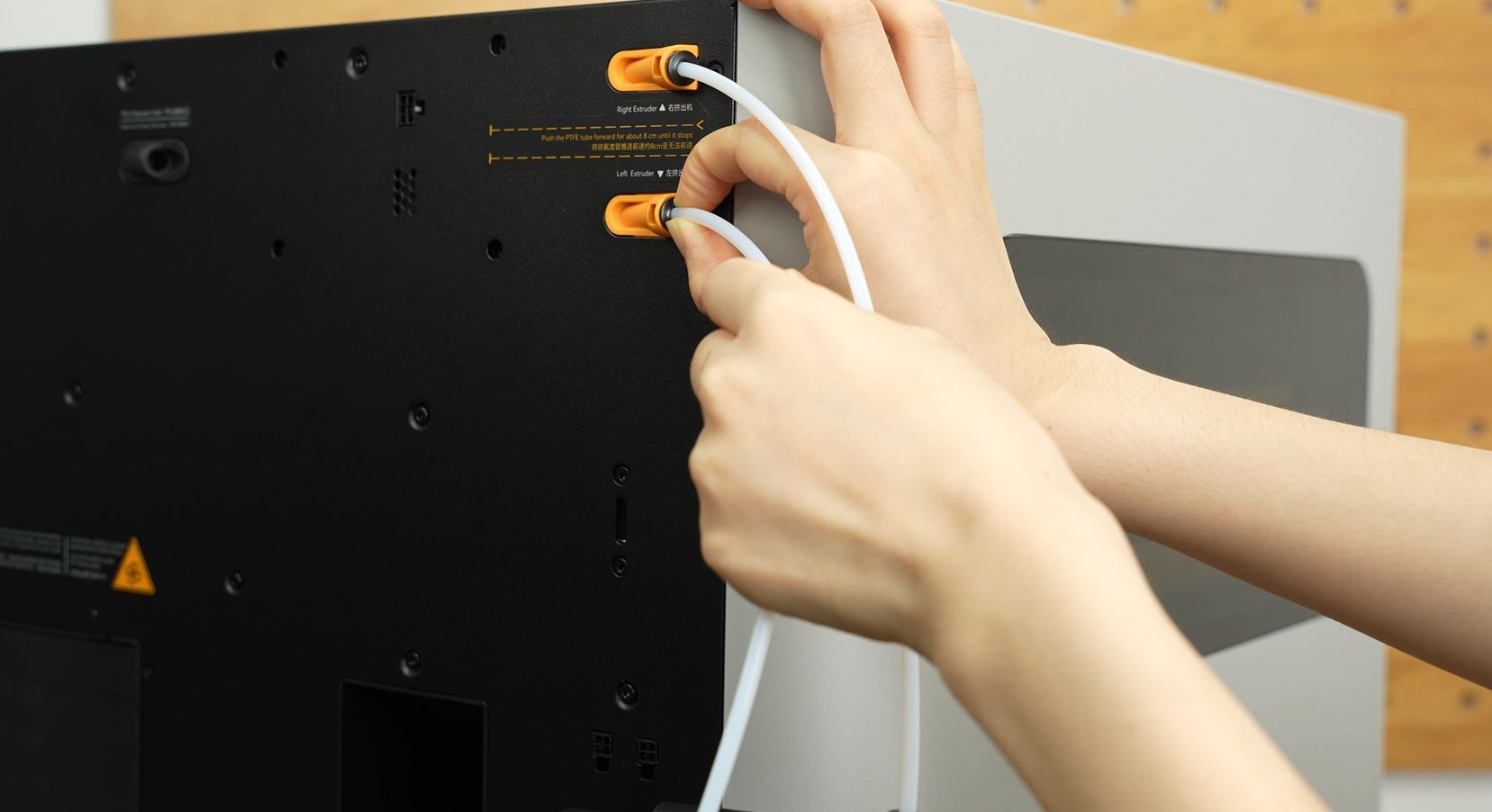

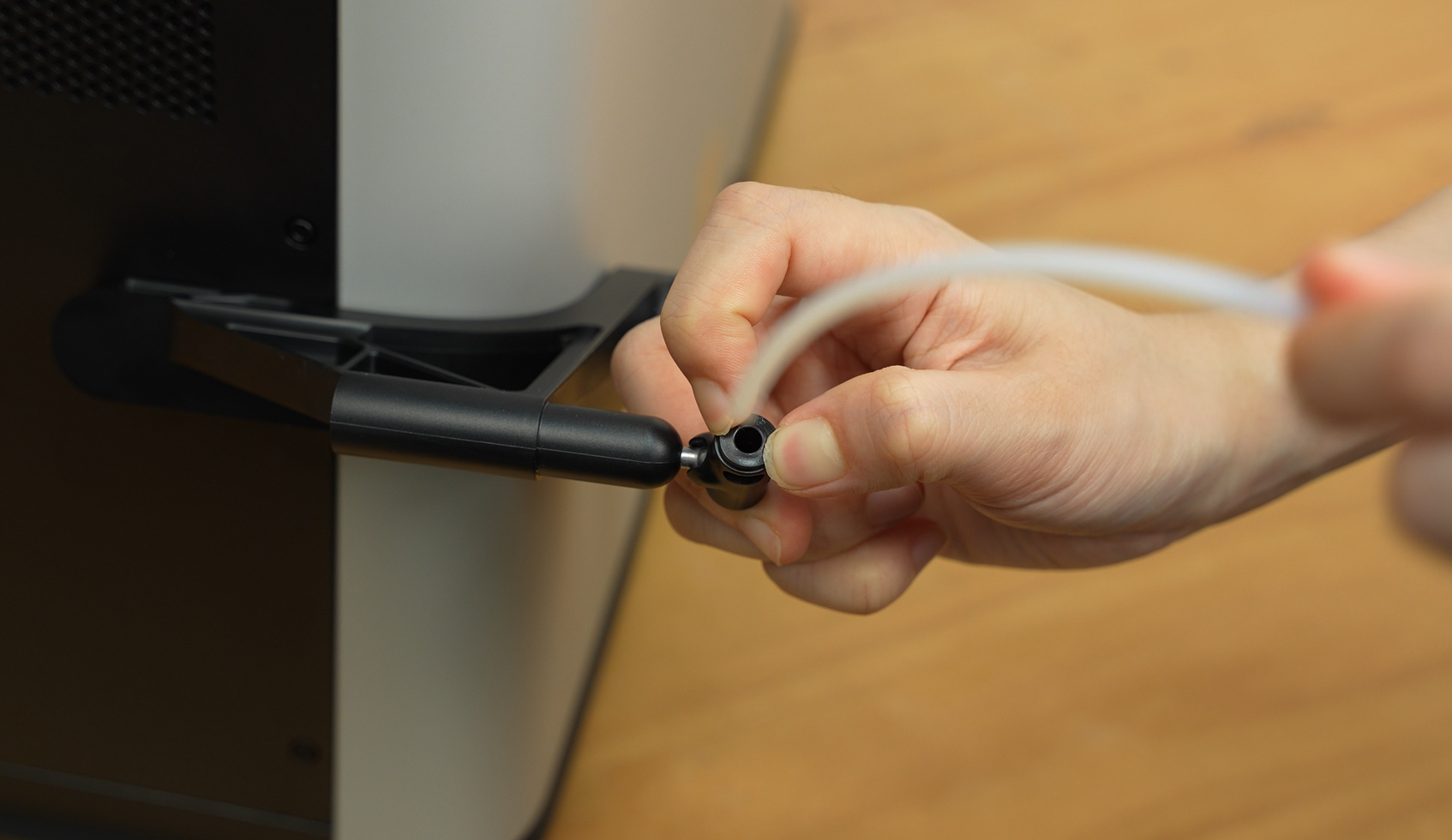

- Remove the two PTFE tubes connected to the spool holders.
 |
 |
- Push upward to remove the two spool holders.
¶ Step 3: Secure the Heatbed and Toolhead

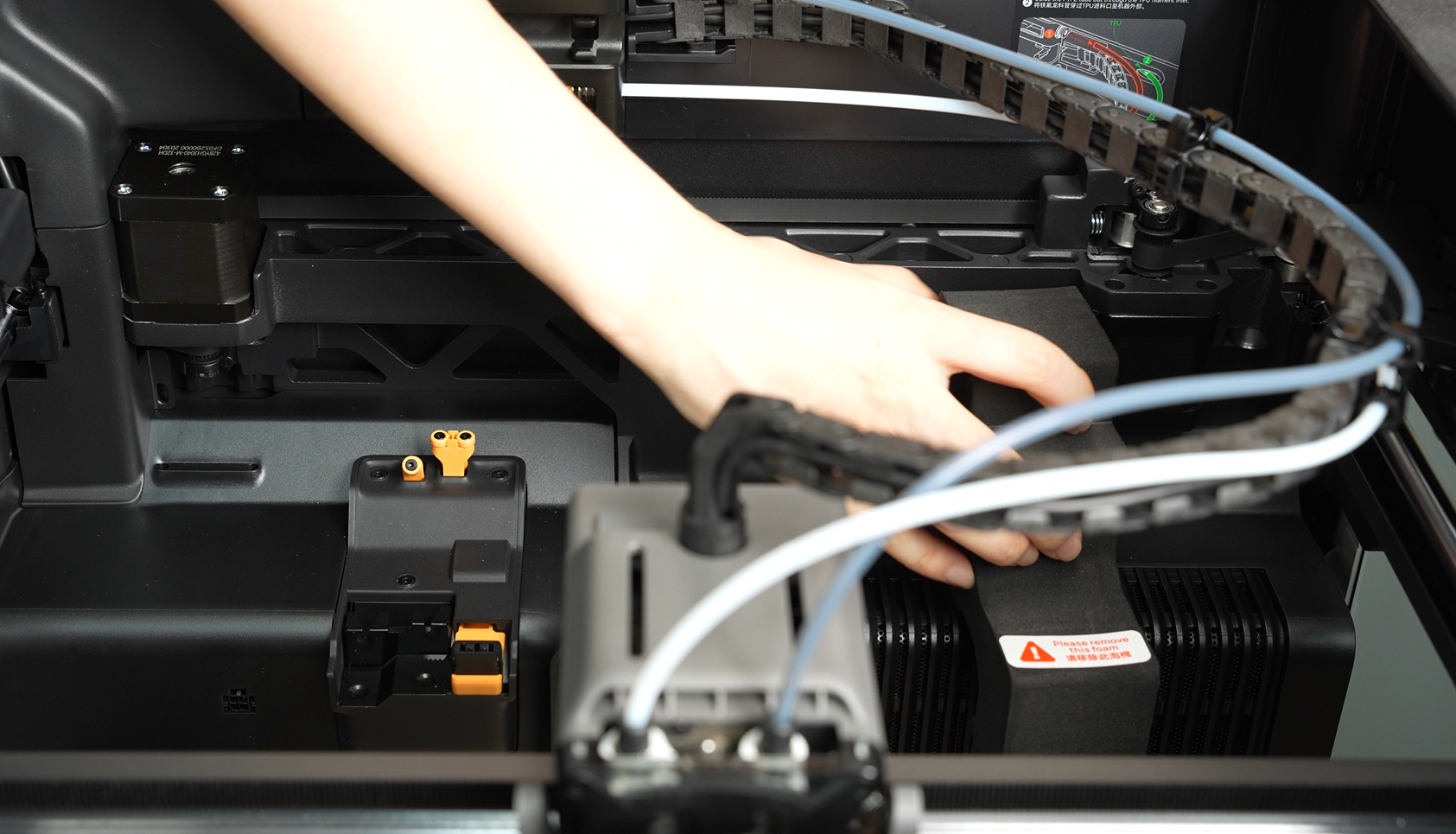

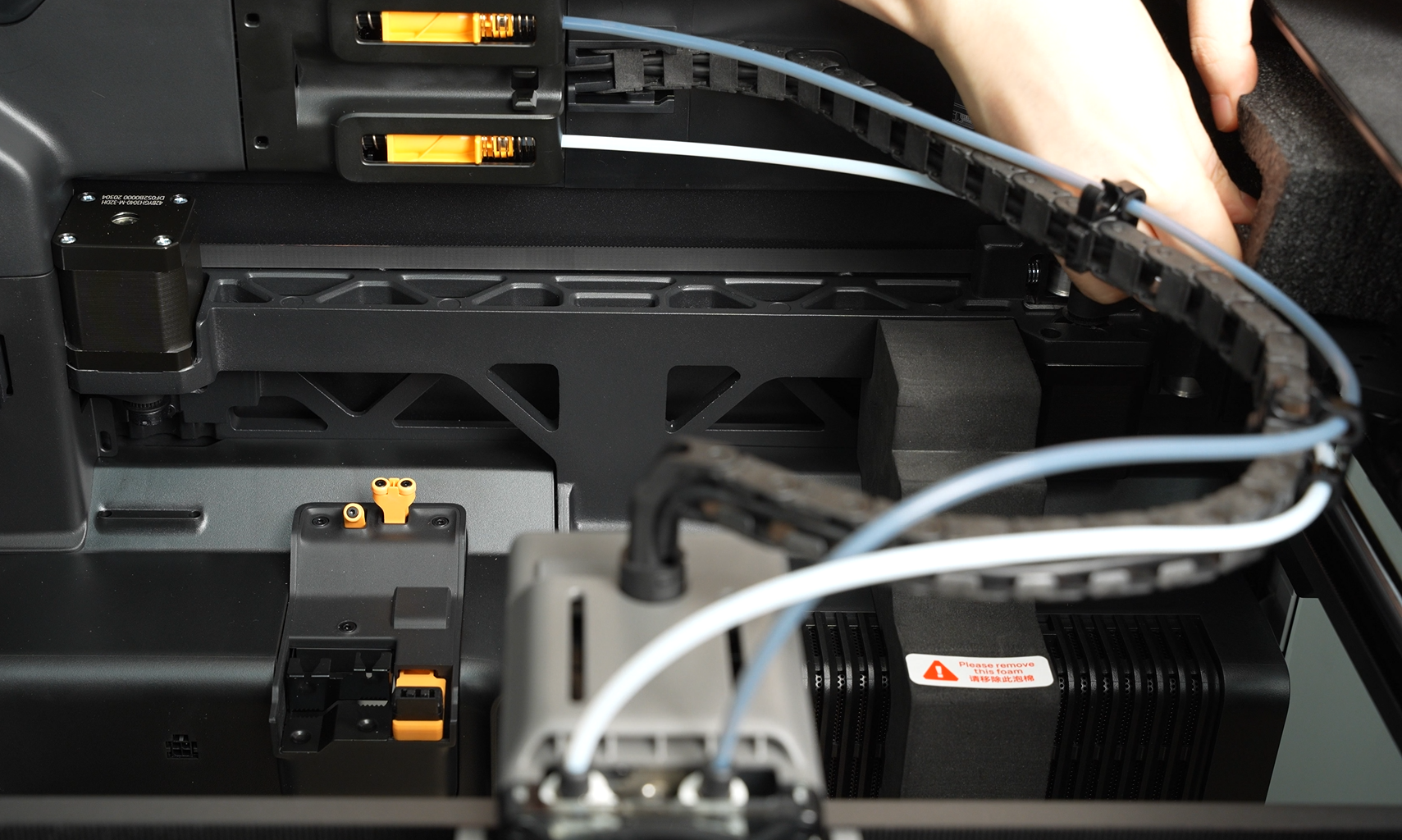

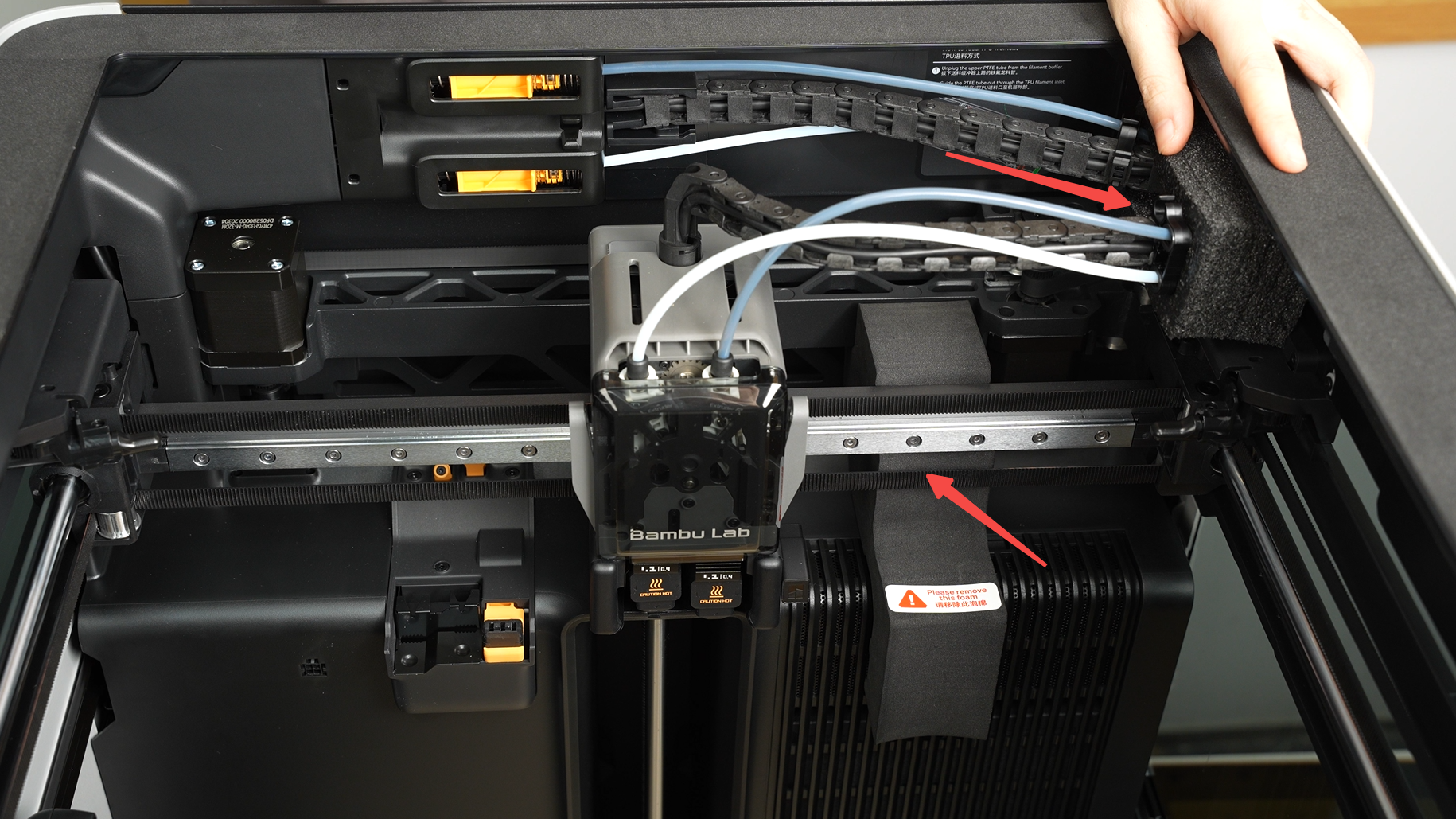

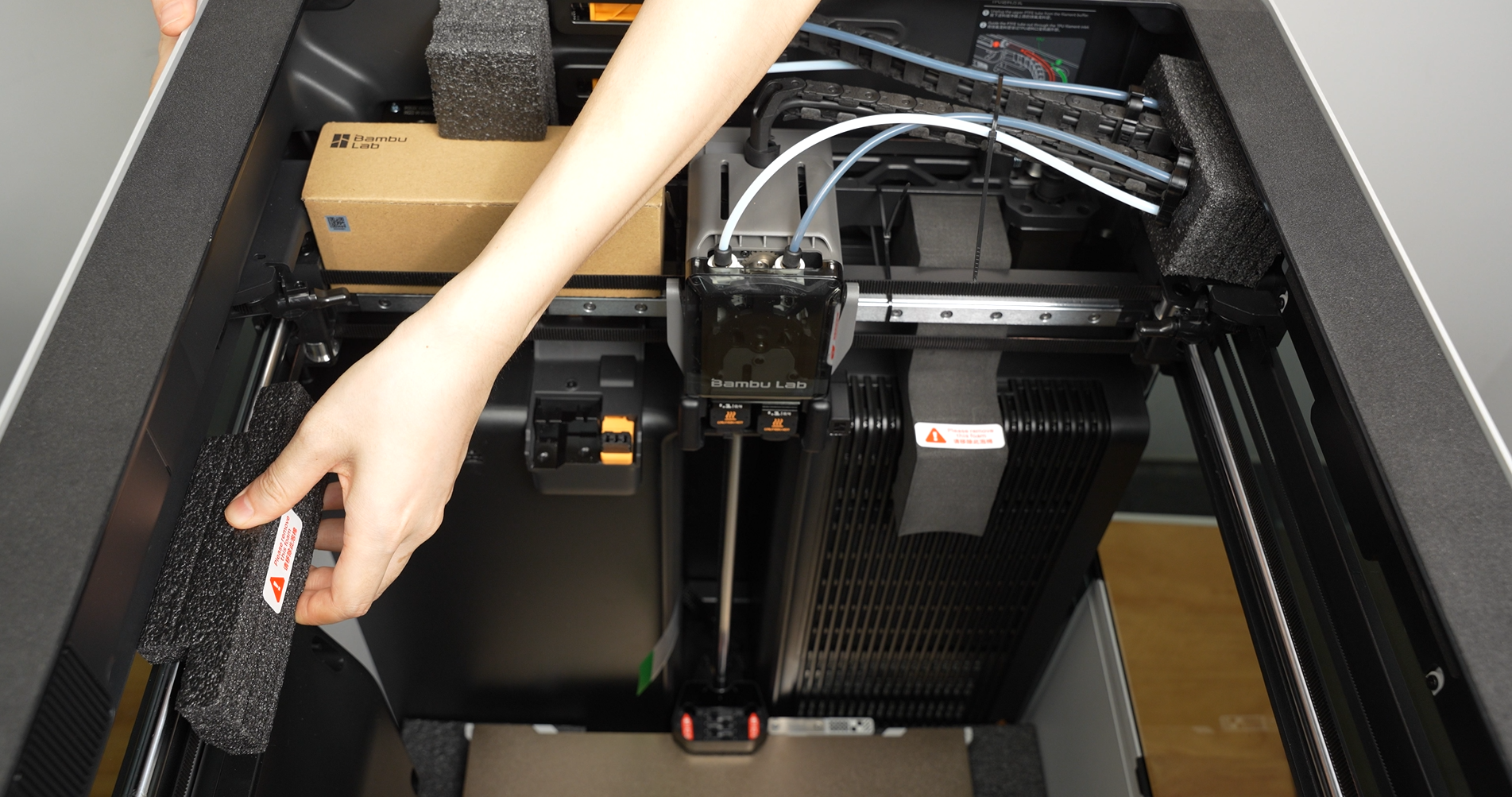

- Put back the foam pads beside cable chain and above the air filter, and pull the toolhead and cable chain to press against the foam.
 |
 |
 |

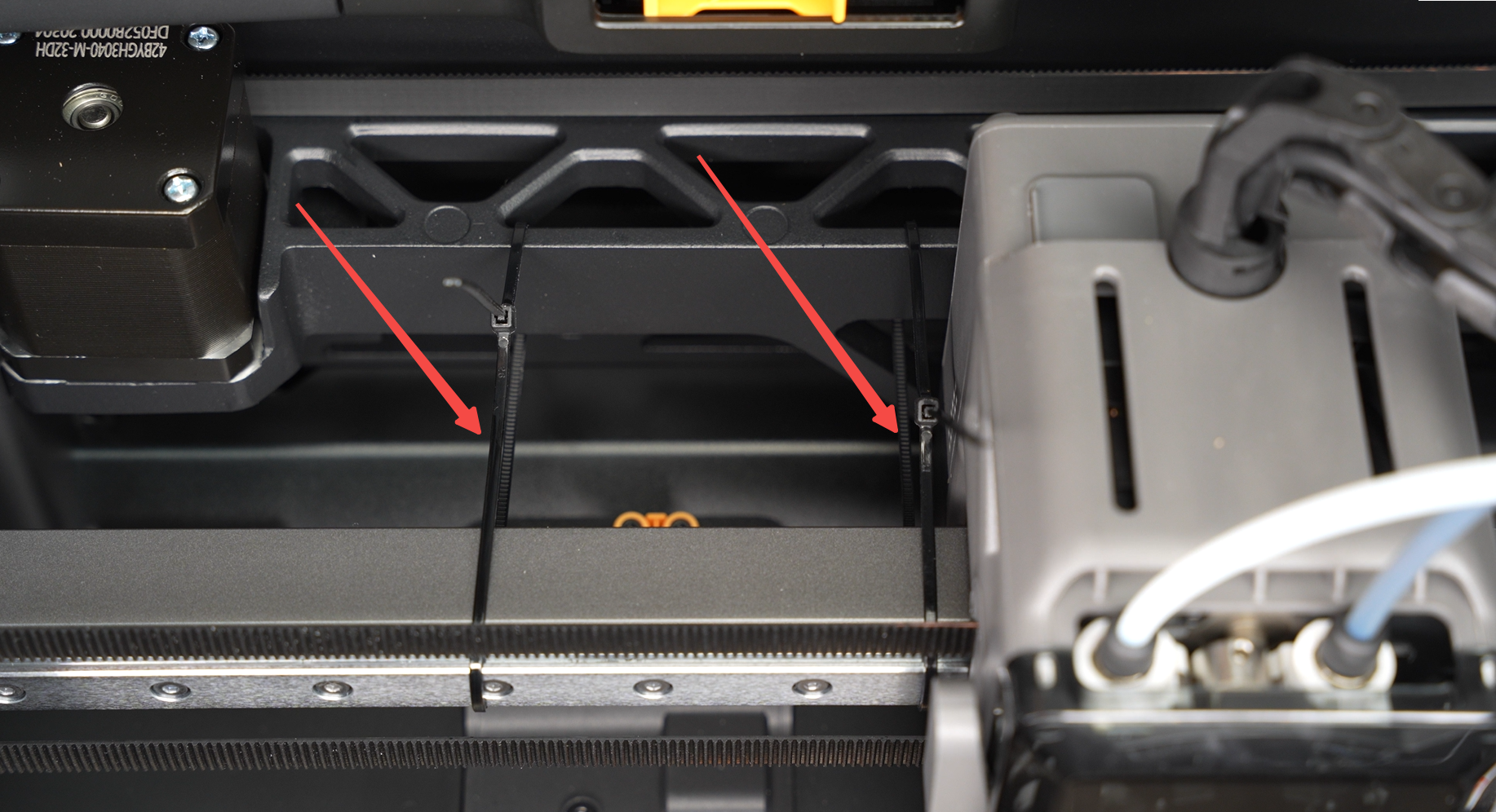

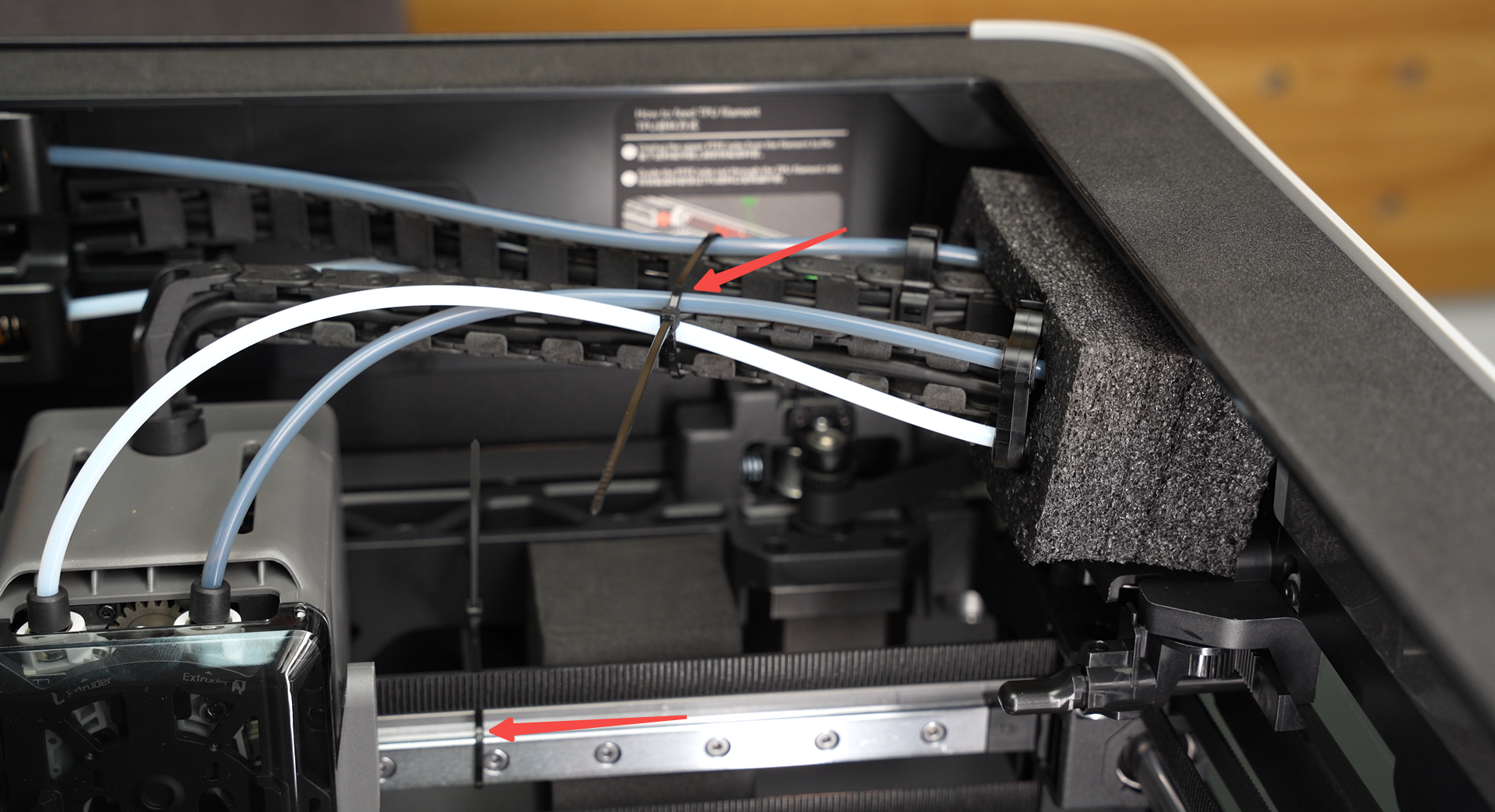

- At the indicated positions, tighten the zip ties to secure the X-axis with the rear frame, and the cable chain.
Note: Avoid tying the belts.
 |
 |
- Put back the two threaded rod foam pads.
 |
 |

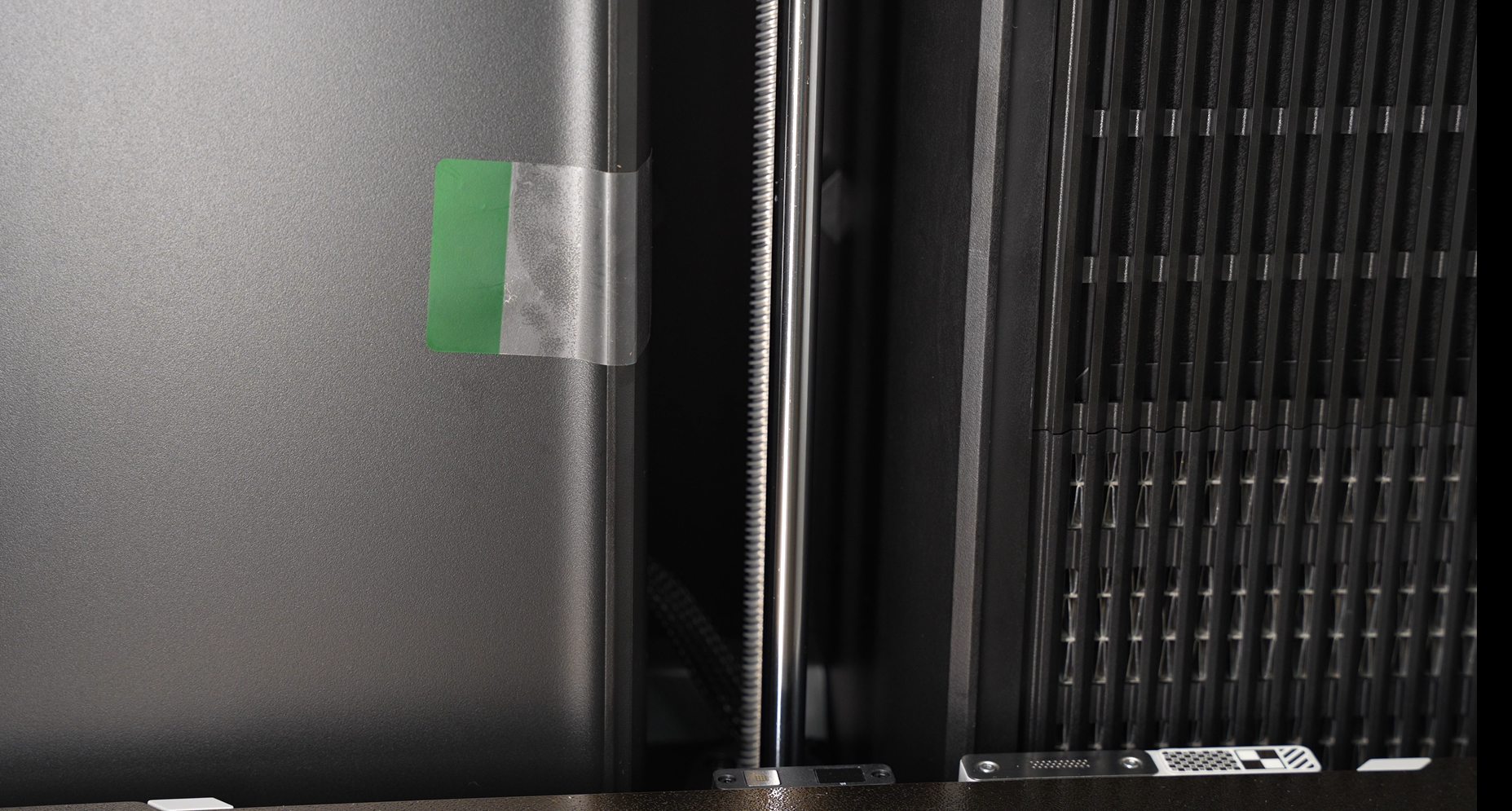

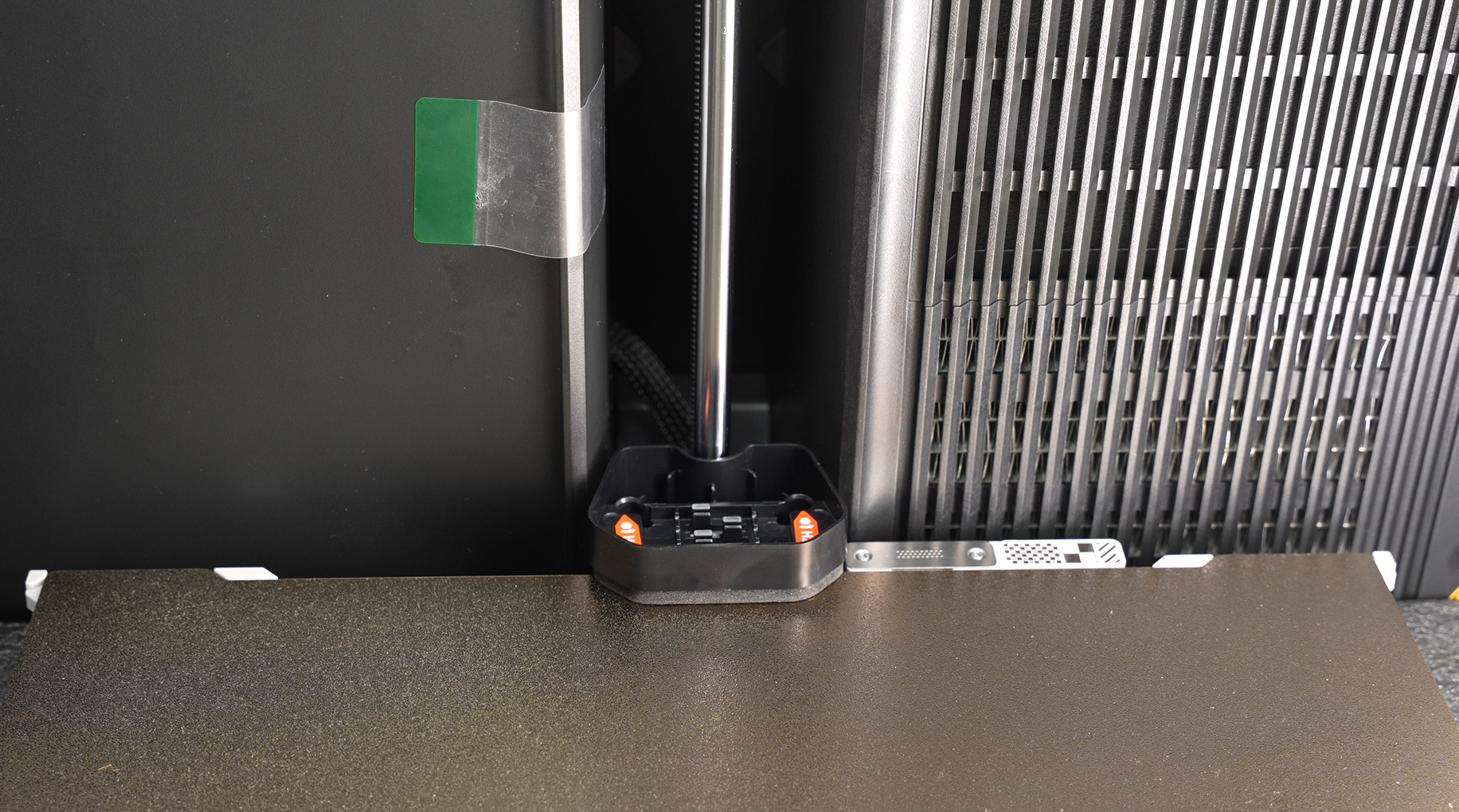

- Apply protective tape at the indicated positions to prevent scratches during screw tightening.

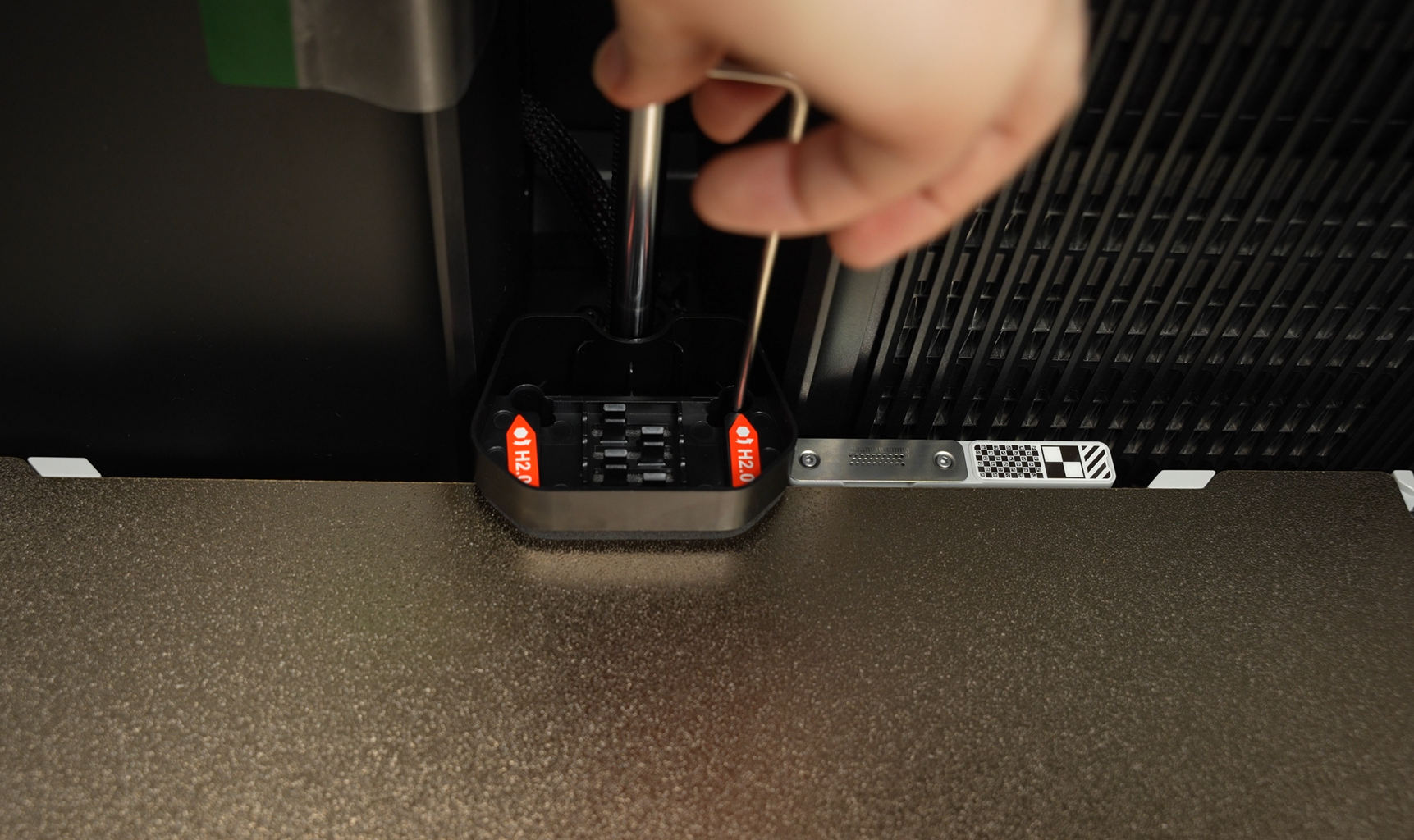

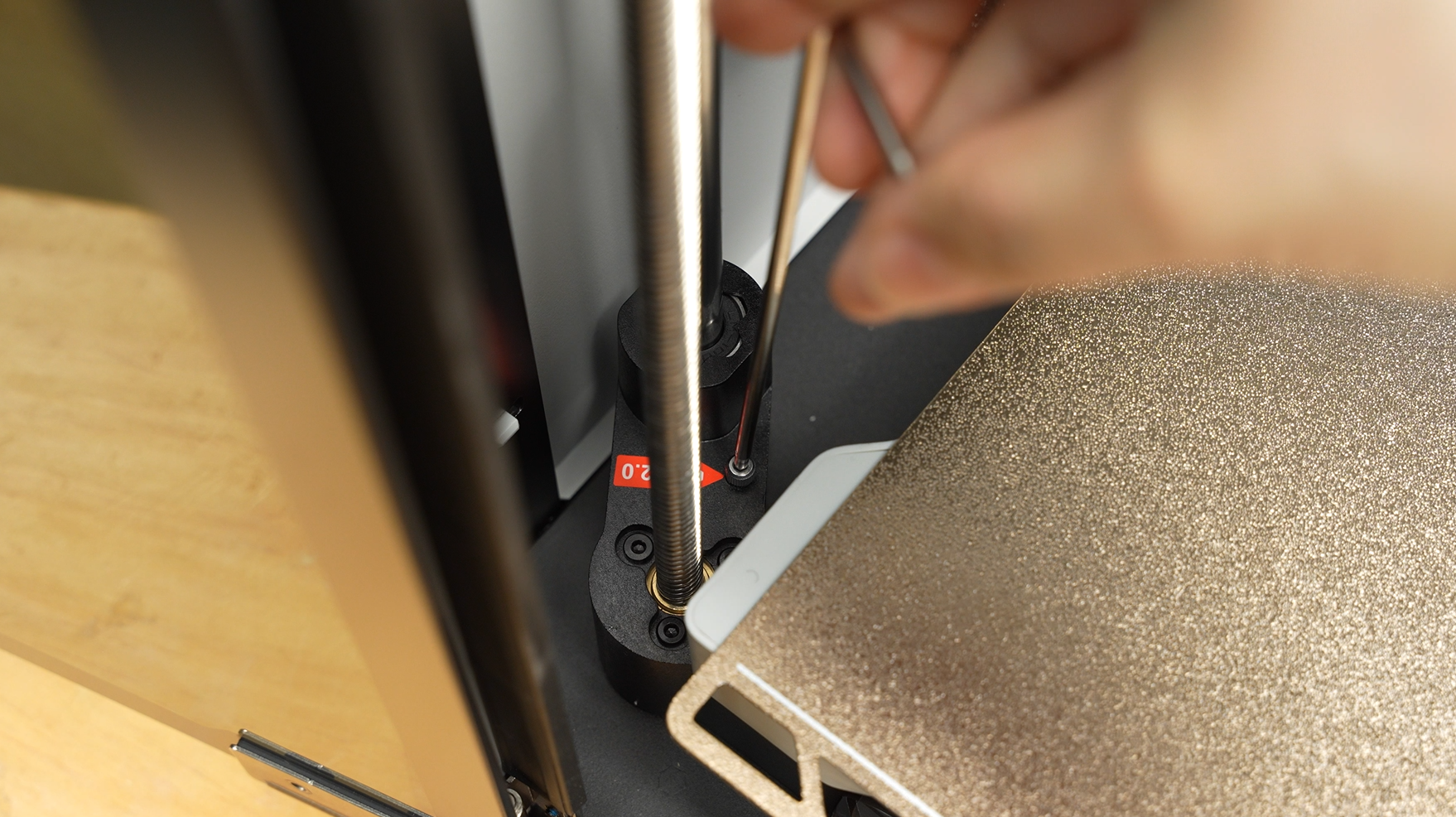

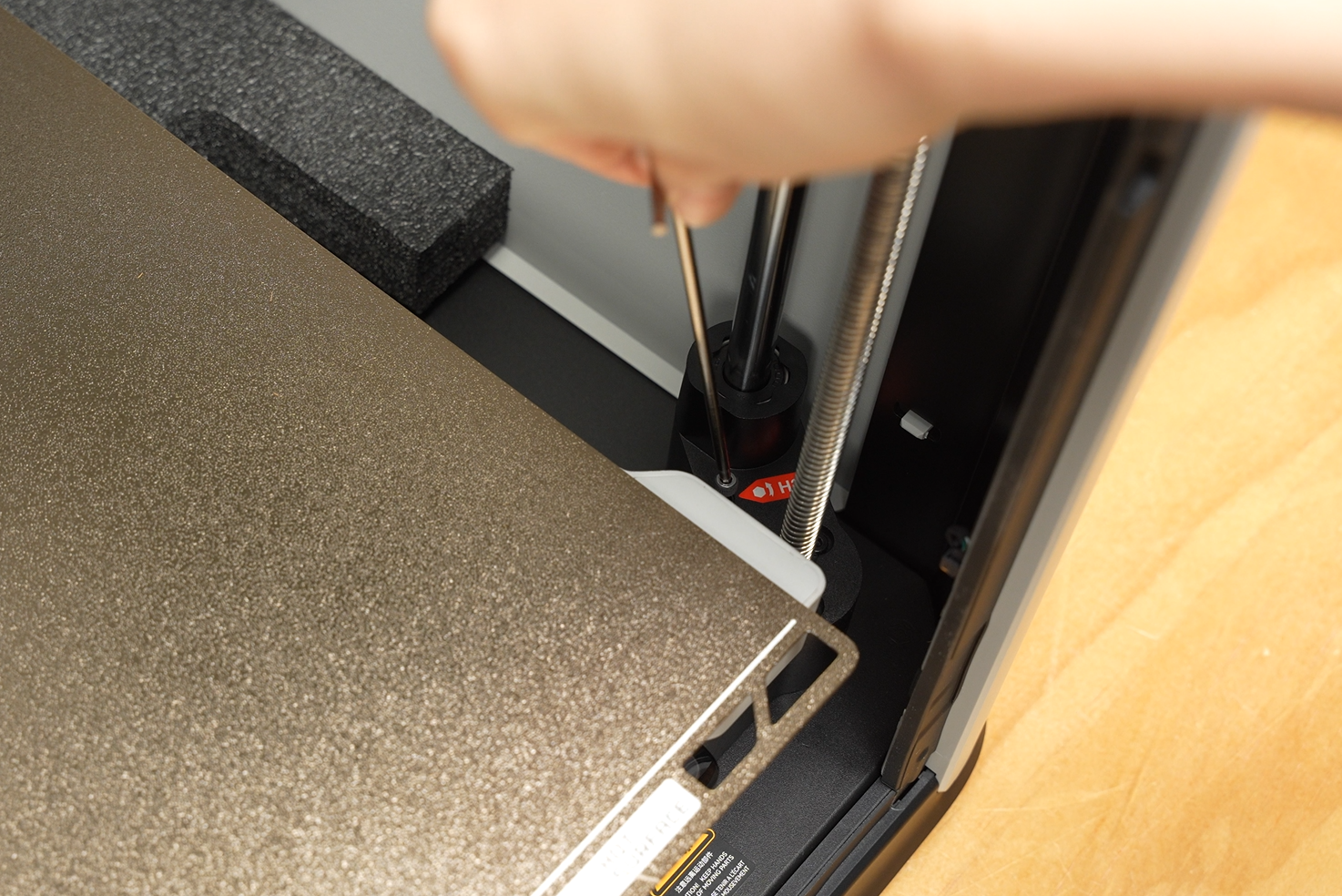

- Tighten the two heatbed fixed screws near the front door.
 |
 |

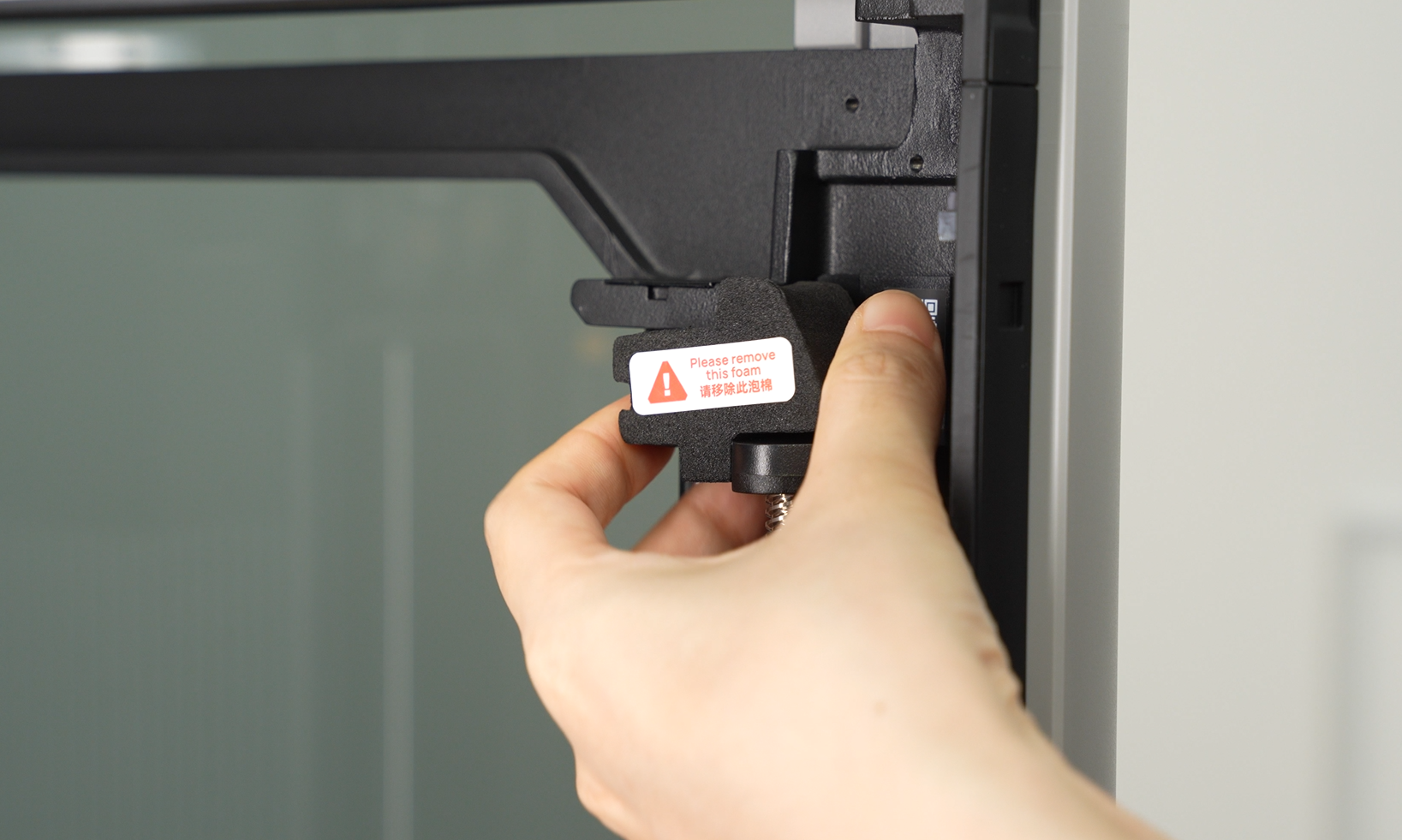

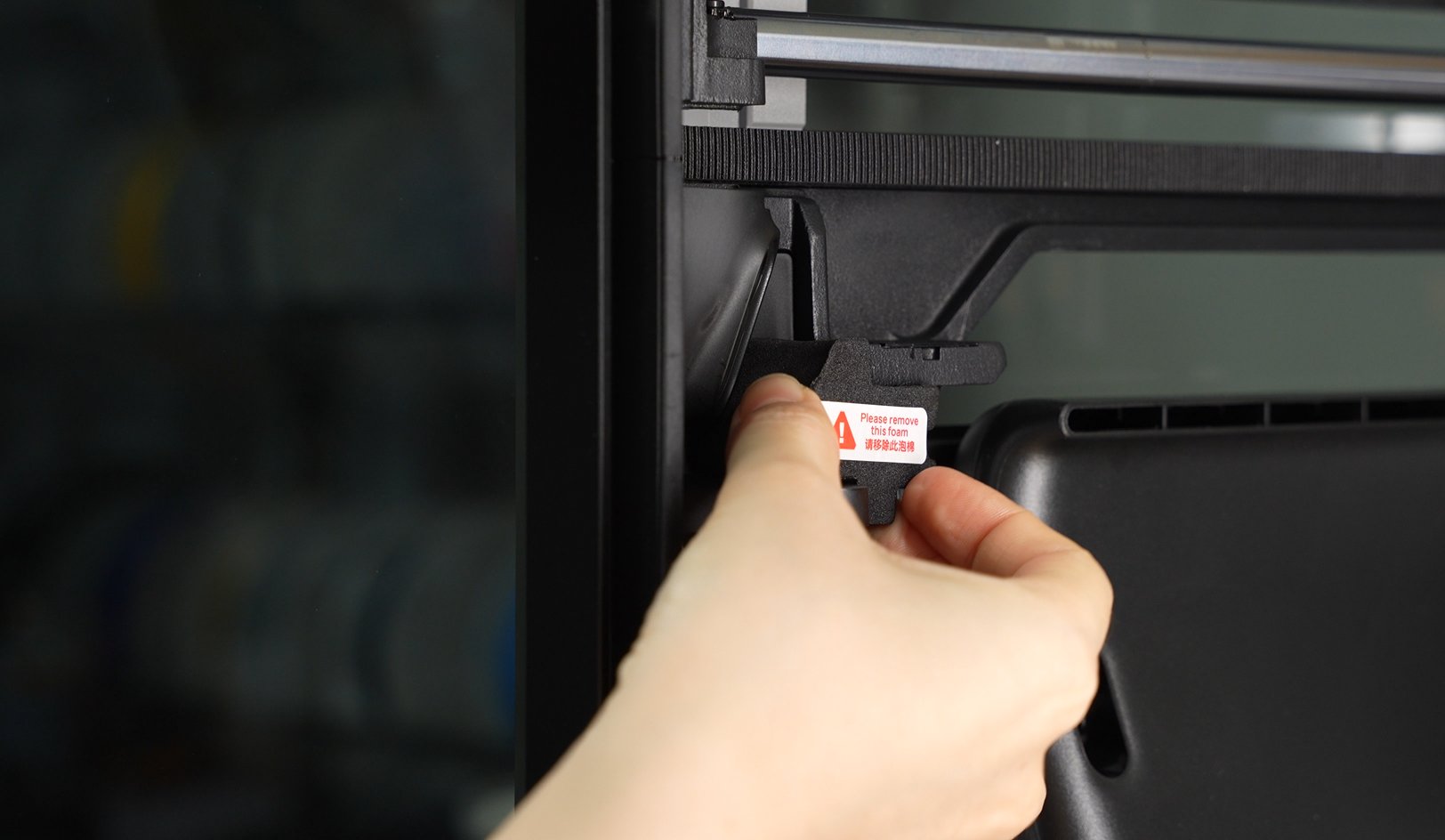

- Put back the rear heatbed fixture and tighten the two screws.
 |
 |
¶ Step 4: Repack Accessories and the Printer

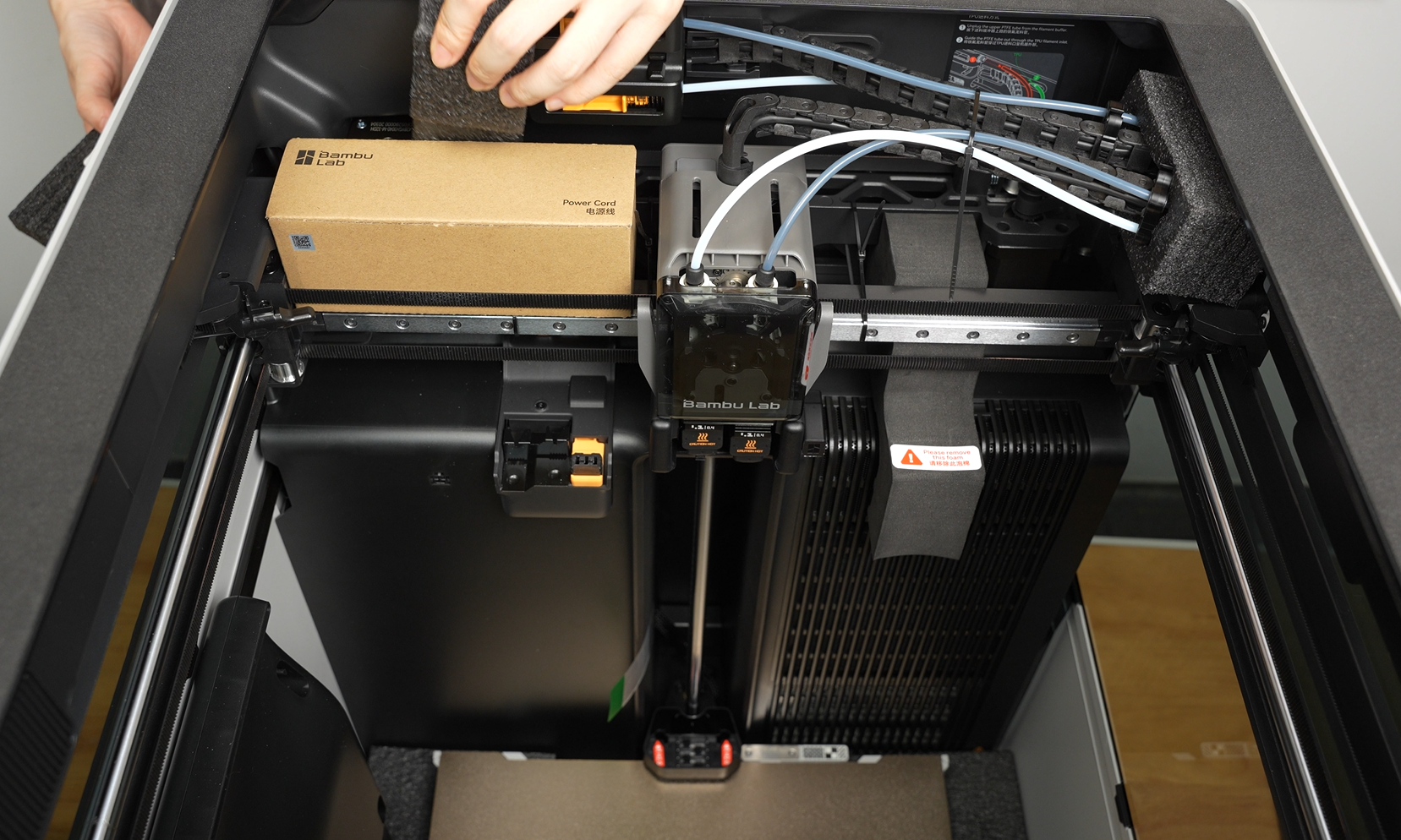

- Place back the foam support and the power cable box, and secure them with zip ties.
 |
 |

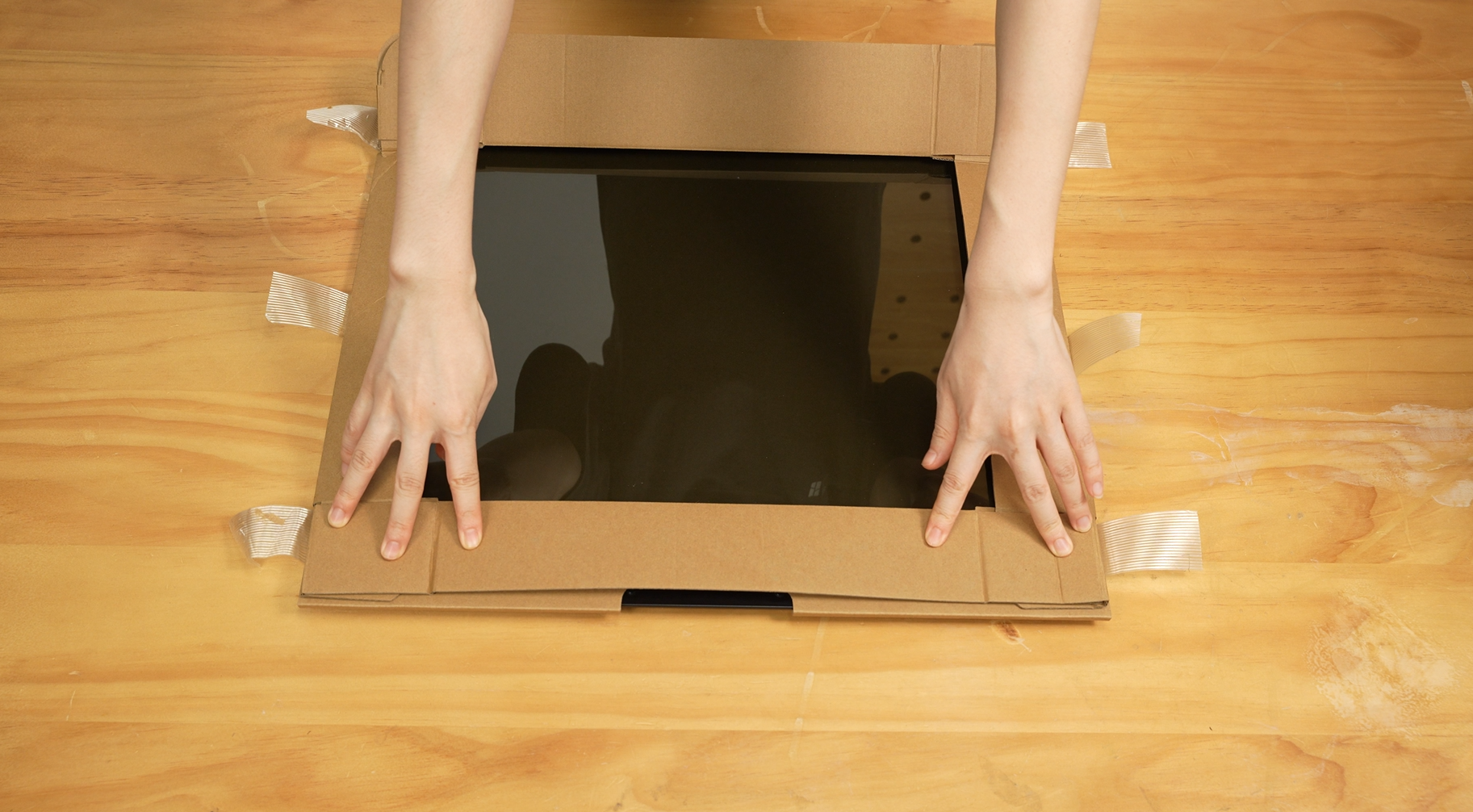

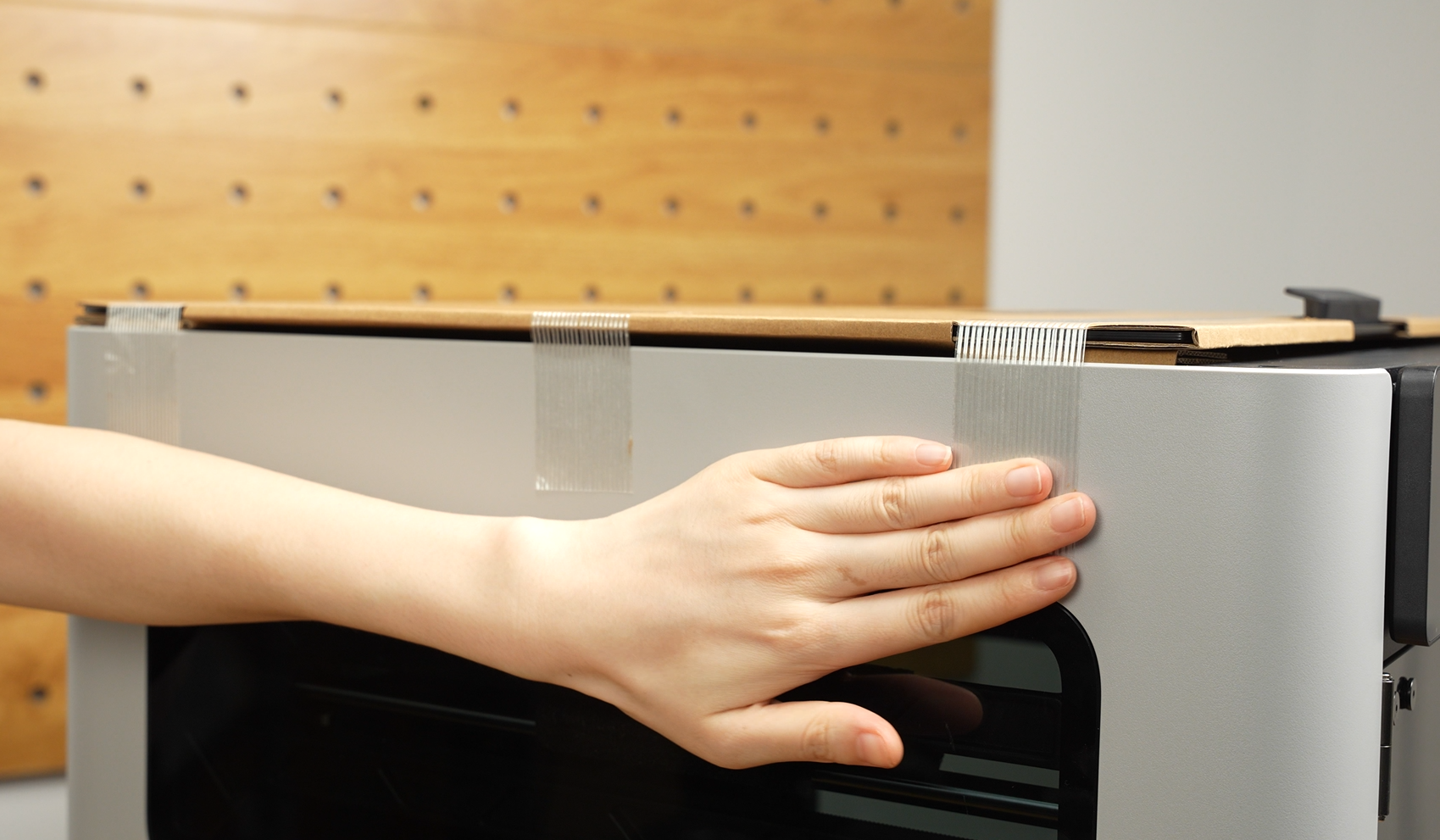

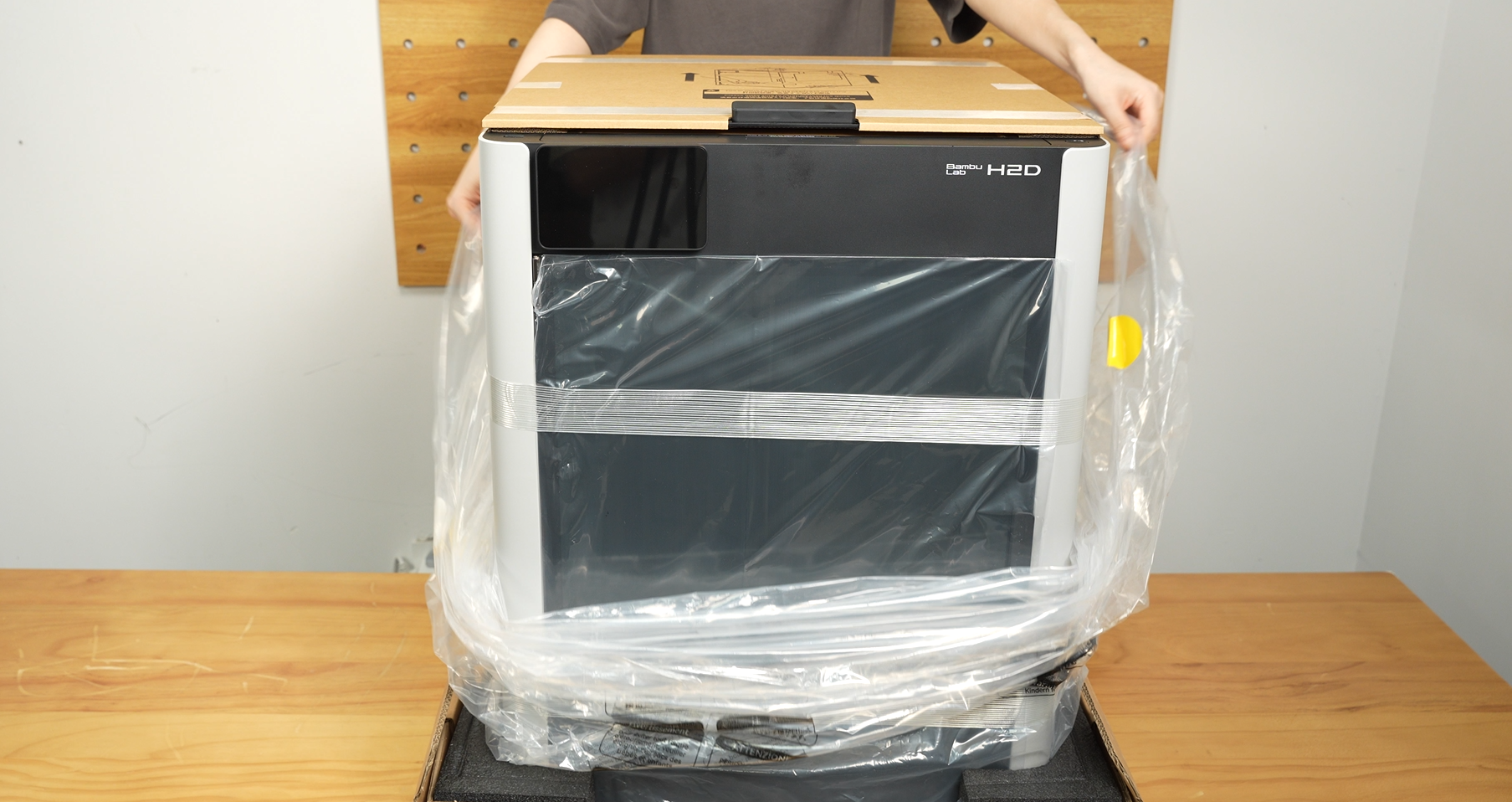

- Wrap the top cover with the cardboard cover and place it on top of the printer. Use tape to secure both sides.
 |
 |

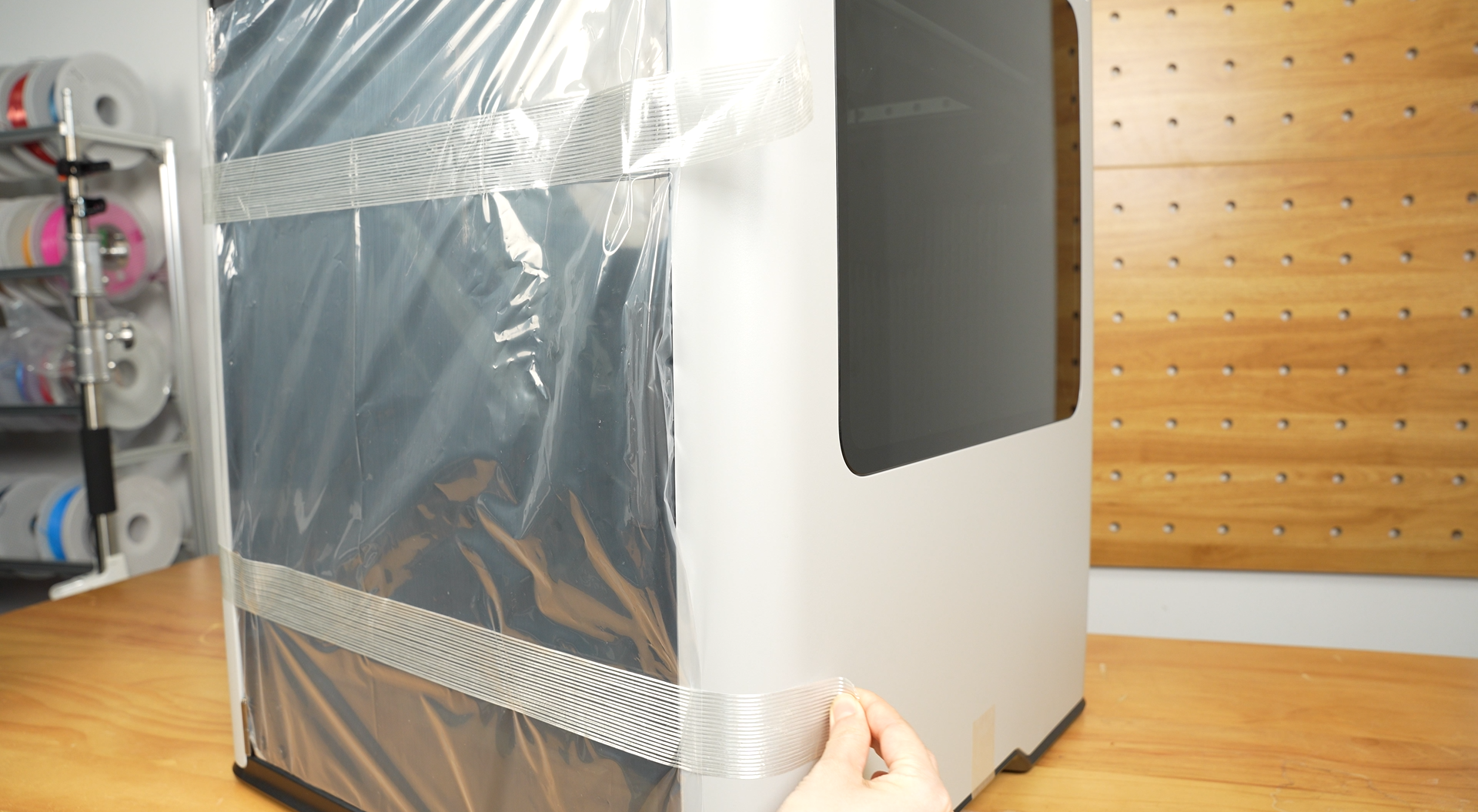

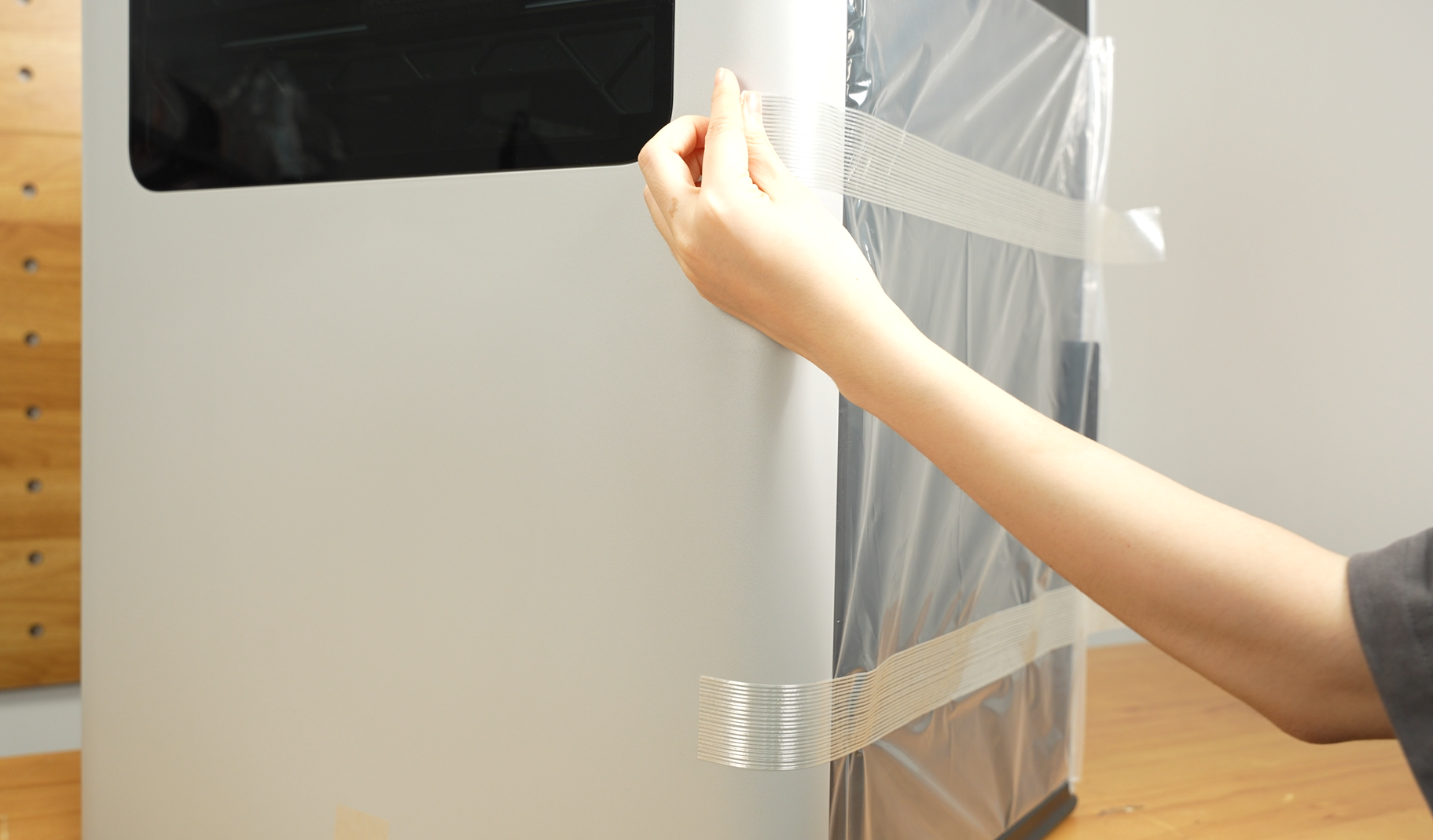

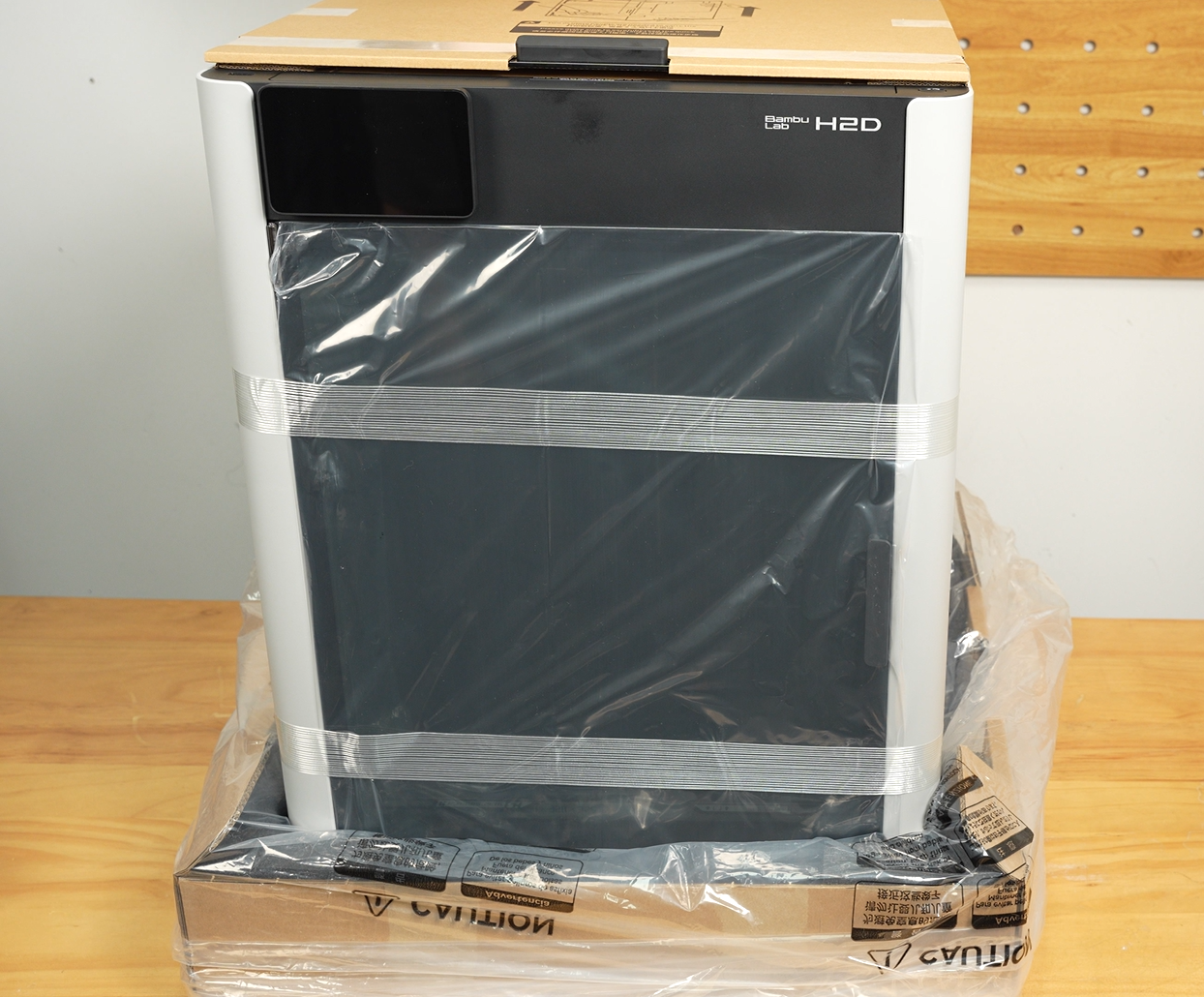

- Use tape to secure the front door.
 |
 |

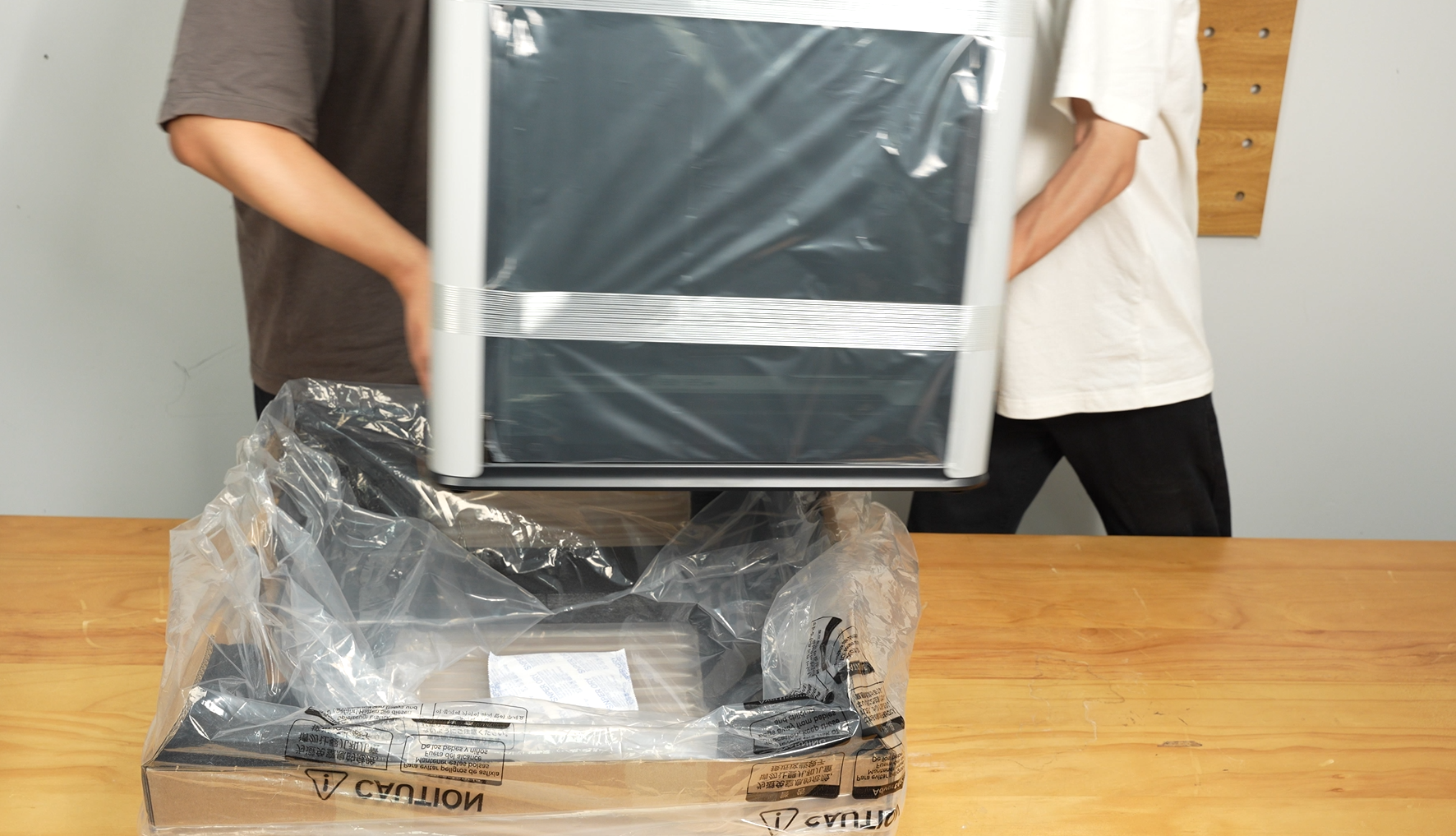

- Cover the four corners of the bottom carton with the moisture-proof bag. Then, two people lift and place the printer into the bottom box.
 |
 |

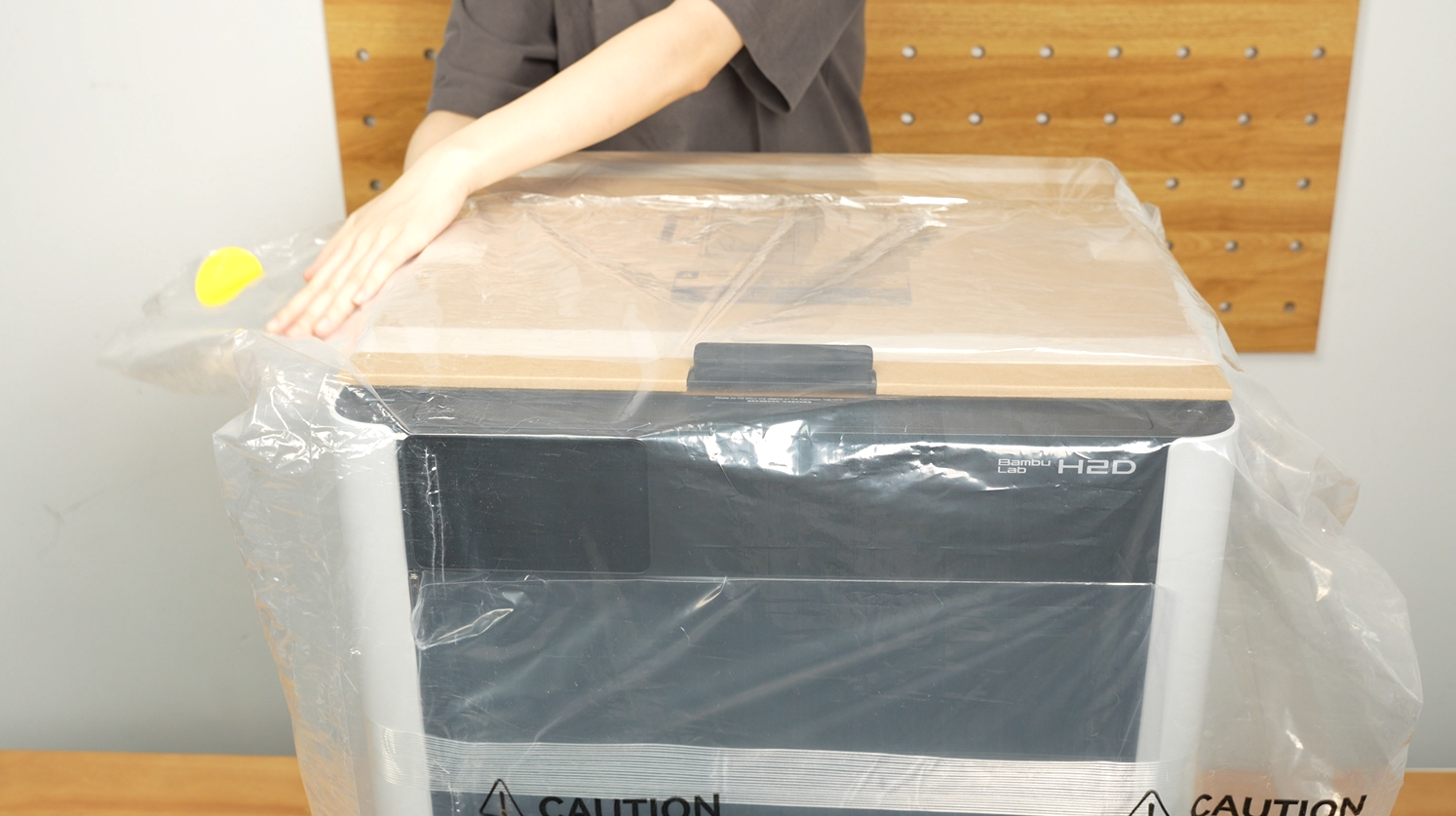

- Pull up the moisture-proof bag to fully cover the printer and seal the top with tape.
 |
 |

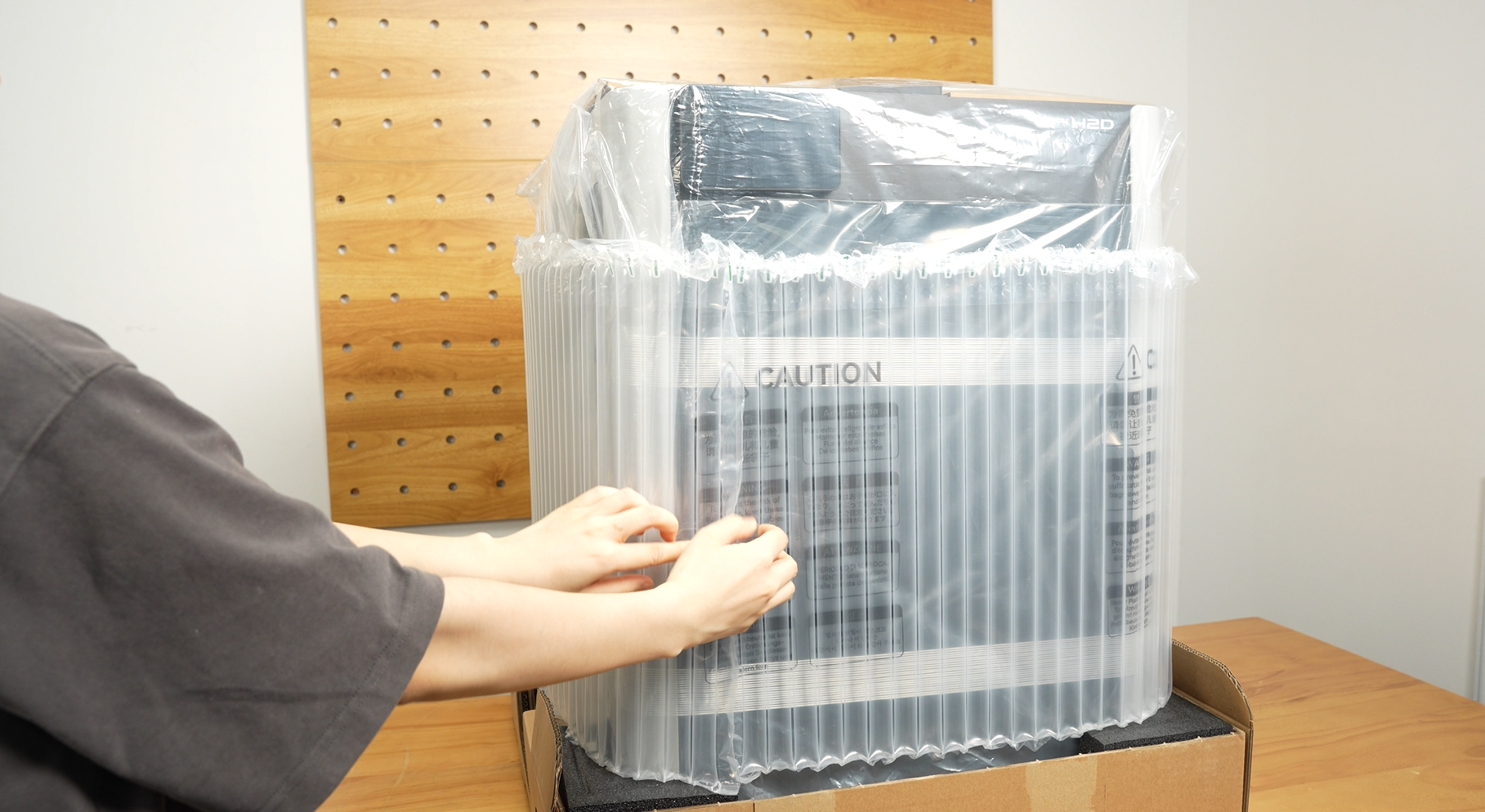

- Place air cushions around the printer.

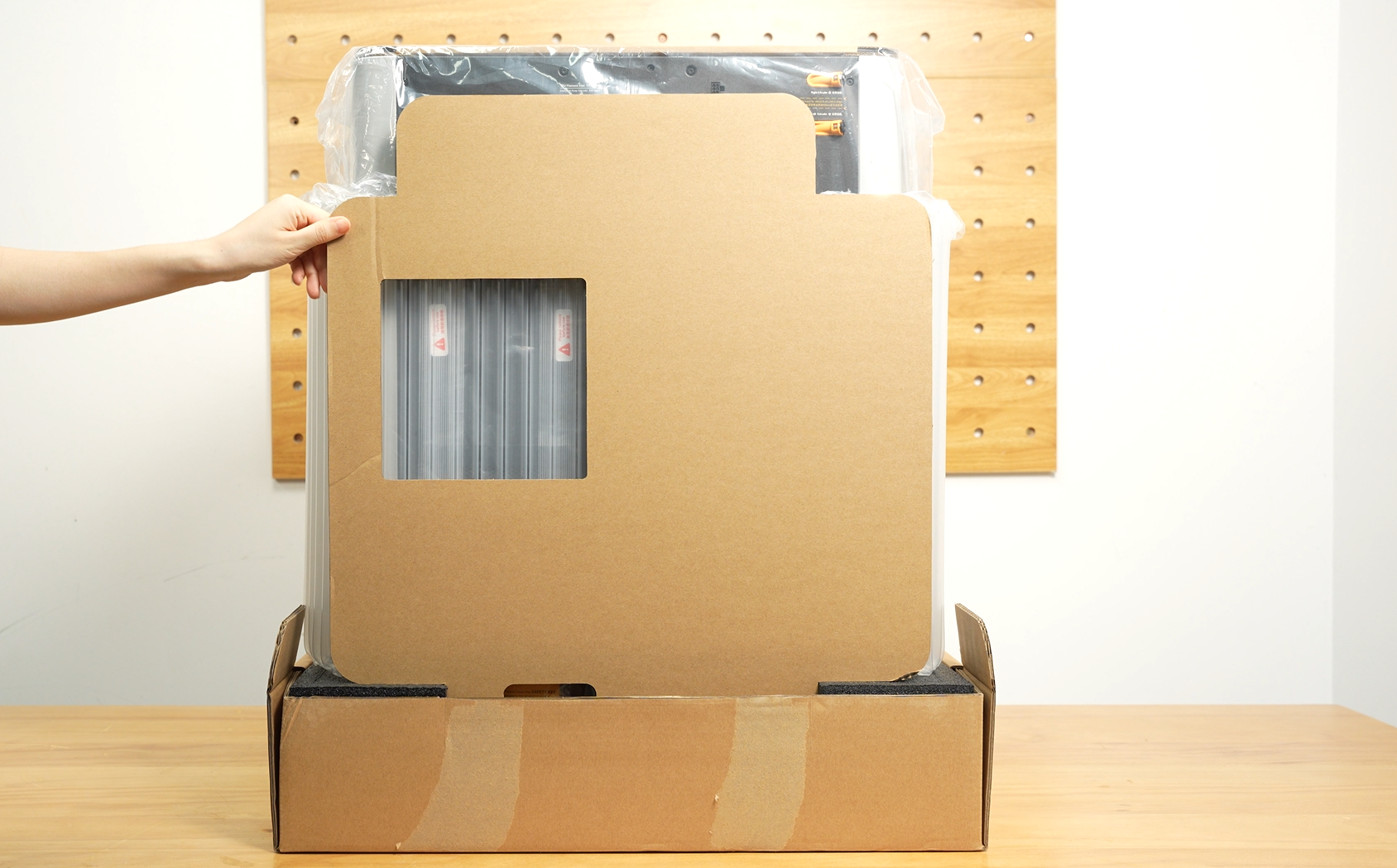

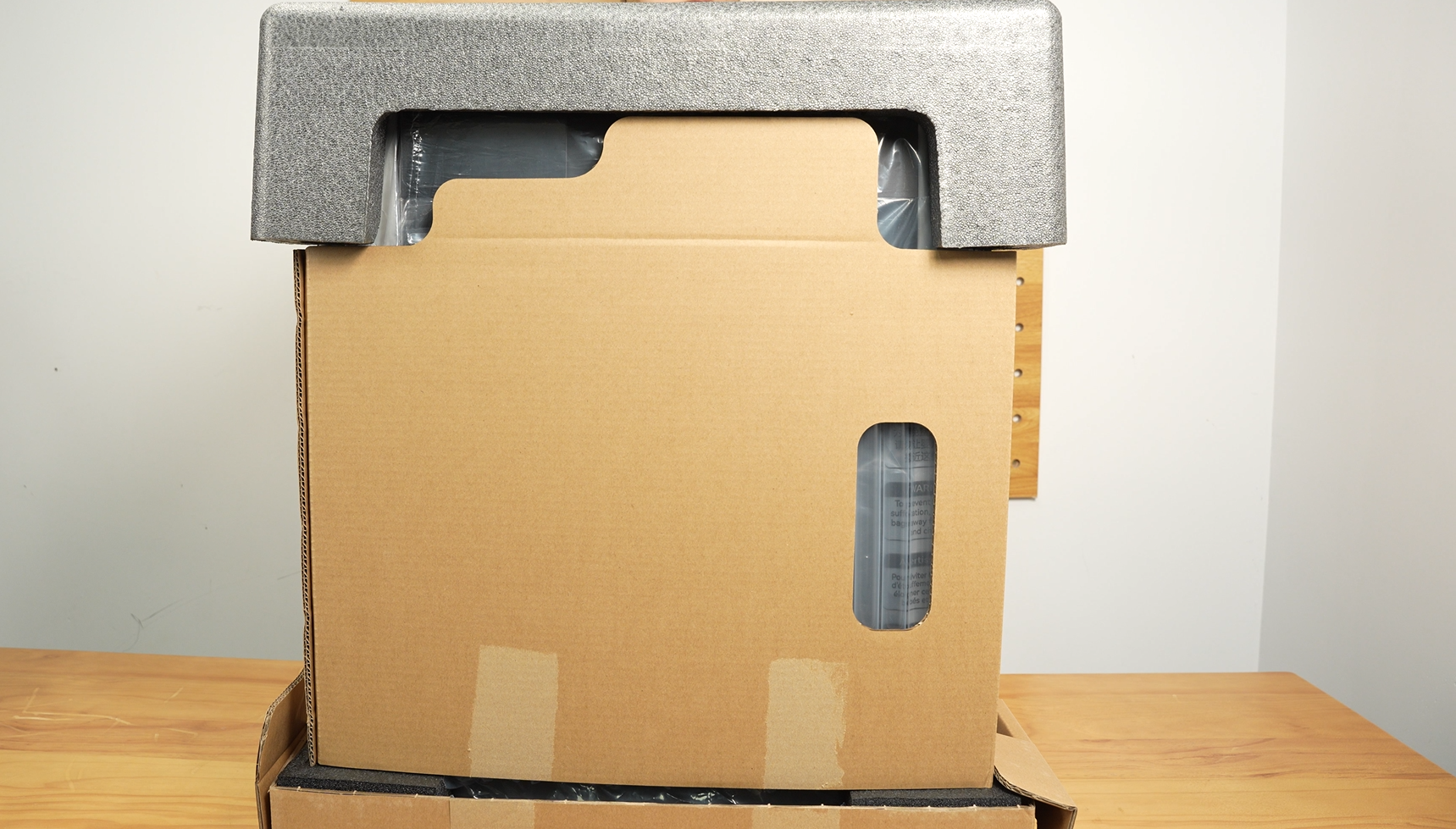

- Reinsert the cardboard and foam packaging, ensuring proper positioning.
 |
 |

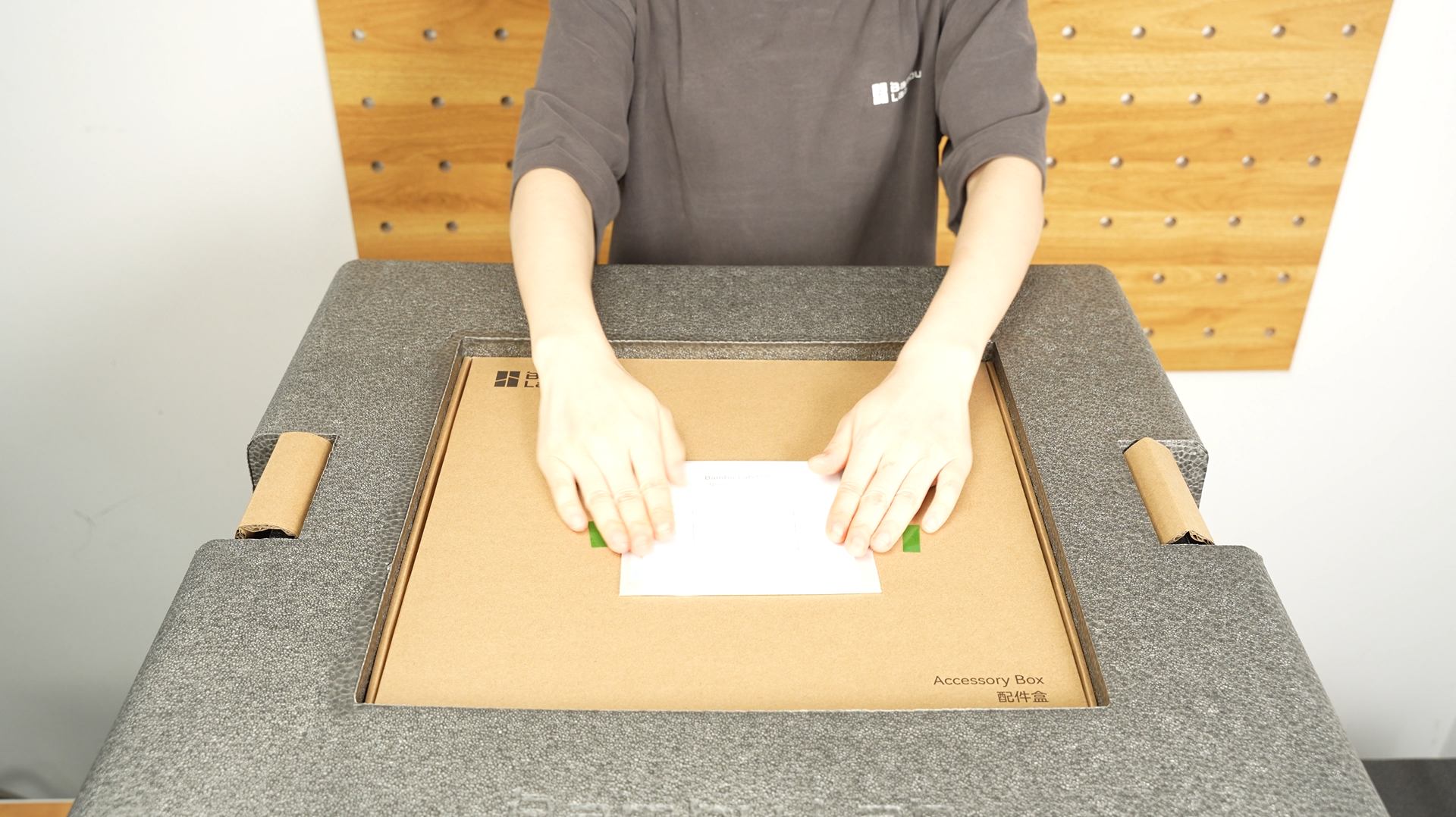

- Place back the top foam, accessories box, and Quick Start Guide.

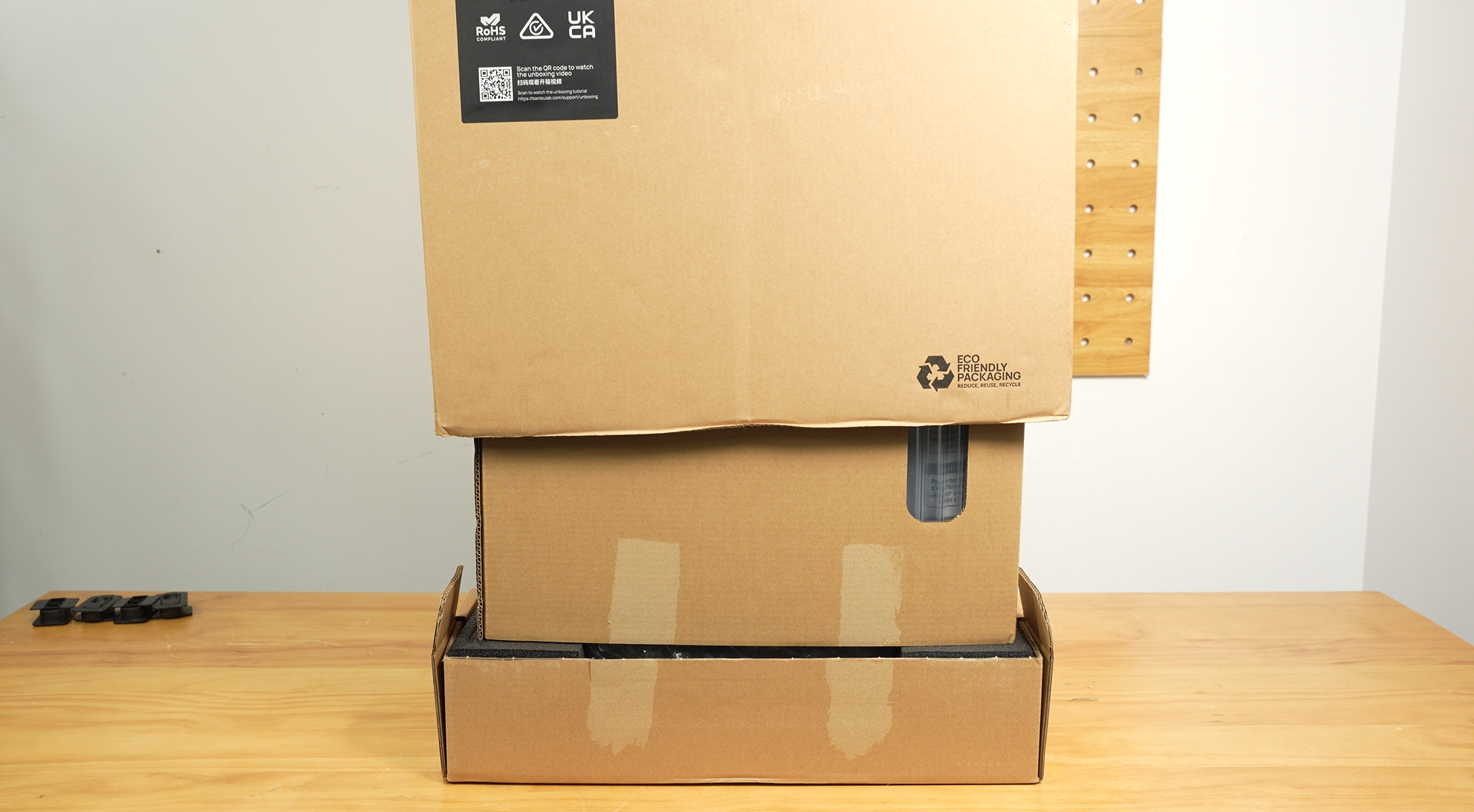

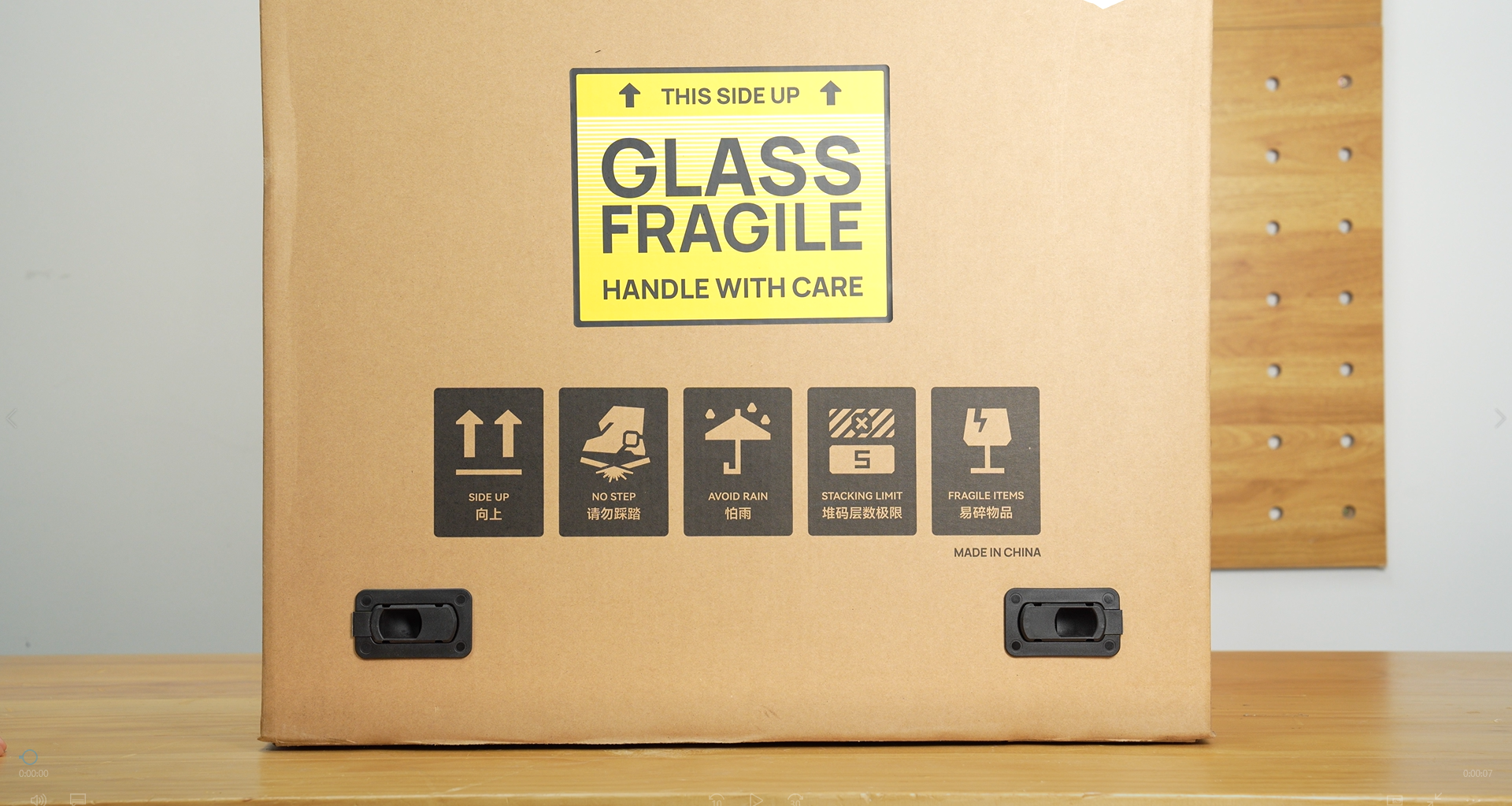

- Slide on the outer carton and make sure the four bottom holes are aligned.
 |
 |

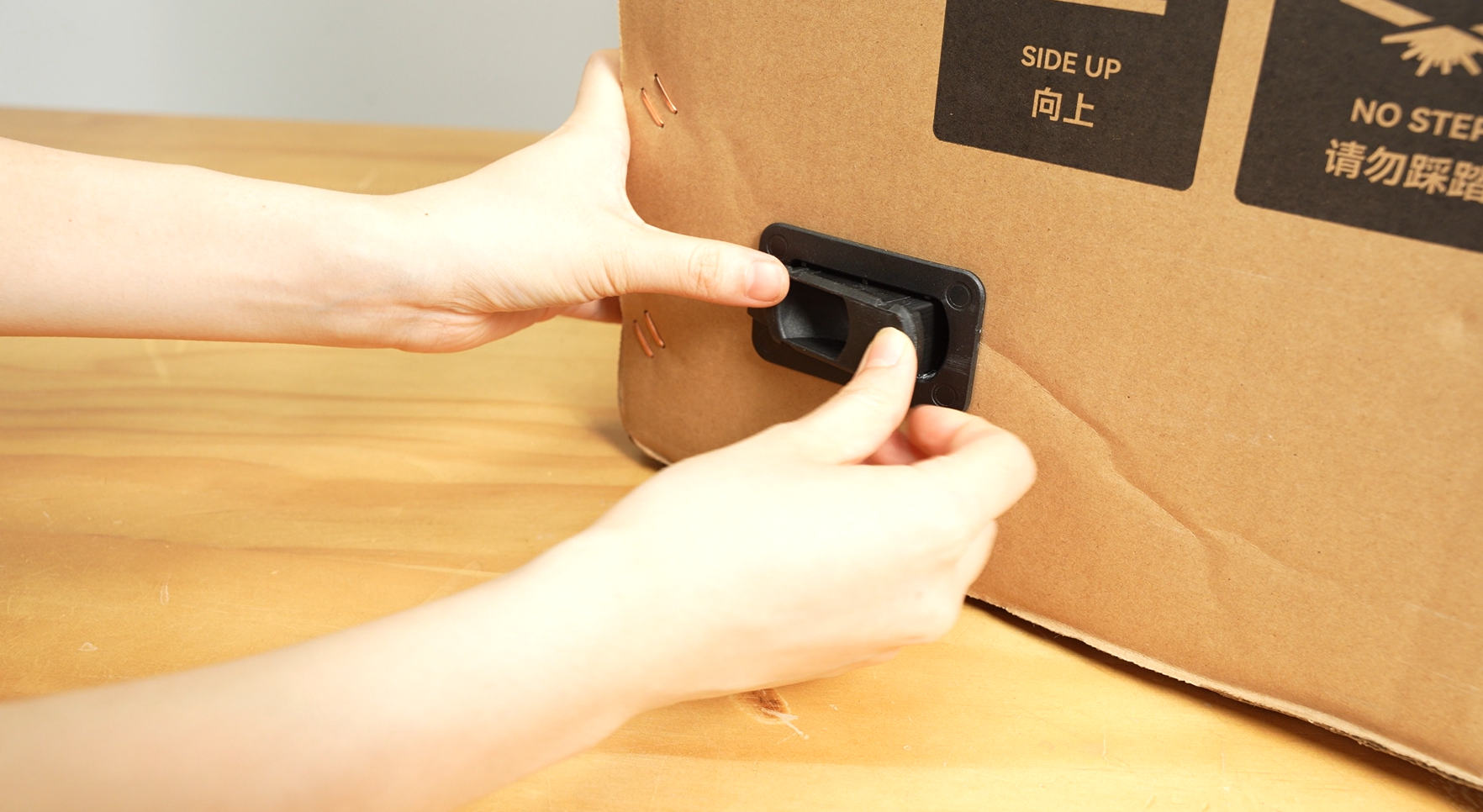

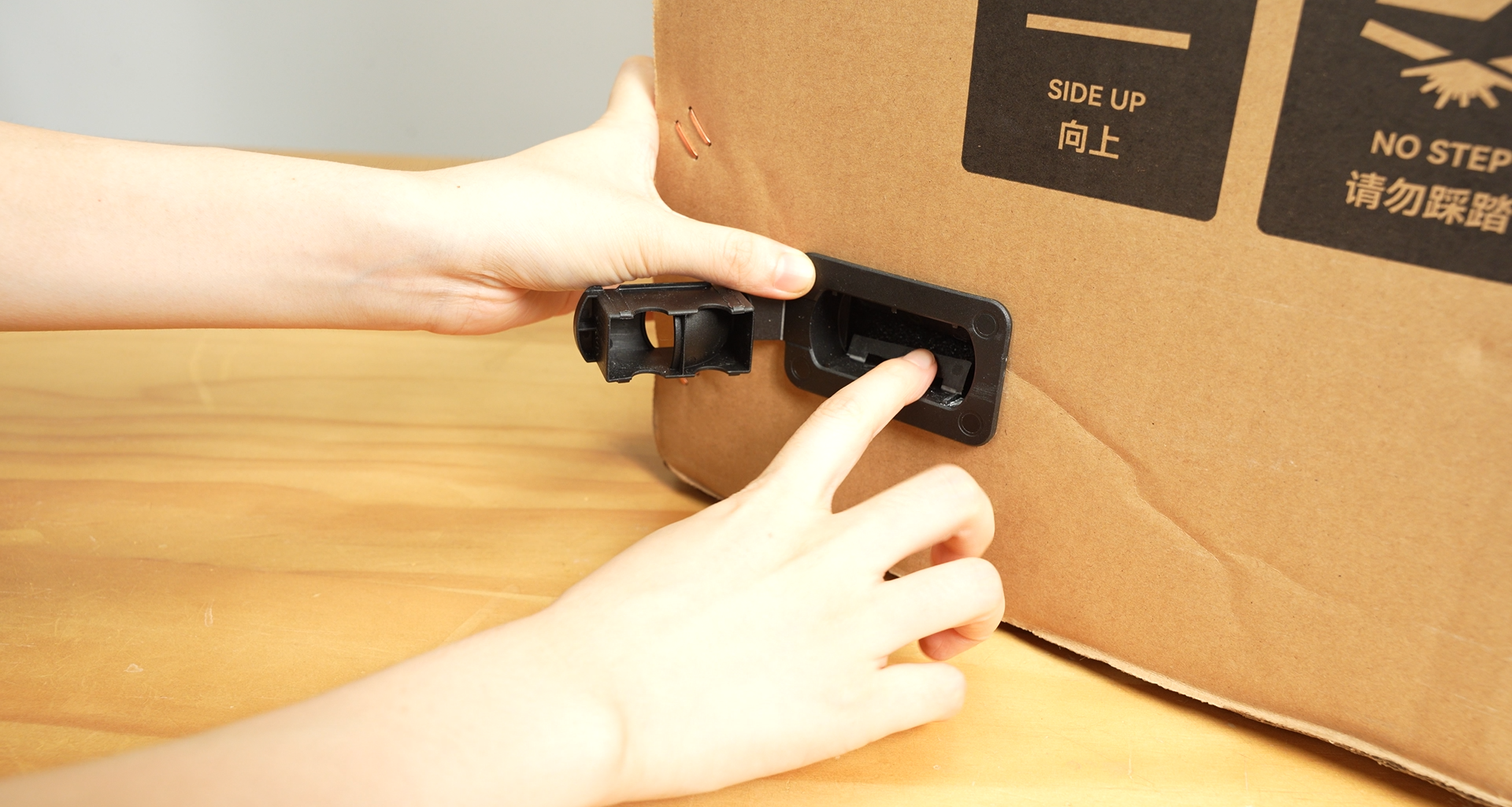

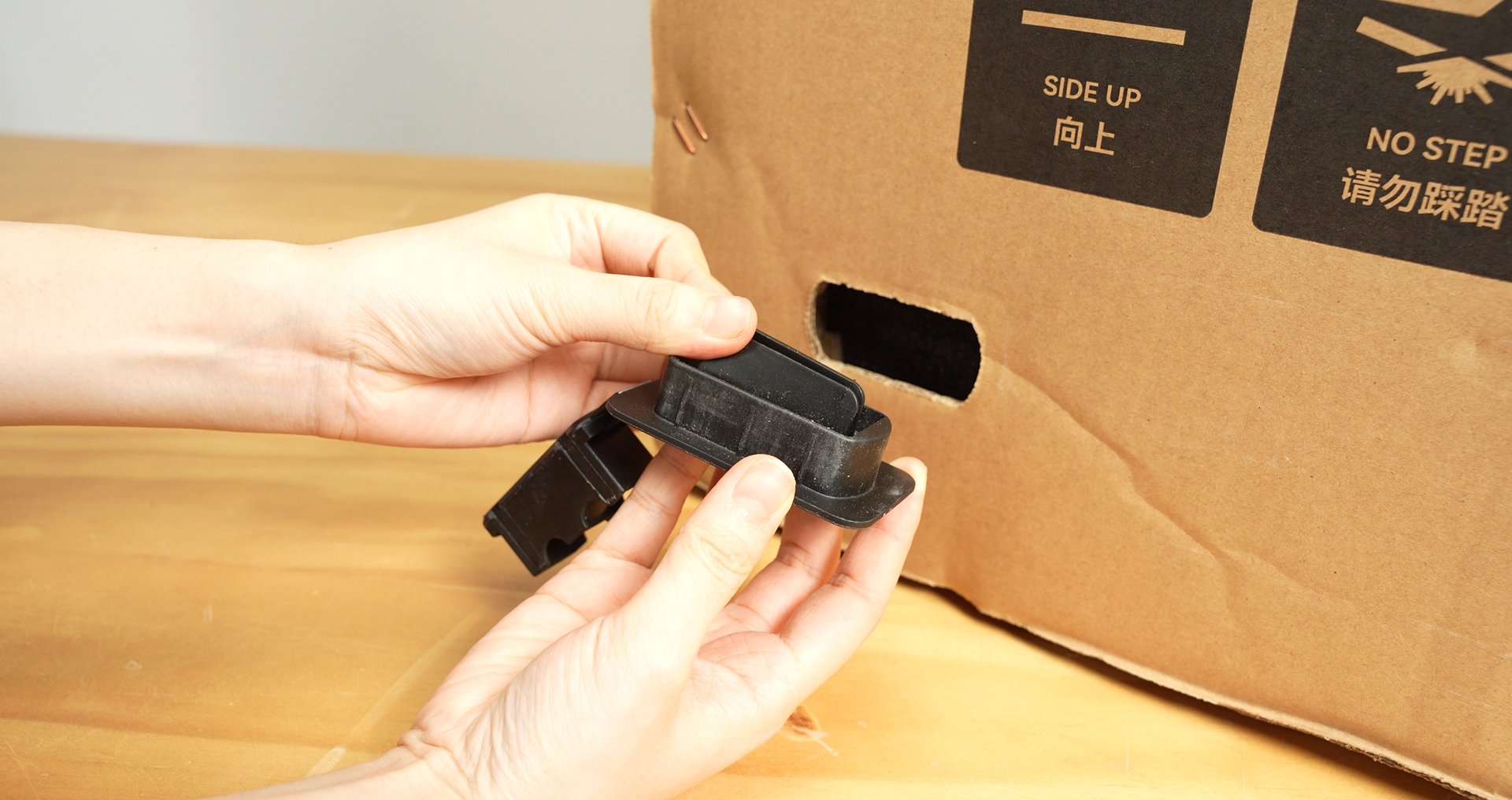

- Insert the four box clip fasteners and lock them in place.
 |
 |
 |
 |
