¶ Error Description
When the laser module is connected to the printer for the first time, initialization is required; otherwise, laser tasks cannot be performed.
¶ Troubleshooting
¶ Solution

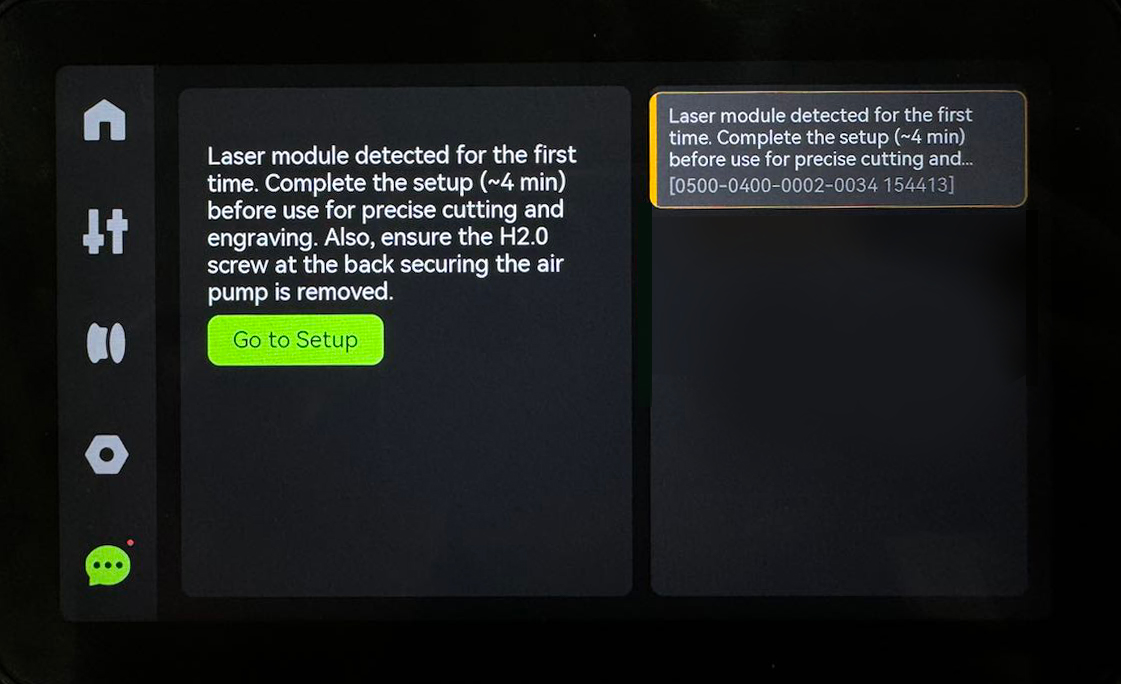

Perform initialization from the HMS page or the Toolbox page.
You can also access the Laser Module Setup from the “Settings” → “Toolbox” menu.
- Remove the Screw
Check if the H2.0 air pump screw at the back of the printer has been removed. Use an H2.0 wrench to unscrew the air pump fixing screw marked in red. Once the screw head is visible, catch the screw with your hand and slowly pull it out to avoid dropping it inside the printer.
- Install the Laser Module
- Place the Laser Pad and Laser Test Material
- Close the Front Door and Top Cover
- Press and hold the button for 1 second to start calibration
