¶ Error Description
Whenever the printer is powered on again, the motors are restarted, or a motor loses steps, the laser module must be recalibrated before it can be used. Otherwise, laser tasks cannot be initiated.
¶ Troubleshooting
¶ Solution
Perform laser module mounting calibration from the HMS page or the Toolbox page.

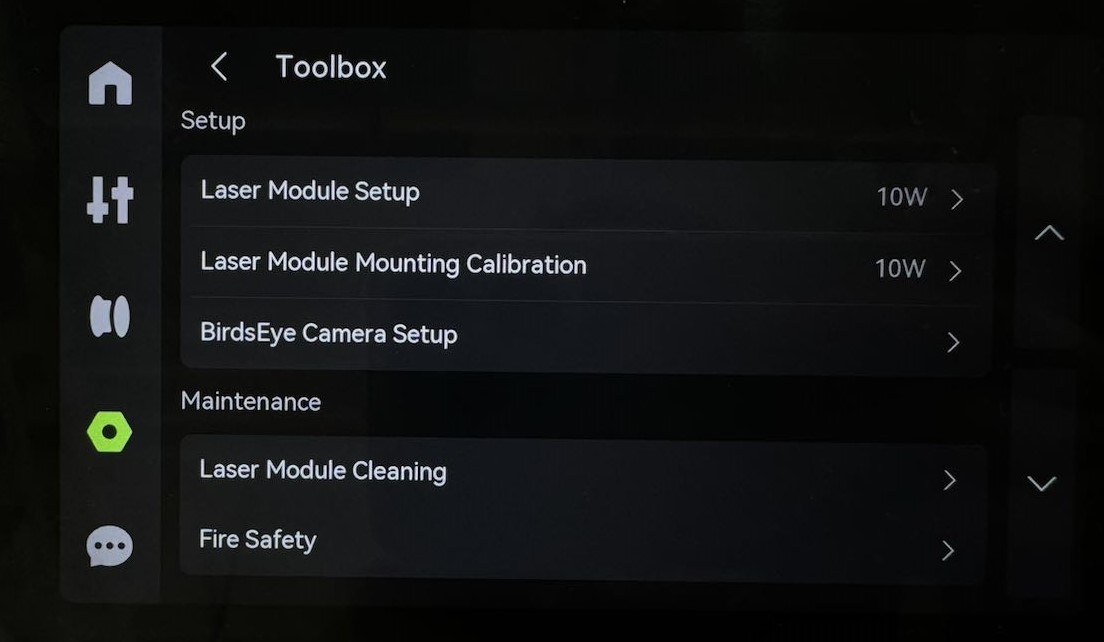

You can also access the laser module offset calibration from the “Settings” → “Toolbox” menu.
- Install the Laser Module
- Place the Laser Platform and Laser Test Material

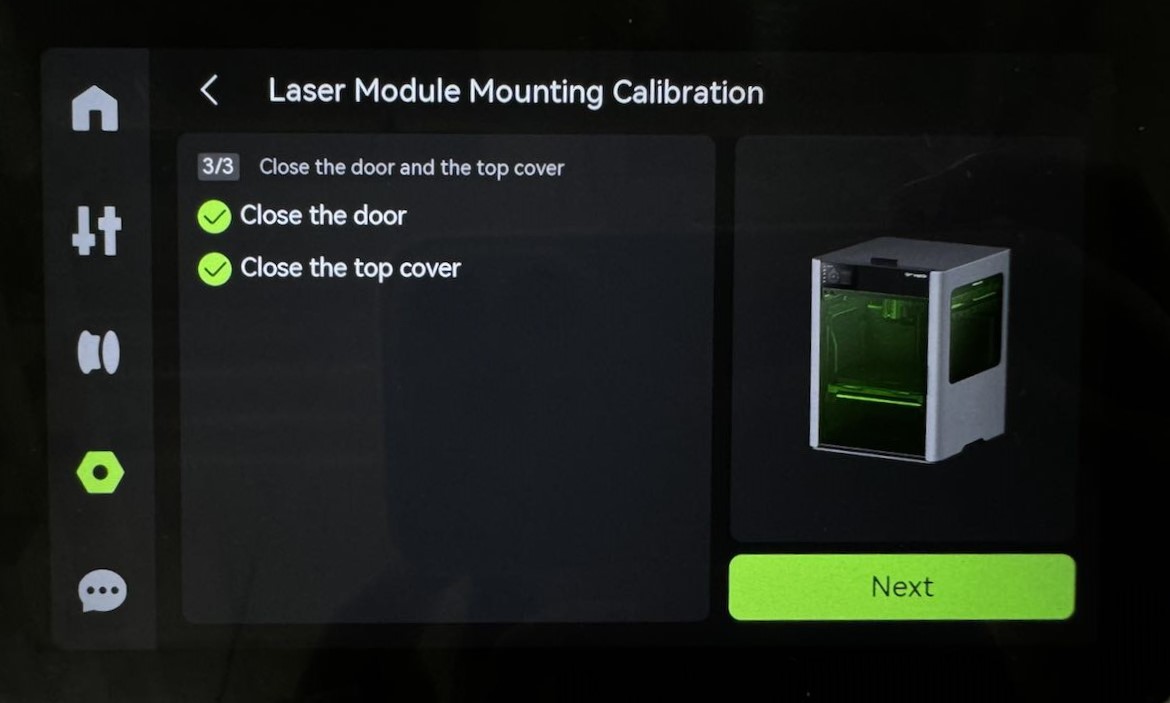

- Close the door and the top cover.

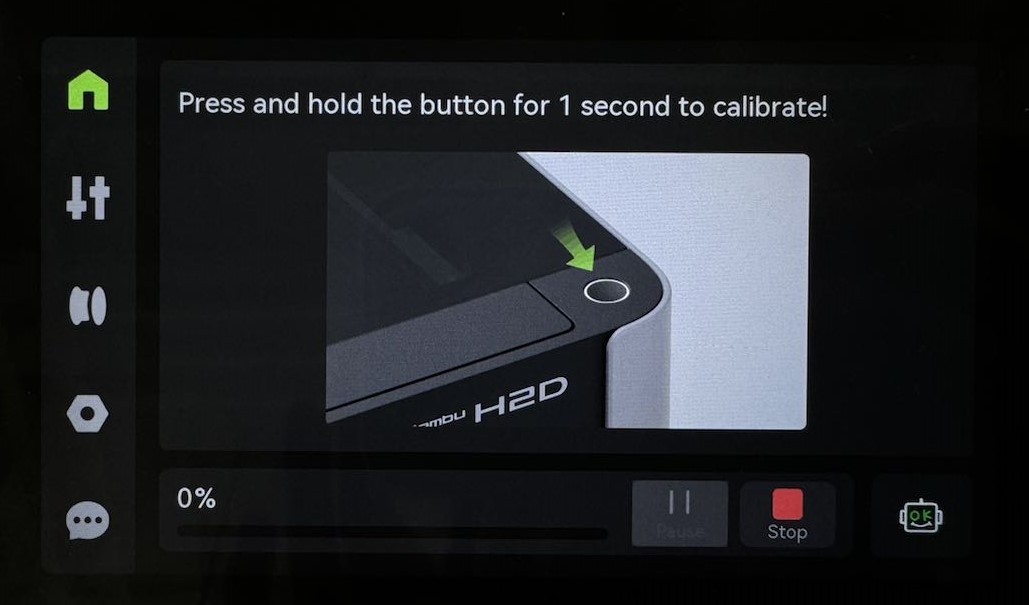

- Press and hold the button for 1 second to start calibration.
¶ Equivalent Codes
The following HMS codes all indicate the same type of error.
| HMS Code | Error Description |
|---|---|

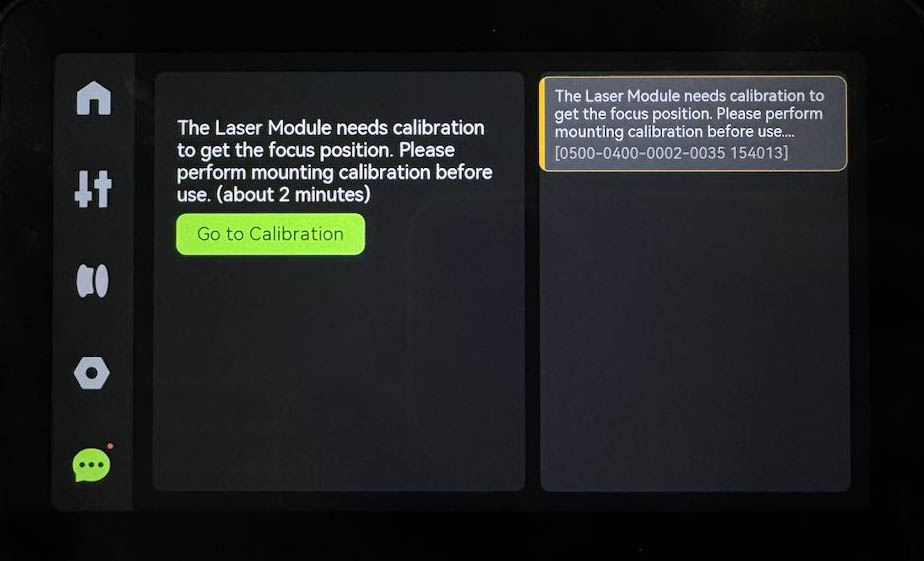

| 0500-0400-0002-0035 | The Laser Module needs calibration to get the focus position. Please perform mounting calibration before use. (about 30 second) |
