The packaging material and accessories may be updated from time to time. Please refer to the version you receive.
¶ Video guide
¶ Included items
H2S, accessory box, power cord and Quick Start Guide
¶ Unboxing Steps

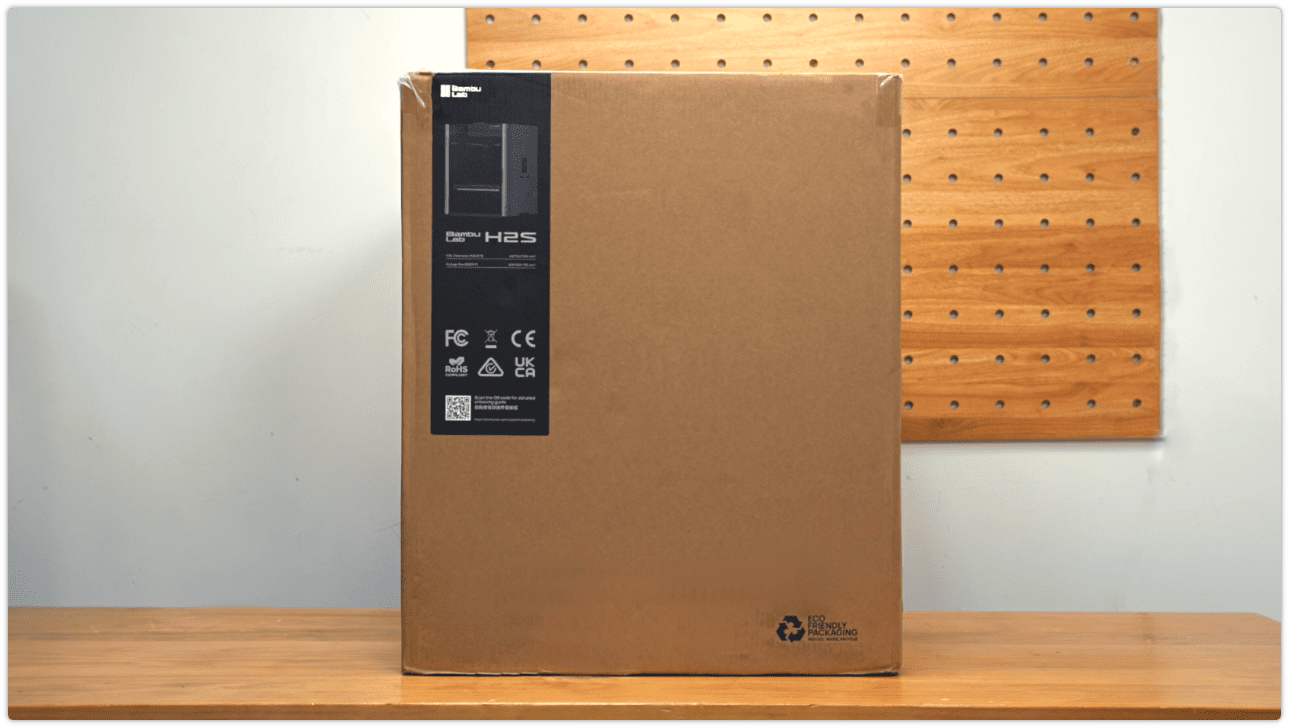

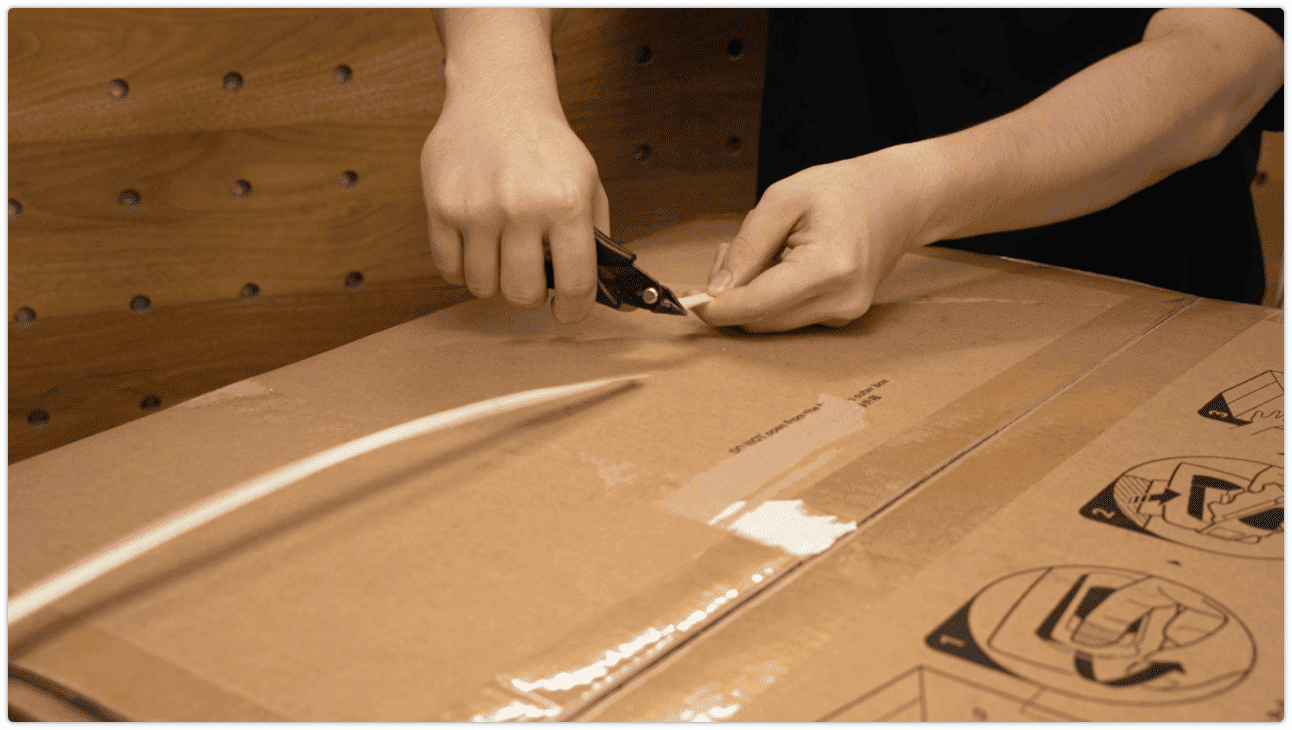

¶ Remove the outer box straps
¶ Remove the 4 box clip fasteners on the bottom

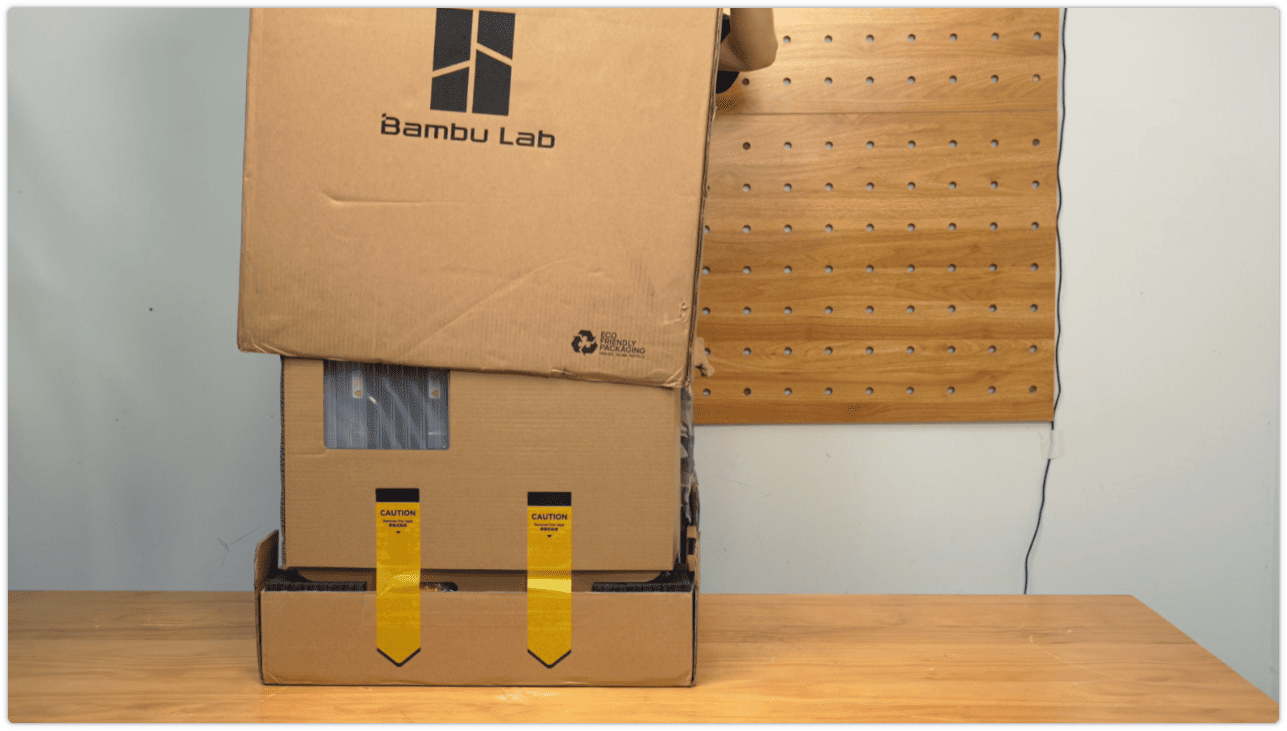

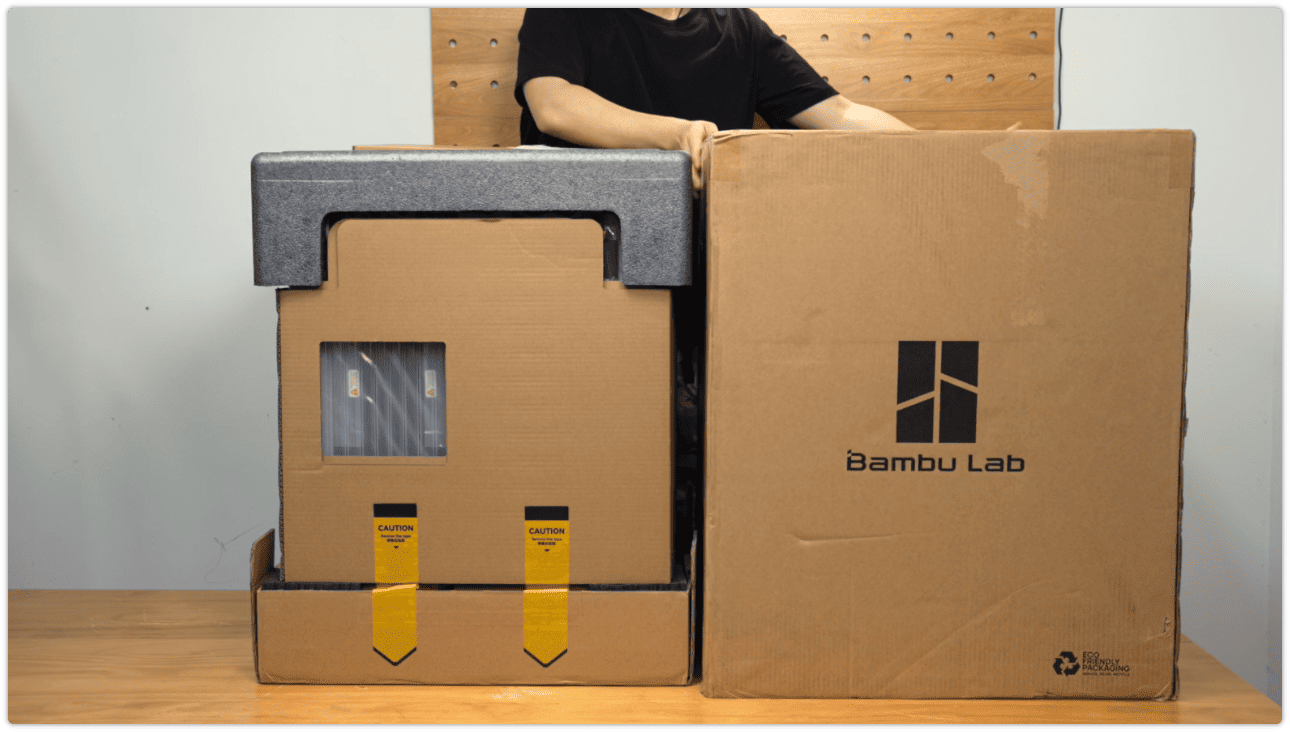

¶ Lift and remove the outer box
 |
 |
¶ H2S Quick Start Guide
¶ Take out the accessory box
¶ Tear off the 4 tapes on the bottom

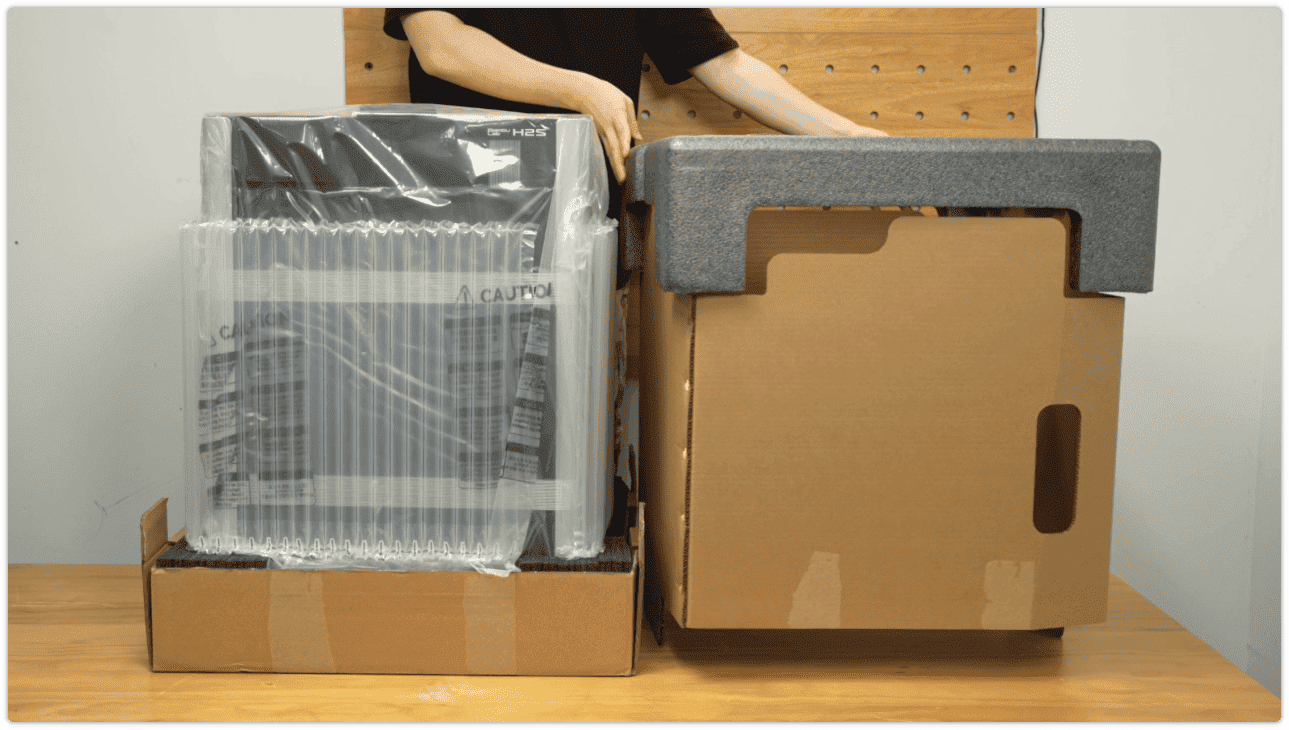

¶ Remove the foam pieces
 |
 |
¶ Remove the air cushion
¶ Tear off the moisture-proof bag
¶ Pull down and wrap the bag around the four corners of the bottom box
¶ Two people lift up the printer and place it on a stable surface

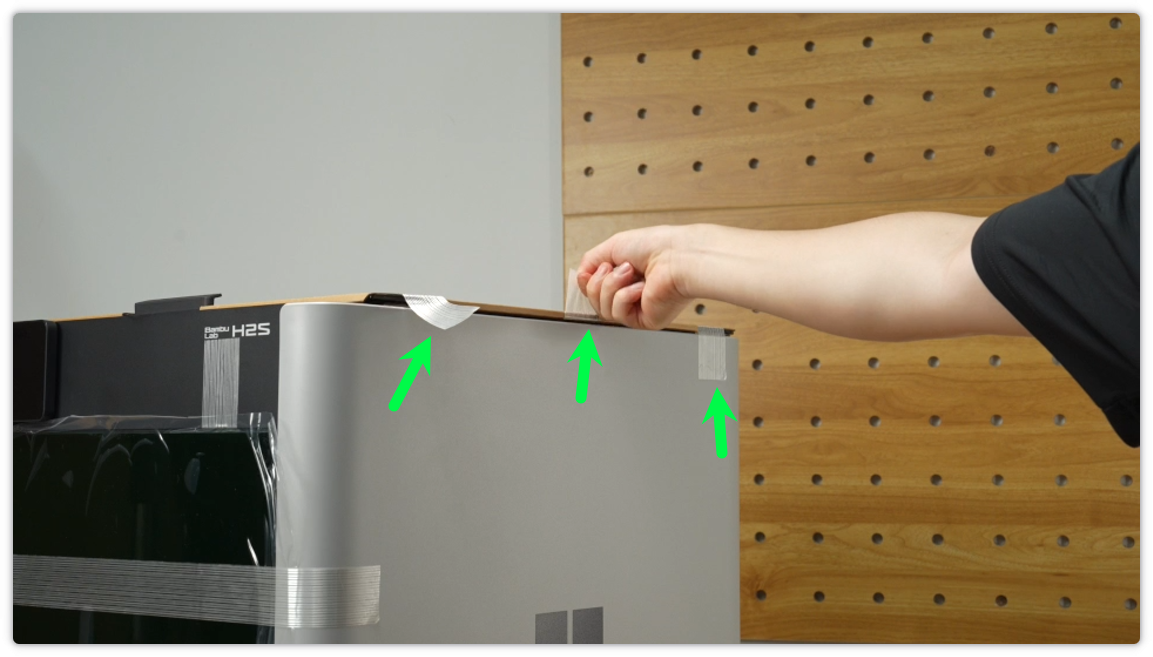

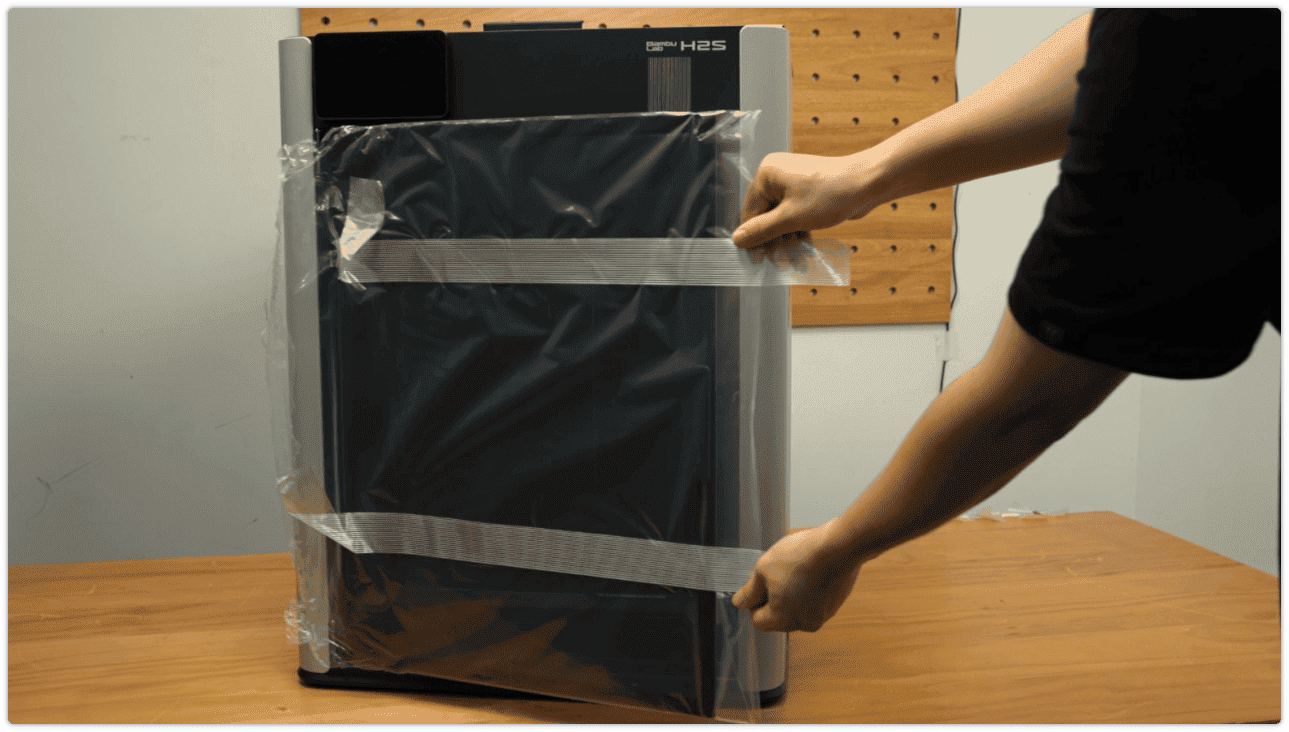

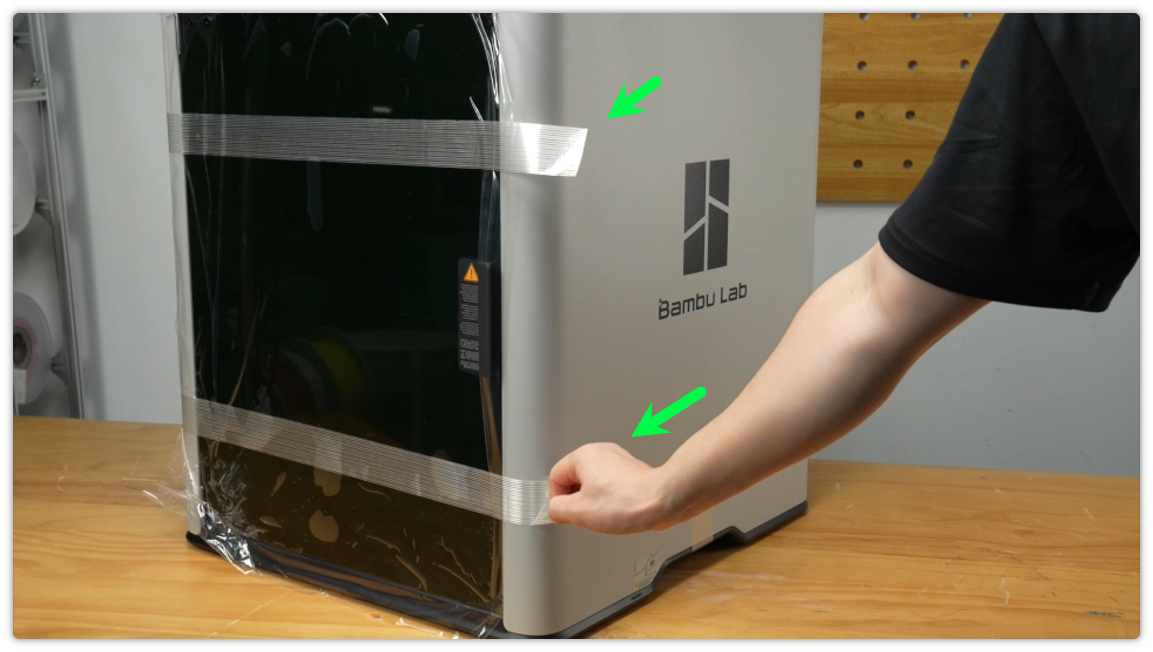

¶ Remove the packaging material around the printer
 |
 |
 |
 |

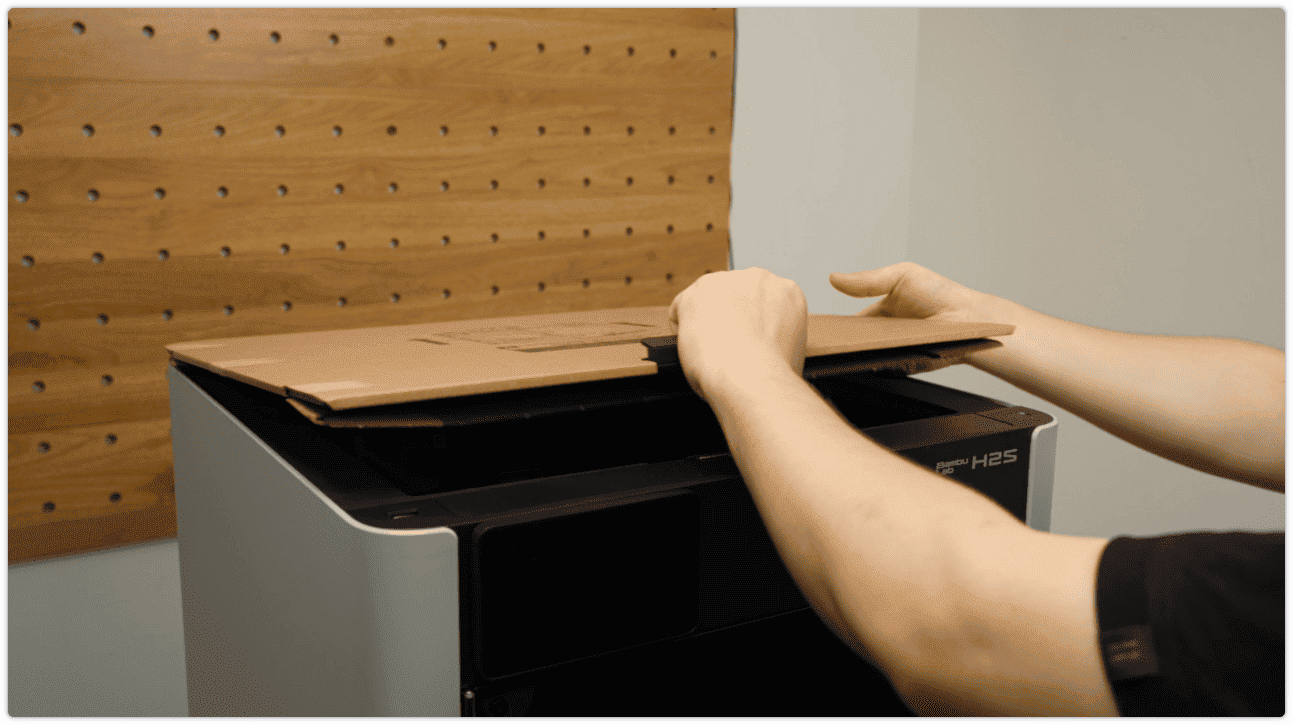

¶ Take down the top cover glass

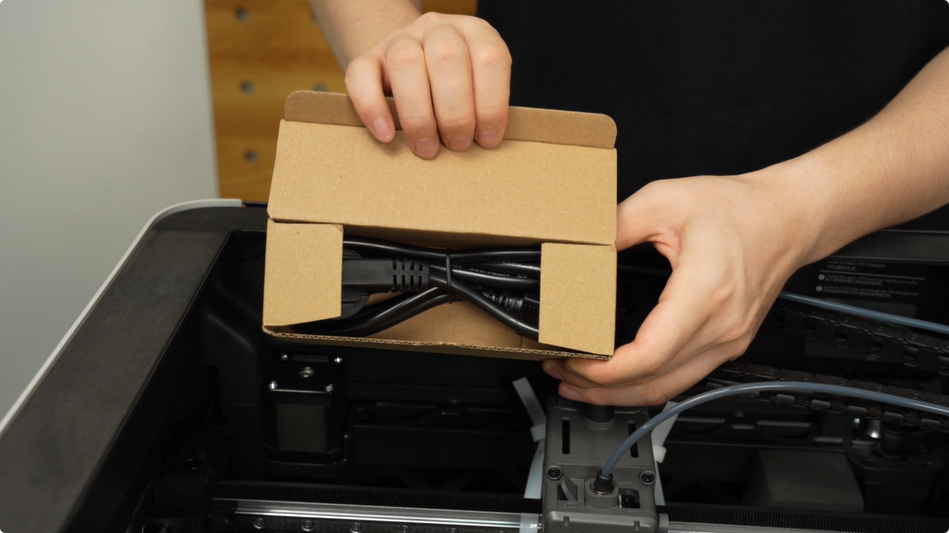

¶ Remove the zip ties and take out the power cord
Note: Do not cut the belt!
 |
 |

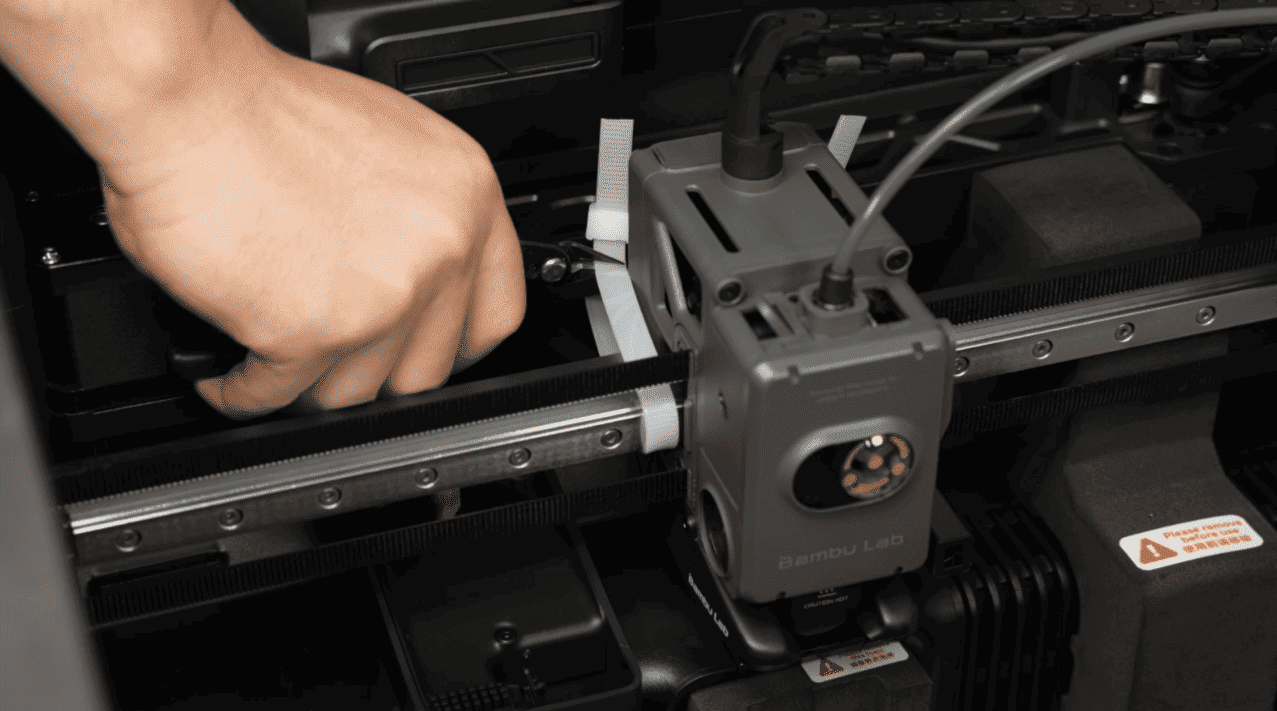

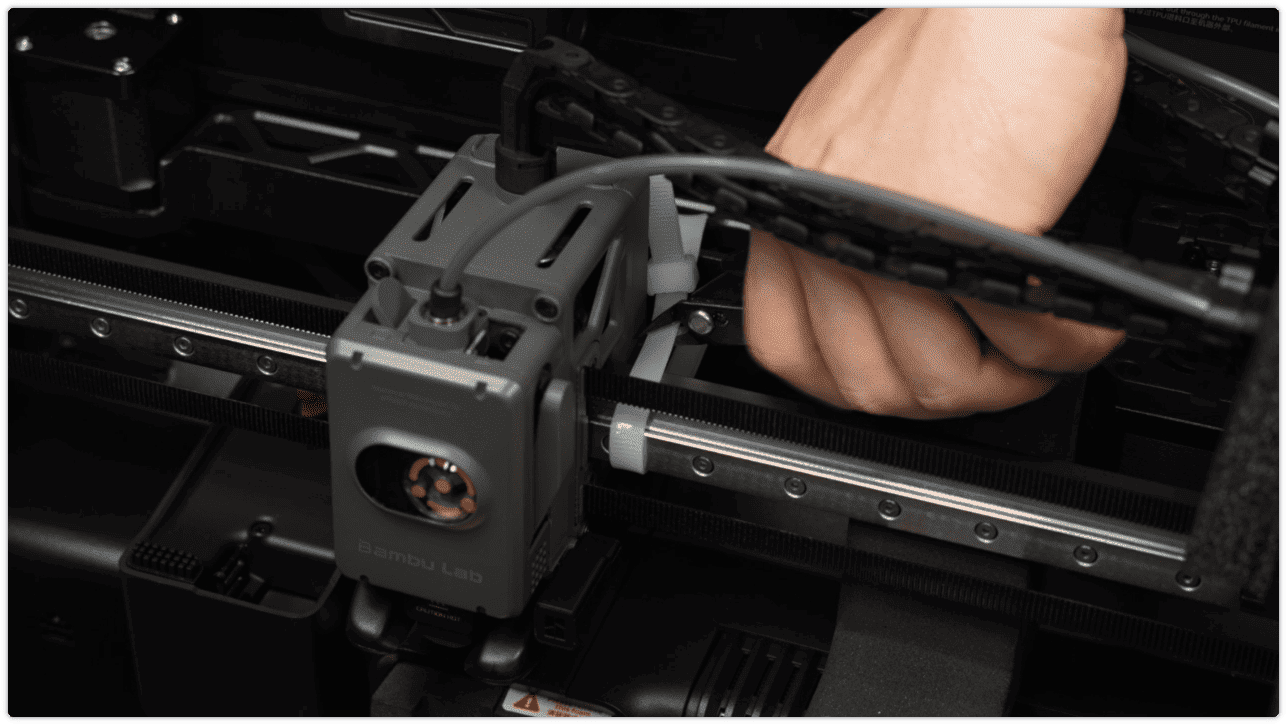

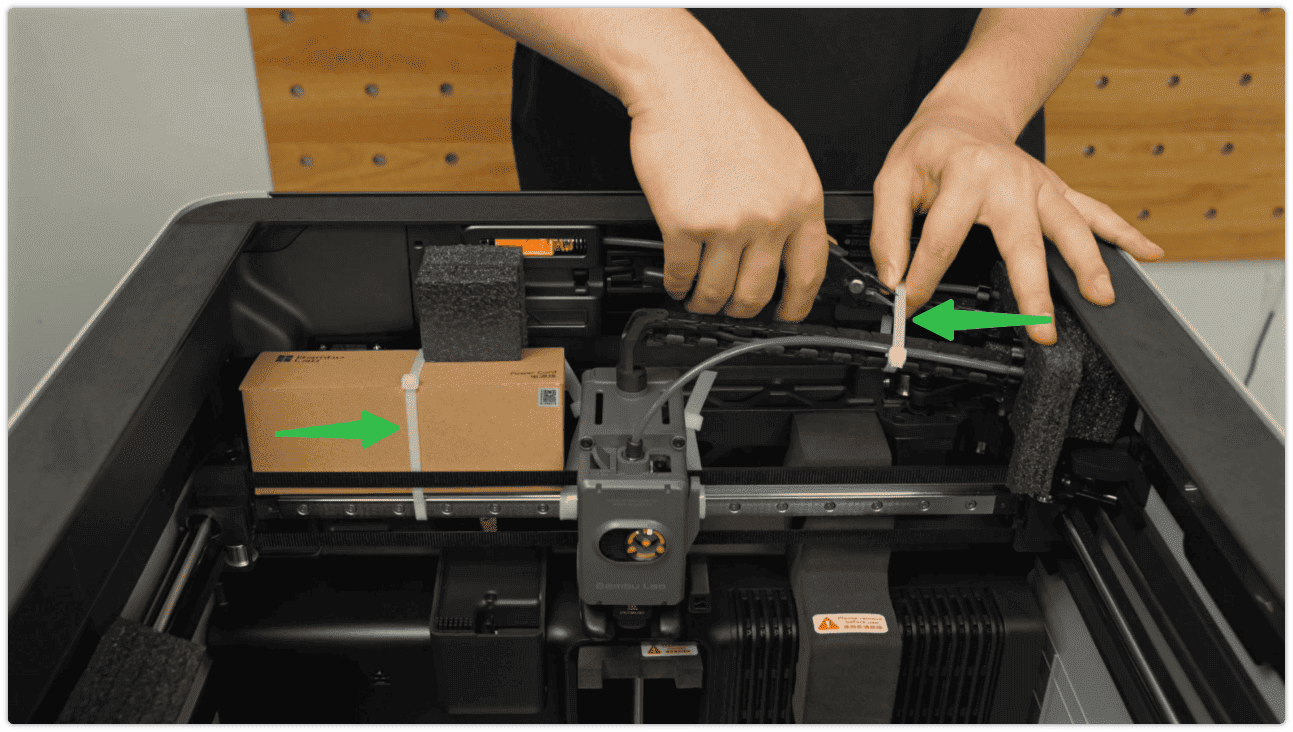

¶ Remove the zip ties near the toolhead
 |
 |

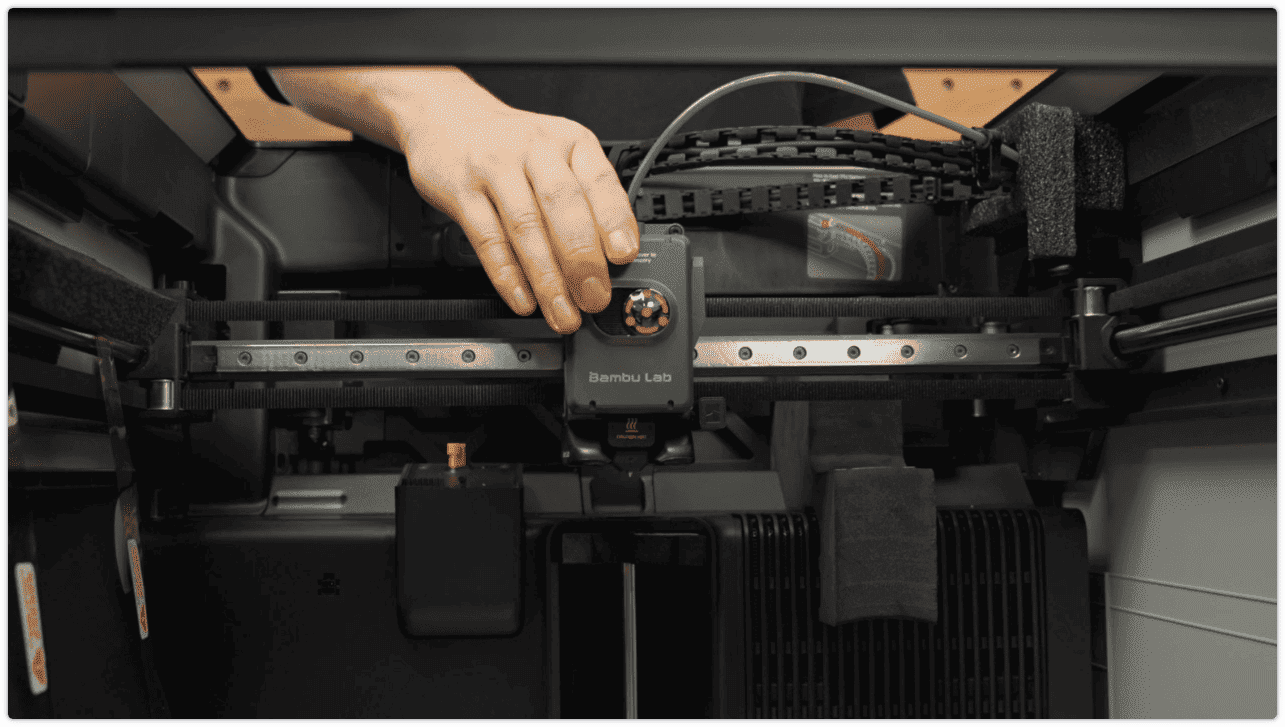

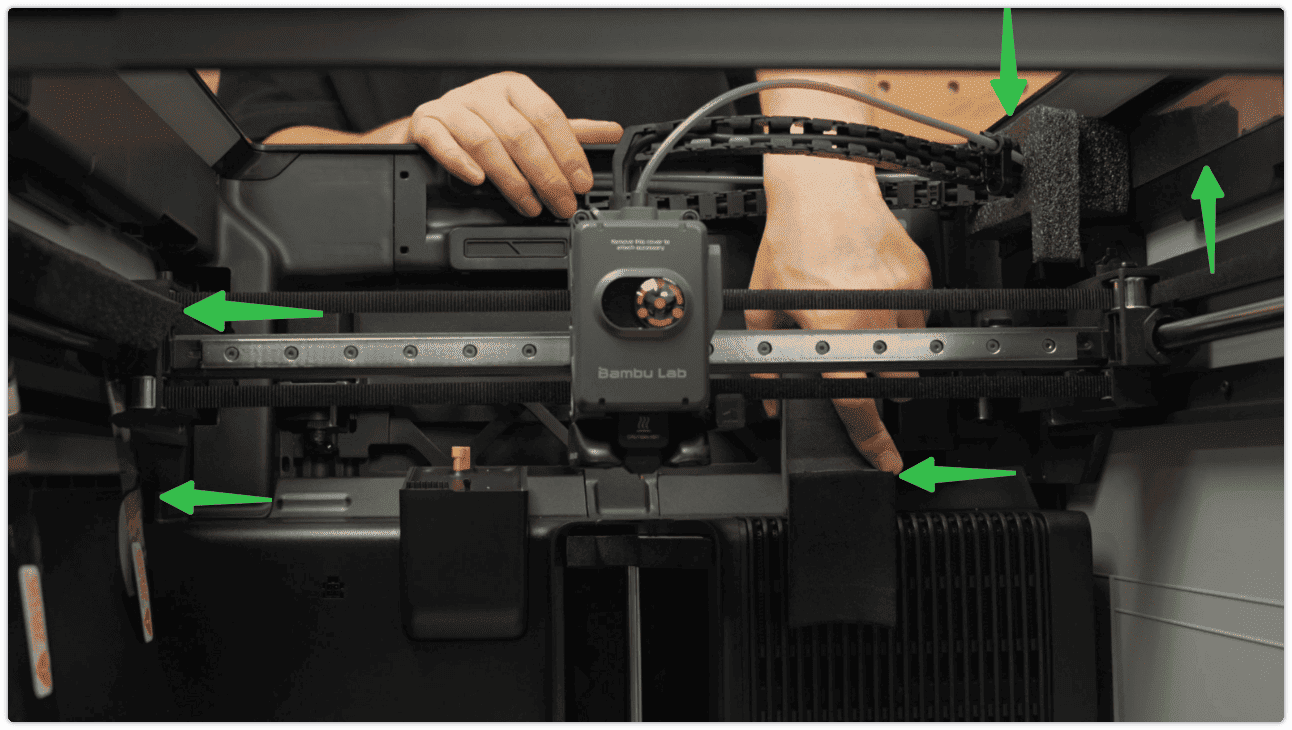

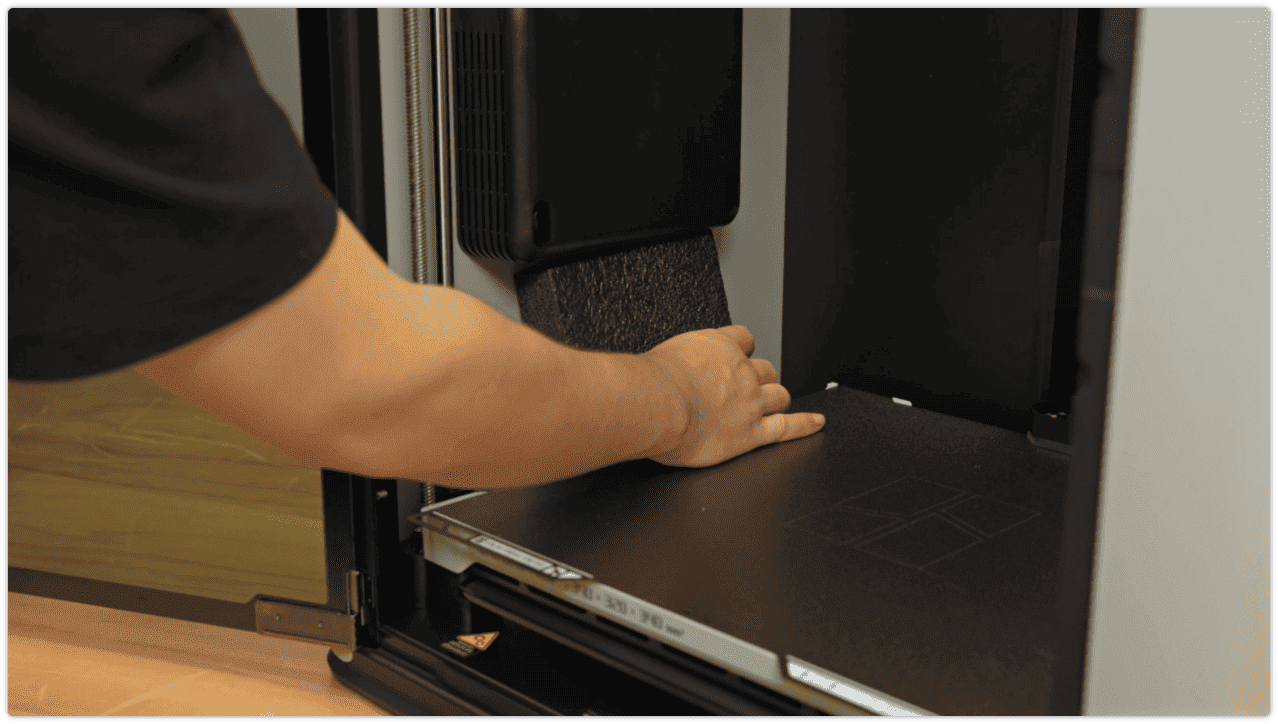

¶ Pull the toolhead towards the front door, remove all foams and films inside the chamber
 |
 |
 |
 |

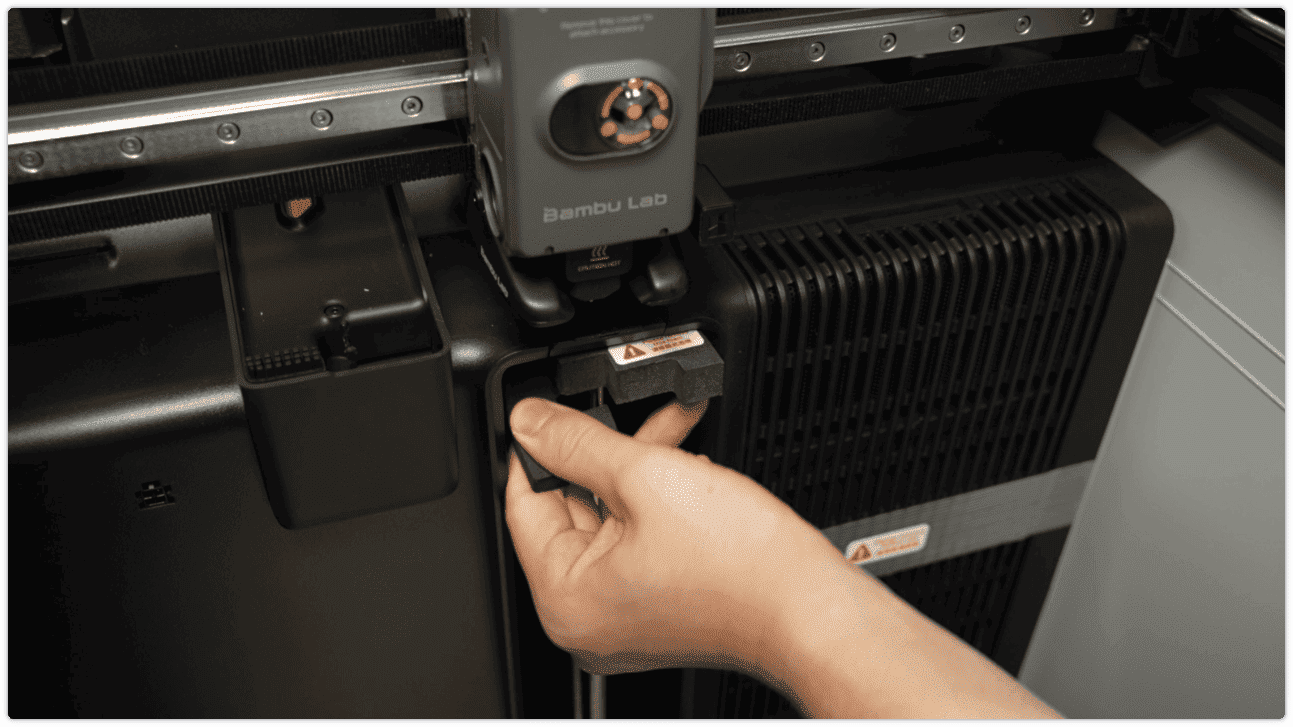

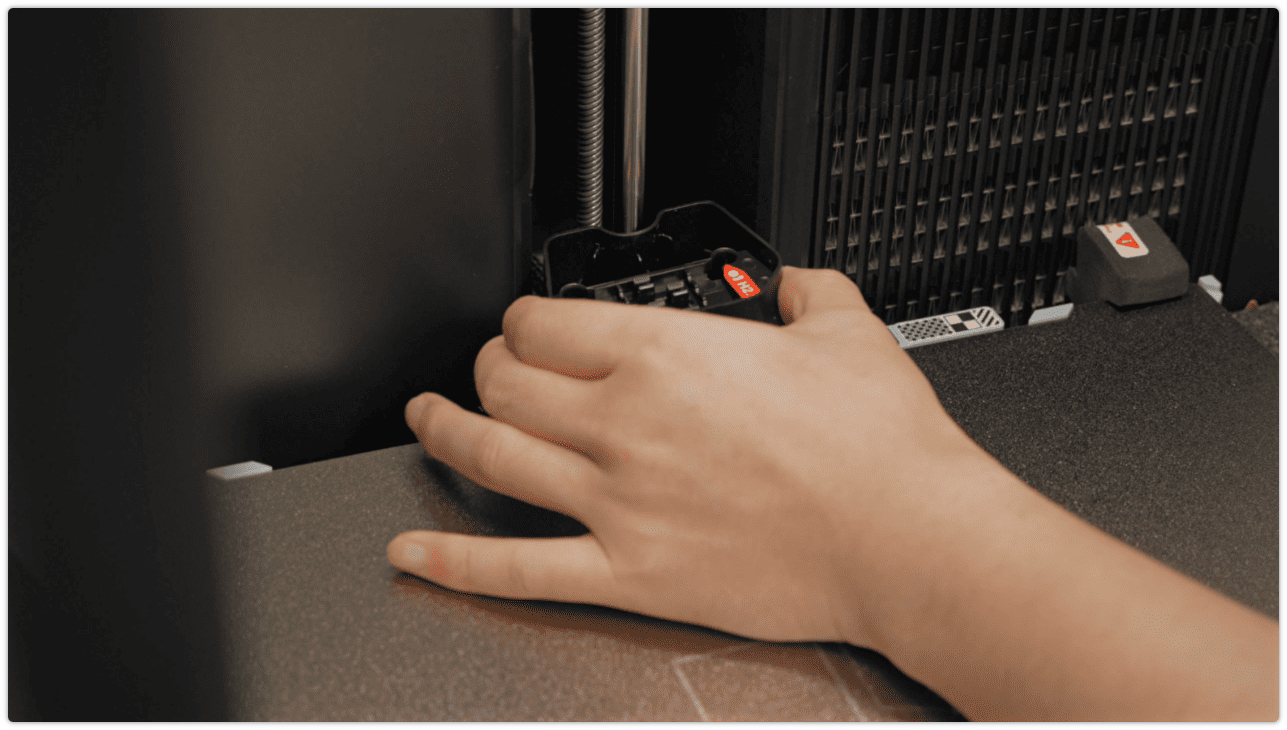

¶ Remove the 4 heatbed securing screws, take out the heatbed fixtures

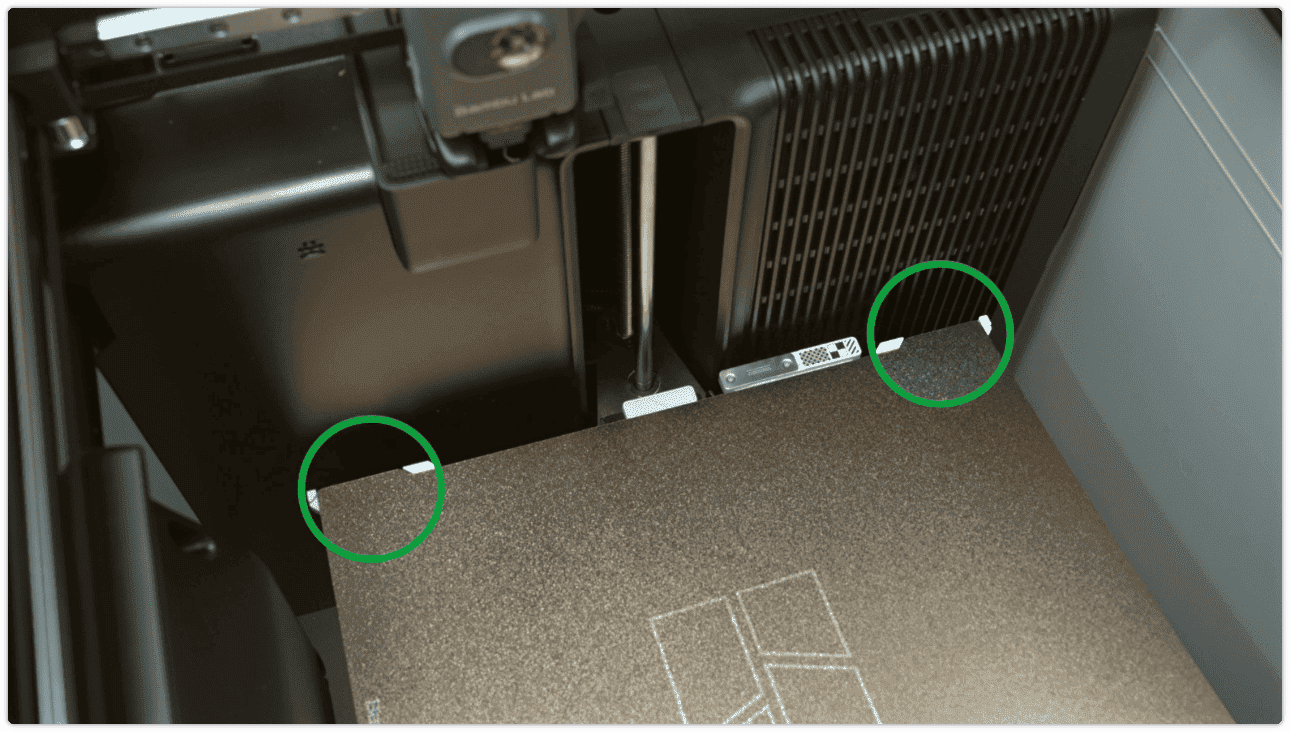

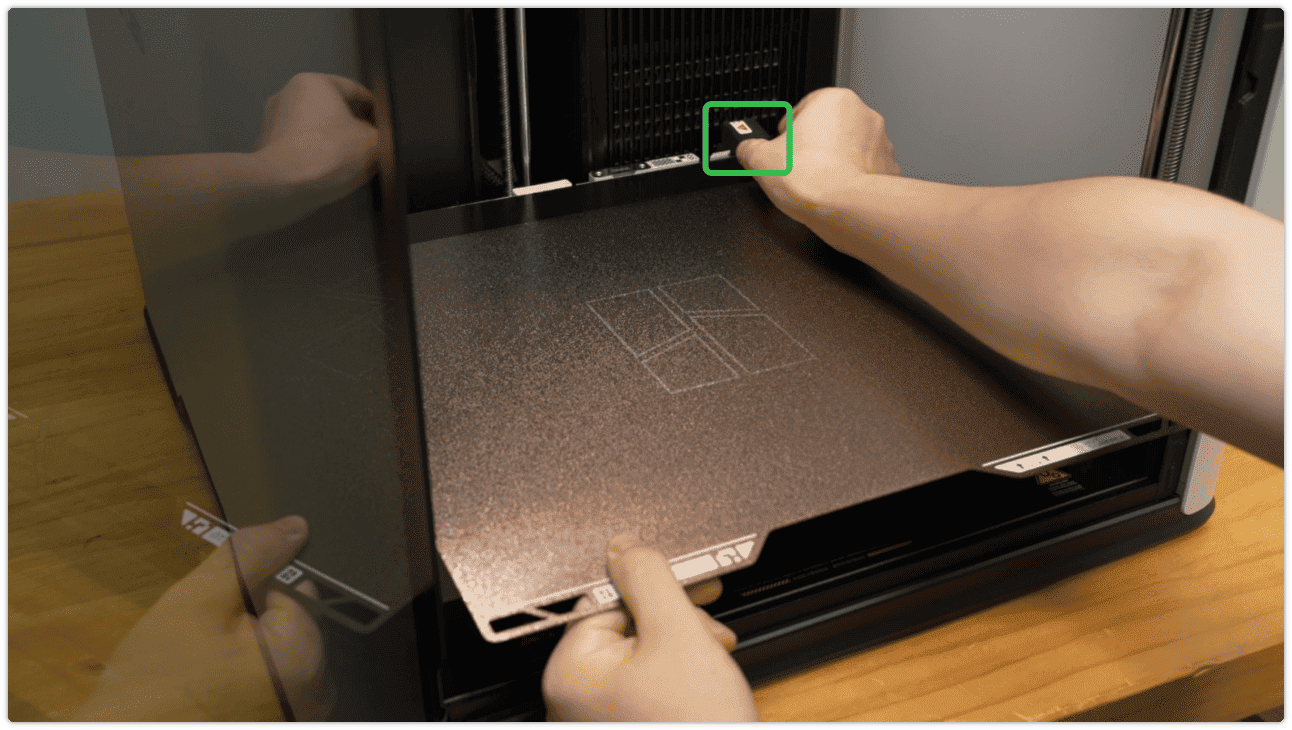

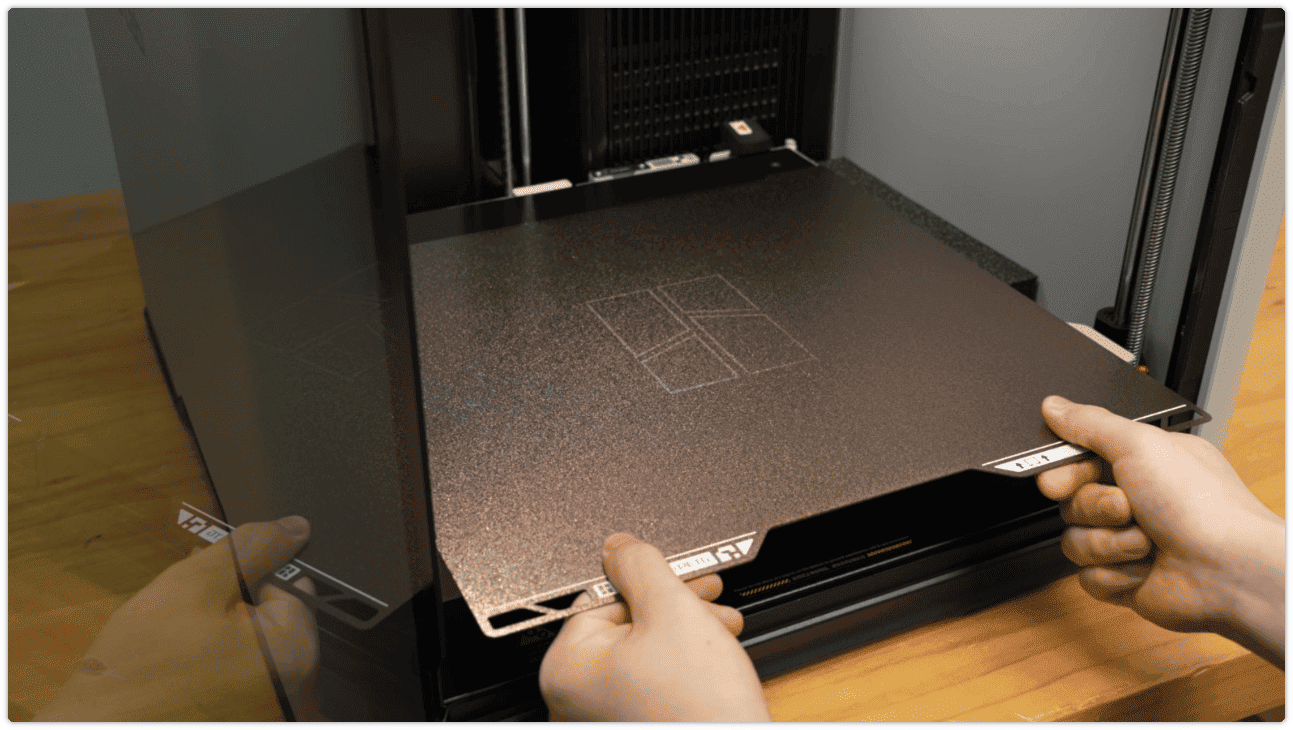

¶ Lift up the build plate and take out the protective foam, then place the build plate
 |
 |
¶ Remove the protective film inside the chamber

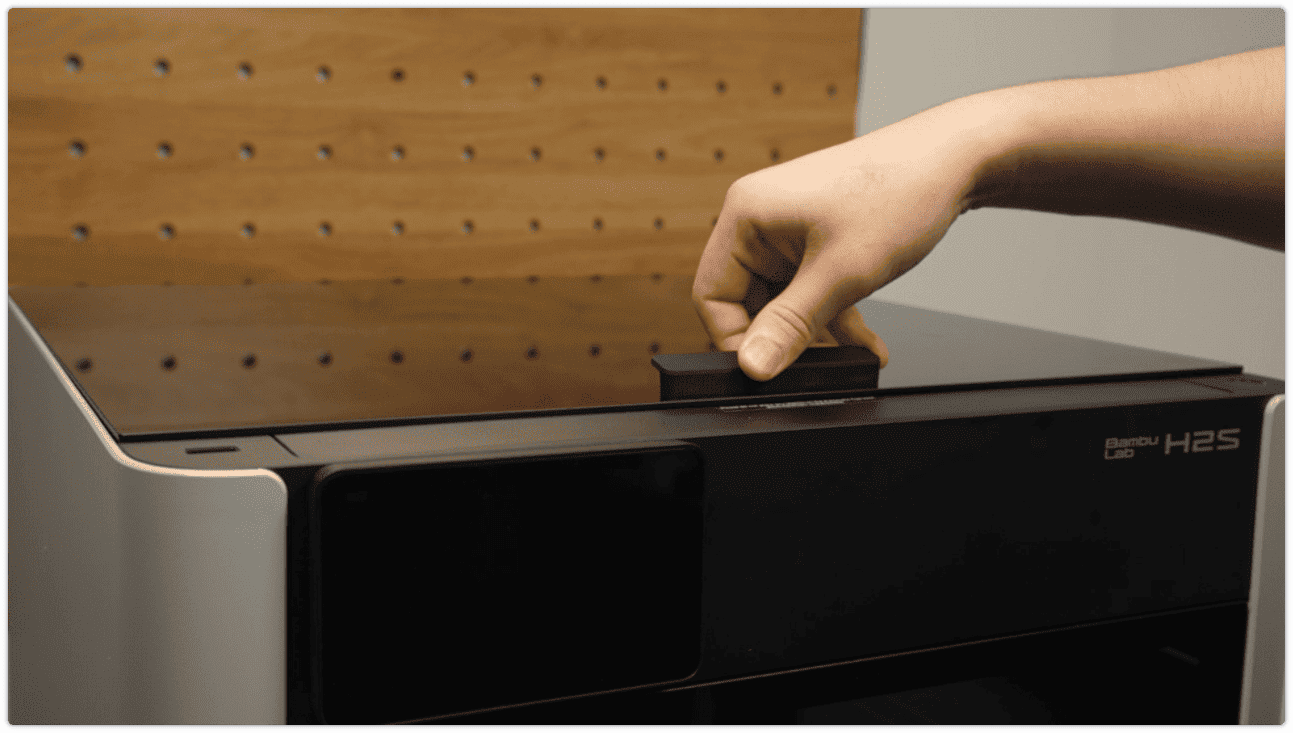

¶ Close the top cover glass

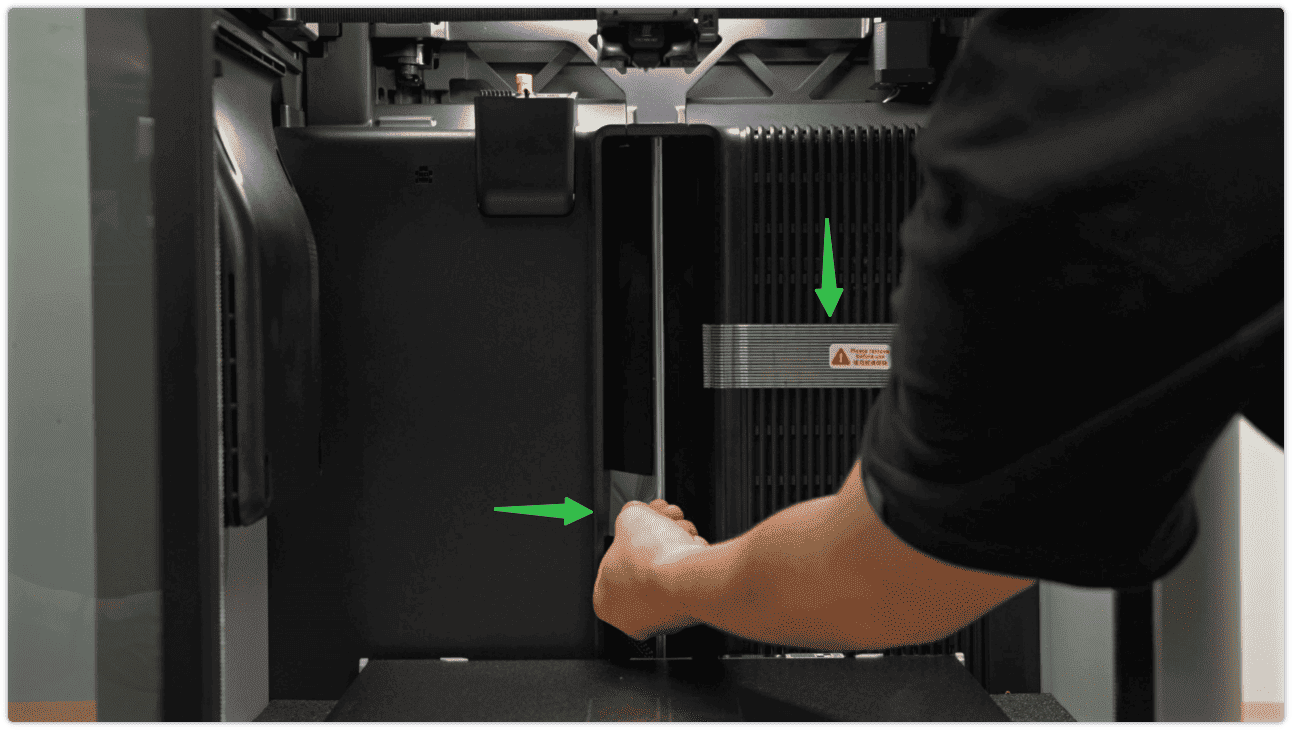

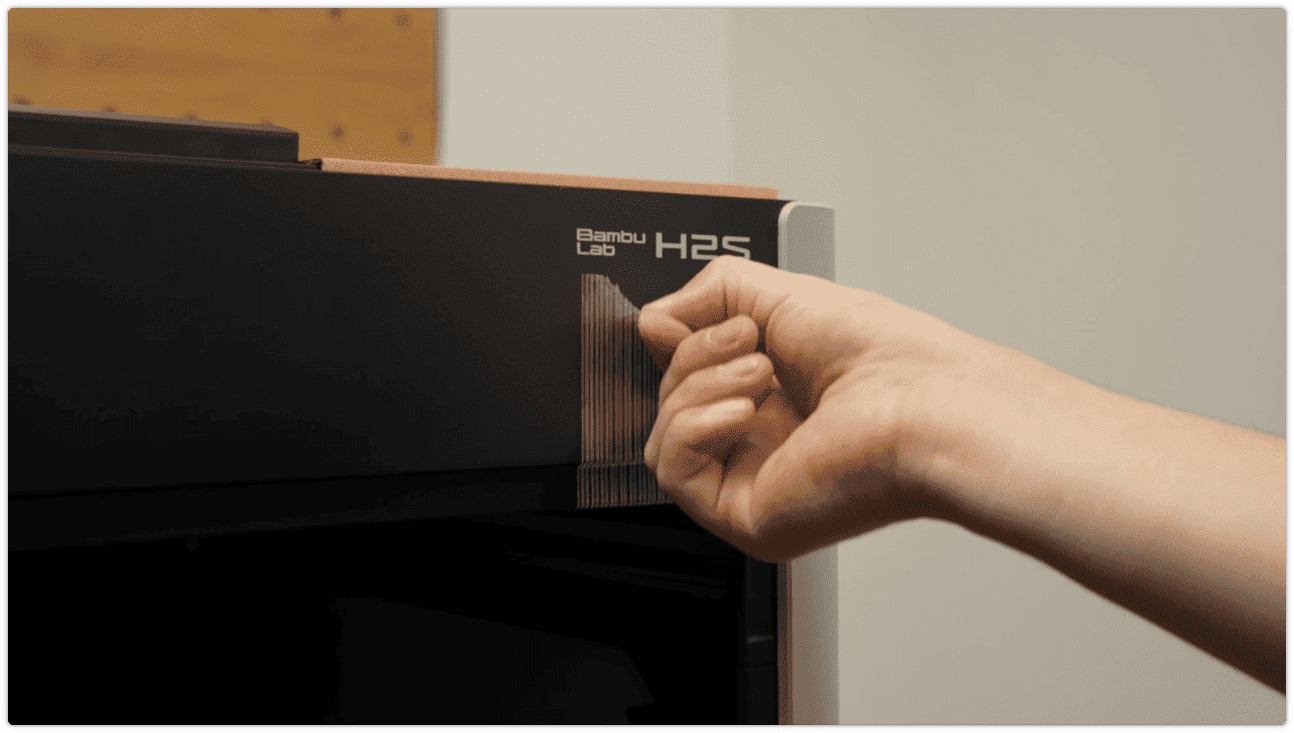

¶ Remove the tape behind the build plate
Note: Tear it from top to bottom.

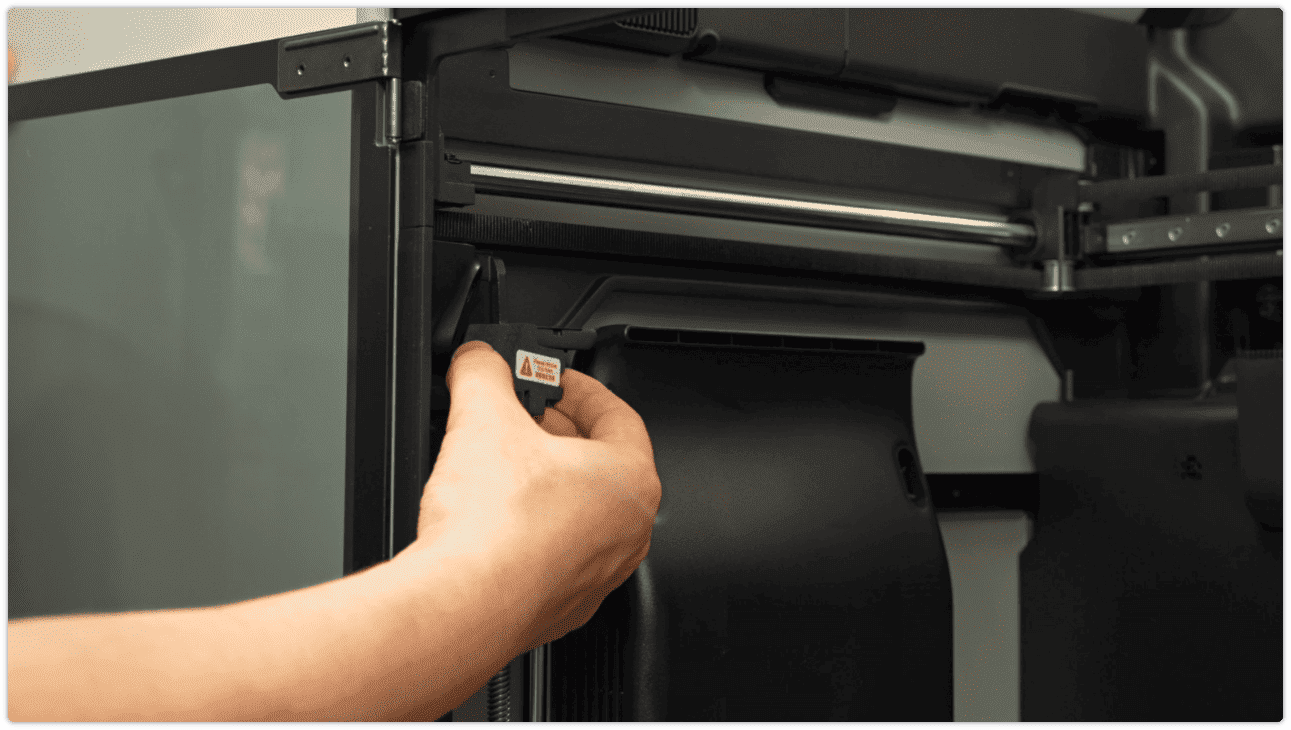

¶ Take and install the safety key, connect the power cord, and switch on the printer

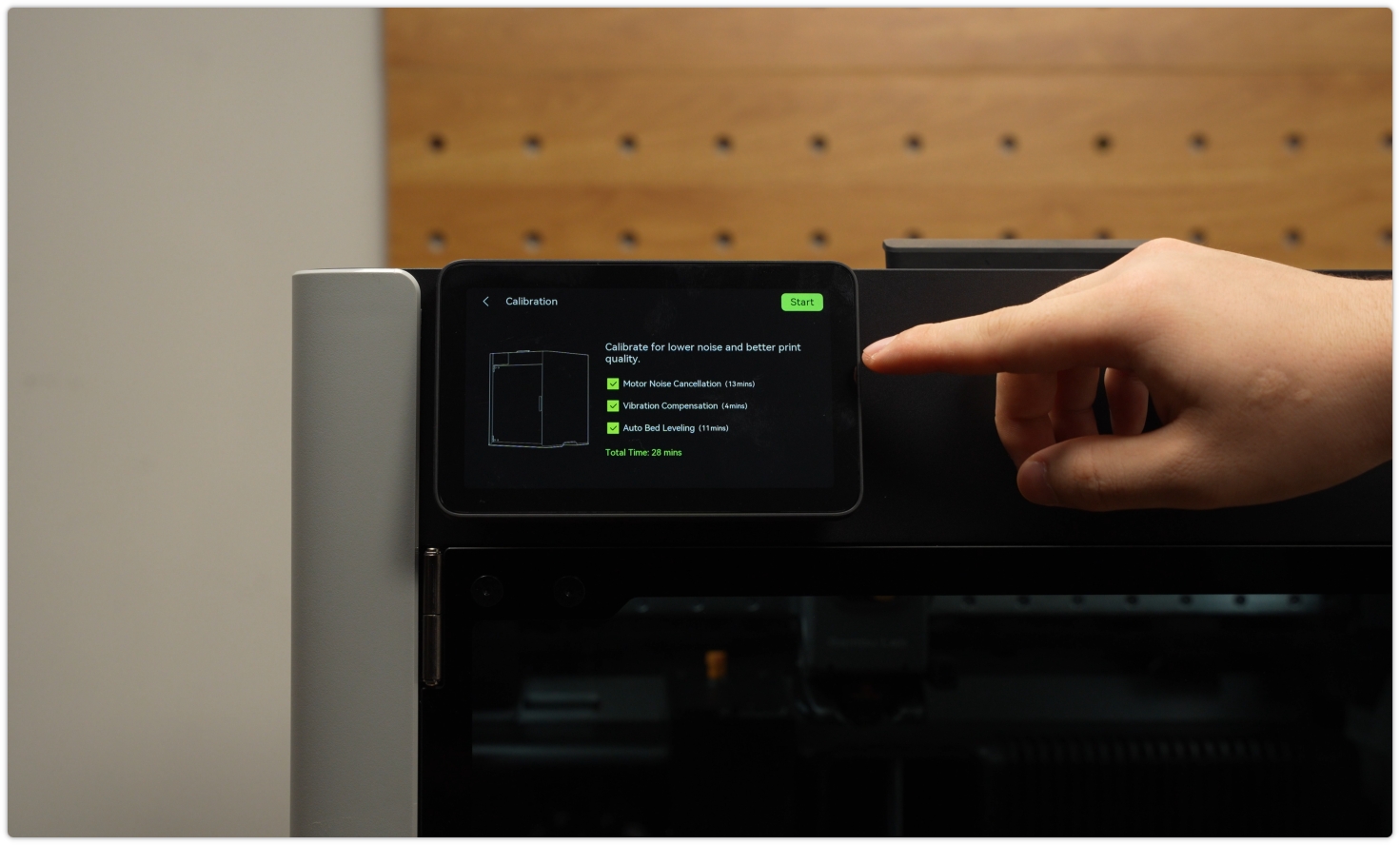

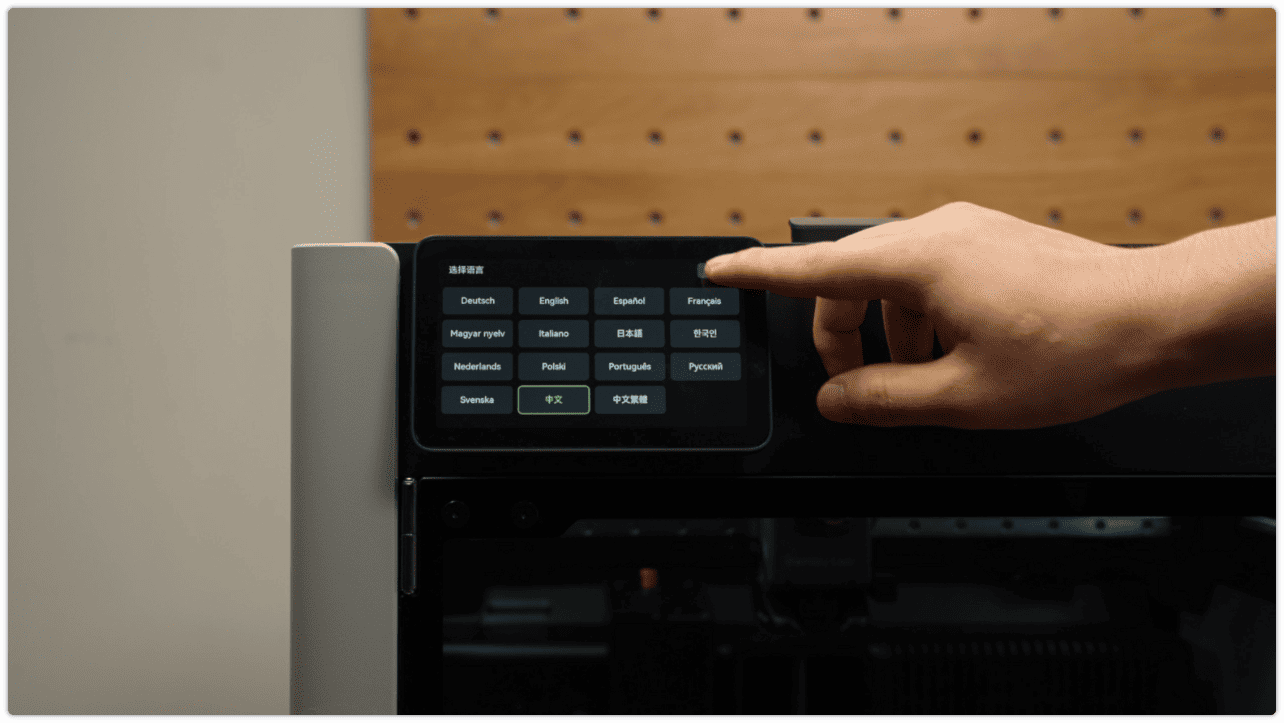

¶ Perform initial settings and the first calibration on the printer via the screen
At this point, the heatbed will rise slowly.
¶ After calibration is complete, remove the foam pieces under the heatbed
¶ External Spool Holder Installation
¶ Align the slot and slide the spool holder downwards

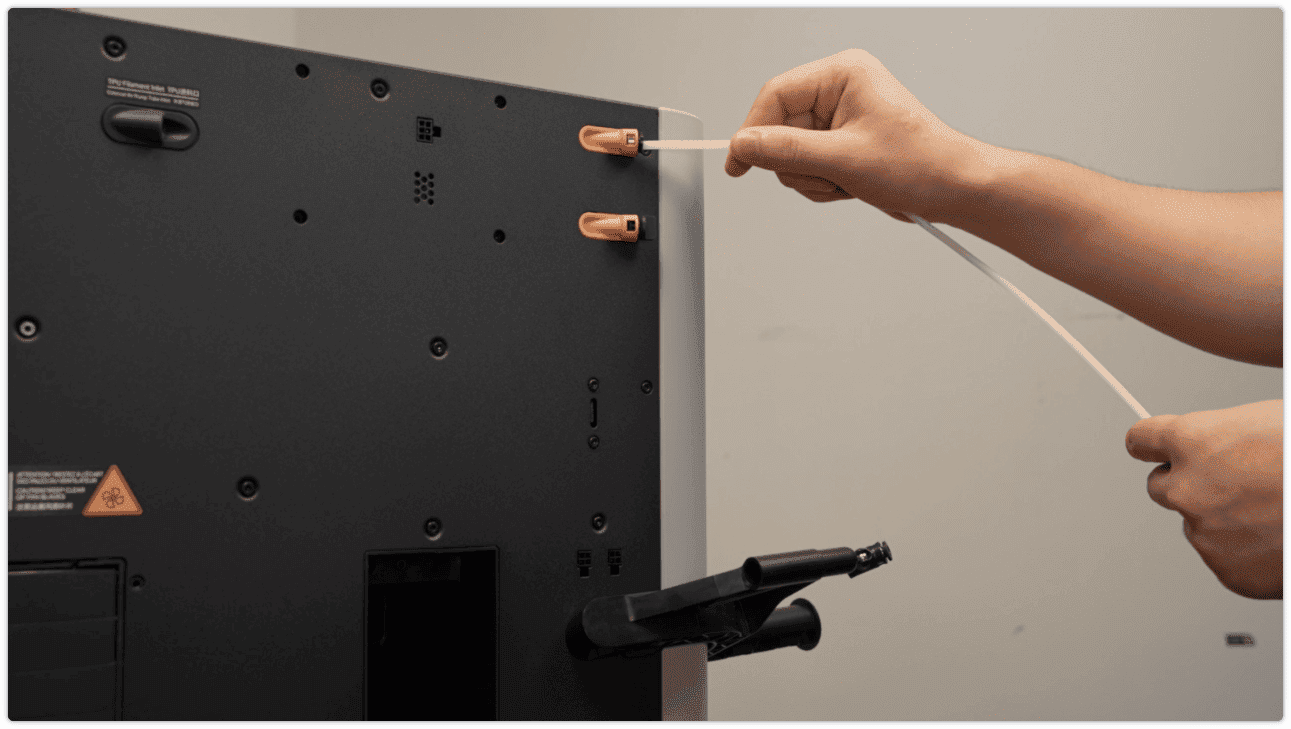

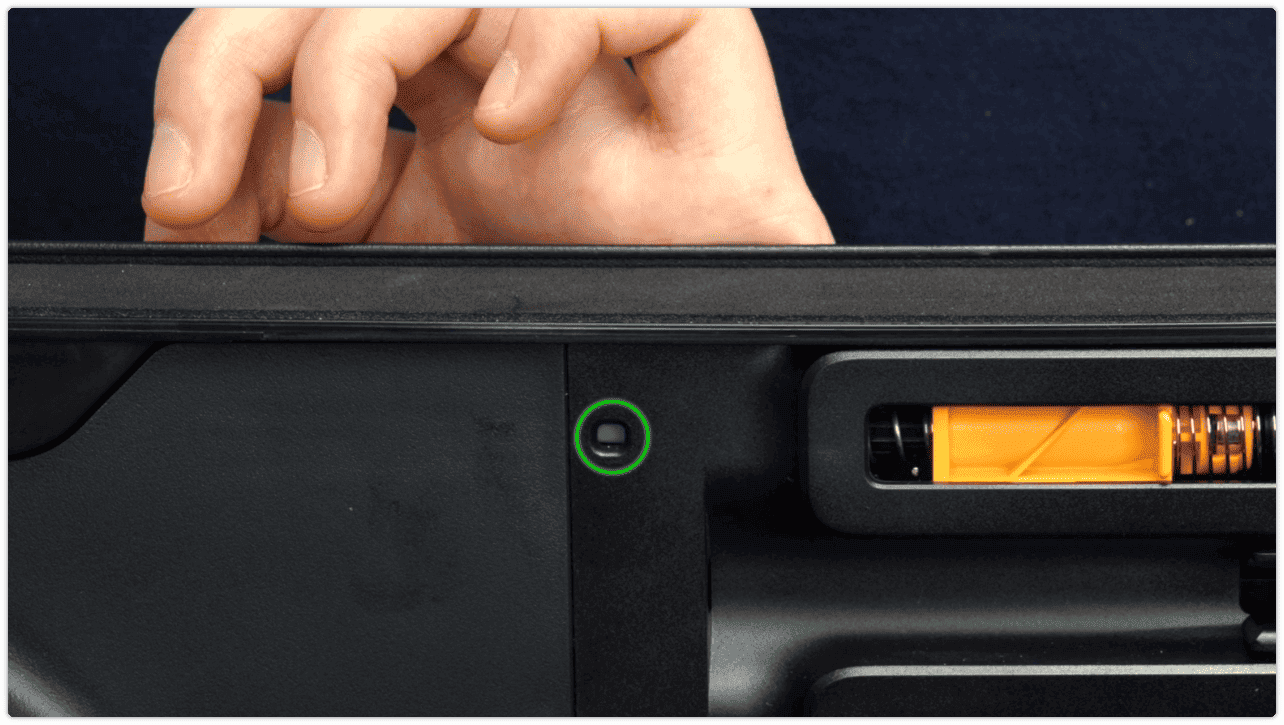

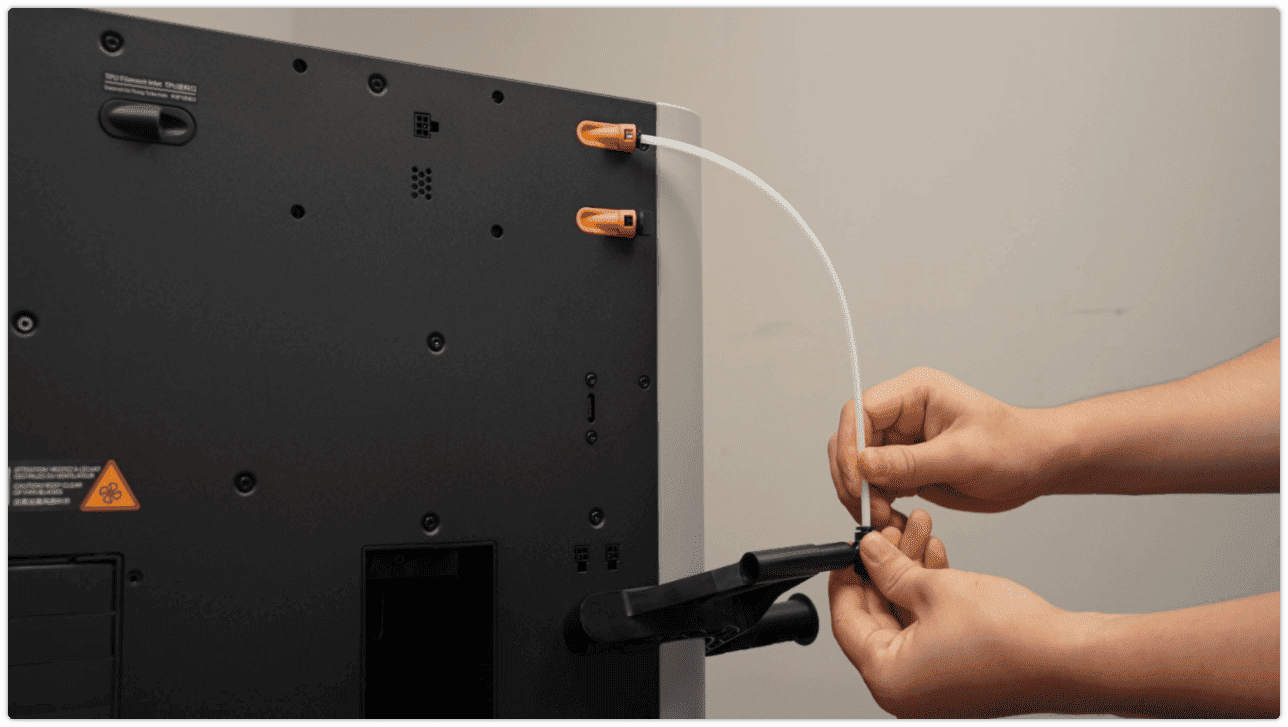

¶ Insert one end of the PTFE tube into the other filament inlet on the printer. Push forward until it cannot move. The tube is fully inserted if it can be seen from the window on the buffer.
 |
 |
¶ Insert the other end into the spool holder
¶ Place a spool of filament on the spool holder, and push the filament into the PTFE tube until it cannot move forward
¶ End Notes
We hope the detailed guide provided has been helpful and informative.
If this guide does not solve your problem, please submit a technical ticket, we will answer your questions and provide assistance.
If you have any suggestions or feedback on this Wiki, please leave a message in the comment area. Thank you for your support and attention!
