¶ New Features
- Curve Surface Engraving: This feature adds support for laser engraving on curved surfaces, enabling more complex and versatile creations.
Note: The surface to be engraved must meet the following conditions :
1) Surface Characteristics:
-
The surface must be smooth, without drastic undulations (maximum supported height difference: 15 mm).
-
The angle between the surface tangent and the horizontal plane must be ≤ 40°.
2) Geometric Limitations:
-
Sudden height changes, sharp edges, and inner bevels are not supported.
-
Hollow structures are not supported.
3) Material Restrictions:
-
Transparent materials (e.g., ordinary glass, clear acrylic) and mirror-like materials (e.g., highly reflective metals, mirrors) are not supported.
-
The cross-sectional size of the object must be larger than 3 cm × 3 cm.
For more details or further assistance, see the Surface Engraving feature guide
Surface feature adaptation: Currently supported on H2D models with version 01.02.00.00 or above
Operation steps:

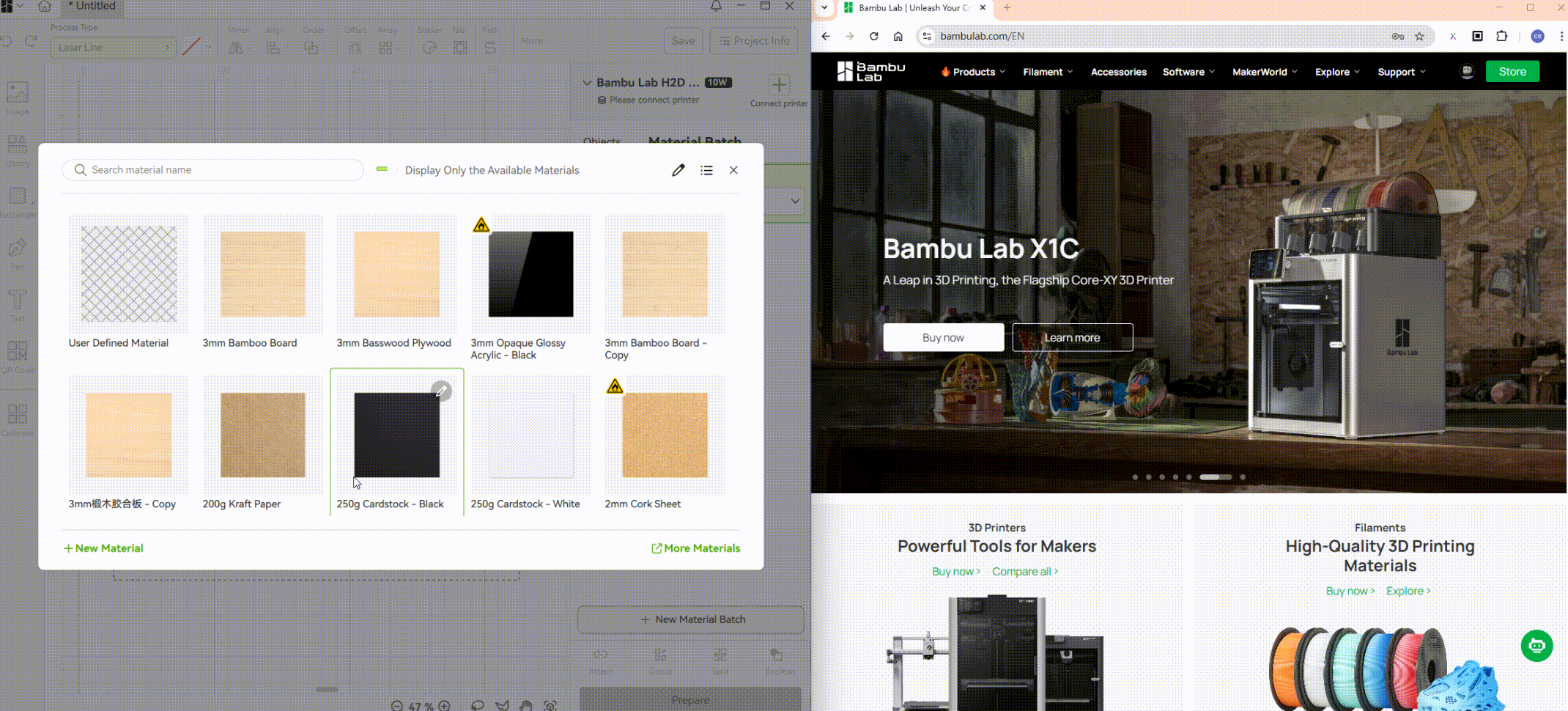

- Select the materials

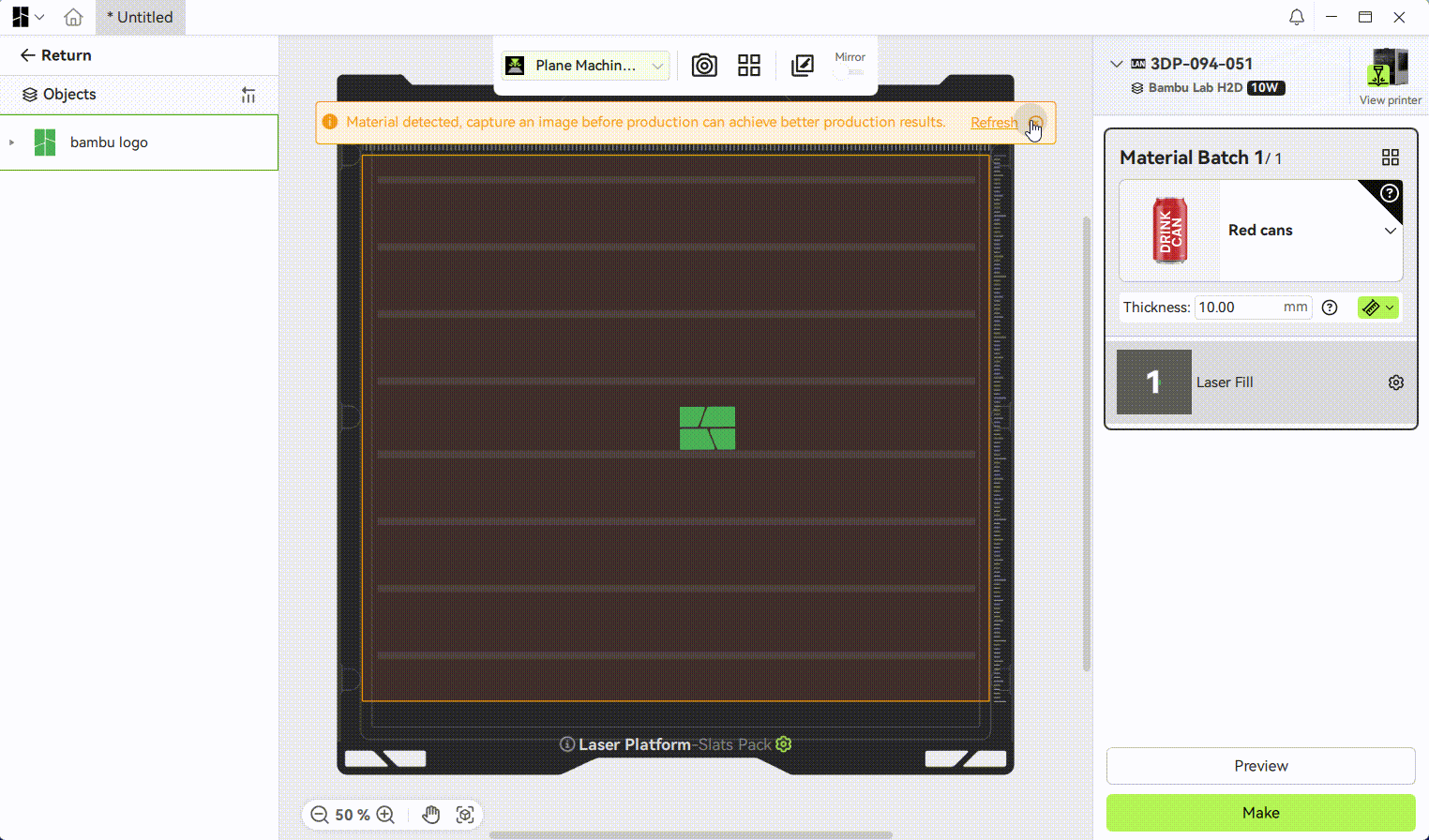

- Switch the processing mode to "Curved Surface Machining" and click to take a photo
.gif)

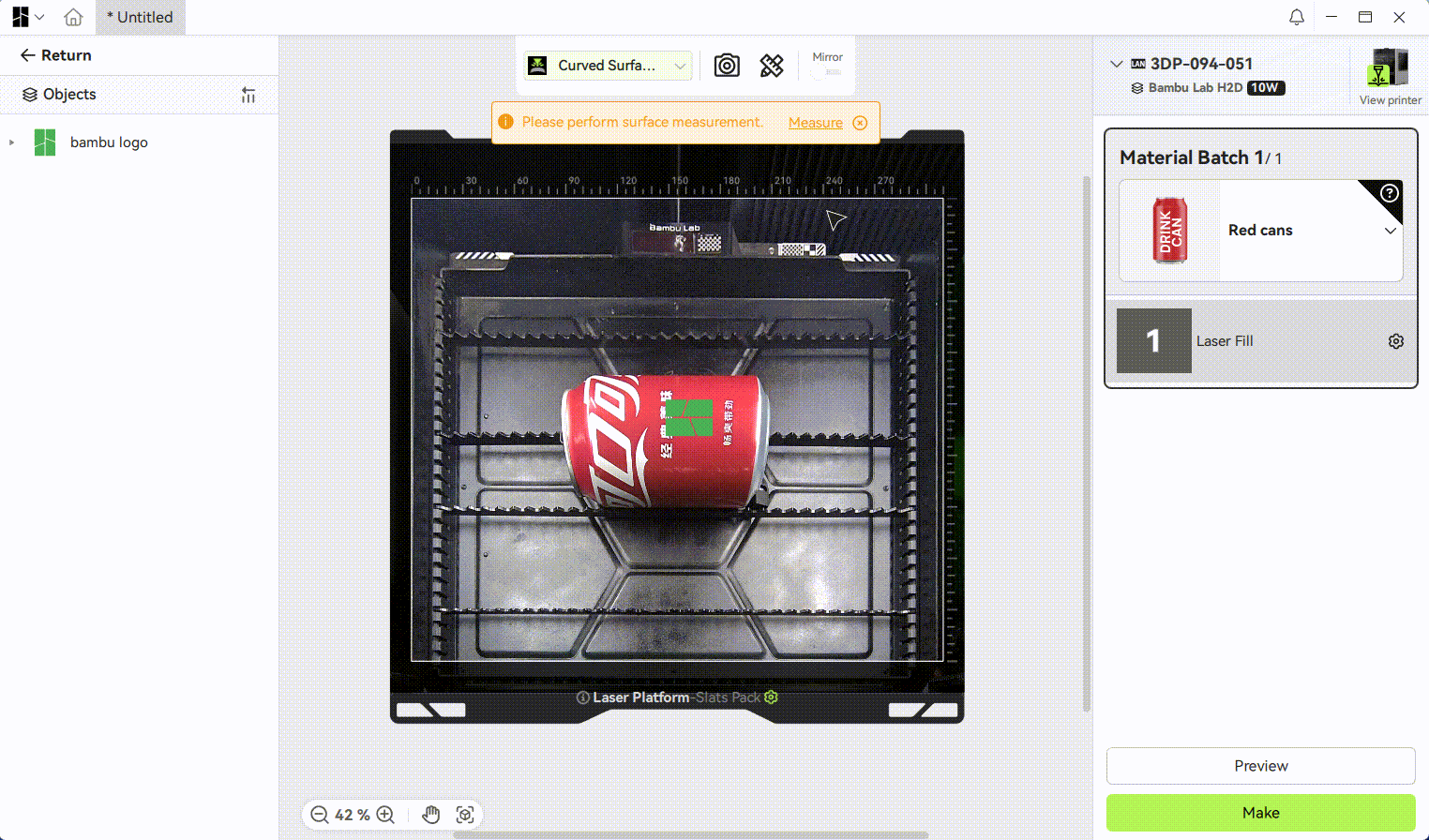

- Select the processing area for measurement
.gif)

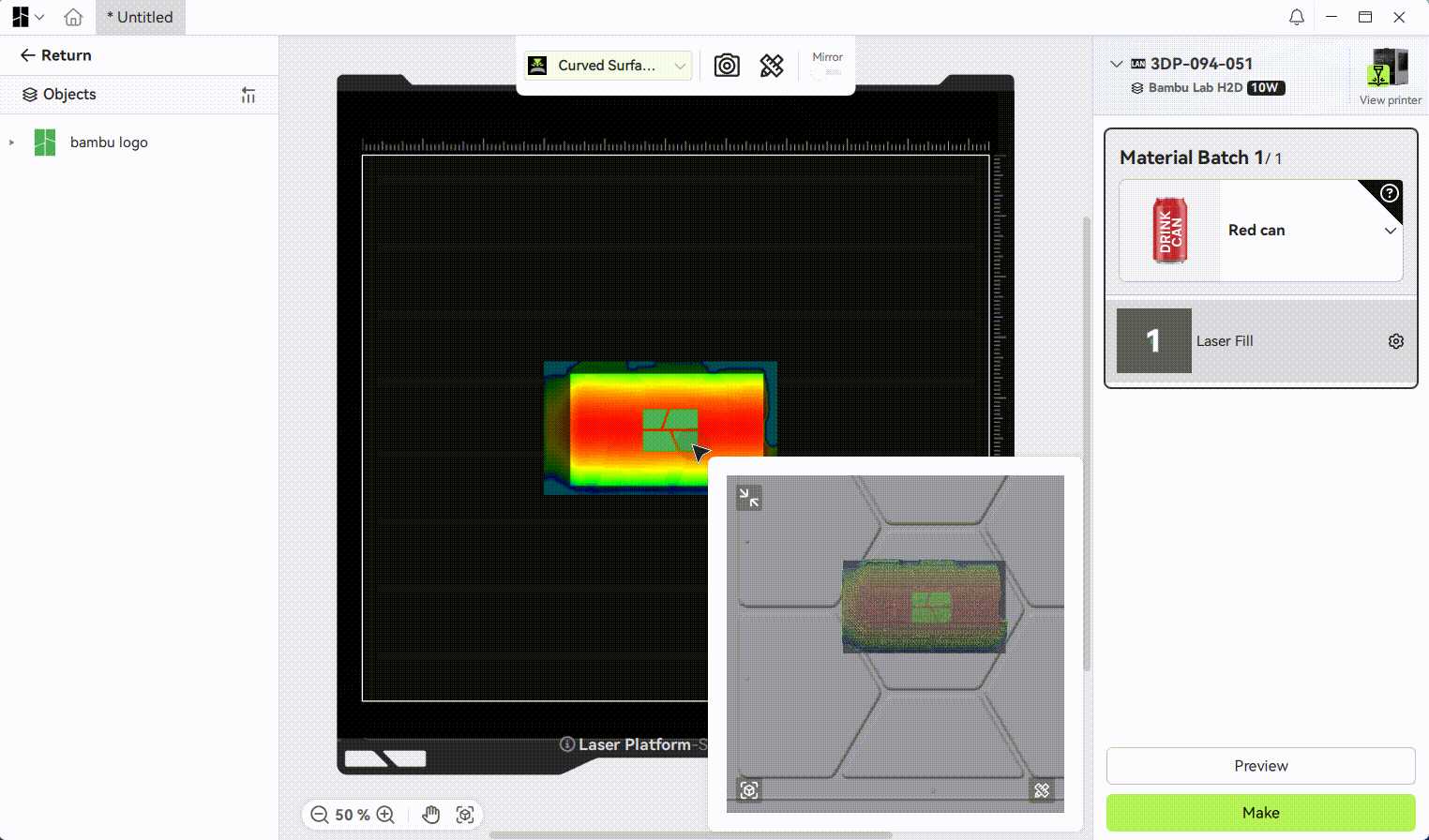

- Move the position of the object and click "Make"
.gif)

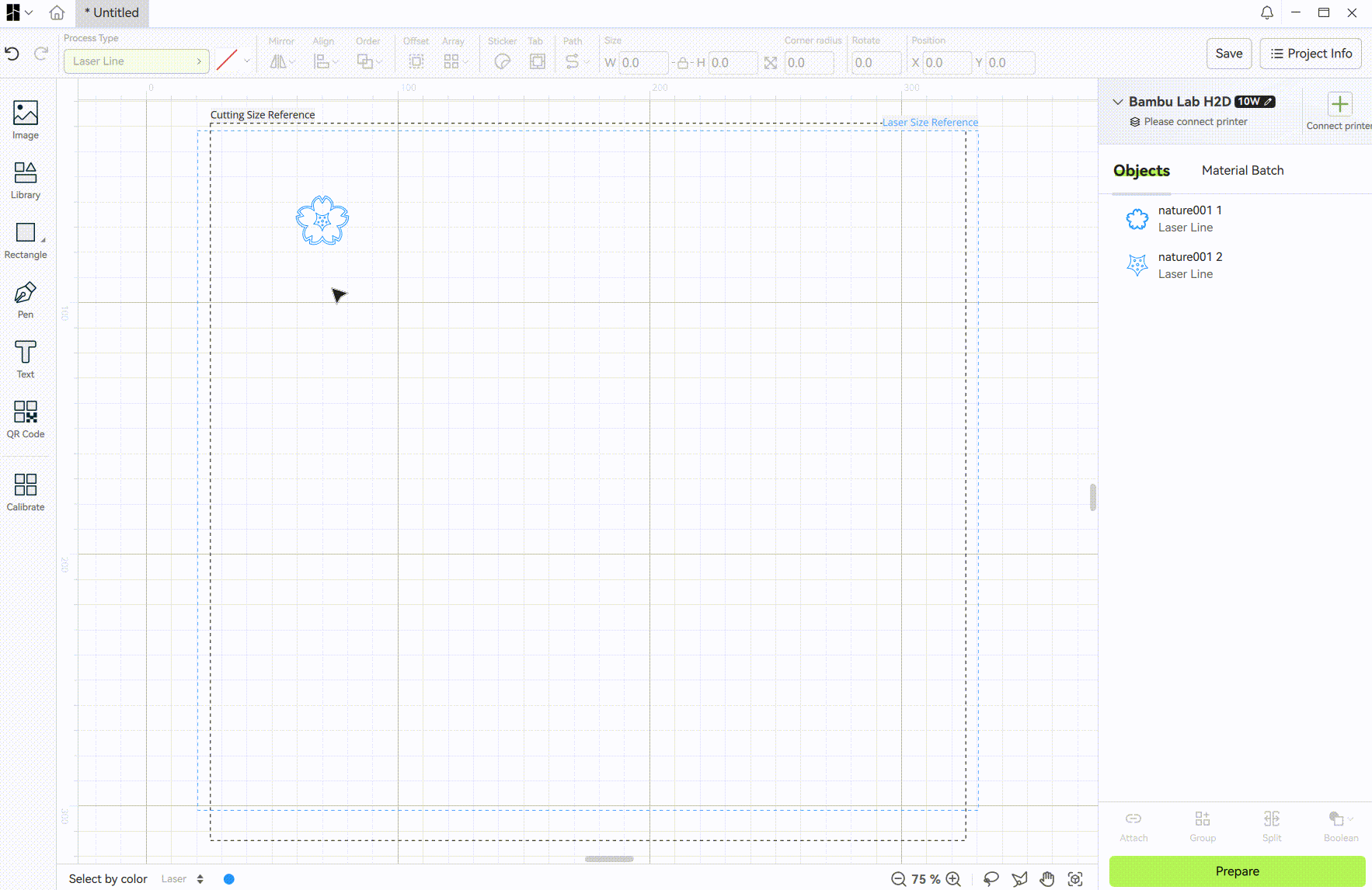

- Upgraded Process Settings: Redesigned workflow settings for a more intuitive and efficient experience
.gif)

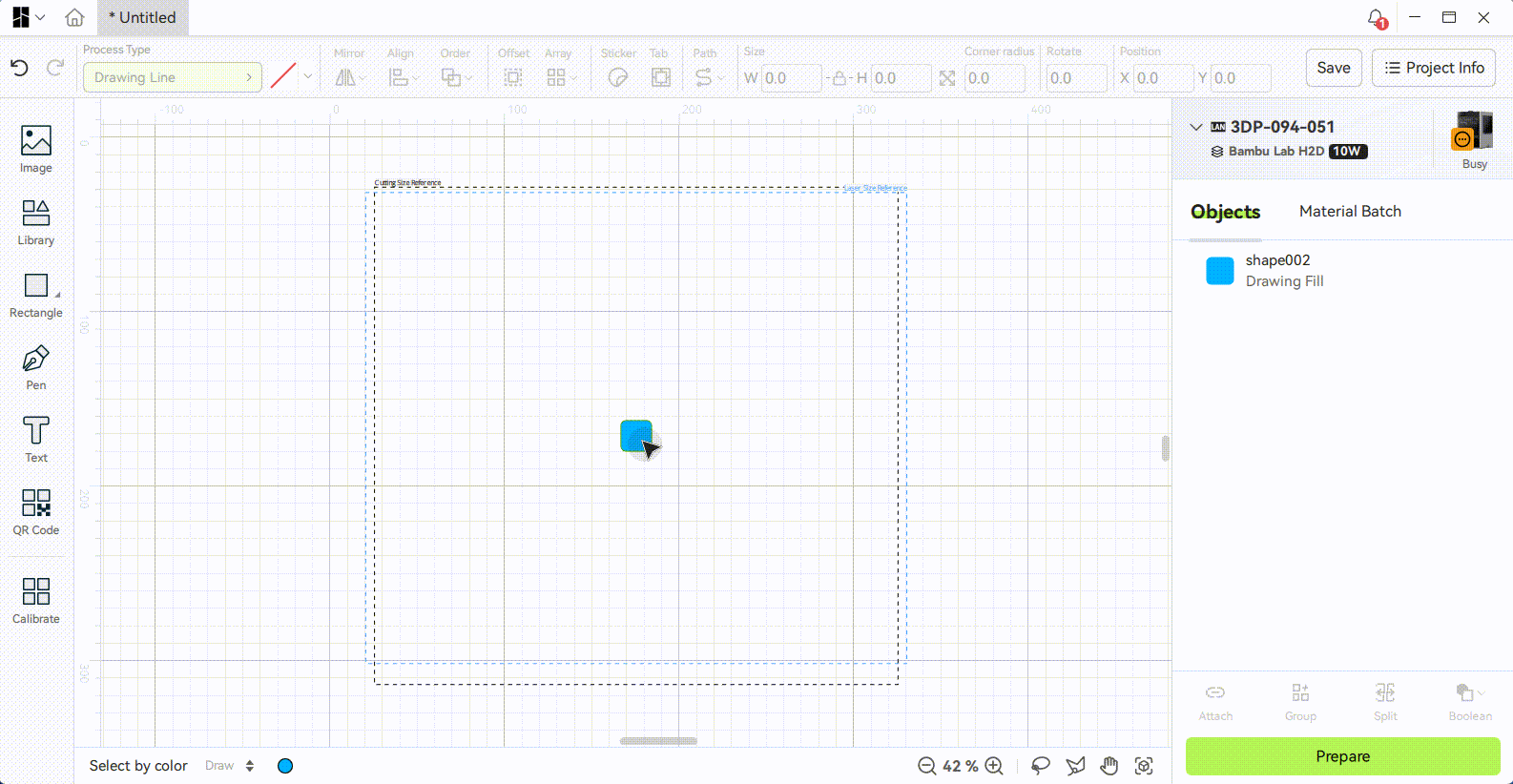

- Custom Brushes: Create different types of brushes to achieve personalized design effects
.gif)
- Material Purchase Links: Added links in Bambu Suite to purchase materials directly from the official material library
.gif)
-
Third-Party Login: Sign in with third-party accounts for quicker access
-
Enhanced Shortcuts:
-
Shift + Rotate: Snap rotation to 45° -
Shift + Mouse Wheel: Scroll the canvas horizontally
¶ Improvements
-

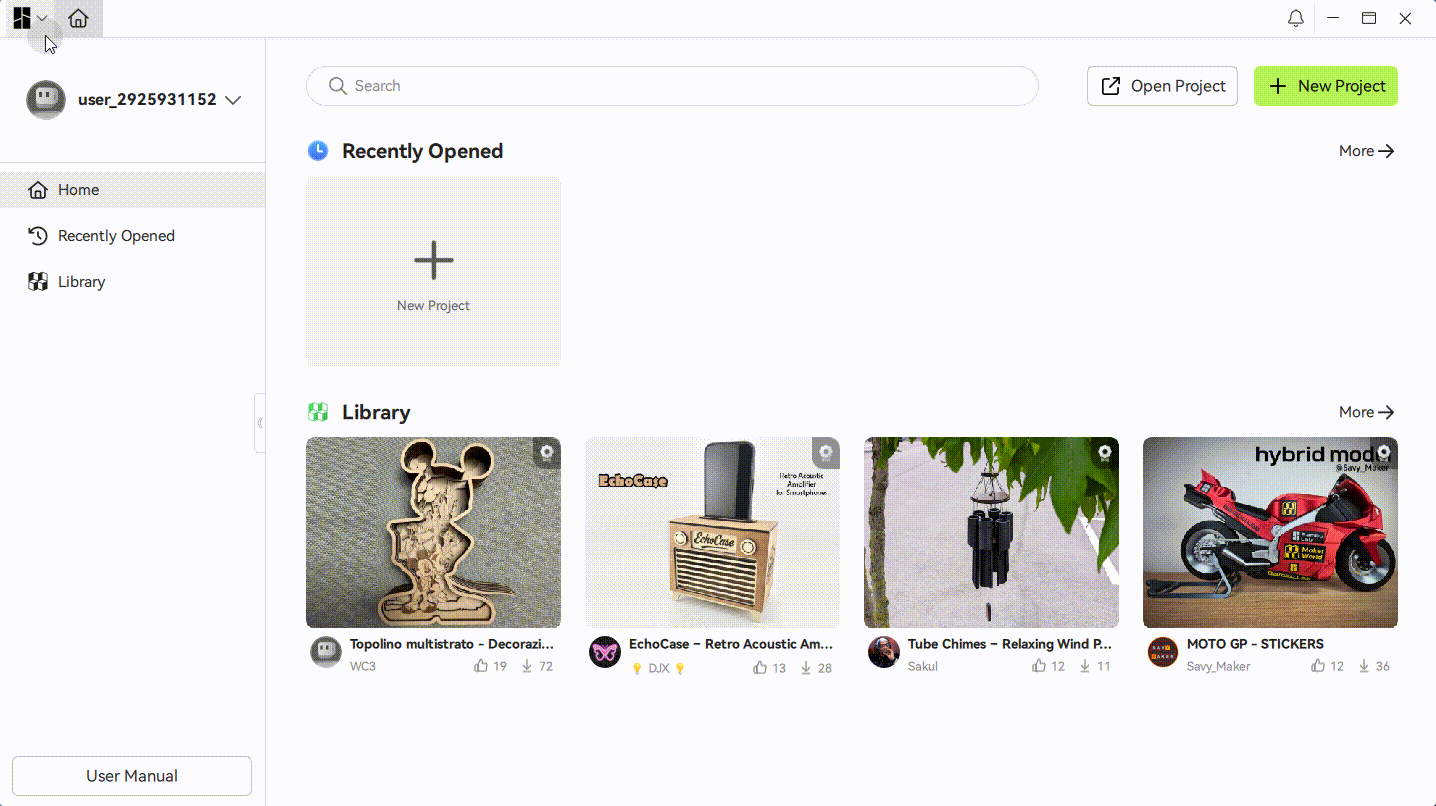

User Experience Program: Added an entry in Preferences to view detailed information.
.gif)
-

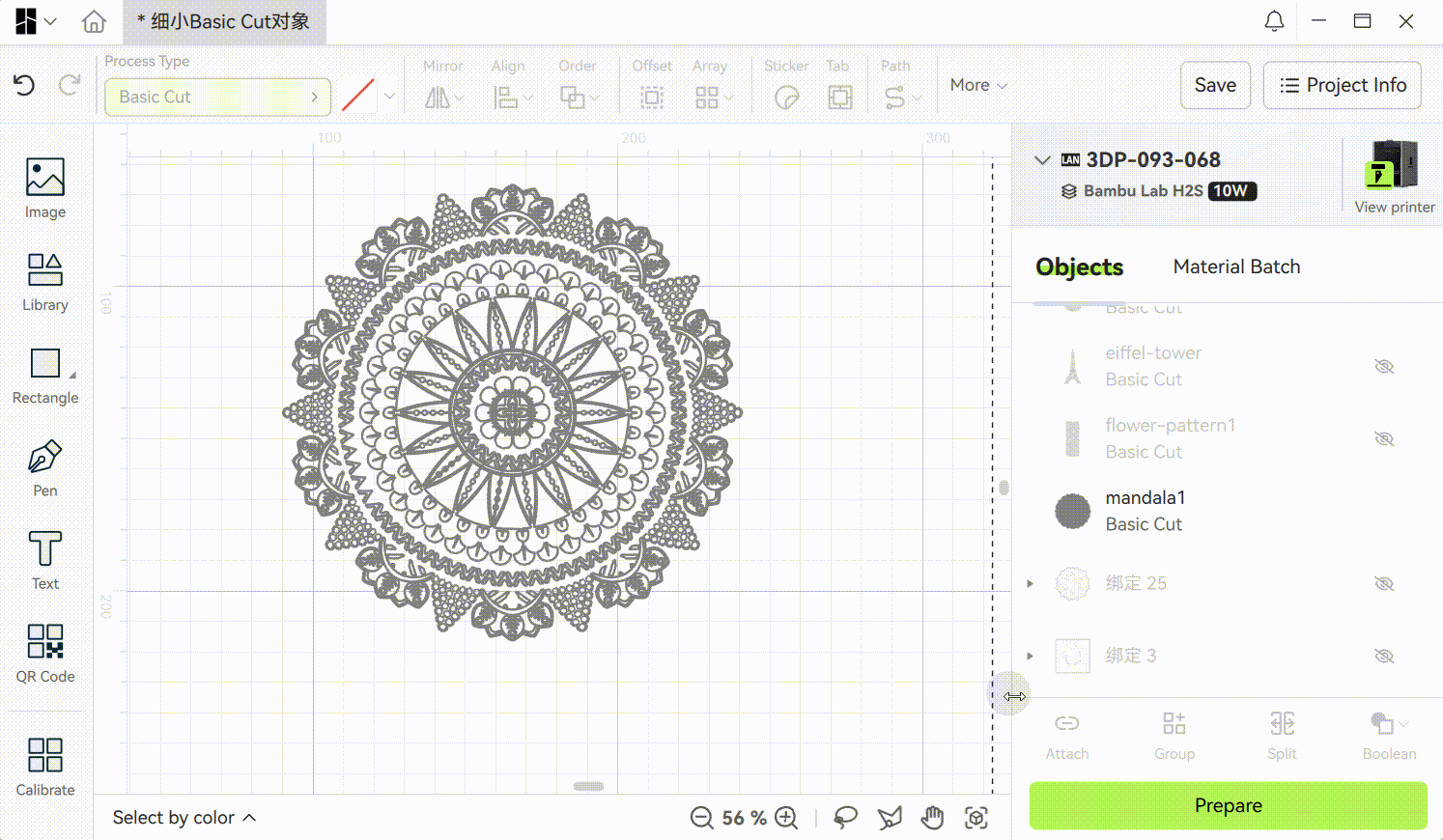

Knife-Cutting Optimization: When small text is detected, preview and production pages will automatically display a reminder to prevent processing errors.
.gif)
-
Fire Extinguisher Tool: Improved interactions to make the feature more intuitive and user-friendly.
-
Device Connection Logic: Reconnecting LAN printers in the device list no longer requires re-entering the access code.
-
Brush Settings: Color and stroke width are now separated, making brush type adjustments more flexible.
¶ Fixes
-
Fixed spacing issues in the homepage onboarding guide.
-
Fixed a crash caused by path simplification on macOS.
-
Fixed display issues when adding laser line calibration.
-
Fixed an issue where files could still be dragged in during the onboarding tutorial.
-
Fixed abnormal layout issues in certain plate-arranging scenarios.
-
Fixed invalid Wiki link when entering calibration parameters.
-
Fixed path generation errors after editing knife-cut object nodes.
-
Fixed abnormal pop-ups in the onboarding guide under specific conditions.
-
Fixed dark mode display issues in certain cases.
