¶ PTFE Tube Coupler
The PTFE tube coupler is installed on the back of the printer and is used to secure the PTFE tube.

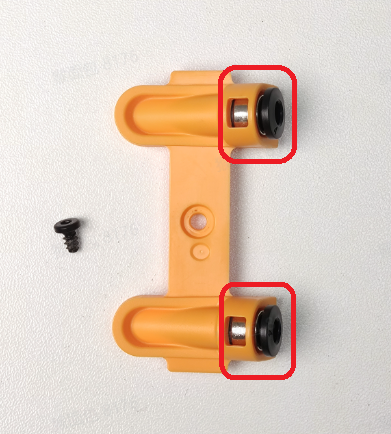

The spare parts for the PTFE tube coupler include:
-
PTFE Tube Coupler × 1
-
BT3x5 Screw (for securing the PTFE tube coupler) × 1
¶ When to Use
-
The PTFE tube coupler is damaged.
-
The PTFE tube coupler cannot secure the PTFE tube properly.
¶ Tools and materials needed
-
New PTFE Tube Coupler
-
H2.0 Allen Key
Specifications and quantities of screws involved in replacing the H2D PTFE Tube Coupler (it is recommended to keep the removed screws properly to avoid loss):
| Specification | Image | Use | Position | Quantity | |
|---|---|---|---|---|---|
| BT3x8 | Fix the rear panel (marked by the green square) |  |
12 | ||
| ST3x8 | Fix the rear panel (marked by the red circle) |  |
11 | ||
| ST3x12 | Fix the spool holder bracket (marked by the yellow square) |  |
2 | ||
| BT3x5 | Fix the PTFE tube coupler |  |
1 |
¶ Safety Warning
IMPORTANT!
It's crucial to power off the printer before conducting any maintenance work, including work on the printer's electronics and tool head wires. Performing tasks with the printer on can result in a short circuit, leading to electronic damage and safety hazards.
During maintenance or troubleshooting, you may need to disassemble parts, including the hotend. This exposes wires and electrical components that could short circuit if they contact each other, other metal, or electronic components while the printer is still on. This can result in damage to the printer's electronics and additional issues.
Therefore, it's crucial to turn off the printer and disconnect it from the power source before conducting any maintenance. This prevents short circuits or damage to the printer's electronics, ensuring safe and effective maintenance. For any concerns or questions about following this guide, we recommend submitting a technical ticket regarding your issue and we will do our best to respond promptly and provide the assistance you need.
¶ Remove the PTFE Tube Coupler
¶ Step 1: Remove the rear panel
You can refer to this Wiki to remove the H2D rear panel:
¶ Step 2: Remove the PTFE tube coupler

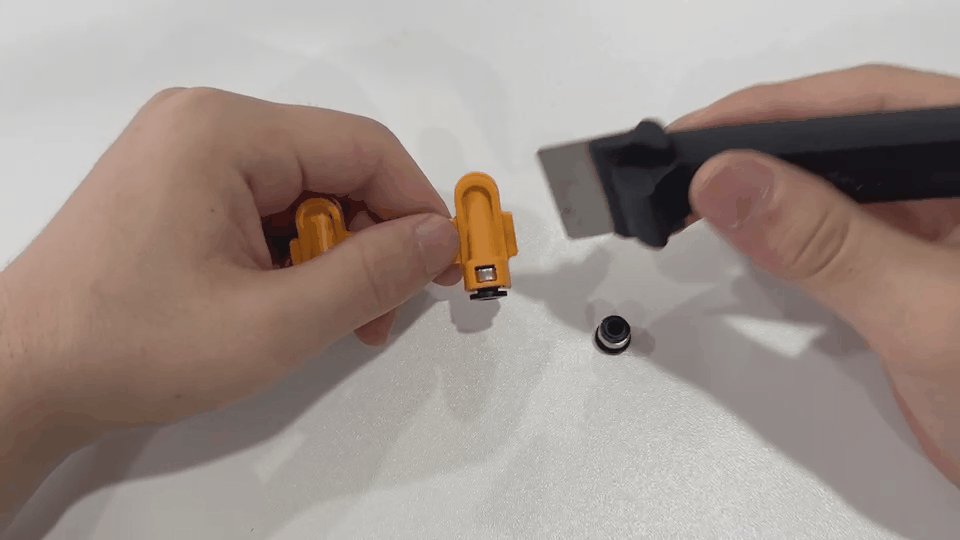

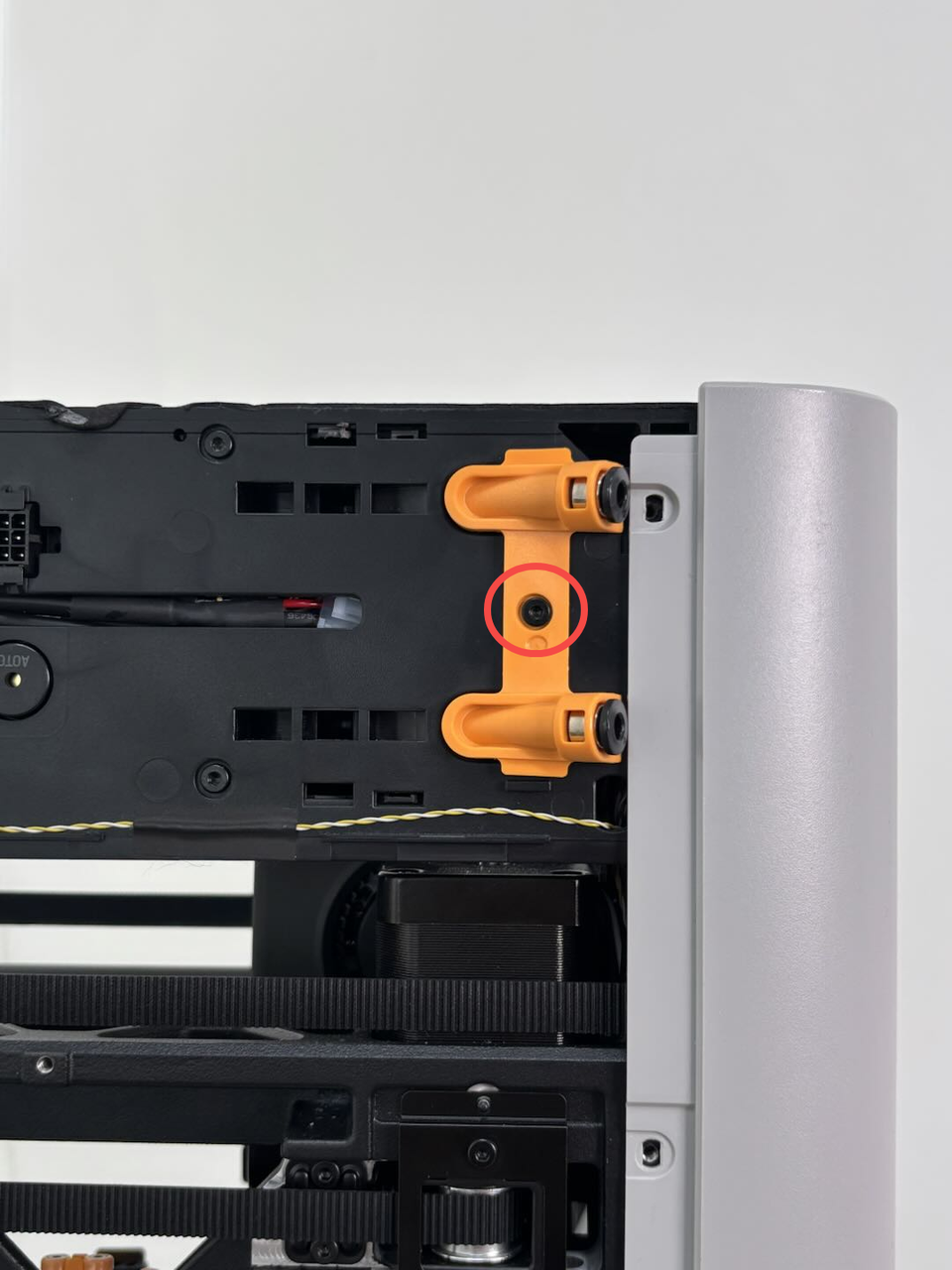

Use an H2.0 Allen key to remove one screw (BT3x5), then you can remove the PTFE tube coupler.
¶ Install the PTFE Tube Coupler
¶ Step 1: Install the PTFE tube coupler

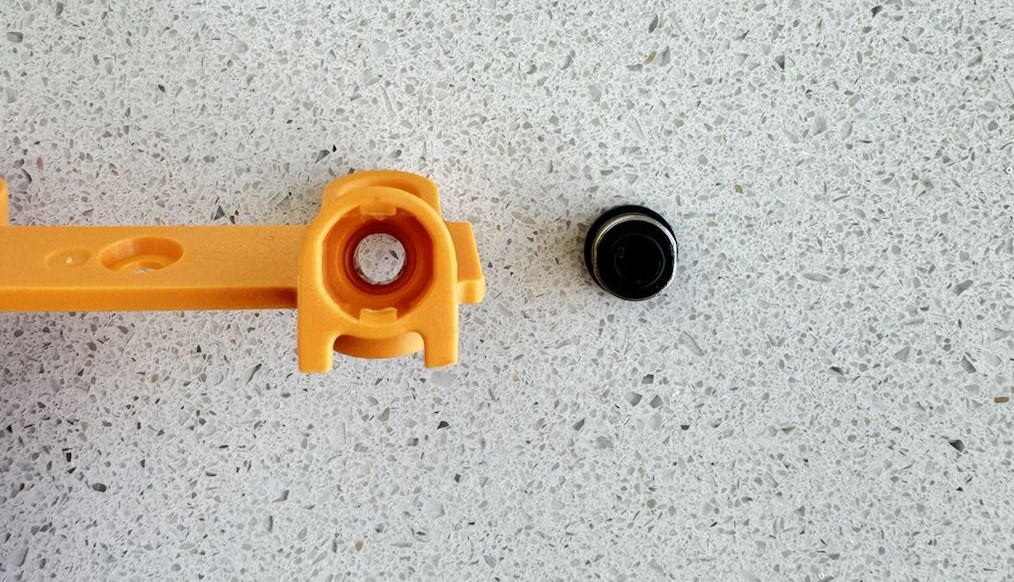

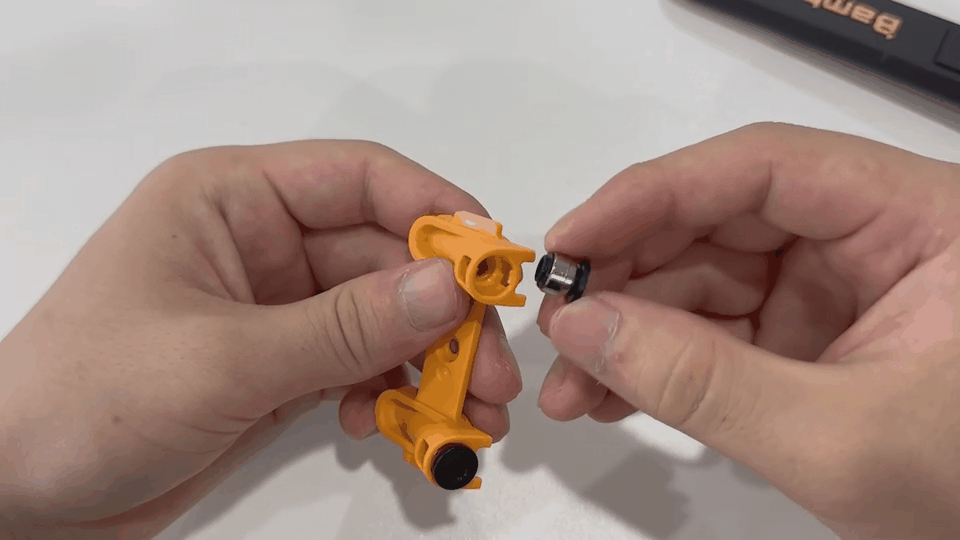

Position the new PTFE tube coupler in its original location, then use an H2.0 Allen key to tighten one fixing screw (BT3x5) to secure the PTFE tube coupler in place.
¶ Step 2: Install the rear panel
You can refer to this Wiki to install the H2D rear panel:
¶ Verify the Functionality
Check that the tube coupler does not shake and can fix the PTFE tube normally.
