¶ Laser Air Assist Tube Connector

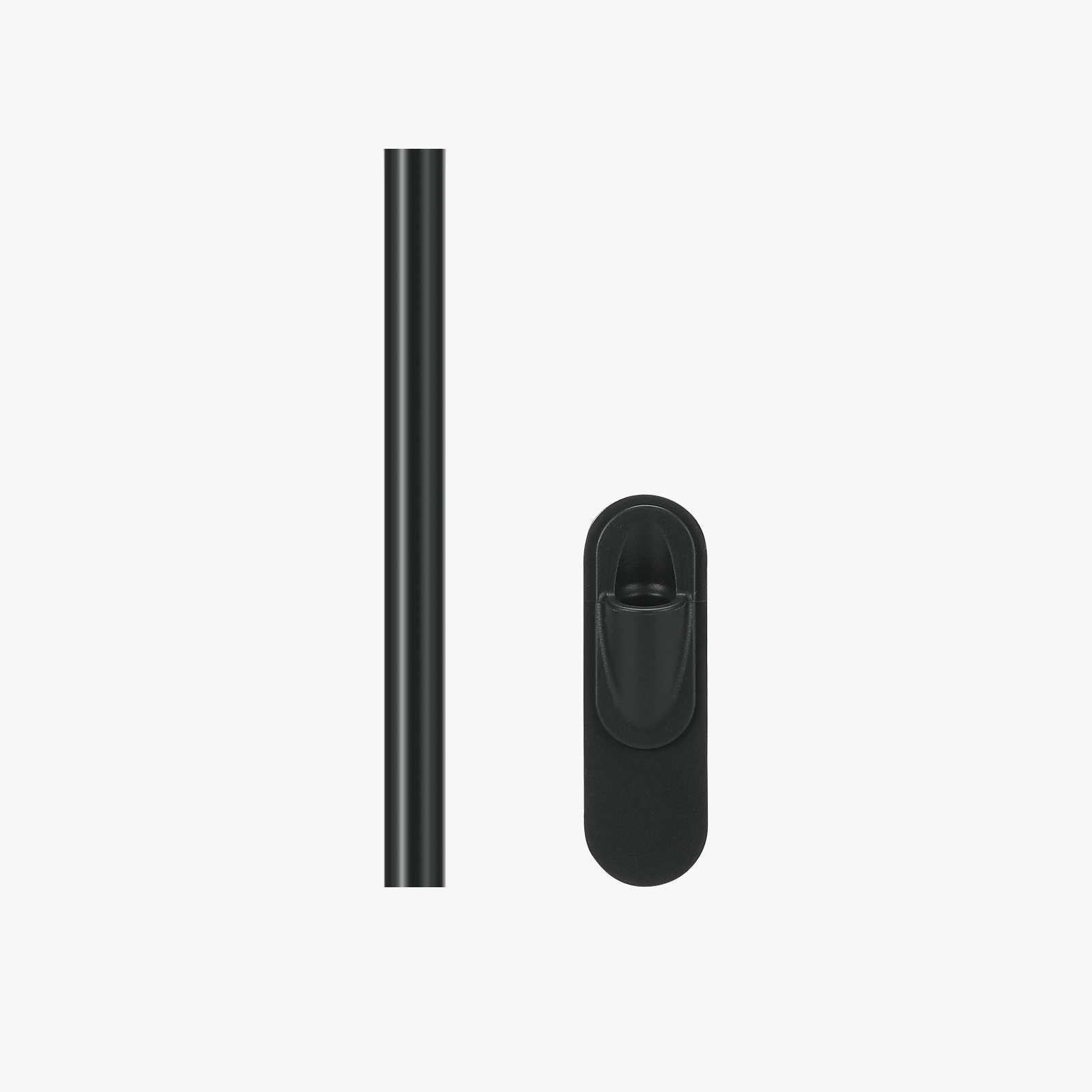

The spare parts for the laser air assist tube connector include the following:
-
Laser Air Assist Tube Connector*1
-
Tube*1
¶ When to replace
The laser air assist tube connector is broken.
¶ Tools and materials needed
- Laser air assist tube connector
¶ Safety Warning
IMPORTANT!
It's crucial to power off the printer before conducting any maintenance work, including work on the printer's electronics and tool head wires. Performing tasks with the printer on can result in a short circuit, leading to electronic damage and safety hazards.
During maintenance or troubleshooting, you may need to disassemble parts, including the hotend. This exposes wires and electrical components that could short circuit if they contact each other, other metal, or electronic components while the printer is still on. This can result in damage to the printer's electronics and additional issues.
Therefore, it's crucial to turn off the printer and disconnect it from the power source before conducting any maintenance. This prevents short circuits or damage to the printer's electronics, ensuring safe and effective maintenance. For any concerns or questions about following this guide, open a new ticket in our Support Page and we will do our best to respond promptly and provide the assistance you need.
¶ Step 1: Remove the Rear Panel
Please refer to Replace H2D Rear Panel.

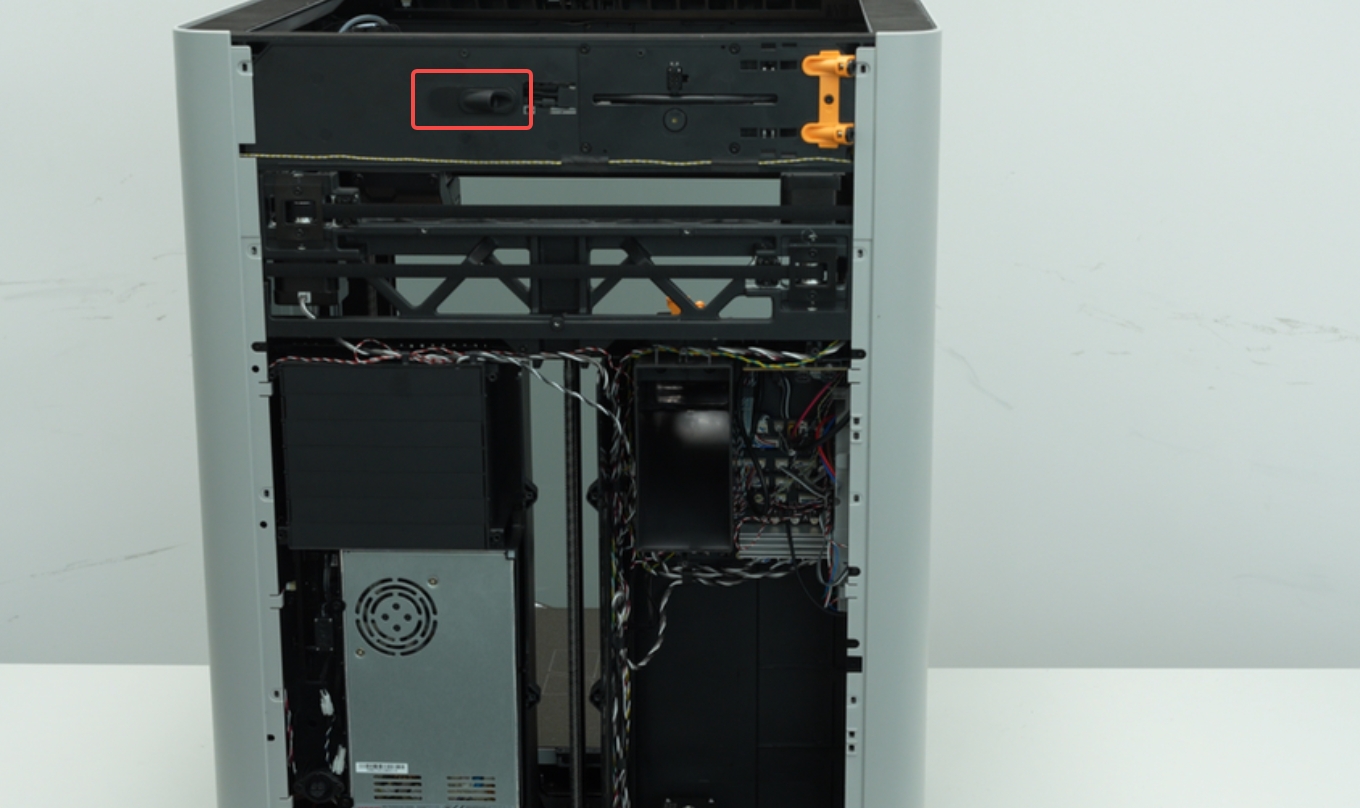

¶ Step 2: Remove the Laser Air Assist Tube Connector
Remove the laser air assist tube connector.
¶ Step 3: Install the Laser Air Assist Tube Connector
Install the laser air assist tube connector.
¶ Step 4: Install the Rear Panel
Please refer to Replace H2D Rear Panel.
¶ End Notes
We hope the detailed guide provided has been helpful and informative.
If this guide does not solve your problem, please submit a technical ticket, we will answer your questions and provide assistance.
If you have any suggestions or feedback on this Wiki, please leave a message in the comment area. Thank you for your support and attention!
