¶ Issue Description

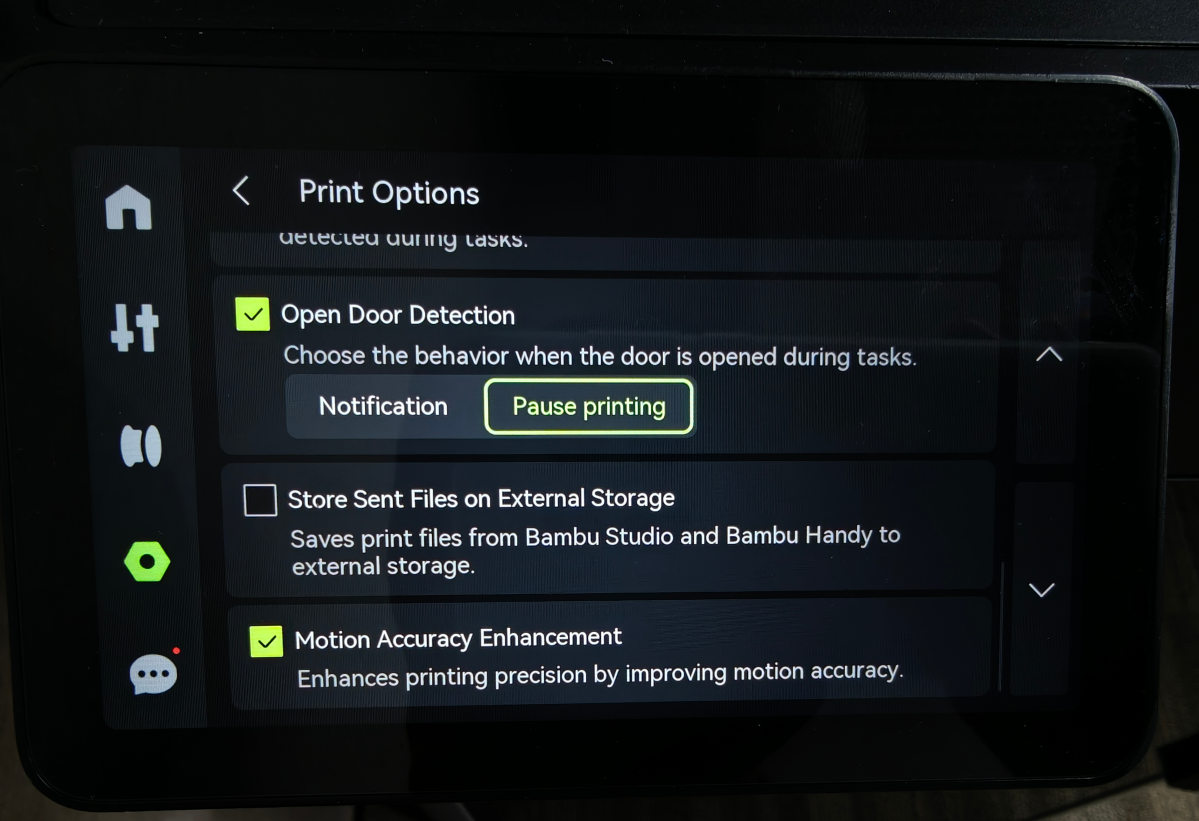

After the Open Door Detection-Pause printing is enabled, opening the front door or top glass cover during the task will trigger a pause.
¶ Troubeshooting
¶ Tools, Equipment and Materials
None
¶ Solutions
Users may adjust the order of these solutions as needed.
¶ Step 1: Check if the front door is open
Check if the front door is normally closed. The front door may not be closed normally or may be opened due to other external forces (such as the impact on the front door caused by the XY motor losing steps).
¶ Step 2: Check if the firmware version is 01.01.02.08 or later
Since versions before 01.01.02.08 may have a firmware bug in the Hall threshold, we recommend that you first upgrade the firmware to 01.01.02.08 or later to eliminate firmware problems.
¶ Step 3: Check if the magnet on the front door has fallen off
If the front door is in normally closed, check if the magnet on the front door has fallen off.
Note:
- Front glass door of non-laser version: 1 magnet
- Front laser safety window of laser version: 2 magnets
¶ End Notes
We hope the detailed guide provided has been helpful and informative.
If this guide does not solve your problem, please submit a technical ticket, we will answer your questions and provide assistance.
If you have any suggestions or feedback on this Wiki, please leave a message in the comment area. Thank you for your support and attention!
