¶ Accessory Box for A1 mini
In response to customer feedback and requirements, we have introduced an Accessory Box for the A1 mini (including the AMS Lite), featuring a selection of commonly used accessories.

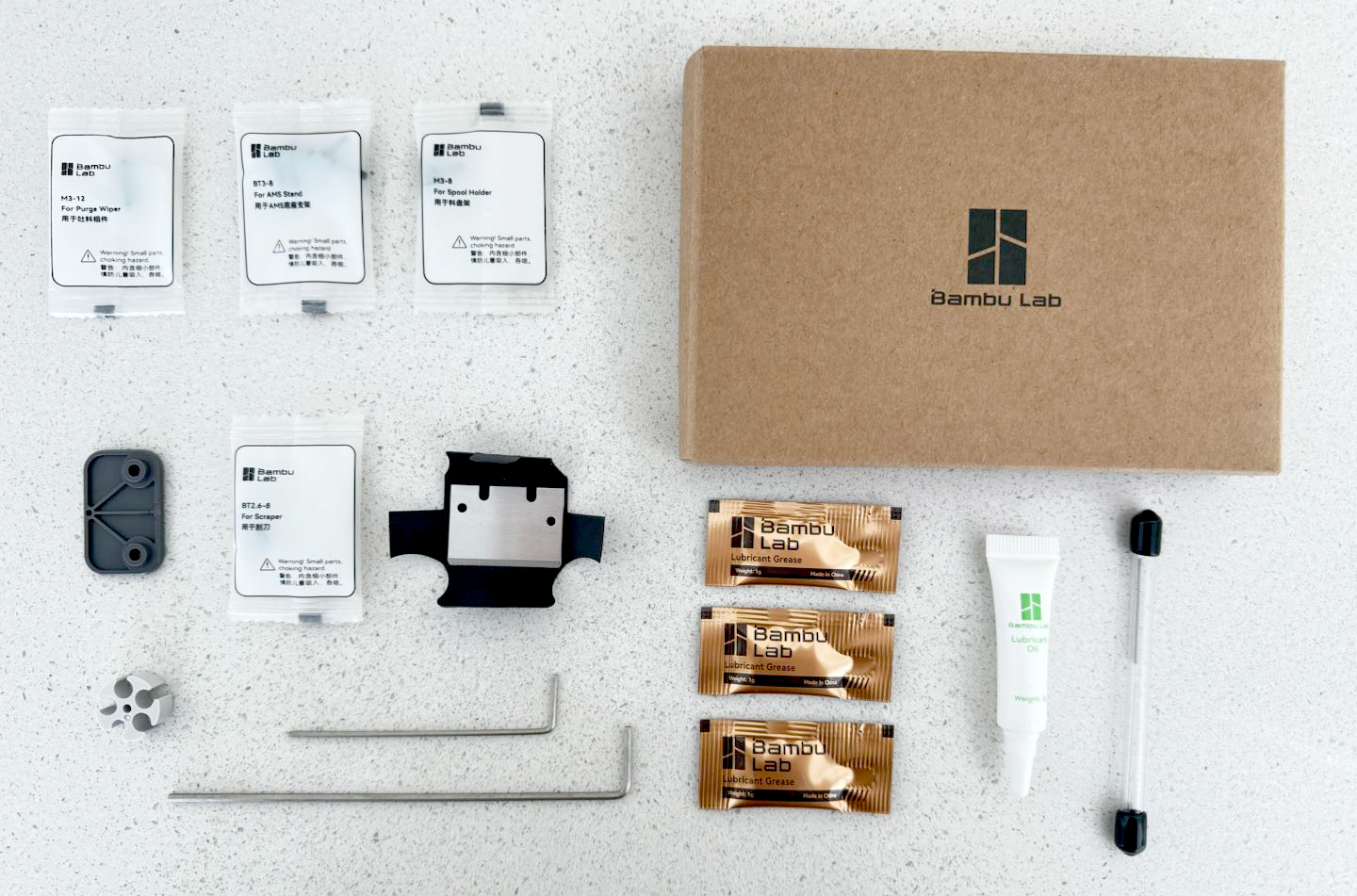

¶ Item list and locations
¶ Bambu Scraper Blade
 Bambu Bed Scraper and the screw mounting locations |
 Bambu Bed Scraper |
Item: Bambu Scraper Blade * 1
Usage: Use with printed "Scraper grip" to assist in scraping tasks. Click here to print the scraper handle model.
Guide: How to install the Bambu scraper

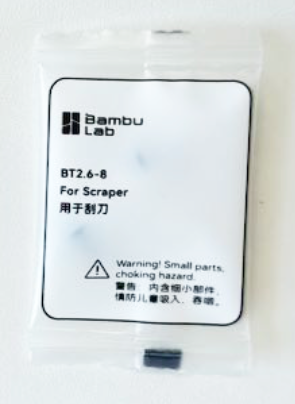

¶ BT 2.6-8
Item: BT 2.6X8mm Screws * 2
Usage: Use for Bambu Scraper.
¶ Allen keys (H2 and H1.5)
Item: H1.5 hex key * 1, H2.0 hex key * 1
Usage: Disassembly and assembly tools.

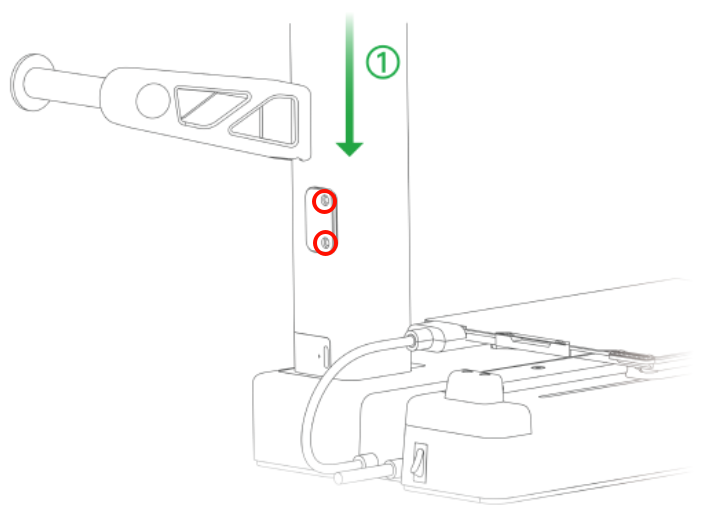

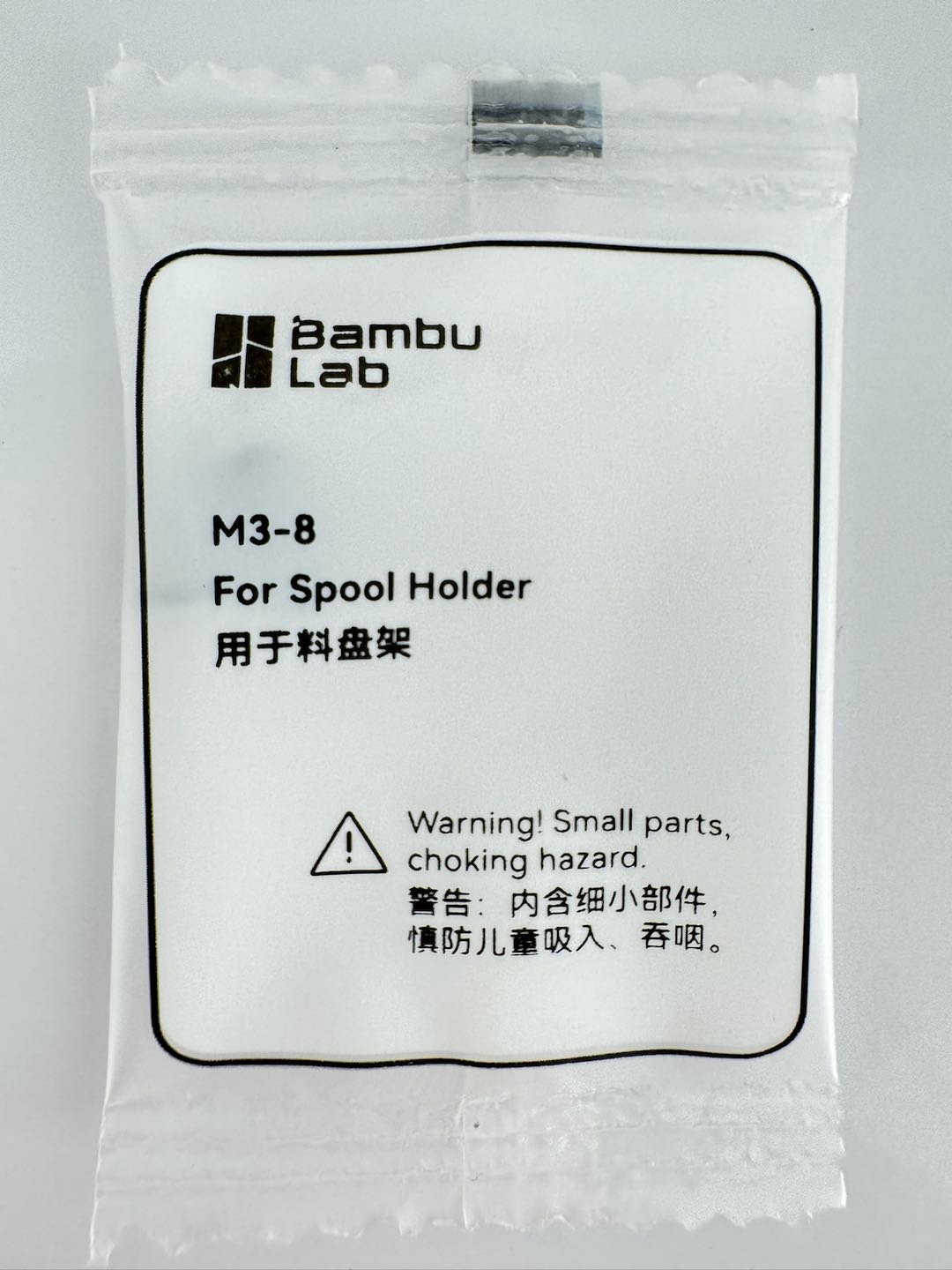

¶ M 3-8
Item: M 3X8mm Screws * 2
Usage: Used for Spool Holder.
Location:

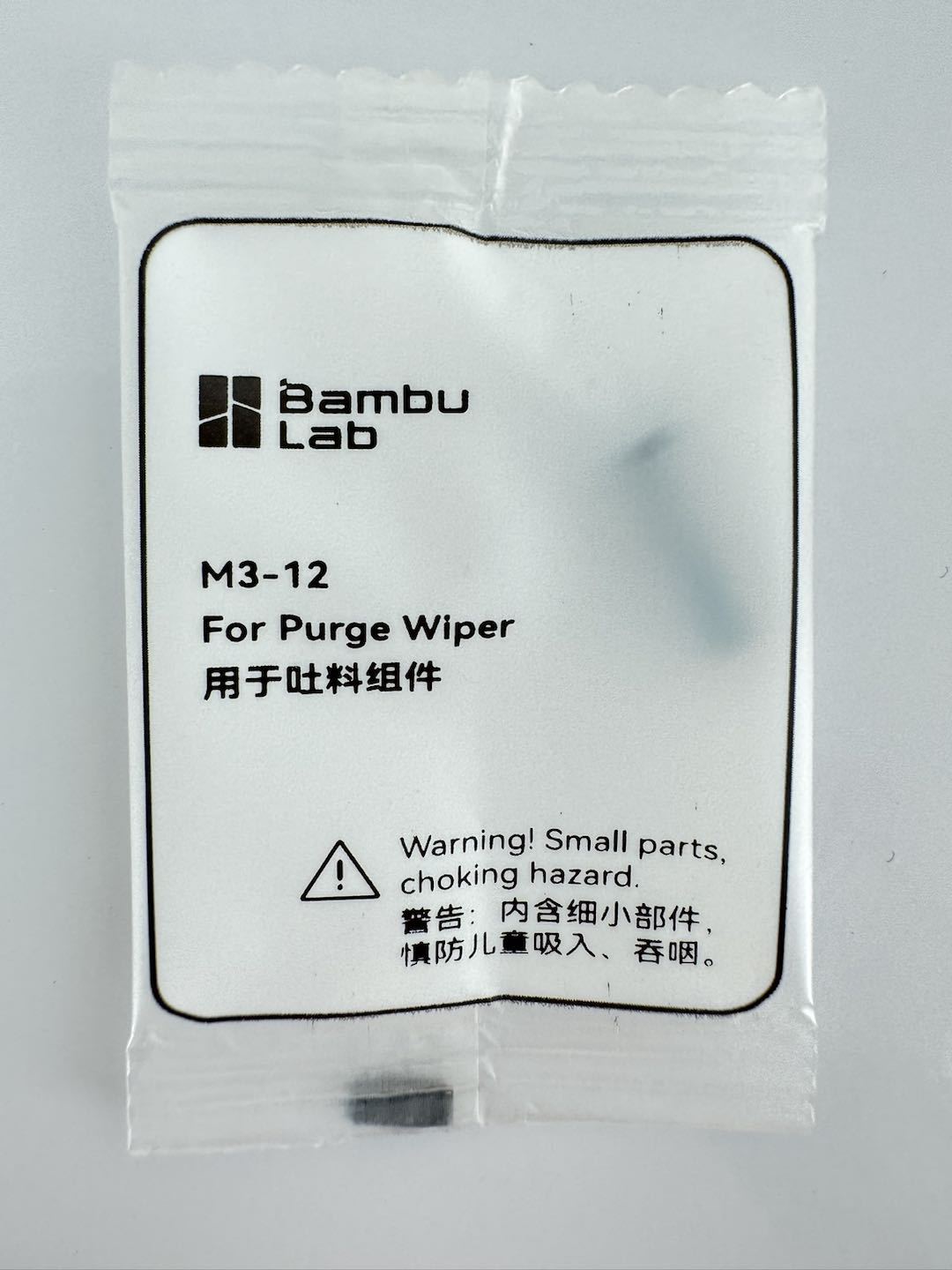

¶ M 3-12
Item: M 3X12mm Screw * 1
Usage: Used for Purge Wiper or the A1 mini Z cover.
Location:
 A1 mini Z cover |
 Purge Wiper |

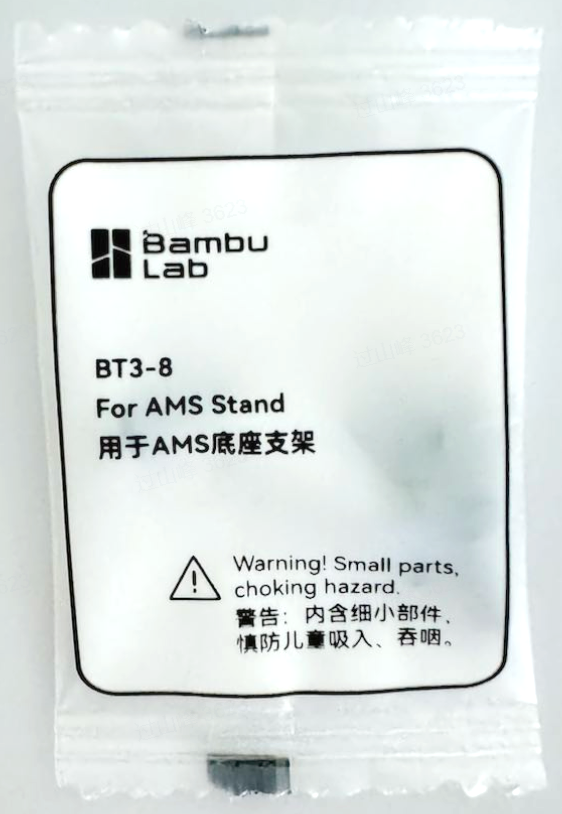

¶ BT 3-8
Item: BT 3X8mm Screws * 5
Usage: Use for the bottom plate of A1 mini and AMS lite stand.
Guide: A1 mini Bottom Base Installation Tutorial | Bambu Lab Wiki
Location:

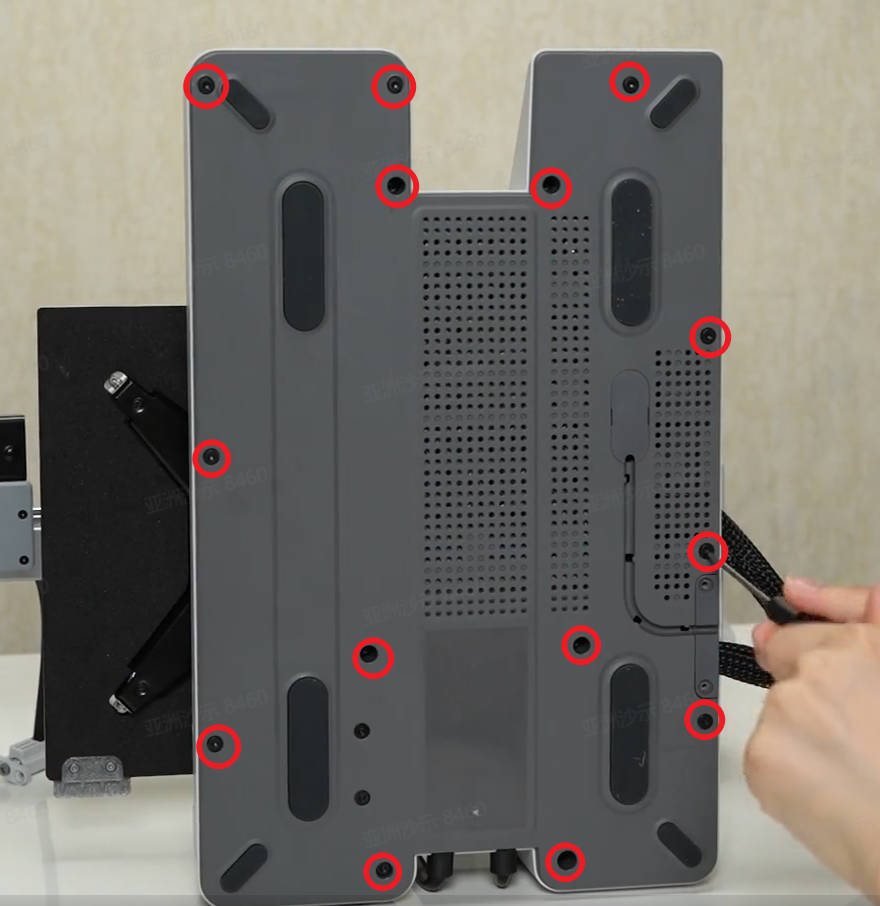

 Bottom plate of A1 mini |

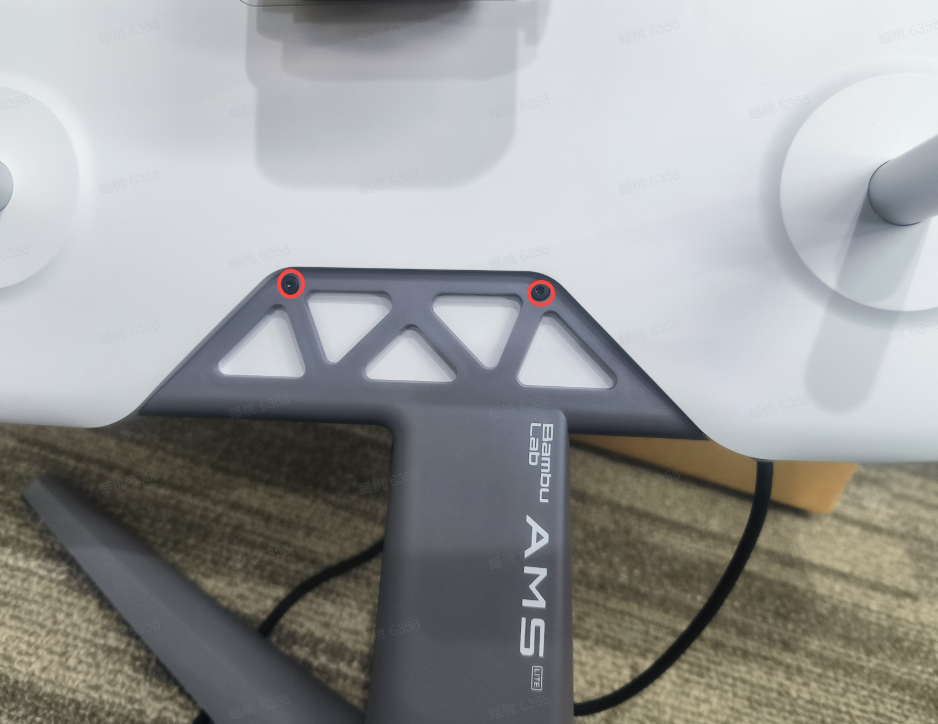

 AMS lite stand |

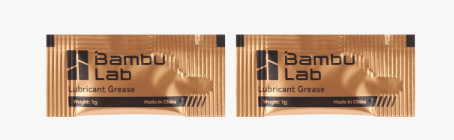

¶ Lubricant Grease
Item: Lubricant Grease (1g) * 3
Usage: Used for lubricating the lead screw, Y-axis guide rail steel rod, and extruder wheel of A1. Please note that it is strictly prohibited to use lubricant grease on the X-axis rail.
Guide: A1 mini Maintenance Guidelines | Bambu Lab Wiki

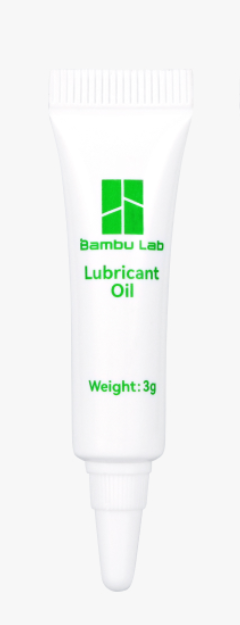

¶ Lubricant Oil
Item: Lubricant Oil (3g) * 1
Usage: Used for rail tracks, noise reduction of idler wheels, etc. Theoretically, lubricant oil can be used in any position, but it evaporates more easily. For example, lubricant oil on the guide rail may dry out relatively quickly, while lubricant grease has a longer effective usage time.
Guide:
A1 mini Maintenance Guidelines | Bambu Lab Wiki
Guide on how to lubricate the A1 mini Y-axis guide rail | Bambu Lab Wiki

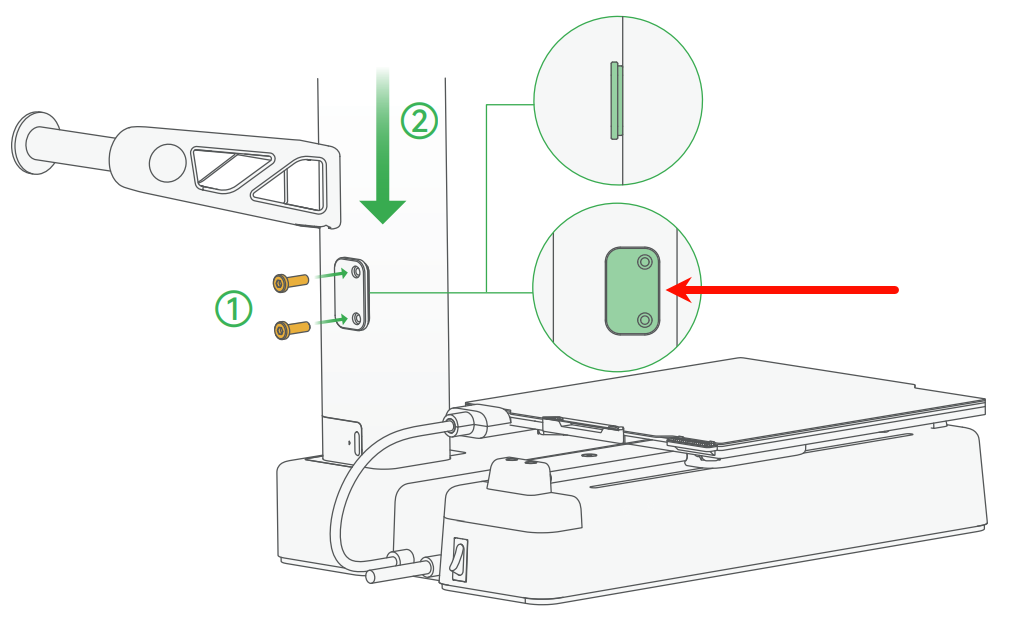

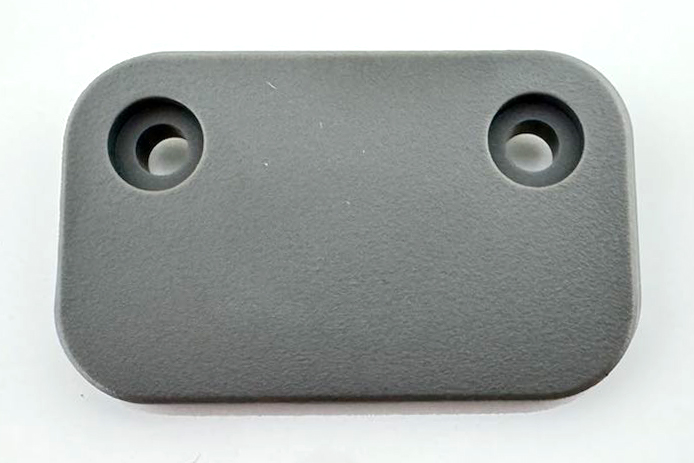

¶ Spool Holder Base
Item: Spool Holder Base * 1
Usage: Used for Spool Holder.
Location:
¶ Cable Organizer
Item: Cable Organizer * 1

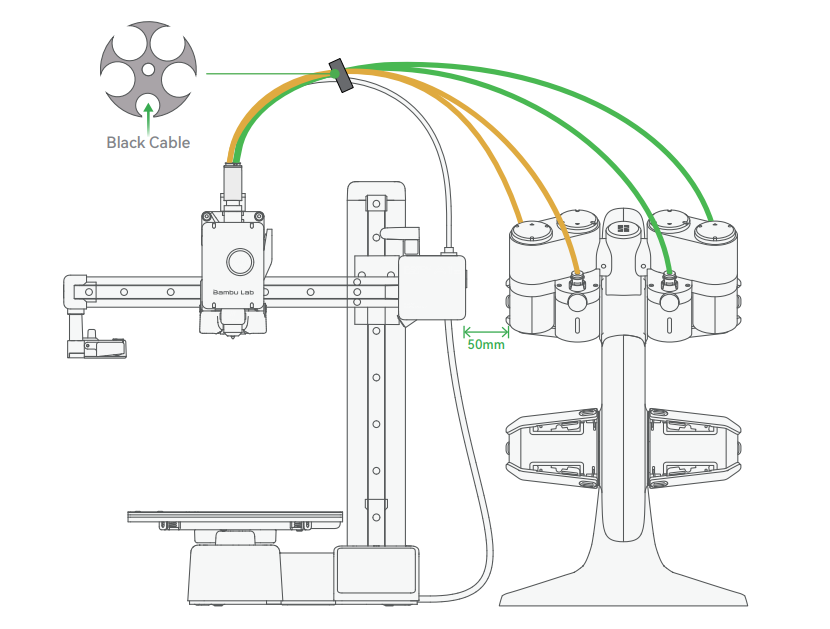

Usage: Install the organizer as shown in the diagram. Clip the black cable into the smaller hole and secure the PTFE tubes into the other four larger holes. Please note that the cable organizer should be positioned close to the end of the tool head instead of the AMS lite.
Location:
 Press the cord in |
 Press it into the PTFE tubes |
¶ Unclogging Pin Tool
Item: Unclogging Pin Tool * 1
Usage: Special unclogging tool for the 0.4 mm hotend.
Guide: A1 series Nozzle Unclogging Guide | Bambu Lab Wiki
¶ End Notes
We hope the detailed guide provided has been helpful and informative.
If this guide does not solve your problem, please submit a technical ticket, we will answer your questions and provide assistance.
If you have any suggestions or feedback on this Wiki, please leave a message in the comment area. Thank you for your support and attention!
