¶ Issue Description
The adaptive airflow system consists of the active chamber exhaust, filter switch flap, automatic top vent, and air duct. When the vents that make up the air duct system do not move in place or maintain normally, the adaptive air duct system cannot successfully switch to the corresponding air duct mode. This fault code means that the adaptive air duct system cannot successfully enter the cooling mode, and the fault needs to be eliminated in combination with the specific vents with abnormal movement.
¶ Safety Warning
It's crucial to turn off the printer and disconnect it from the power source before conducting any maintenance. This prevents short circuits or damage to the printer's electronics, ensuring safe and effective maintenance. For any concerns or questions about following this guide, we recommend submitting a technical ticket regarding your issue and we will do our best to respond promptly and provide the assistance you need.
¶ Troubleshooting
¶ Tools, Equipment and Materials
-
H2.0 Allen key
-
H1.5 Allen key
¶ Fault Isolation Process
In cooling mode, the opening and closing of the active chamber exhaust and the automatic top vent are related to the opening and closing of the chamber exhaust fan, while the filter flap will remain open.
-
When the chamber exhaust fan is turned on, the active chamber exhaust and the automatic top vent are opened;
-
When the chamber exhaust fan is turned off, the automatic chamber exhaust and the automatic top vent are closed;
-
The filter switch flap is always open;
Therefore, when you encounter this error, please first check whether it is an abnormal vent to narrow the scope of the fault.
¶ Solutions
You can adjust the order of these solutions as needed.
When an error occurs, please first check which vent is faulty, causing the abnormality.
¶ 1. Active chamber exhaust failure
Please refer to this Wiki: HMS_0300-C000-0001-0001: Active Chamber Exhaust malfunction: it may be stuck.
The active chamber exhaust is installed on the right inner lining of the printer with the chamber exhaust fan mounted on its inner side. When the chamber exhaust is open, it allows the air inside the printer chamber to be vented out, while closing it provides a sealed environment for the printer. A total of 7 active chamber exhausts are installed on the printer.
 |
 |
|---|---|
| Active chamber exhaust and chamber exhaust fan | Active chamber exhaust |
¶ 2. Automatic top vent failure
Please refer to this Wiki: HMS_0300-C000-0001-0003: Automatic Top Vent malfunction: it may be stuck.

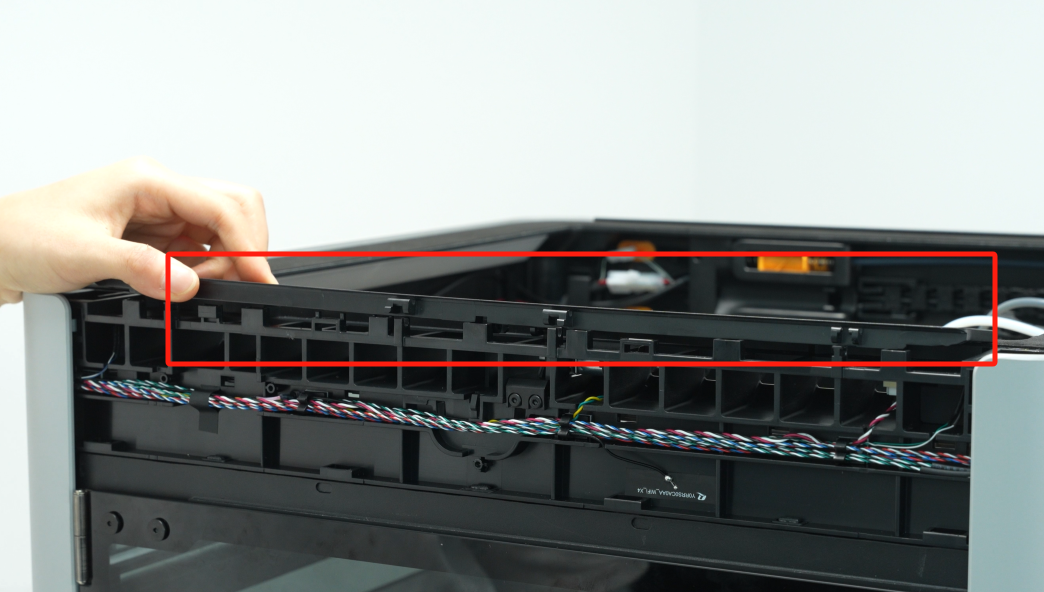

The automatic top vent is installed on the upper frame of the printer and controls the closing of the vent through a motor.
 |
 |
|---|---|
| Automatic top vent | Automatic top vent |
¶ 3. Filter switch flap failure
Please refer to this Wiki: HMS_0300-C000-0001-0002: Filter Switch Flap malfunction: it may be stuck.
The filter switch flap is installed on the inside of the right liner of the printer (the side close to the printer chamber) to controls whether air circulates through the filter.
 |
 |
|---|---|
| Filter switch flap | Filter switch flap |
¶ End Notes
We hope the detailed guide provided has been helpful and informative.
If this guide does not solve your problem, please submit a technical ticket, will answer your questions and provide assistance.
If you have any suggestions or feedback on this Wiki, please leave a message in the comment area. Thank you for your support and attention!
