The clog is a common problem in 3D printing, which can be divided into two types: extruder clog and nozzle clog. You can refer to this wiki for troubleshooting and cleaning: How to check which part is clogged | Bambu Lab Wiki. And it is best to confirm in advance whether the nozzle and heat bed temperature is set correctly for the printing filaments: Filament & plate compatibility and parameter settings | Bambu Lab Wiki
Extruder clog is usually due to filament deformation stuck inside, causing it to fail to extrude and unload smoothly. Common causes and corresponding solutions are as follows:
1. The chamber temperature of the printer is too high, and the filament such as PLA and PETG is squished by the gear after becoming soft and stuck in the gear of the extruder.
2. The gear of the extruder is abnormal, resulting in the extrusion is not smooth
3. The filament is too soft
4. The diameter of the filament is too large or too small
Nozzle clog is usually due to insufficient temperature or particles inside the nozzle resulting in the molten filament can not be smoothly extruded, you can try the following methods to solve:
1. Nozzle melting speed is too slow leading to clogging:
2. The channel inside the nozzle is narrowed, which prevents the molten filament from being extruded smoothly
Cause: When printing the overhanging surface, the extruded filament is not cooled in time and bonds to the specified position, resulting in dropping, which is usually shown as follows:
It is recommended to try the following methods:
1. Enable support.
2. Reduce the print speed appropriately, or enable "Slow down for overhang", and further reduce the overhang speed if necessary (as shown in the picture below)

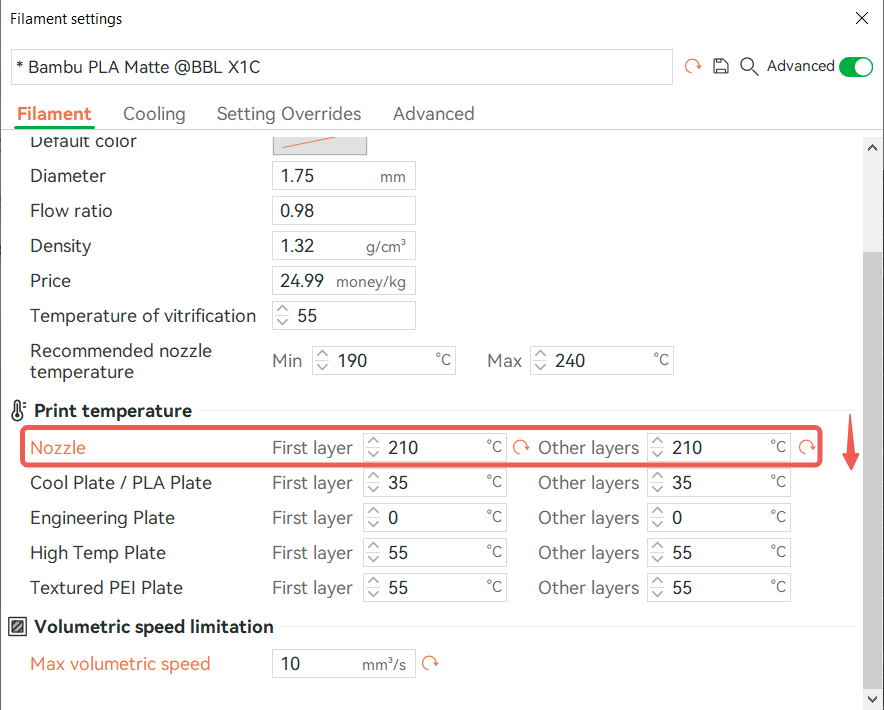

3. Properly reduce the nozzle temperature. When the overhanging part is printed at a slower speed, the nozzle temperature can be lowered for printing, which also helps to reduce the requirement for cooling.
4. Increase the speed percentage of the Auxiliary Part Cooling Fan and Cooling Fan for Hotend appropriately. If the overhang quality is consistently poor, please check if the Cooling Fan for Hotend and Auxiliary Part Cooling Fan works properly during the printing process. This can be tested by switching and adjusting the fan speed percentage in the slicer (as shown below).
5. Open the front door and the top glass cover of the printer for better heat dissipation. (This is generally only applicable to PLA, PETG, and TPU filaments. Operating in this way for other filaments may cause warping and weaker layer adhesion due to excessively low chamber temperature.)
The poor quality of bridging is because the extruded filament is not smoothly bridged. The common causes and corresponding solutions are as follows:
1. The bridge distance is too long - Enable support.
2. The bridge speed is too high and the bridge flow is too low, causing the bridge to be pulled off - adjust the bridge speed down appropriately or (and) enable the ‘Thick bridges’.
3. The bridge speed is low and the bridge flow is high, causing the bridge to sag - appropriately increase the bridge speed or (and) reduce the bridge flow.
4. Insufficient cooling of the bridging filament - properly reduces the nozzle temperature and increases the speed percentage of the Auxiliary Part Cooling Fan and Cooling Fan for Hotend to accelerate cooling.
Printing warping, falling off, or collapsing is usually caused by shrinkage during printing and insufficient adhesion to the build plate. After warping, a horizontal line may appear on the printing surface due to the reduced distance between the warped part and the nozzle, resulting in the extrusion of the layer being flattened and overflowing. As shown below:
The following are potential reasons for the issue and their corresponding solutions:
1. The model is too thin and tall, with a high center of gravity, and the printing process falls off and collapses due to shaking.
2. Nozzle hit printing.
3. Prints warping is usually caused by insufficient adhesion between the model and the buid plate, too fast cooling of the model, or excessive partial shrinkage of the model. The larger the size of the prints, the easier it is to shrink, and the higher the infill density, the easier it is to shrink; ABS, ASA, PC, POM, PP, PA, and PA-CF are more likely to shrink.
Insufficient adhesion between the printing model and the build plate.
(1) The model itself: Avoid printing large models with a large surface area in direct contact with the heat bed. If it is necessary to print a large model, consider dividing it into smaller parts or rotating the model at an angle. Tilting the larger part at an approximate 45° angle in the Z-direction can be beneficial. It is important to note that the interlayer strength of a model is usually significantly lower than the strength vertical to the interlayer, meaning that the strength in the Z direction is usually significantly lower than the strength in the X and Y directions. Therefore, if you require a high load-bearing capacity for a model, avoid having the layers bear the main load. When arranging models, ensure that the interlayer does not become the primary load-bearing area. For example, if you want to print a large structural part that needs to bear a great load with PA-CF, you can refer to the following picture for arranging.
Arranging the models as shown in Picture A results in a large contact area between the model and the heatbed, which means that a significant portion of the model lies in the X and Y directions. This arrangement provides strength advantages, but it also increases the risk of warping — Not recommend.
Arranging the model as shown in Picture B results in a very small contact area between the model and the heatbed, meaning that the percentage in the X and Y directions is minimal. This arrangement helps to avoid warping, but it also has the disadvantage of a significantly larger percentage in the interlayer (Z direction), resulting in lower strength for the model — Not recommend.
By arranging the model as shown in Picture C, the model will have a similar percentage in the X&Y and Z directions, which helps to prevent warping while maintaining strength. It's important to note that this arrangement may result in more overhang areas. To solve this, appropriate support needs to be added to the model. You can turn on auto support or finish support painting manually, depending on the characteristics of the models.
(2) Filament selection: It is important to note that high-temperature filaments such as ABS, ASA, PC, PA, PA-CF and others are more easily to warp. Therefore, it is advisable to avoid them whenever possible for large-size prints. Instead, It is recommended to select filaments like PLA, PLA-CF, PETG, PETG-CF, PET-CF and others that are less prone to warping.
Sometimes, after printing for a period of time, a small part of the extruded filament adheres to the nozzle, resulting in a lack of material, roughness, and other phenomena in the printing model. More seriously, the nozzle will have a large mass of material, resulting in printing failure. The following figure shows a typical filament-sticking nozzle phenomenon.
This problem generally occurs when printing PETG filaments, which include ordinary PETG and PETG-CF. Bambu PETG Basic and Bambu PETG-CF are specially formulated and optimized, so the probability of sticking nozzle is much lower than other brands of PETG and PETG-CF in the market. And even if the sticking nozzle occurs, the impact is very slight and rarely leads to defects in the print. However, in some special cases, sticky nozzle problems will still occur, the following is the corresponding solution.
1. The filament is damp;
Although the water absorption rate of PETG filament is relatively low, after exposure to humid air for a certain time, the filament will still be damp, and the greater the ambient humidity, the faster the filament will be damp, resulting in problems such as sticking nozzle, stringing, oozing, and rough print surface. The reason is that when the water vapor carried by the filament passes through the nozzle, it will expand violently due to the heat, which causes the melt at the nozzle to expand and spread around, and when a part of it adheres to the outer wall of the nozzle, it may cause the sticking nozzle. The corresponding solution is to put the filament roll in a blast oven, dry it at 65 to 75 ° C for about 8 hours, or use an X1C heat bed to dry the filament (please refer to Procedure and 3mf file for drying filament with the X1C heatbed | Bambu Lab Wiki).
2. The flow ratio is too large
For PETG filaments, the recommended flow ratio is between 0.93-0.96. If it is lower than 0.93, the risk of material shortage will increase, and the interlayer bond strength of the model will be low. If it is higher than 0.96, the model strength will be higher, but the risk of leakage and sticking nozzle will be increased. The default flow ratio of Bambu PETG Basic and Bambu PETG-CF is 0.95. Do not increase it at will. When you are using these two filaments after drying (very important) to print some models and have a sticky nozzle problem, try to slightly reduce this value to between 0.93 and 0.94.
3. Printing speed is too low or printing temperature is too high.
In general, the higher the printing speed, the more filaments need to be melted per unit of time, and the higher the nozzle temperature required. When the printing speed is very high, the nozzle temperature needs to be properly adjusted to avoid insufficient melting of the filament, resulting the material shortage. On the contrary, when the printing speed is very low, the heating time of the filament in the nozzle is longer, the melting is more thorough, and the fluidity of the melt is stronger. At this time, if the nozzle temperature is not properly lowered, it may cause problems such as string, material leakage, and sticking nozzle. Therefore, when you reduce the printing speed and maximum volumetric speed (corresponding to the highest printing speed), please reduce the nozzle temperature appropriately at the same time.
This is usually caused by insufficient extrusion, and there are two phenomena: overall under-extrusion and local under-extrusion.
Overall under extrusion, usually, the lines will be sparse, as shown in the following figure:
Part of the model lacks material, as shown below:
The following are potential reasons for the issue and corresponding solutions:
1. Excessive extrusion resistance
2. The extrusion volume is too small
The melting and extrusion speed of the filament cannot keep up with the printing speed - increase the nozzle temperature or decrease the printing speed appropriately. If you want to turn on "Ludicrous Mode" (higher speed printing), it is better to increase the nozzle temperature ( about 10 °C) to increase the melting speed of the filaments. If you want to use third-party filaments (which may not support high-speed printing), please select the Generic parameter for slicing and printing with a relatively low printing speed.
3. Inappropriate PA value
When the model is short of material at the corner (figure below), then it is likely that the pressure advance value is set incorrectly and the flow needs to be recalibrated.
The function of flow calibration is to ensure that the filament extruded by the extruder can remain uniform when the tool head is moving during printing, avoiding excessive or insufficient material at the accelerating or decelerating nodes. If the pressure advance value is wrong, it may lead to the instantaneous extrusion of too much or too little filament. The flow calibration method of P1P and X1 series printers is shown in the following figure:
The essence of flow calibration is to find a suitable extrusion compensation value to ensure the uniform extrusion line during the acceleration and deceleration movement of the tool head.
Cause: excessive nozzle extrusion or abnormal expansion and flow of molten filament.
1. Damp filament - It is recommended to dry the filament first and then use it in an airtight container with desiccant. You can refer to this wiki to dry filament: Procedure and 3mf file for drying filament with the X1C heatbed | Bambu Lab Wiki
2. The model has a long travel distance and a small retraction length, which causes the filament to flow out of the nozzle during travel - when printing multiple models, reduce the spacing between the models, and appropriately increase the retraction length or retraction speed. Note: When the retraction length is set too large, it is easy to cause the plug, and it is generally recommended not to exceed 2 mm.
3. The model has special structure or improper placement. When there are more discontinuous structures in a single model and the spacing between the models is large, there will be long-distance traveling in the printing, so the melted filament will drip down during traveling, resulting in defects such as stringing and ozzing. In this case, the placement distance between models can be reduced. You can also enable "Avoid crossing walls" to reduce the probability of stringing.
4. The nozzle temperature is too high, resulting in the viscosity of the molten filament being too small - properly reduce the nozzle temperature.
5. When using low-density filaments (such as LW- PLA), the print temperature or flow ratio is not properly set - it is recommended to properly reduce the print temperature and set the flow ratio between 0.5 and 0.7. Low-density filament, such as LW-PLA, there are more holes and gas (water) in the interior, and the printing process will produce gas, which will cause the molten filament to produce a large expansion, so it is recommended to dry the filament before printing and set a lower flow ratio when slicing.
6. The nozzle aperture is too large, resulting in more filaments flowing out of the nozzle.
Direct cause: the printing temperature is the same, the lower the printing speed, the brighter the surface; At the same printing speed, the higher the printing temperature, the brighter and smoother the surface. The essence is that the degree of material melting is different, the fluidity is different, resulting in the surface roughness of the printing model is different, and this phenomenon is more obvious when printing materials with good reflectivity.
1. The printing speed of different areas of the model is significantly different (such as slow down for overhangs).
Reslice and reduce the speed of the outer wall to make the speed of the different areas as consistent as possible:
2. When printing the model with a low layer height (such as 0.08 mm height), if the printing speed is high, it may also cause the surface of the model to appear like a fishscale gloss area.
Direct cause: Weak interlayer adhesion, resulting in model surface cracking, usually occurs in printing ABS, ASA, PC, PET-CF, PA-CF materials, as shown in the following figure:
The common reasons and improvement methods are as follows:
1. Insufficient extrusion, lack of material between layers.
2. The bonding strength of the filament is low or the structure of the model part is weak.
3. Excessive cooling.
In FDM 3D printing, a seam is formed at the junction of the starting point and the end point of each layer of printing, which is a normal phenomenon. To learn more about seams, refer to this wiki: Seam | Bambu Lab Wiki。
You can use the following methods to properly improve the quality of the seam:
1. Set the number of wall loops to 3;
2. Try to avoid printing multiple models on one plate to reduce tool head travel;
3. Appropriately raise the nozzle temperature and reduce the printing speed of the outer wall;
4. For some special models, you can enable the “Spiral vase” mode. When the "Spiral Vase" mode is enabled, the model will be printed in a linear spiral, and the seams will only appear on the bottom shell ayers , and not on the outer walls at all. Note: The model printed by this mode has only a single outer wall, no infill and top shell, and only applies to some simple models (complex models cannot be completed with a single line, resulting in some suspended sections when slicing). Please refer to this wiki for more details: Spiral Vase | Bambu Lab Wiki。
