¶ Accessory Box for XP Series
Please refer to the link below before performing any machine maintenance: Bambu Lab X1 Maintenance Recommendation | Bambu Lab Wiki

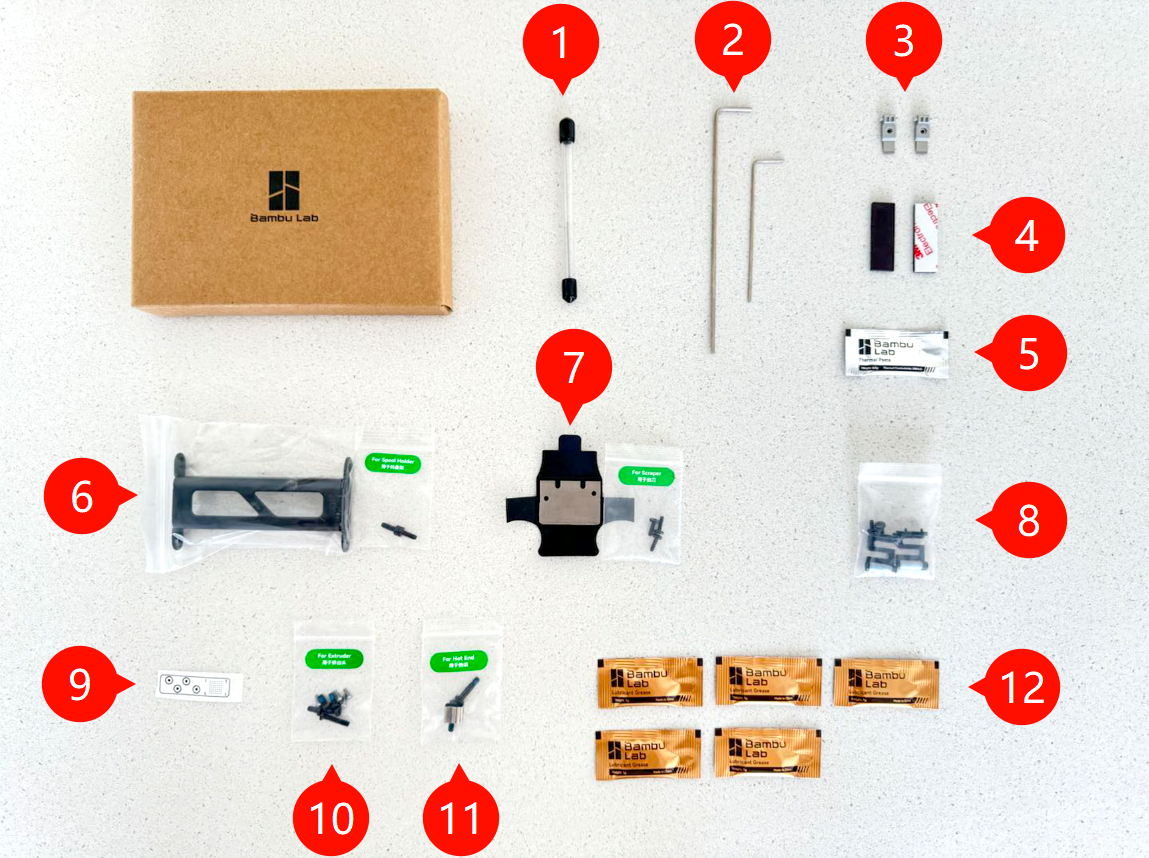

¶ Item list and locations

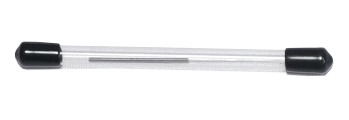

¶ 1. Unclogging Pin Tool
Item: Unclogging Pin Tool * 1
Usage: Special unclogging tool for the 0.4 mm hotend.
Guide: Nozzle/Hotend Unclogging Procedure for X1/P1 | Bambu Lab Wiki

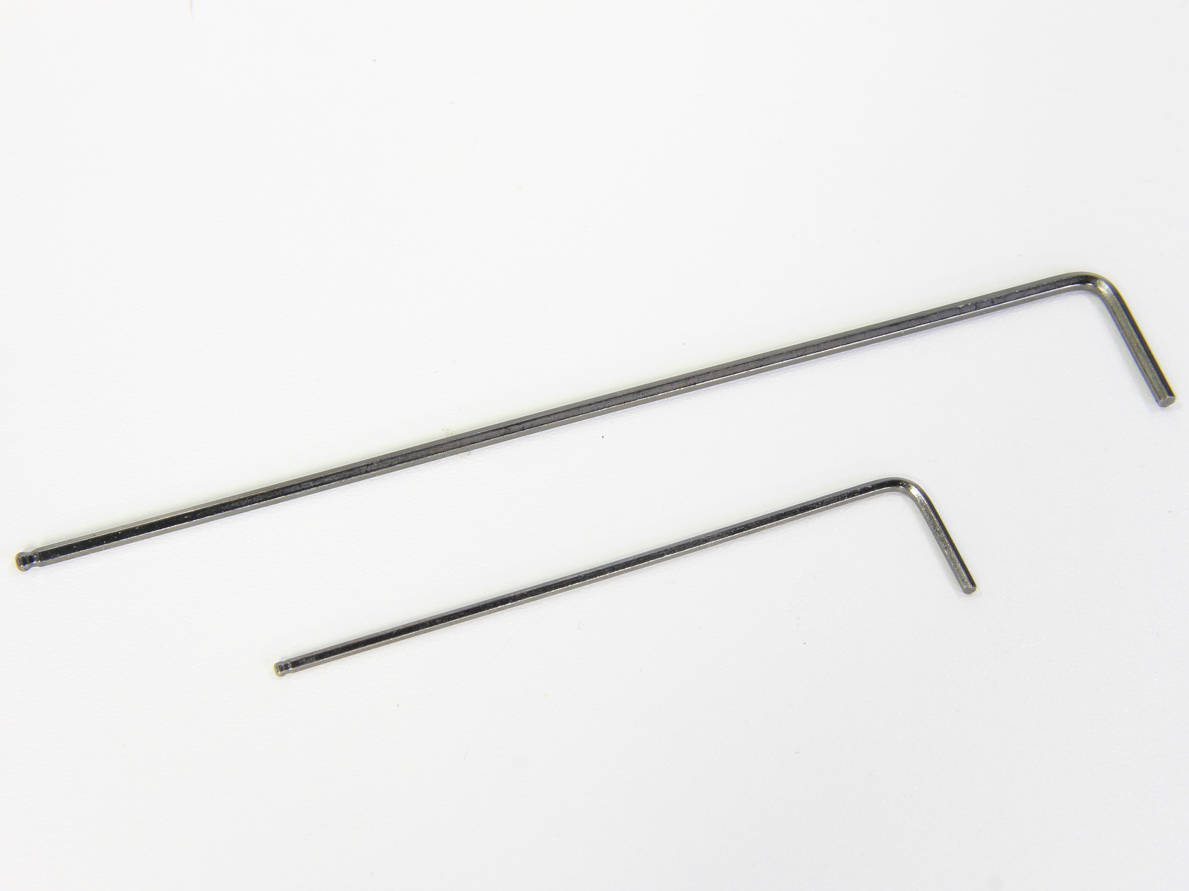

¶ 2. Allen keys (H2 and H1.5)
Item: H1.5 hex key * 1, H2.0 hex key * 1
Usage: Disassembly and assembly tools.
¶ 3. Filament Cutter
Item: Filament Cutter * 2
Usage: This spare filament cutter should be changed if there are problem with filament cutting, or when the filament cutter blade gets dull. The sharpness of the blade can become worse over time.
We recommend replacing the filament cutter every 10-15 spools of filament used (or quicker) to ensure the cutting performance is unaffected.
We have found that after about 5.000-7.000 filament cuts, the filament cutter blade can get dull but the blade might not get deformed as shown in the image below.
If you encounter issues with the AMS filament retractions, we recommend replacing the blade for the best results. If the blade is sharp, the filament will be cut cleanly and should not cause problems during operation.
Guide: Replace the Filament Cutter Replacement - X1 & P1 Series | Bambu Lab Wiki

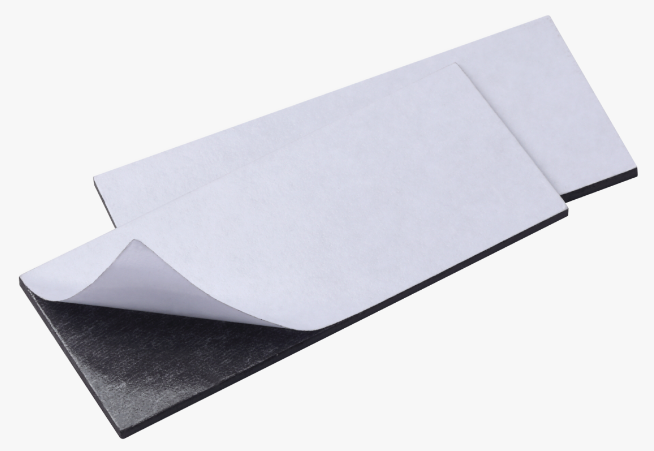

¶ 4. Rectangular Magnetic Stickers
Item: Rectangular Magnetic Stickers 36mmX12mmX2.5mm * 2
Usage: This product is easy to install and ideal for securing small and lightweight items for a variety of DIY projects. It features a firmly bonded liner with strong magnetism and is easy to bend and adjust, making it suitable for curved or irregular surfaces. The right-angled rectangle design fits snugly along right-angled edges without leaving any gaps.

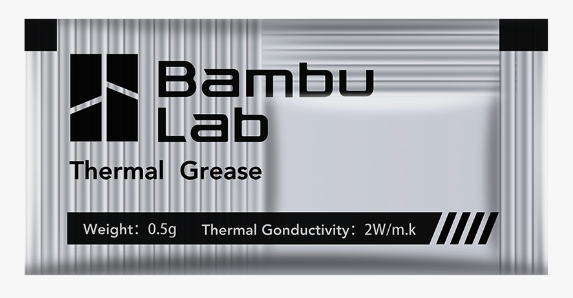

¶ 5. Thermal Paste
Item: Thermal Paste (1g) * 1
Usage: Improve the thermal conductivity of the thermistor, ceramic heater with the nozzle, which may be used when replacing the above accessories.
Guide: Replace the Hotend with Nozzle/Ceramic Heater/Thermistor/Hotend Fan | Bambu Lab Wiki

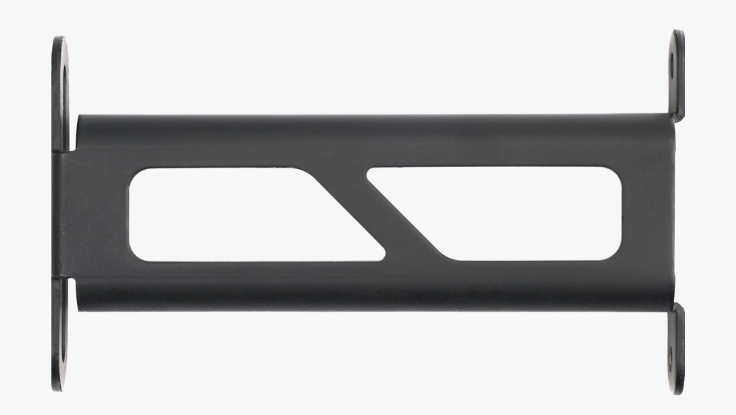

¶ 6. Spool Holder with two screws
Item: Spool Holder * 1, Screws * 2

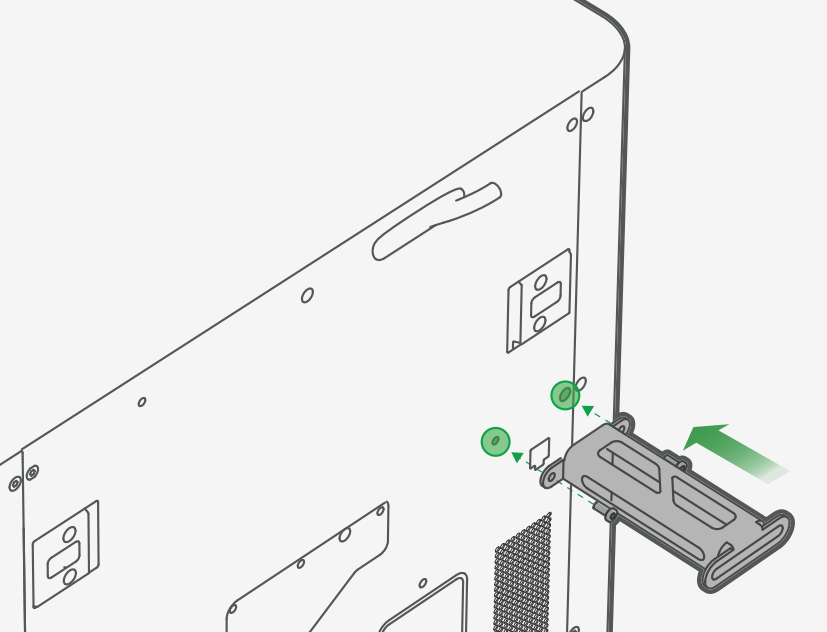

Usage: The Spool Holder is installed on the back of the printer, fixed with 2 screws.
Guide: Switch the filament from AMS to spool holder | Bambu Lab Wiki
Location:
¶ 7. Bambu Scraper Blade

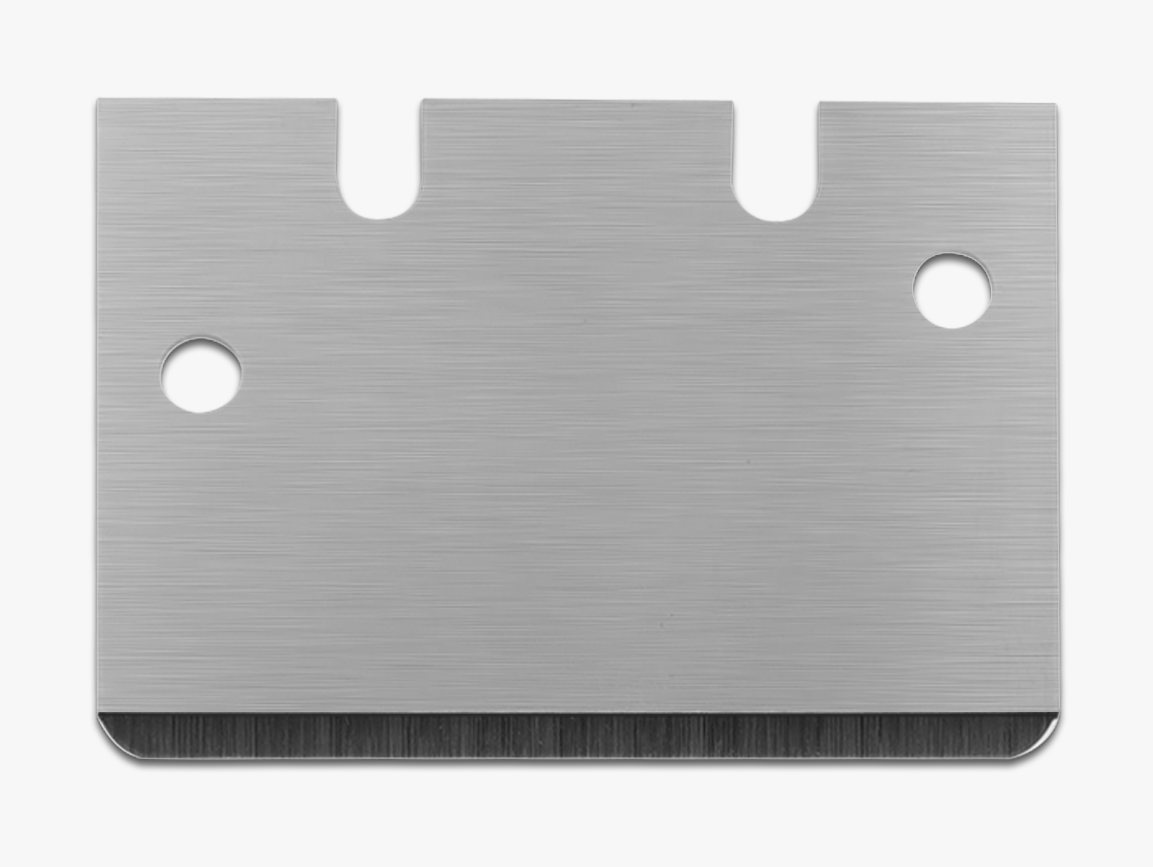

Item: Bambu Scraper Blade * 1, BT 2.6X8mm Screws * 3
Usage: Use with printed "Scraper grip" to assist in scraping tasks. Click here to print the scraper handle model.

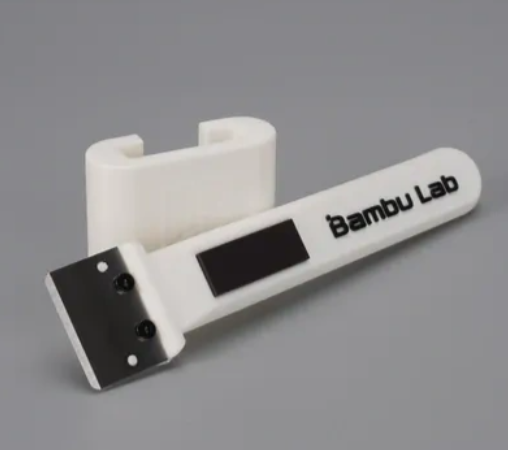

 Bambu Bed Scraper and the screw mounting locations |
 Bambu Bed Scraper |
Guide: How to install the Bambu scraper
¶ 8. Nozzle Wipers with two screws

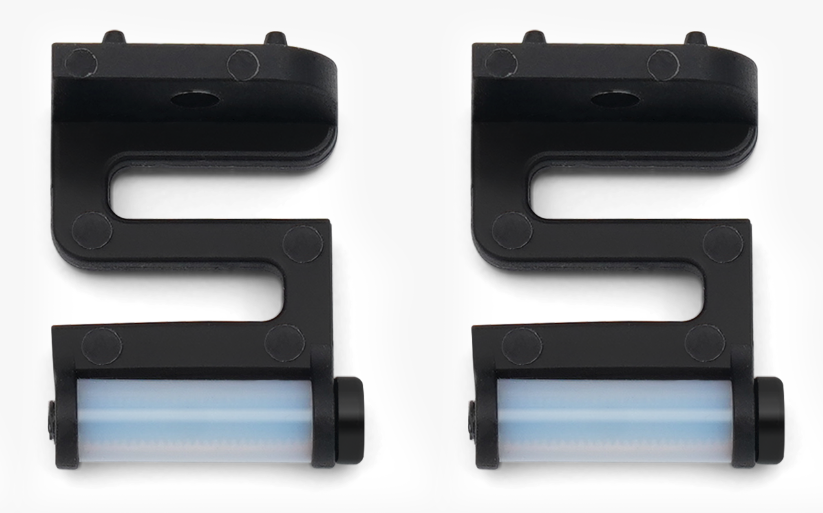

Item: Nozzle Wipers * 2, Screws * 2
Usage: The Nozzle Wiper is used to clean up the waste overflowing from the nozzle of the printer. It consists of PP elastic structure, PTFE tube, and a lock screw. When the PP elastic structure undergoes plastic deformation or fracture, the nozzle wiper can be replaced. When the PTFE tube becomes loose and can be rotated, please tighten the screws to ensure that the PTFE tube cannot be rotated (be careful not to over-tighten it to cause slippage).
Guide: Replacing the Nozzle Wiper | Bambu Lab Wiki

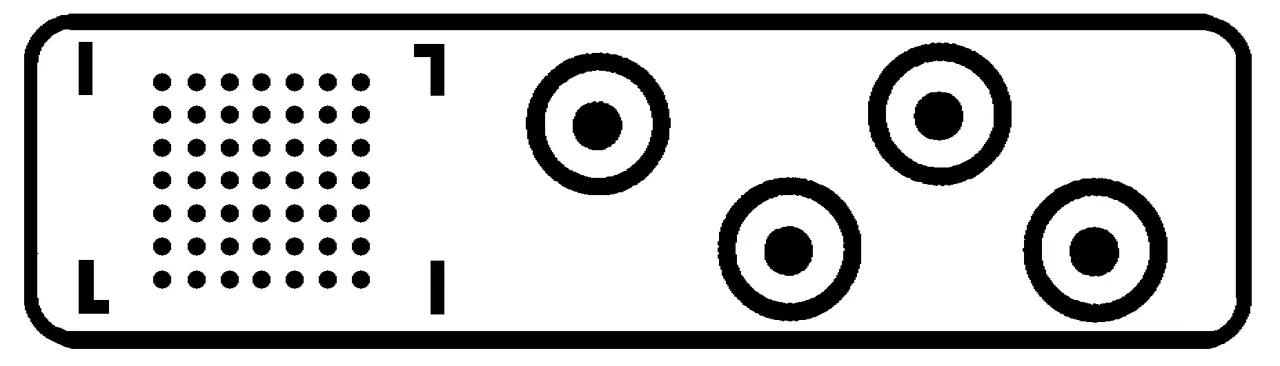

¶ 9. Lidar sticker
Item: Lidar sticker * 1
Usage: The LiDAR stickers are used to enhance the detection performance of the LiDAR, especially serving as an aid in calibration, recognition, and data acquisition.

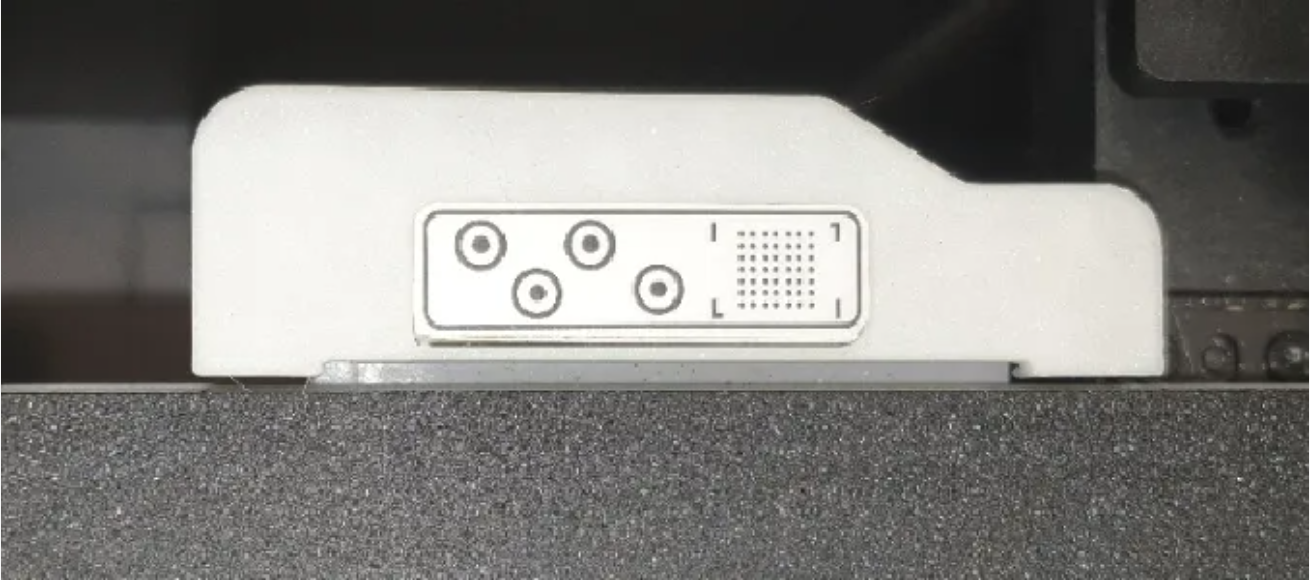

Location:

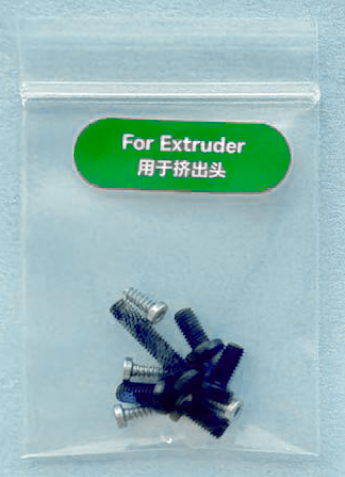

¶ 10. Screw Kit for Extruder
Item: M 3X6mm screws * 4
Usage: For XY/Z Motor and the AP Board
Location:

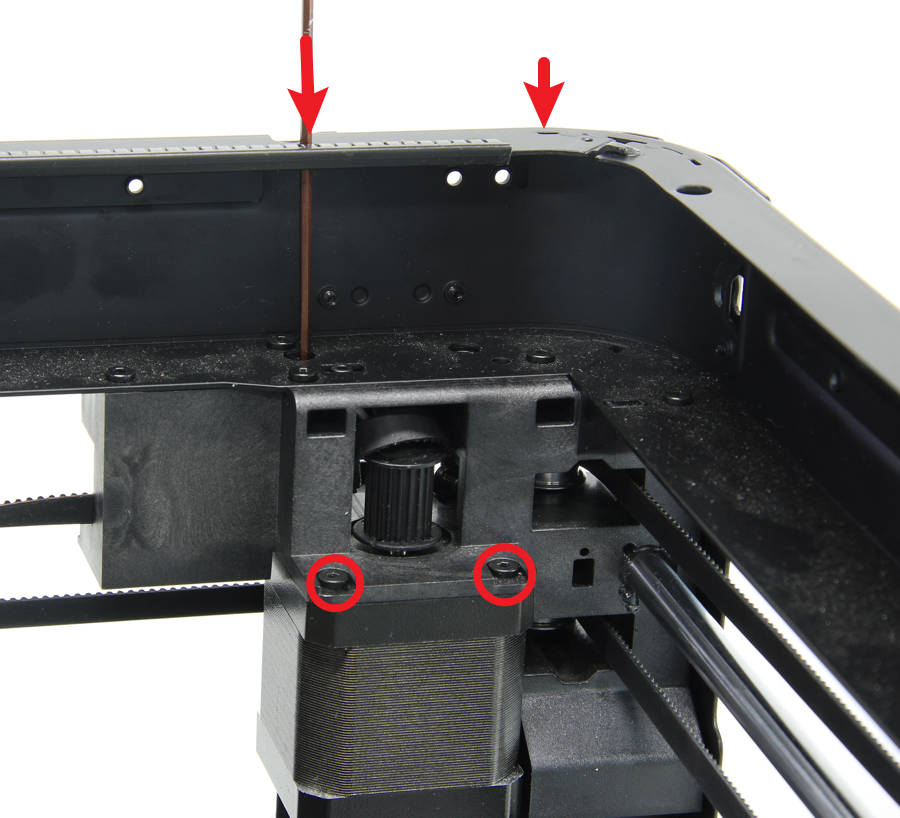

 XY/Z Motor |

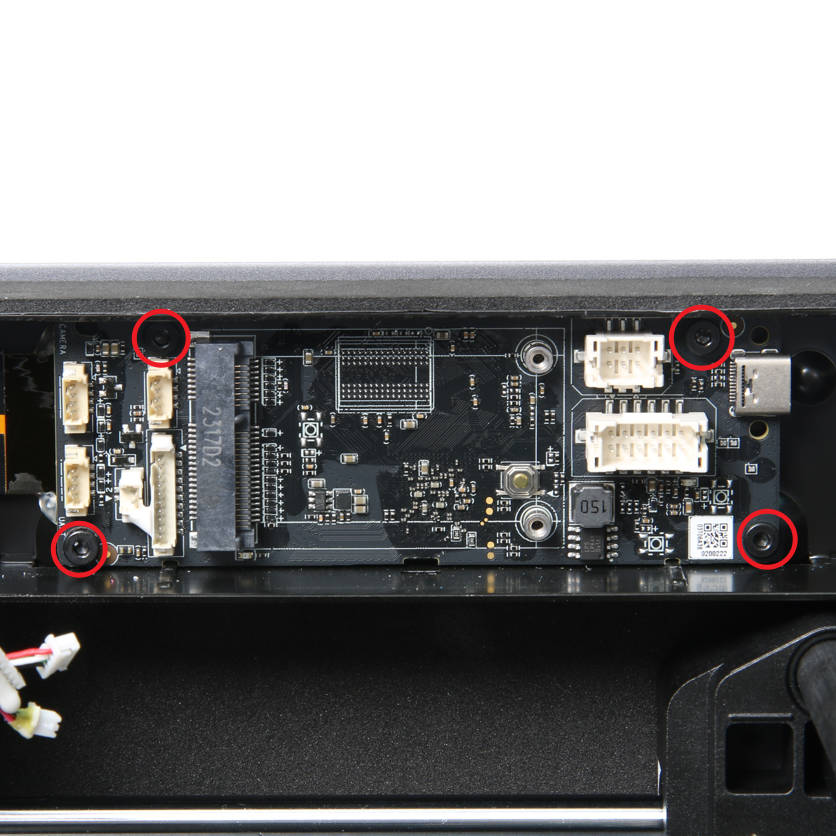

 AP Board |

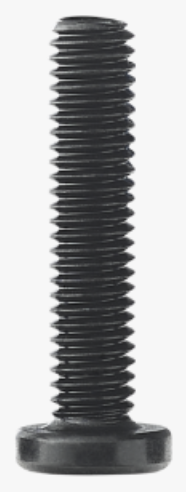

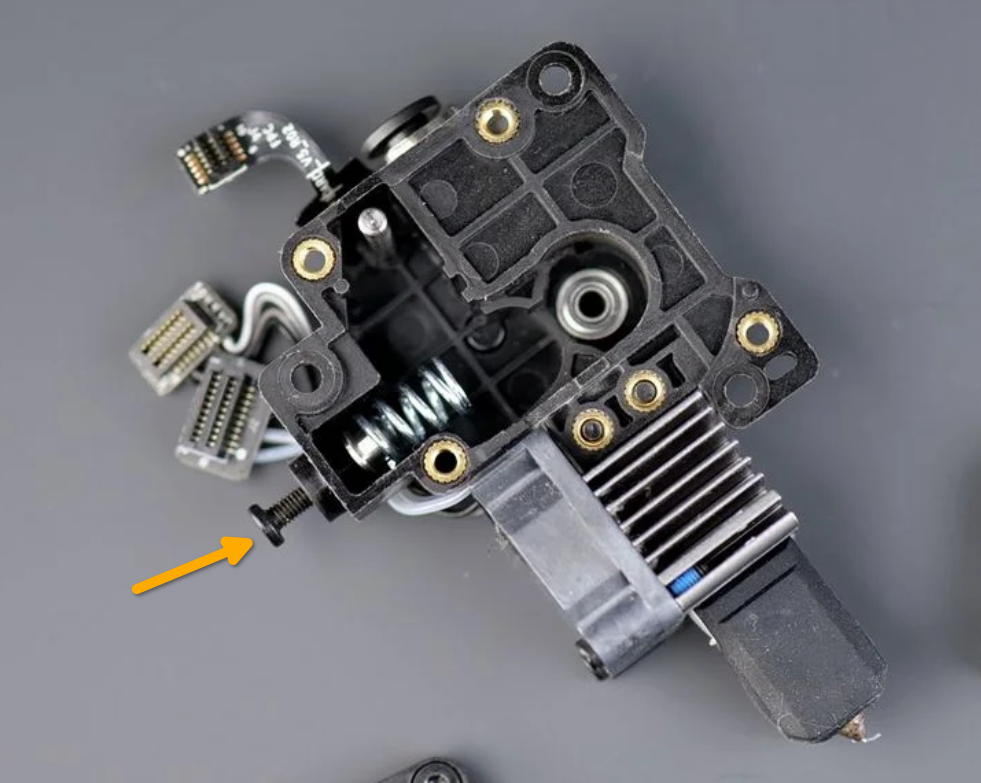

Item: M 3X14mm screws * 1
Usage: For cutter lever Driven gear of the Extruder Unit
Location:
Item: BT 2X5mm screws * 4
Usage: For toolhead housing and PCBs
Location:
 Toolhead housing |
 Toolhead housing |
¶ 11. Screw Kit for Hot End
Item: M 3X14mm Screws * 2, Retaining Clip * 1
Usage: Spare retaining clip and hot end retaining screws, which may be needed when replacing the hot end, the ceramic heater, or the thermistor.
Guide:
https://youtu.be/jHVe3194gJQ?si=qh-5SH1CGsQR8Pel
Complete hotend assembly Replacement Guide | Bambu Lab Wiki
¶ 12. Lubricant Grease

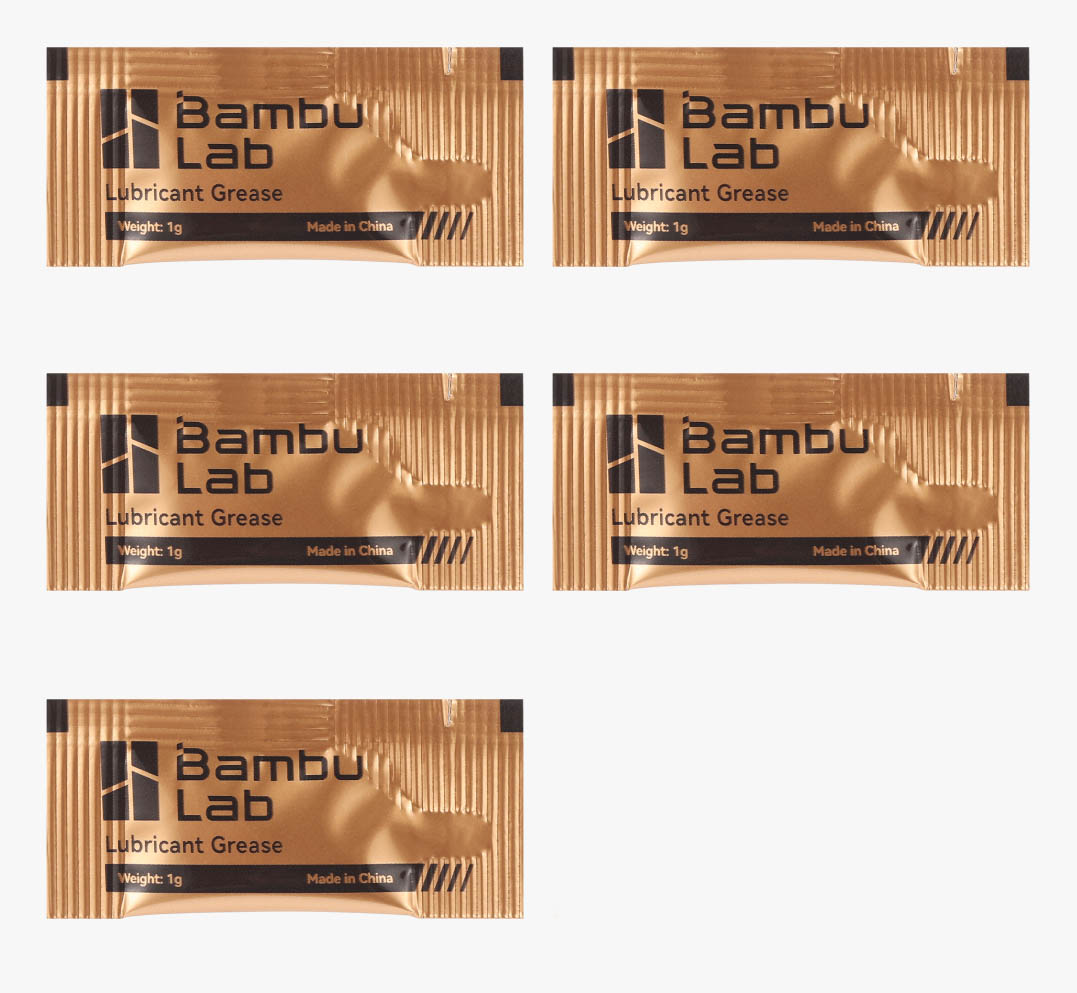

Item: Lubricant Grease (1g) * 5
Usage: First, it must be emphasized that lubricating grease absolutely cannot be used on the X-axis carbon rods of the X1 and P1. Grease is used to lubricate lead screws, or to eliminate noise issues between belts and idle pulleys.
Guide: Bambu Lab X1 Maintenance Recommendation | Bambu Lab Wiki
