¶ Accessory Box for P1P
Please refer to the link below before performing any machine maintenance: Bambu Lab P1 series printer Maintenance Recommendation | Bambu Lab Wiki
¶ Item list and locations
¶ 1. Unclogging Pin Tool
Item: Unclogging Pin Tool * 1
Usage: Special unclogging tool for the 0.4 mm hotend.
Guide: Nozzle/Hotend Unclogging Procedure for X1/P1 | Bambu Lab Wiki
¶ 2. Allen keys (H2 and H1.5)
Item: H1.5 hex key * 1, H2.0 hex key * 1
Usage: Disassembly and assembly tools.
¶ 3. Rectangular Magnetic Stickers
Item: Rectangular Magnetic Stickers 36mmX12mmX2.5mm * 2
Usage: This product is easy to install and ideal for securing small and lightweight items for a variety of DIY projects. It features a firmly bonded liner with strong magnetism and is easy to bend and adjust, making it suitable for curved or irregular surfaces. The right-angled rectangle design fits snugly along right-angled edges without leaving any gaps.

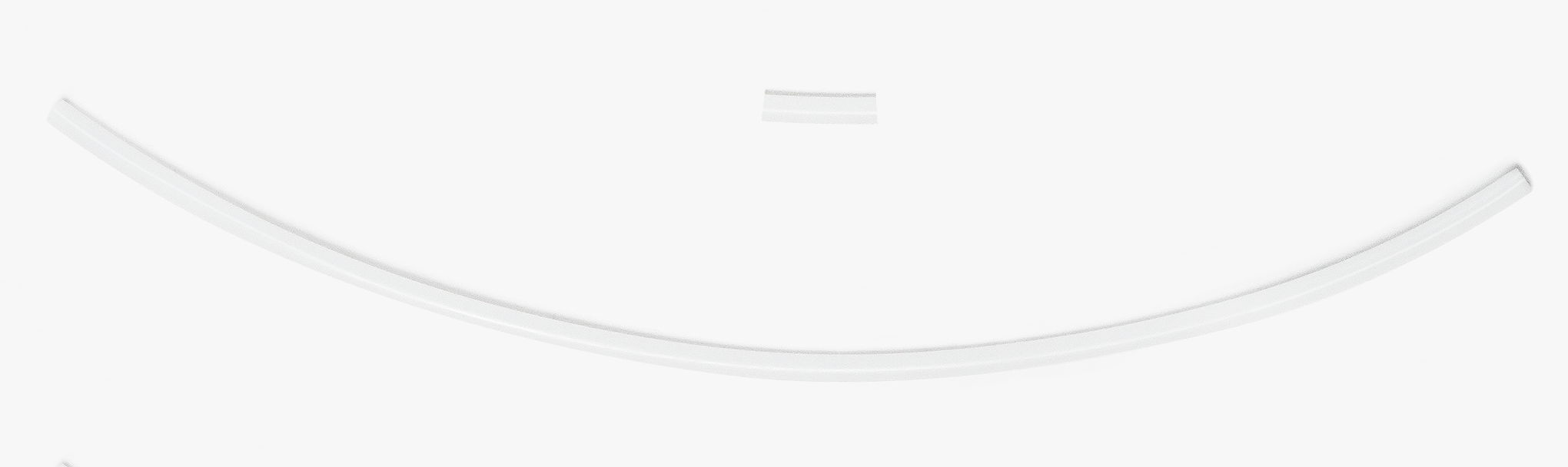

¶ 4. PTFE Tubes
Item: PTFE Tube 530mm * 1
Usage: The function of PTFE Tube is to reduce resistance and guide filament. The tube’s inner diameter is 2.5mm, and its outer diameter is 4mm. Please note that the PTFE tubes are consumables and are at risk of wear, as they may rub against the filament over time. We recommend that you check the PTFE tubes for wear during your maintenance of the machine. If the tubes are worn and not replaced in time, this may lead to feeding failures, filament accumulation inside the AMS, etc.
Guide: PTFE Tube Wear in AMS and Maintenance Recommendations | Bambu Lab Wiki
¶ 5. Spool Holder with two screws
Item: Spool Holder * 1, Screws * 2
Usage: The Spool Holder is installed on the back of the printer, fixed with 2 screws.
Guide: Switch the filament from AMS to spool holder | Bambu Lab Wiki
Location:

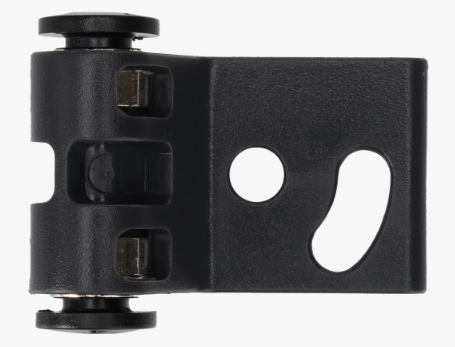

¶ 6. PTFE Tube Coupler (w/ holder) with two screws
Item: PTFE Tube Coupler (w/ holder) * 1, screws * 2, PTFE Tube 30mm * 1
Usage: The PTFE Tube Coupler is a component used to connect the PTFE tube, which is mounted on the back of the printer and used to connect the PTFE tube between the buffer and the tool head.
Guide: PTFE Coupler | Bambu Lab Wiki

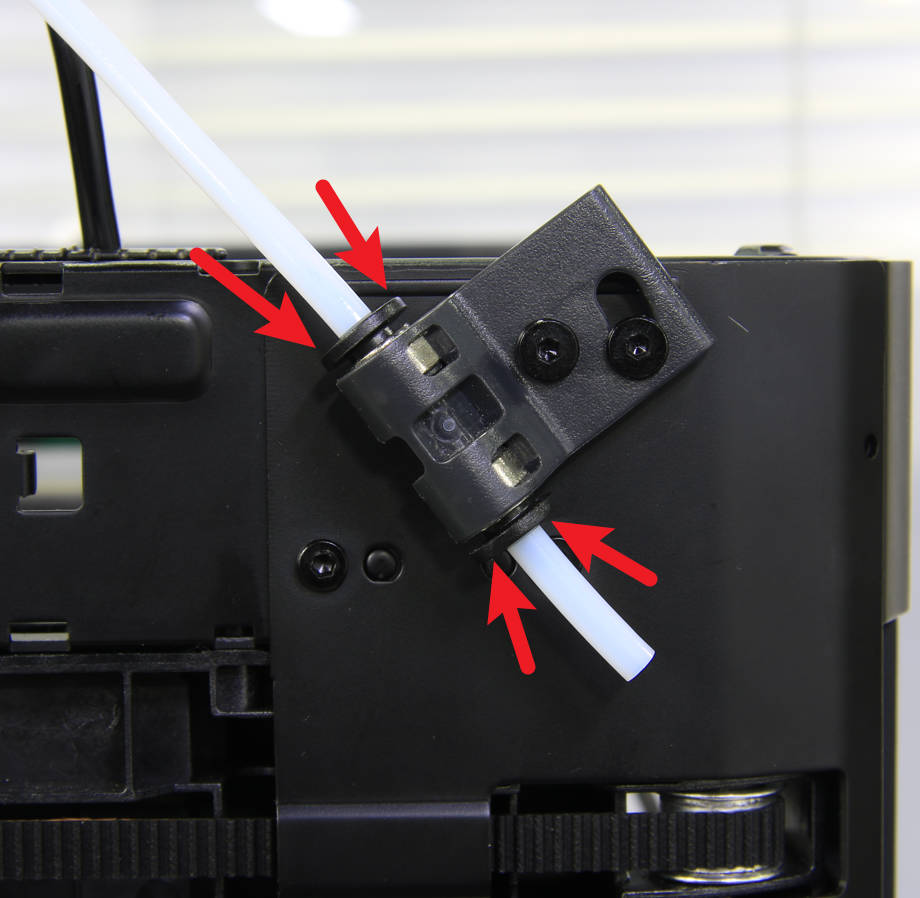

 Disconnect the PTFE tubes |

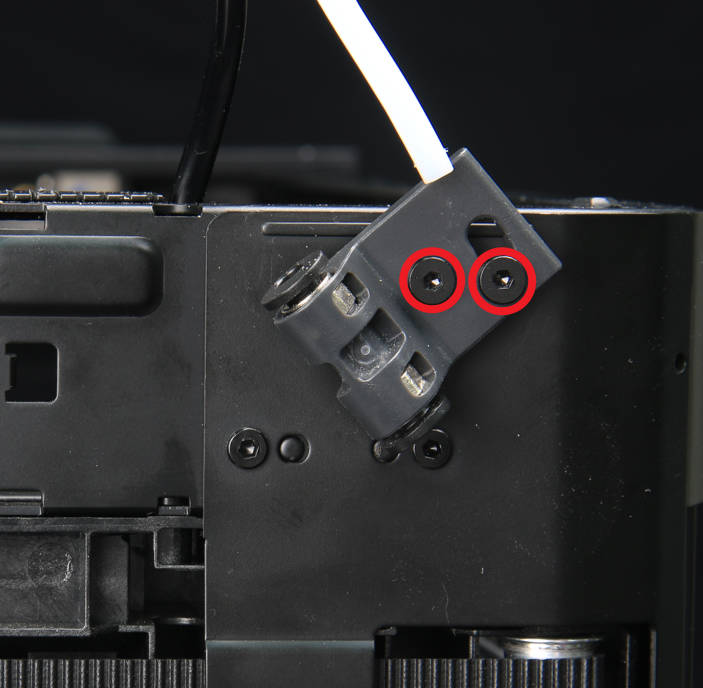

 Remove the PTFE coupler |
¶ 7. Bambu Scraper Blade
Item: Bambu Scraper Blade * 1, BT 2.6X8mm Screws * 3
Usage: Use with printed "Scraper grip" to assist in scraping tasks. Click here to print the scraper handle model.
 Bambu Bed Scraper and the screw mounting locations |
 Bambu Bed Scraper |
Guide: How to install the Bambu scraper
¶ 8. Nozzle Wipers with two screws
Item: Nozzle Wipers * 2, Screws * 2
Usage: The Nozzle Wiper is used to clean up the waste overflowing from the nozzle of the printer. It consists of PP elastic structure, PTFE tube, and a lock screw. When the PP elastic structure undergoes plastic deformation or fracture, the nozzle wiper can be replaced. When the PTFE tube becomes loose and can be rotated, please tighten the screws to ensure that the PTFE tube cannot be rotated (be careful not to over-tighten it to cause slippage).
Guide: Replacing the Nozzle Wiper | Bambu Lab Wiki

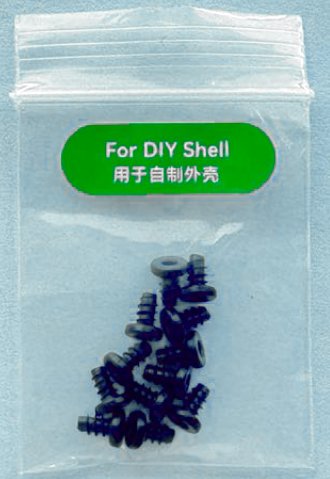

¶ 9. Screw Kit for DIY Shell
Item: screws * 12
Guide: P1P Modplate Customization | Bambu Lab Wiki
Location:
¶ 10. Screw Kit for Extruder
Item: M 3X6mm screws * 4
Usage: For XY/Z Motor and the AP Board
Location:
 XY/Z Motor |
 AP Board |
Item: M 3X14mm screws * 1
Usage: For cutter lever Driven gear of the Extruder Unit
Location:
Item: BT 2X5mm screws * 4
Usage: For toolhead housing and PCBs
Location:
 Toolhead housing |
 Toolhead housing |
¶ 11. Screw Kit for Hot End
Item: M 3X14mm Screws * 2, Retaining Clip * 1
Usage: Spare retaining clip and hot end retaining screws, which may be needed when replacing the hot end, the ceramic heater, or the thermistor.
Guide:
https://youtu.be/jHVe3194gJQ?si=qh-5SH1CGsQR8Pel
Complete hotend assembly Replacement Guide | Bambu Lab Wiki
¶ 12. Thermal Paste
Item: Thermal Paste (1g) * 1
Usage: Improve the thermal conductivity of the thermistor, ceramic heater with the nozzle, which may be used when replacing the above accessories.
Guide: Replace the Hotend with Nozzle/Ceramic Heater/Thermistor/Hotend Fan | Bambu Lab Wiki
¶ 13. Lubricant Grease
Item: Lubricant Grease (1g) * 5
Usage: First, it must be emphasized that lubricating grease absolutely cannot be used on the X-axis carbon rods of the X1 and P1. Grease is used to lubricate lead screws, or to eliminate noise issues between belts and idle pulleys.
Guide: Bambu Lab X1 Maintenance Recommendation | Bambu Lab Wiki
¶ End Notes
We hope the detailed guide provided has been helpful and informative.
If this guide does not solve your problem, please submit a technical ticket, we will answer your questions and provide assistance.
If you have any suggestions or feedback on this Wiki, please leave a message in the comment area. Thank you for your support and attention!
